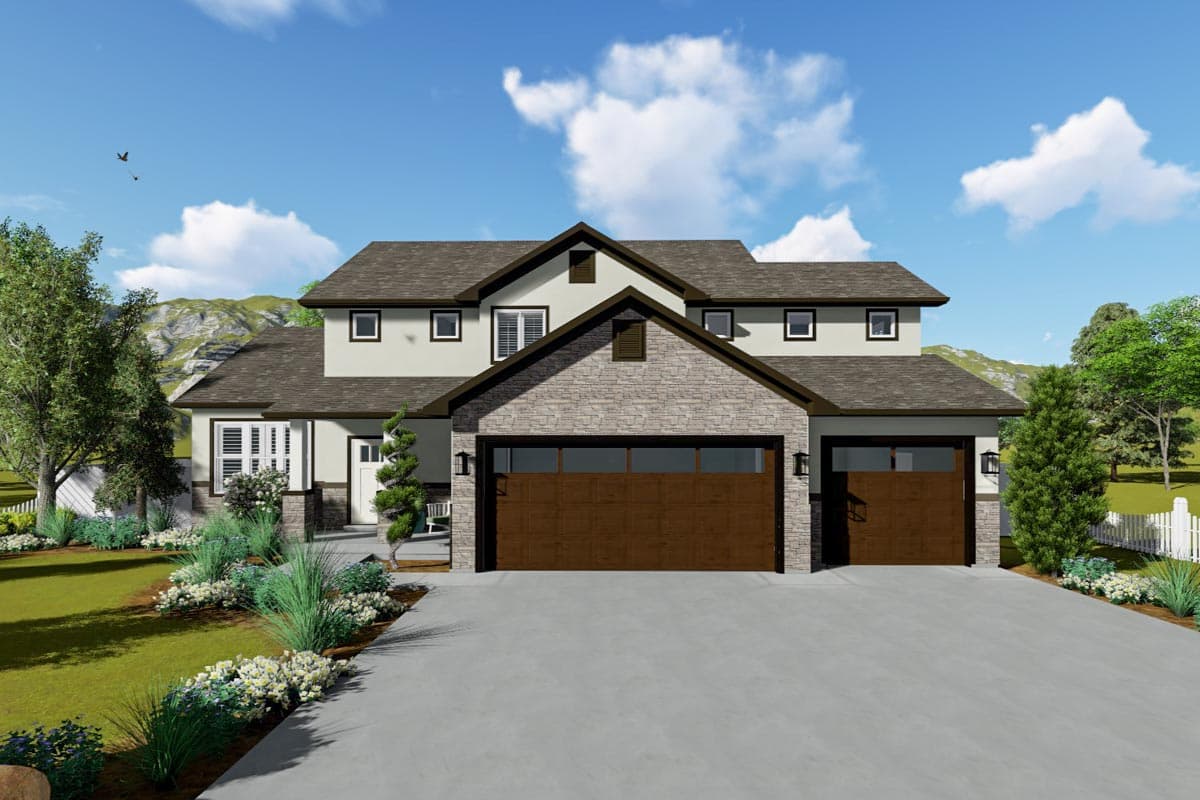

Five Bedroom Family Home Plan

Plan 61308UT

  • 3,395

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Designed with a large family in mind, this Traditional house plan has lots of room for your family to spread out.
  • The open layout is especially evident in the kitchen, dining and family room where the views run over 41' across the home.
  • A corner sink in the kitchen has two windows to brighten the whole kitchen and let you see outside.

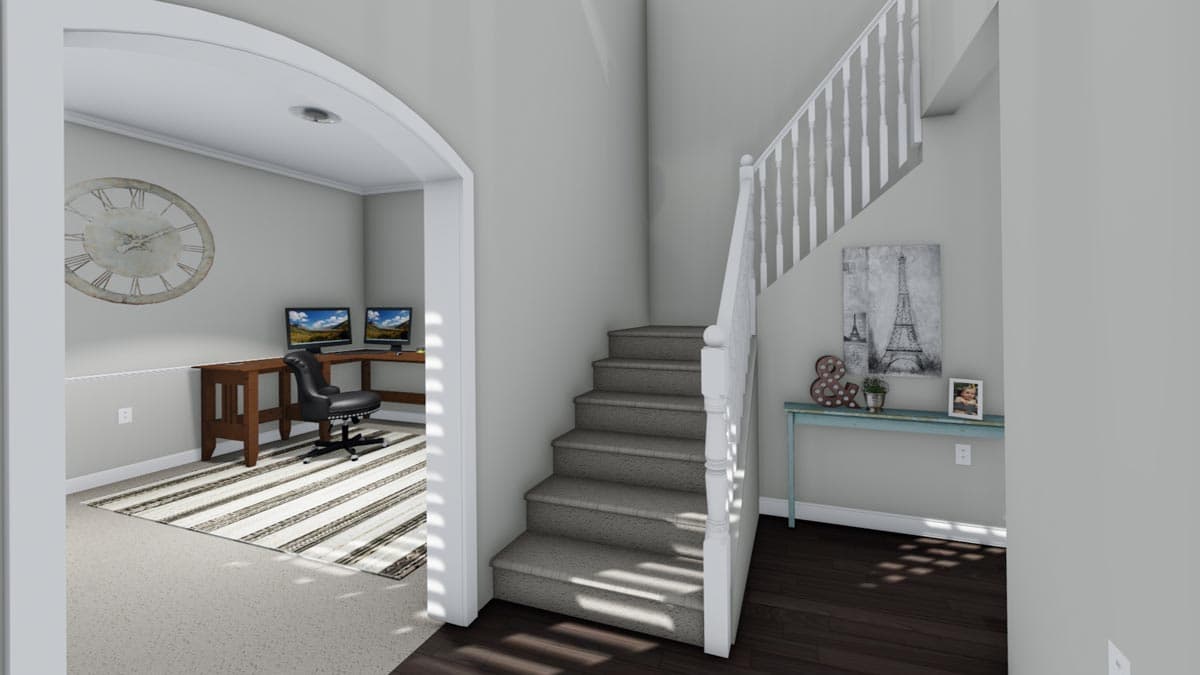

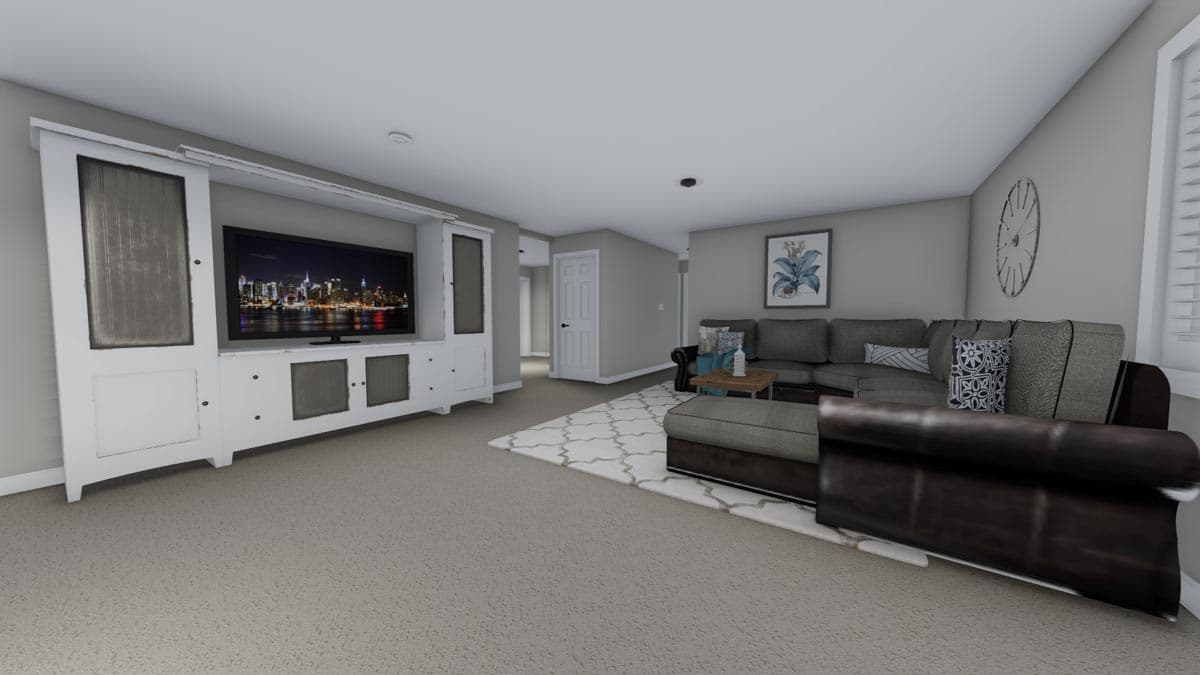

  • You can escape to the office for some alone time or join the family in the huge lower level family room.
  • Two bedrooms and a cold storage room offer excellent use of space.

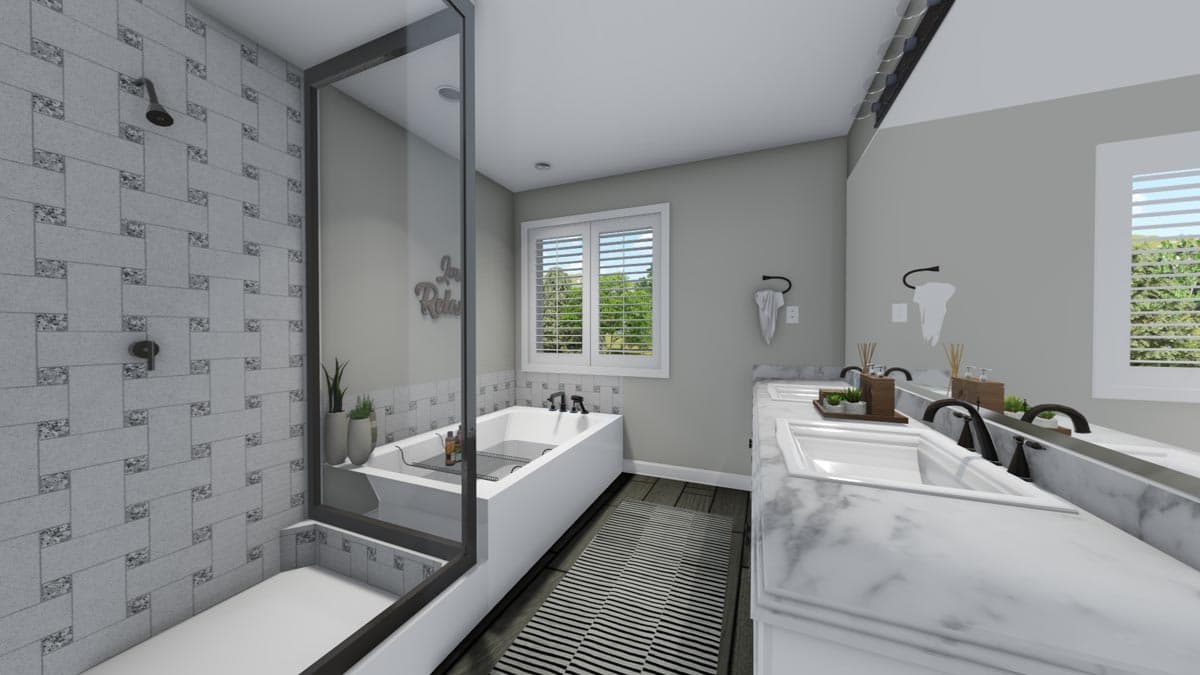

  • The top floor hold three more bedrooms including the gracious master suite.

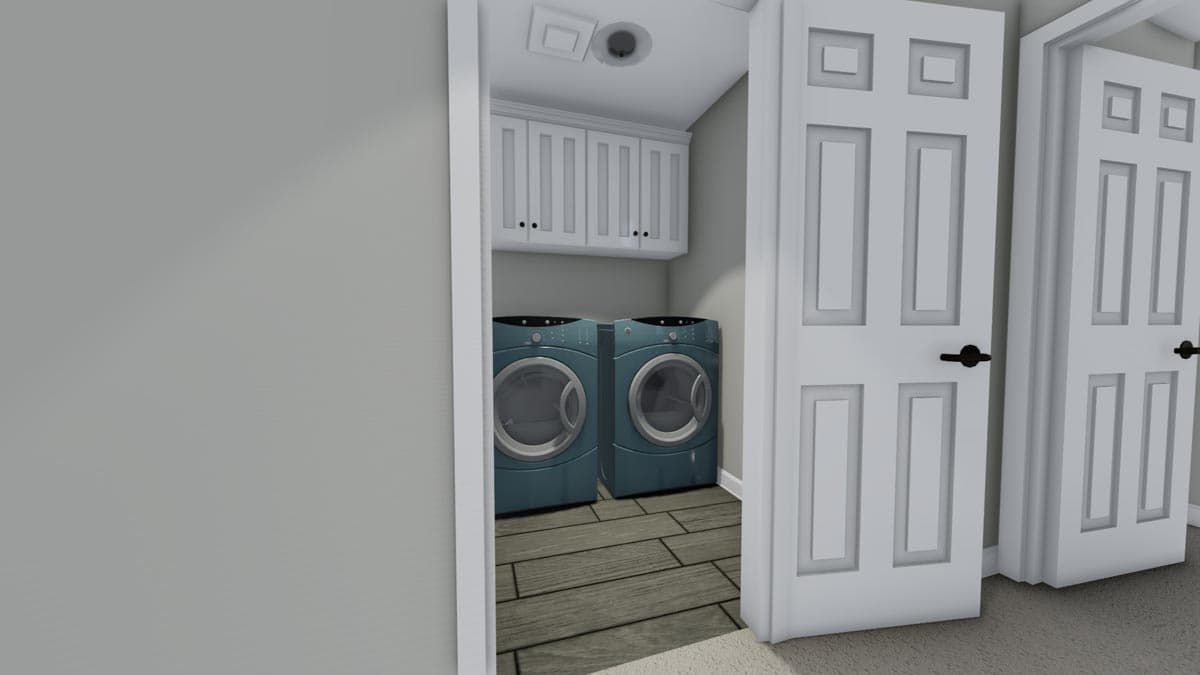

  • A second floor laundry room has been included for your convenience.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

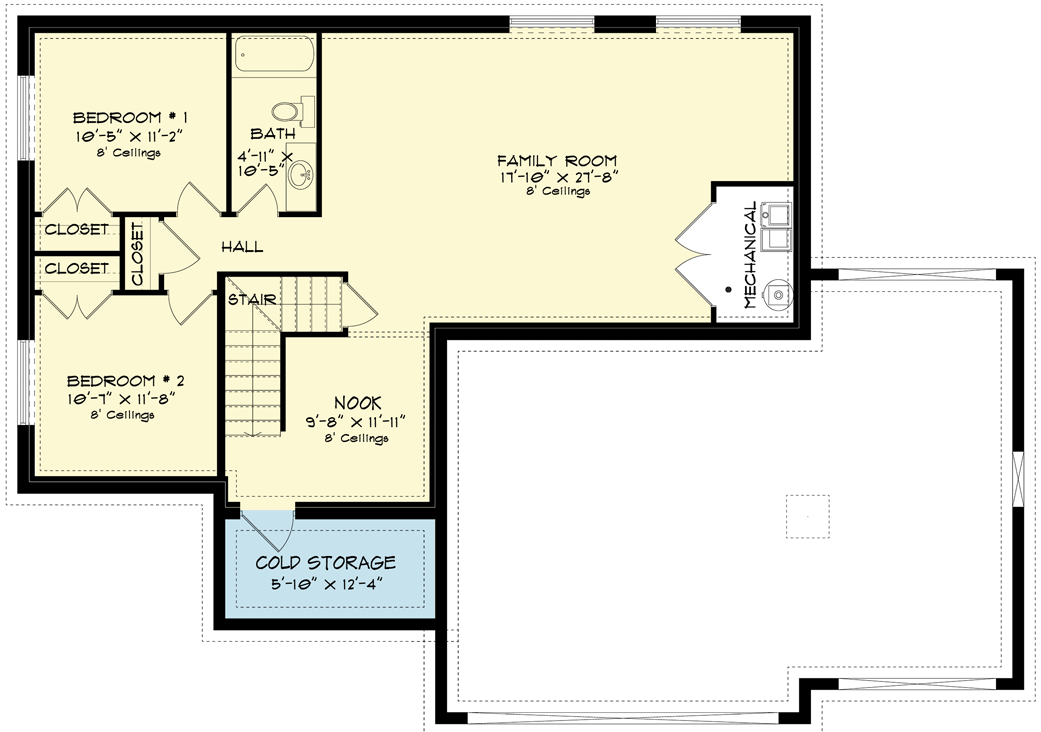

Optional Finished Lower Level

Pinit white
Five Bedroom Family Home Plan - 61308UT floor plan - Optional Finished Lower Level

Plan details



Five Bedroom Family Home Plan

  • 3,395

    Heated s.f.

  • 3 - 5

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $895
  • PDF - single-use $950
  • CAD $1,675
  • View all purchase option online

About This Plan

  • Designed with a large family in mind, this Traditional house plan has lots of room for your family to spread out.
  • The open layout is especially evident in the kitchen, dining and family room where the views run over 41' across the home.
  • A corner sink in the kitchen has two windows to brighten the whole kitchen and let you see outside.
  • You can escape to the office for some alone time or join the family in the huge lower level family room.
  • Two bedrooms and a cold storage room offer excellent use of space.
  • The top floor hold three more bedrooms including the gracious master suite.
  • A second floor laundry room has been included for your convenience.

Floor Plans

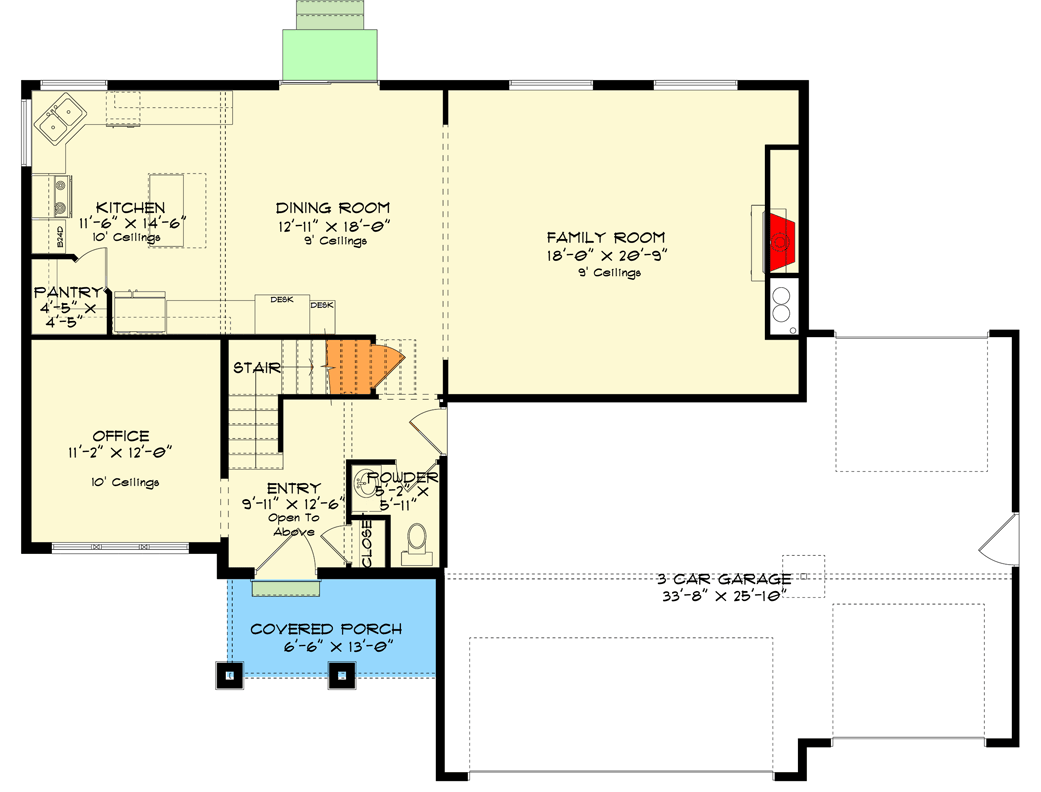

  • Main Level

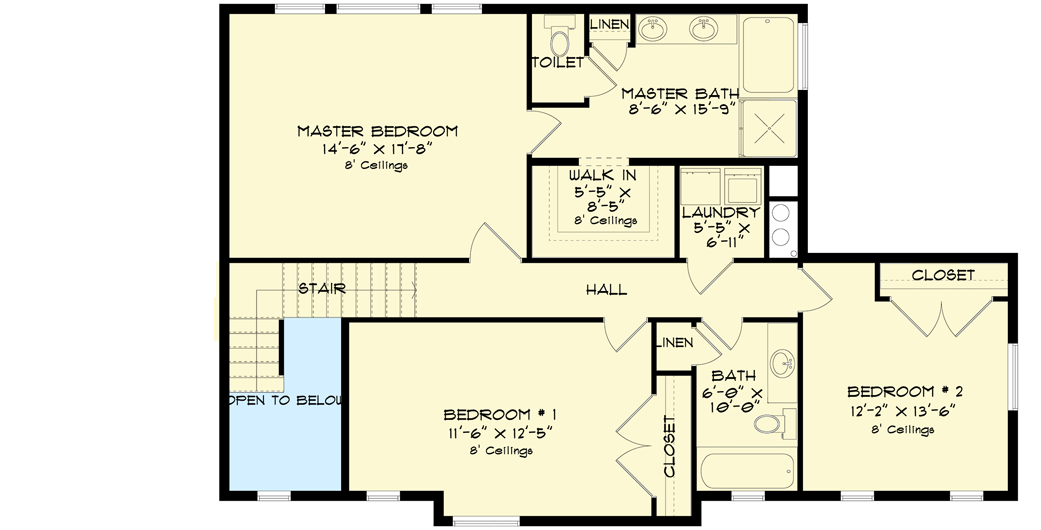

  • 2nd Floor

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,395 sq. ft.
  • Lower Level: 1,219 sq. ft.
  • 1st Floor: 1,131 sq. ft.
  • 2nd Floor: 1,045 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 59' 0"
  • Depth: 41' 6"
  • Max ridge height: 28' 4"

Garage

  • Type: Attached
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
