Plan 35241GH

Five Bedroom Mountain House Plan

Heated S.F.
4,684
Beds
5
Baths
4
Stories
1
Cars
2

Floor Plan

Plan 35241GH

Basement
Basement
Main Level
Main Level

Plan 35241GH

M-F 9am-5pm EST |

1-203-761-8500

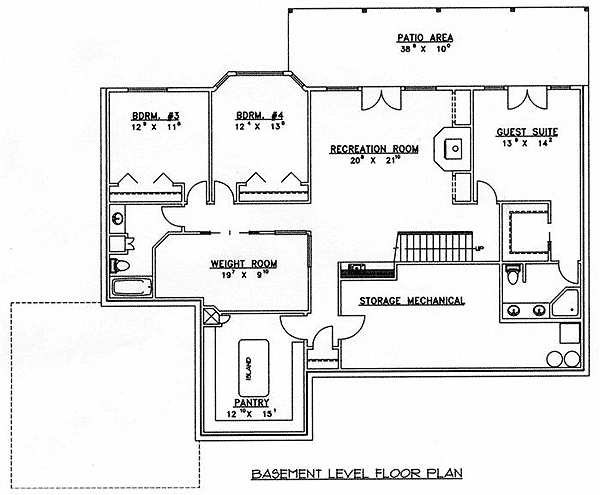

Basement

Plan 35241GH: Five Bedroom Mountain House Plan - Floor Plan - Basement - Contemporary, Mountain

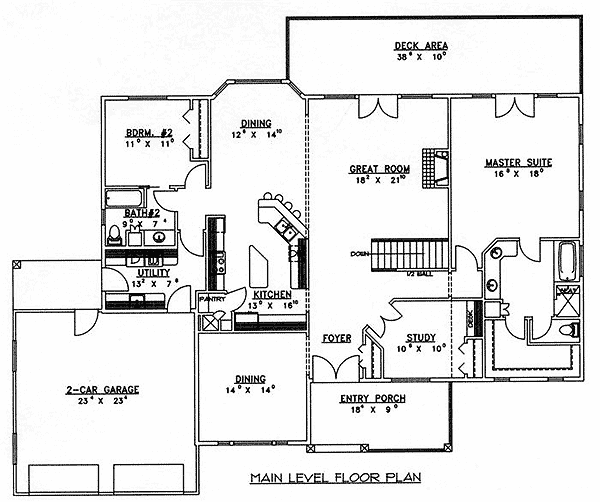

Main Level

Plan 35241GH: Five Bedroom Mountain House Plan - Floor Plan - Main Level - Contemporary, Mountain

Plan Details

  • Designed for a large family or lots of friends and guests, this Mountain house plan has a stunning two-story great room, lots of decks and patios and even a weight room.
  • The bedrooms are split between the two levels with the master suite having double doors that open to the rear deck.
  • If you can tear yourself away from mountain views, there's even a study with built-in desk so you can work at home.
  • The ground level has a huge rec room and there's plenty of storage space as well.

What's Included

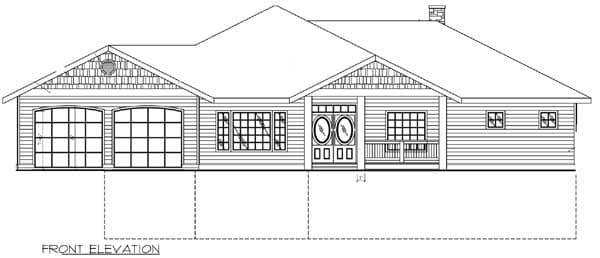

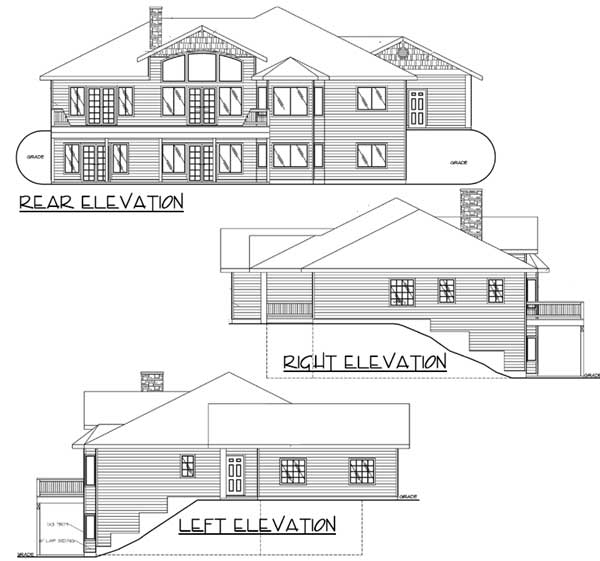

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,684 sq. ft.

Lower Level

2,342 sq. ft.

1st Floor

2,342 sq. ft.

Porch, Front

162 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 0"

Depth

61' 4"

Max Ridge Height

21' 10"

Garage

Type

Attached

Area

553 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Contemporary

Mountain

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Formal Dining

Game/Rec Room

Home Office

Library/Study

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry

Plan Collections

Home Office

Metric

Sloping Lot

Square Footage Breakdown

Total Heated Area

4,684 sq. ft.

Lower Level

2,342 sq. ft.

1st Floor

2,342 sq. ft.

Porch, Front

162 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

74' 0"

Depth

61' 4"

Max Ridge Height

21' 10"

Garage

Type

Attached

Area

553 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Contemporary

Mountain

Special Features

Bedrooms - Clustered

Breakfast Nook

Den

Formal Dining

Game/Rec Room

Home Office

Library/Study

Master Suite - 1st Floor

Two Story Great Room

Walk-in Pantry

Plan Collections

Home Office

Metric

Sloping Lot
