Plan 510006WDY
Five Bedroom Southern House Plan
Heated S.F.
3,640
Beds
5
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details

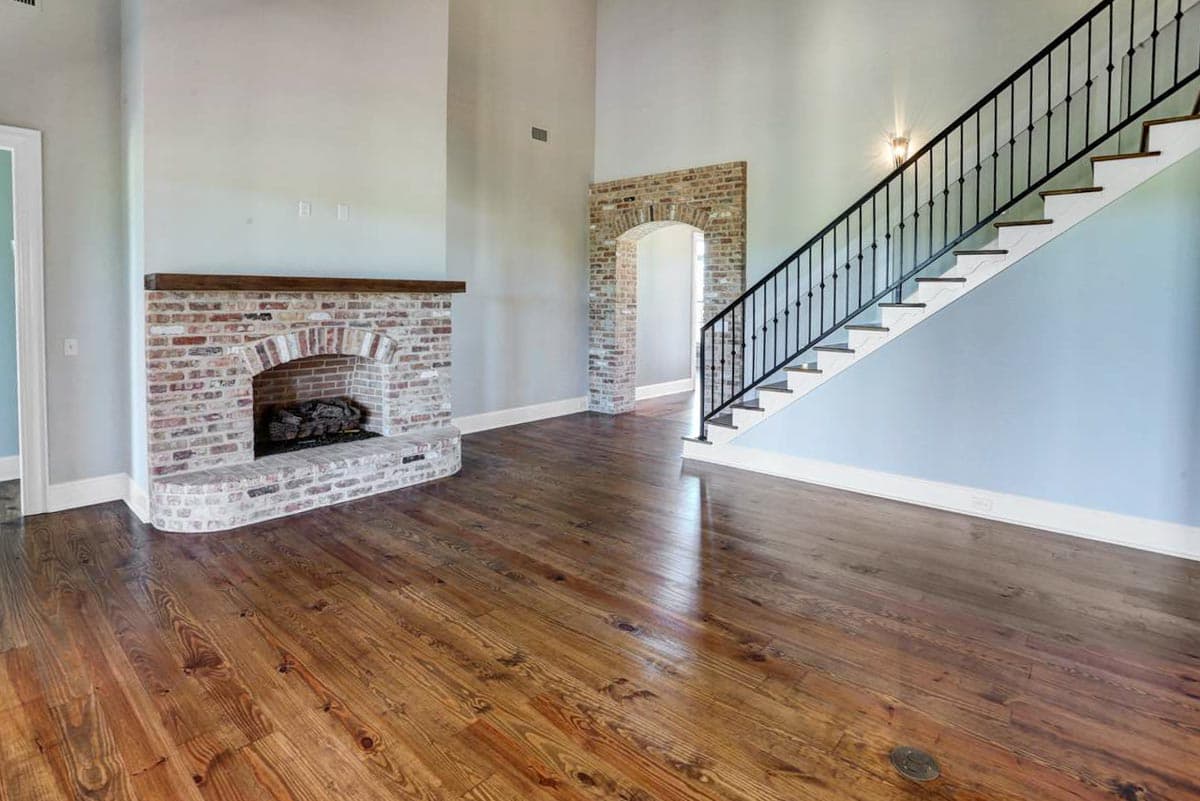

  • A graceful wide arch separates the living room from the keeping room and kitchen of this Southern house plan.

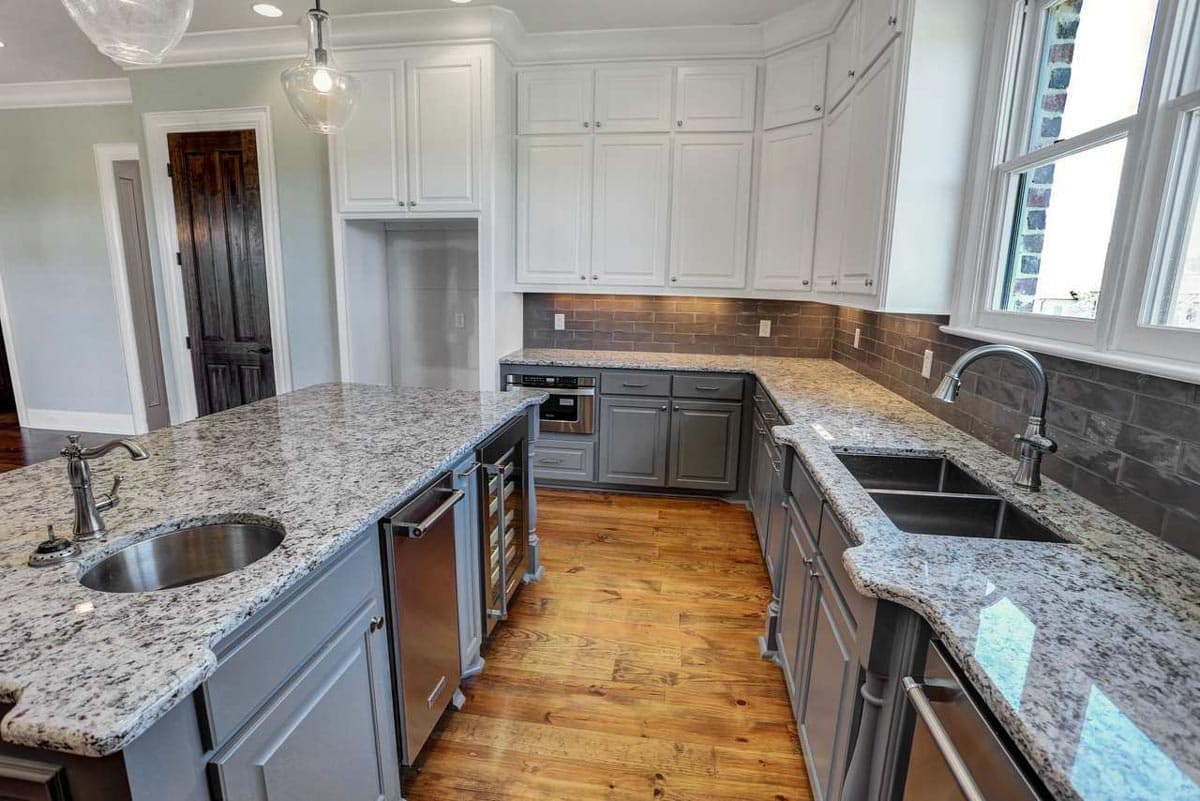

  • Not only does the huge kitchen island have a second sink, you get wonderful views of the fireplace while cooking.

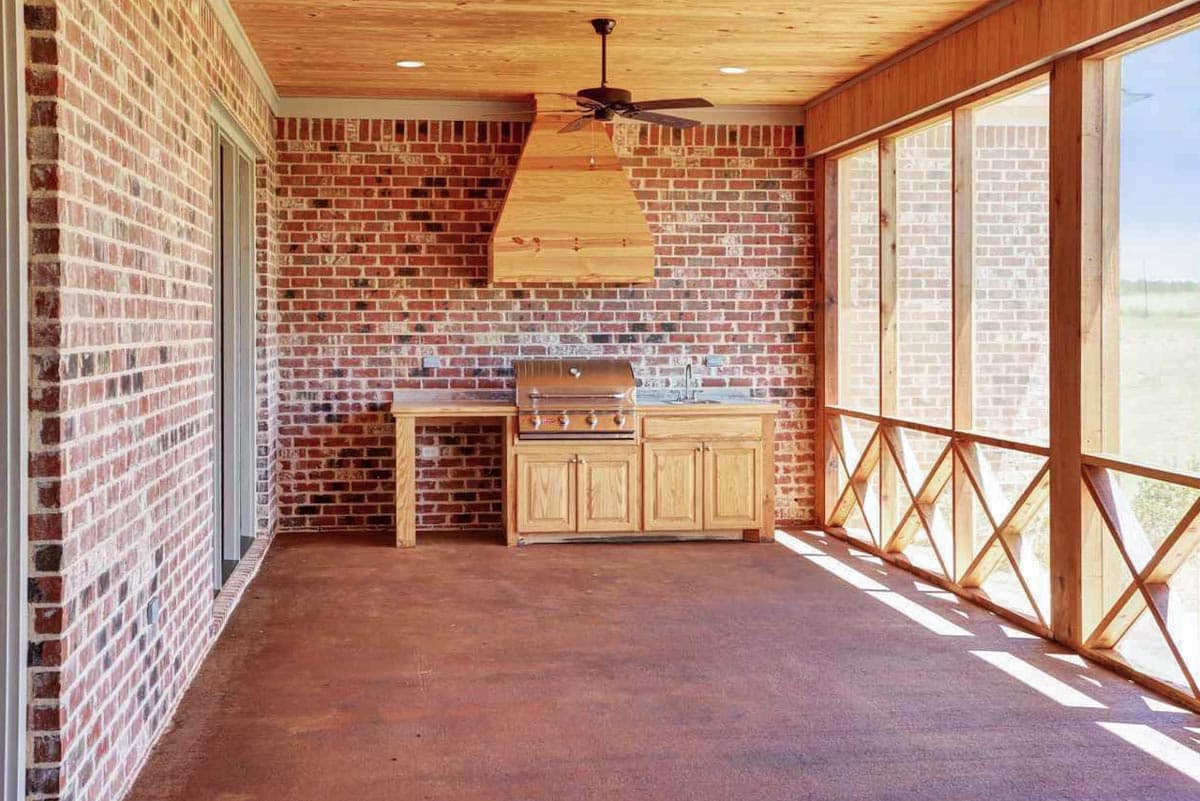

  • The rear covered porch is huge and there's a summer kitchen for your grilling.
  • Every bedroom gets privacy in this home and they all have walk-in closets.
  • The loft on the second floor overlooks the two-story living room below.
  • Extra storage can be found in the three car side load garage.
What's Included

This plan has 9 sheets as follows:

  1. Coversheet Color Rendering

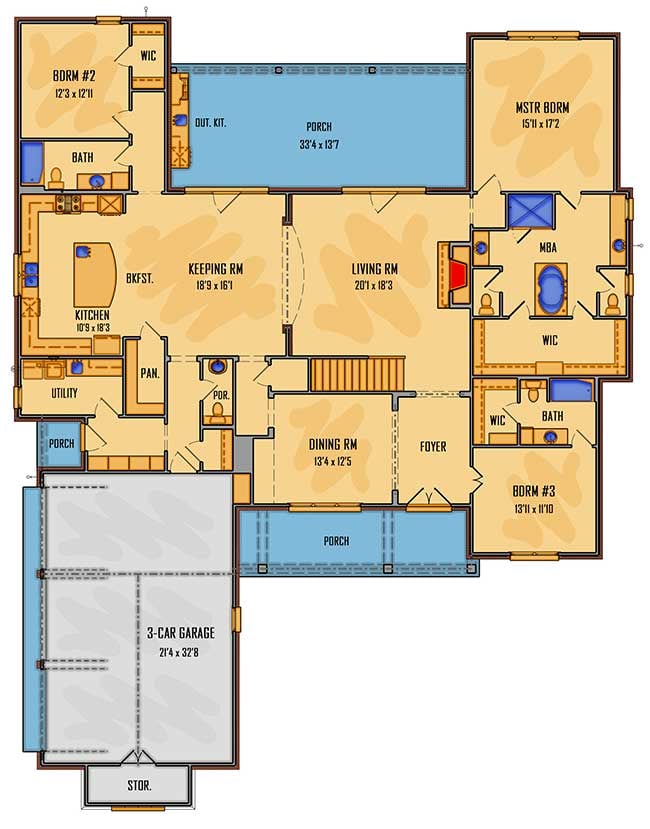

  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

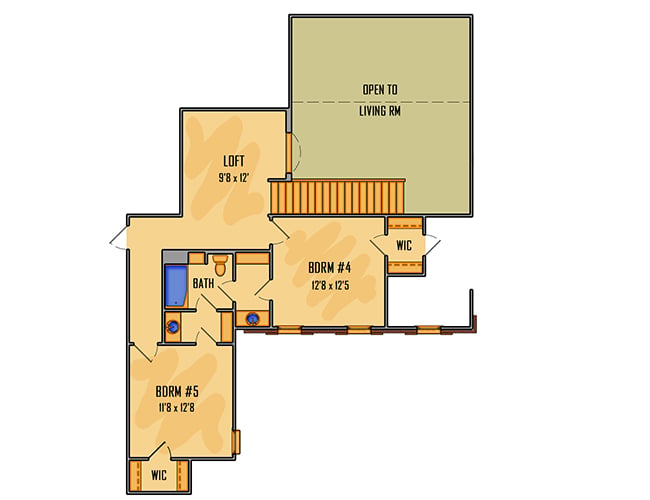

  3. 2nd Floor Plan and Notes

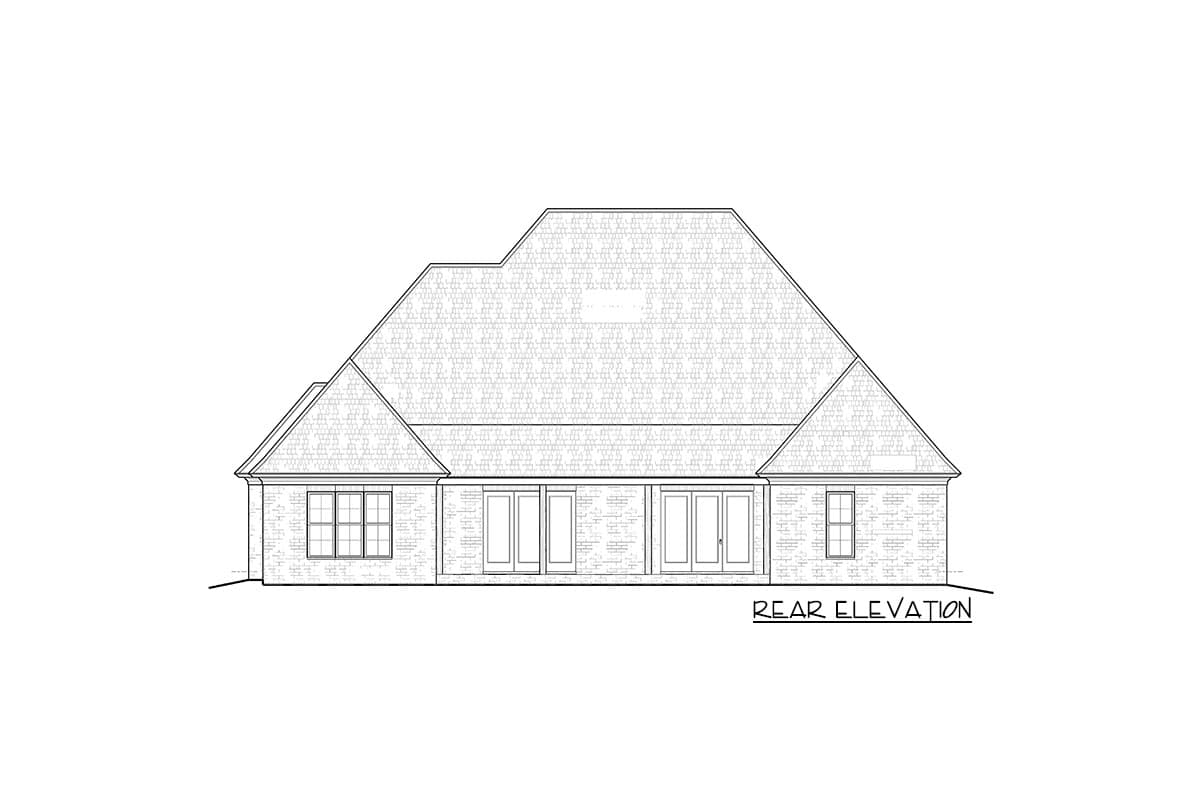

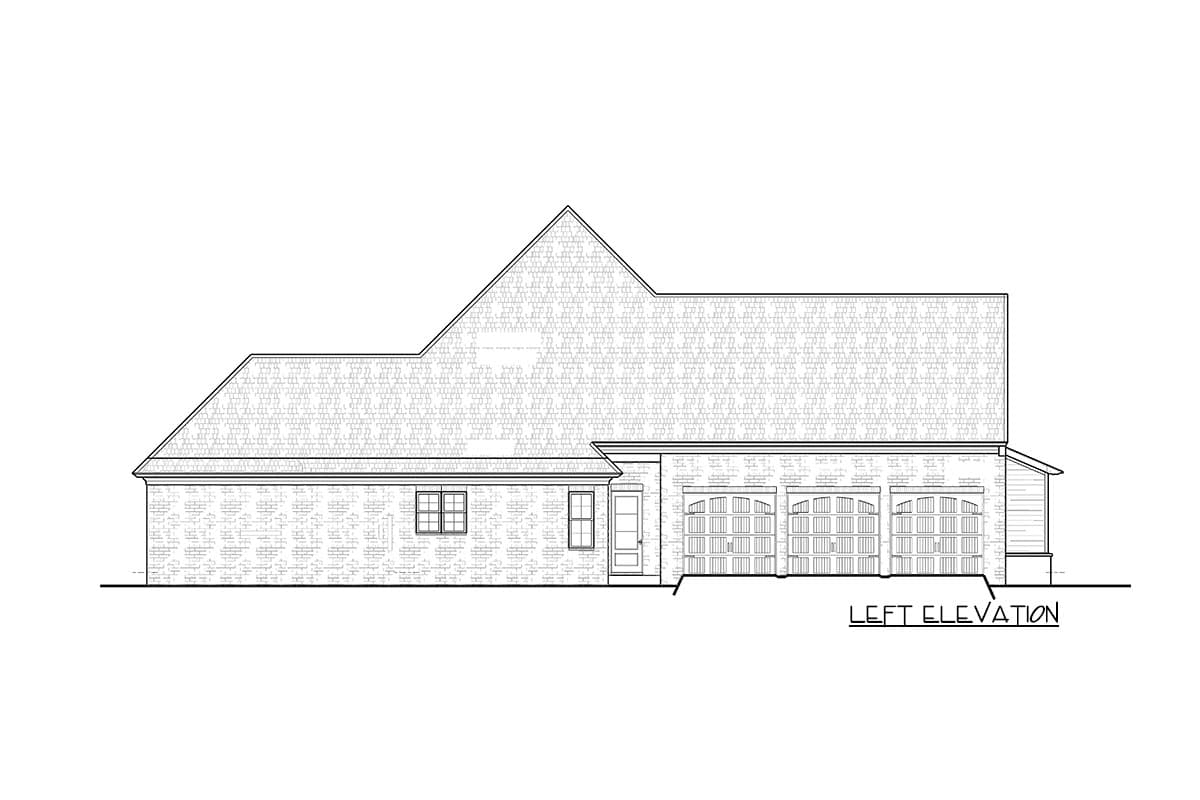

  4. Front, Rear, Left and Right Side and Roof
  5. Building Sections and Cornice and Details
  6. Misc Details, Rafter Schedule
  7. 1st and 2nd Floor Electrical and Schedules
  8. Slab Foundation Plan
  9. Footing Details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Five Bedroom Southern House Plan

  • 3,640

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,640 sq. ft.
  • 1st Floor: 3,062 sq. ft.
  • 2nd Floor: 746 sq. ft.

Dimensions

  • Width: 69' 10"
  • Depth: 89' 5"
  • Max ridge height: 36' 4"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 789 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
