Plan 80656PM
Five Bedroom Splendor
Heated S.F.
4,897
Beds
5
Baths
3.5+
Stories
2
Cars
2
What's Included
Plan Details
  • At first glance, this house plan's French Country style is unmistakable. Outside, the stone and wood siding in earthy shades are perfectly coordinated.
  • Supported by two columns, the porch's pyramidal roof protrudes over the front door. The roof's two gables accentuate the structure's height.
  • The garage doors, front door and shutters in dark wood enhance the house's rustic appearance.
  • The ground floor, with a living area of 1900 square feet, includes a kitchen with an island, a dining room, a living room with a fireplace, a sunny solarium, guest bedroom, a powder room and a laundry room.
  • The second floor consists of a spacious bedroom with a large walk-in closet and private bathroom, as well as a reading area.
  • The basement has 2,059 square feet of living area and includes a reading room, a den, a bathroom, three bedrooms, a cellar as well as two rooms that can either be used as storage areas or as a workshop for artists or do-it-yourselfers.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

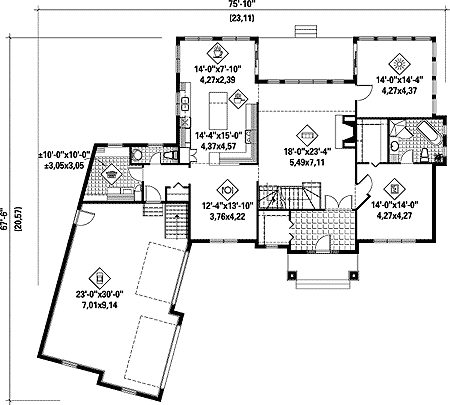

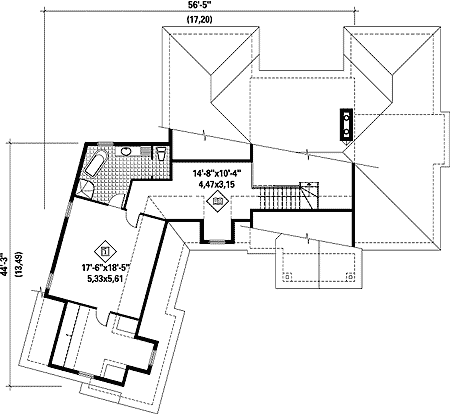

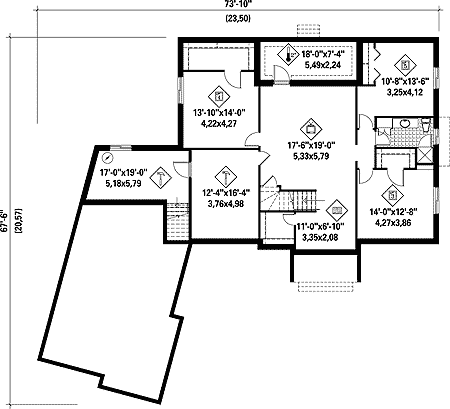

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
