Five Bedroom Traditional House Plan

Plan 510001WDY

  • 4,318

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Stacked front porches give this Traditional house plan a unique look.
  • Designed for a large family, the home comes with five bedrooms and lots of rooms to hang out in.
  • You can spend time in the two-story living room or the big keeping room off the kitchen or hide away in the front-facing study.
  • The living room ceiling vaults from the back wall to the dotted line and then runs flat at 22'4".
  • A two-way fireplace casts a warm glow in the formal dining room and the breakfast area near the kitchen.
  • The first floor master suite is exquisite with its corner fireplace, tray ceiling and huge master bathroom.
  • Loft space on the upper floor has a door to the second floor balcony and views of the living room on the other side.
  • An optional bonus room adds 372 square feet of living space.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

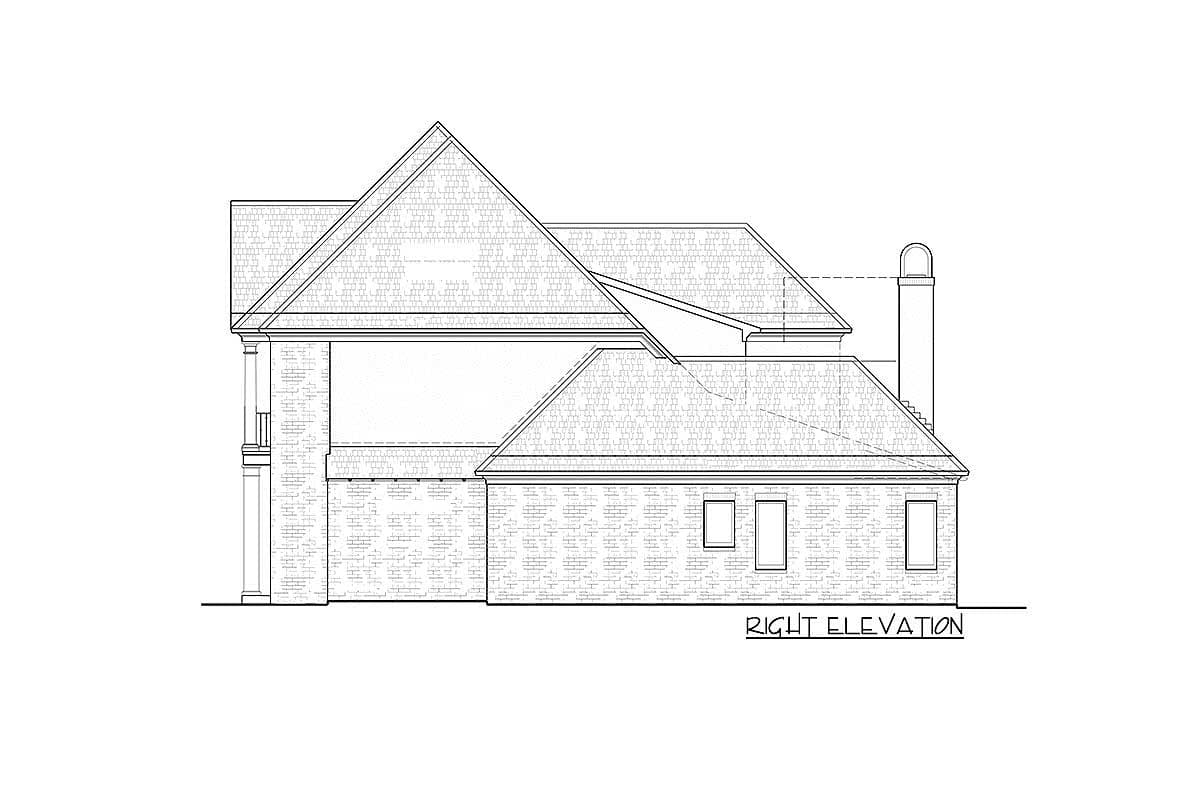

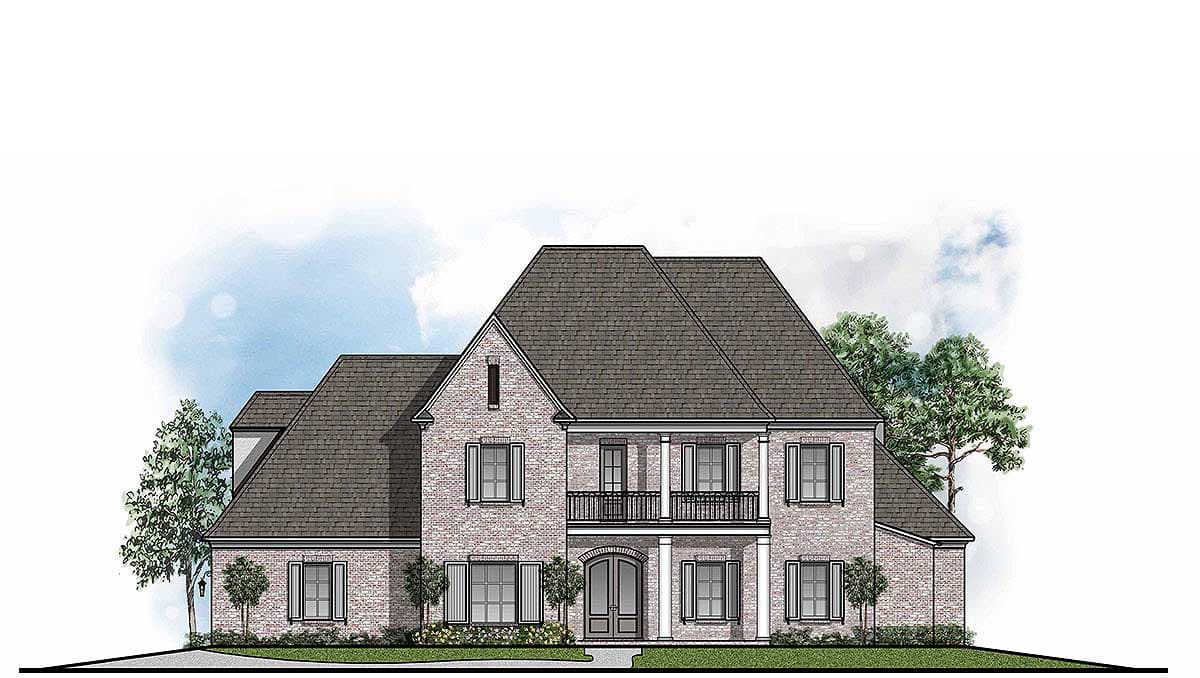

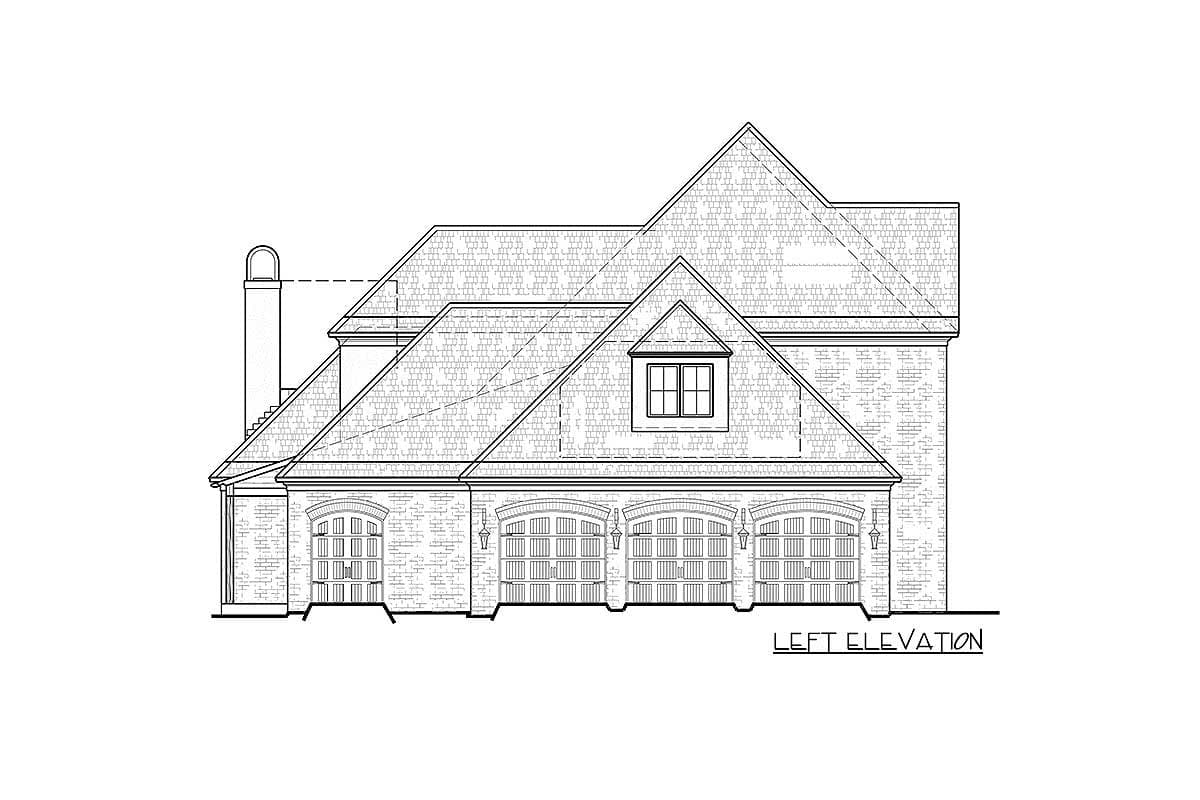

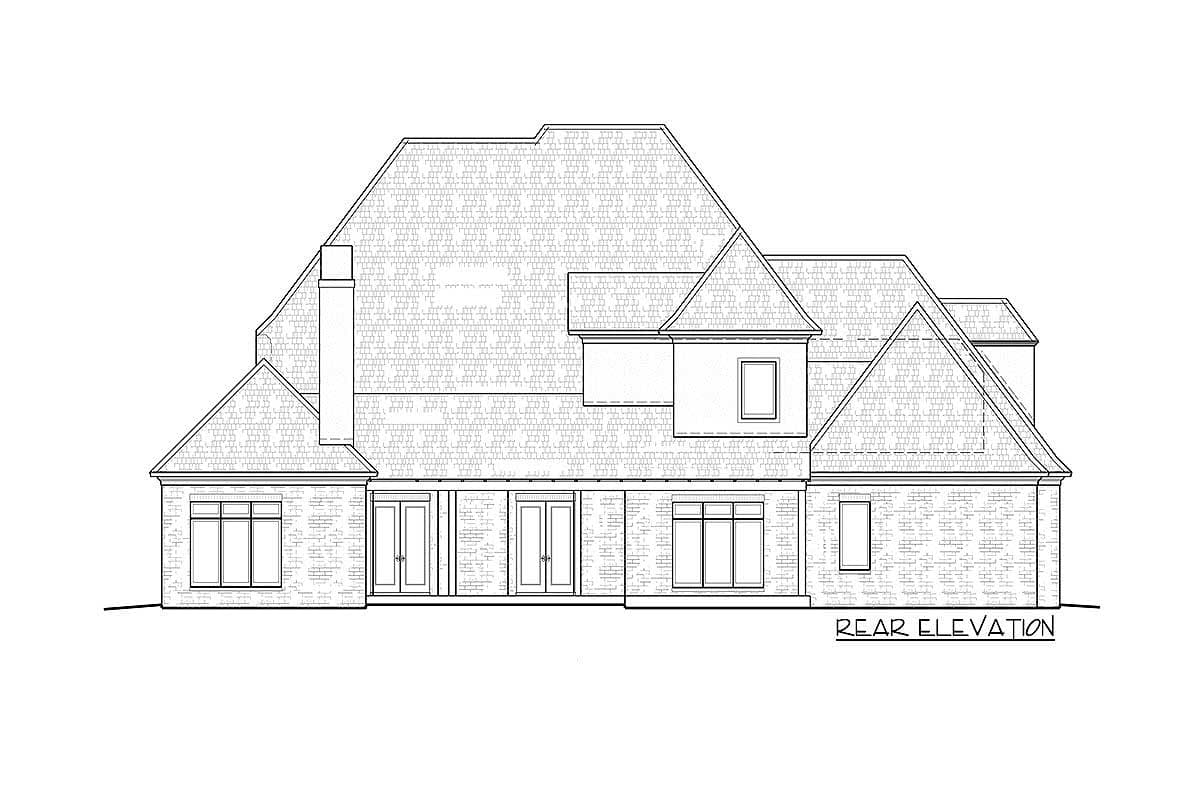

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

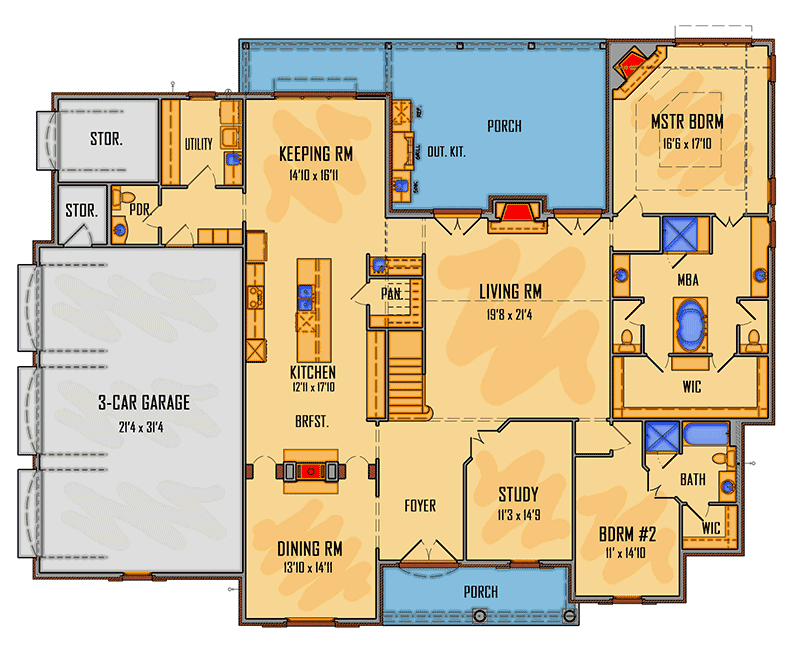

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Five Bedroom Traditional House Plan - 510001WDY floor plan - Main Level

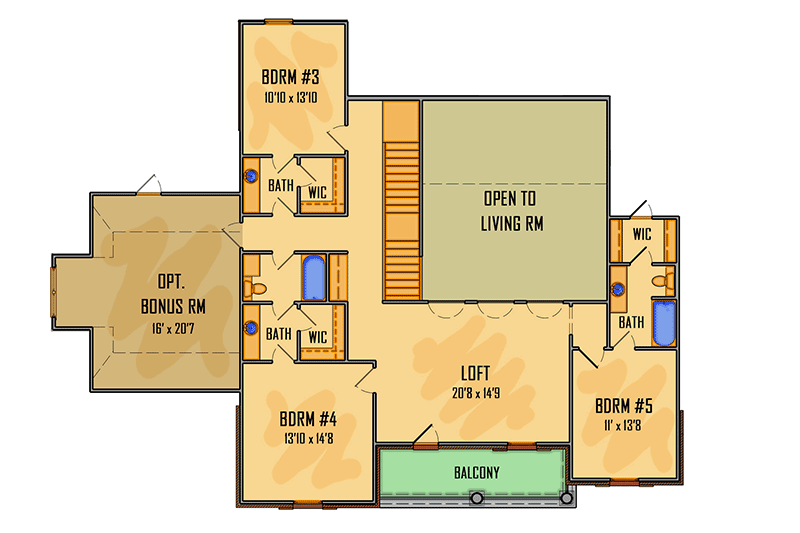

2nd Floor
