Plan 15818GE
Five Bedrooms
Heated S.F.
3,558
Beds
5
Baths
4
Stories
2
Cars
3
What's Included
Plan Details
  • Impressive curb appeal is defined with this beautiful brick and stone house plan.
  • Expansive and flowing living areas include the coffered ceiling grand room, open kitchen, morning room and keeping room.
  • Bridging the dining room and study is a two-story foyer.
  • The first floor bedroom works well for guests who don't want to climb stairs.
  • Upstairs, the master suite is complete with an oversized walk in closet.
  • Three bedrooms complete this level giving this home a total of 5 bedrooms.
What's Included

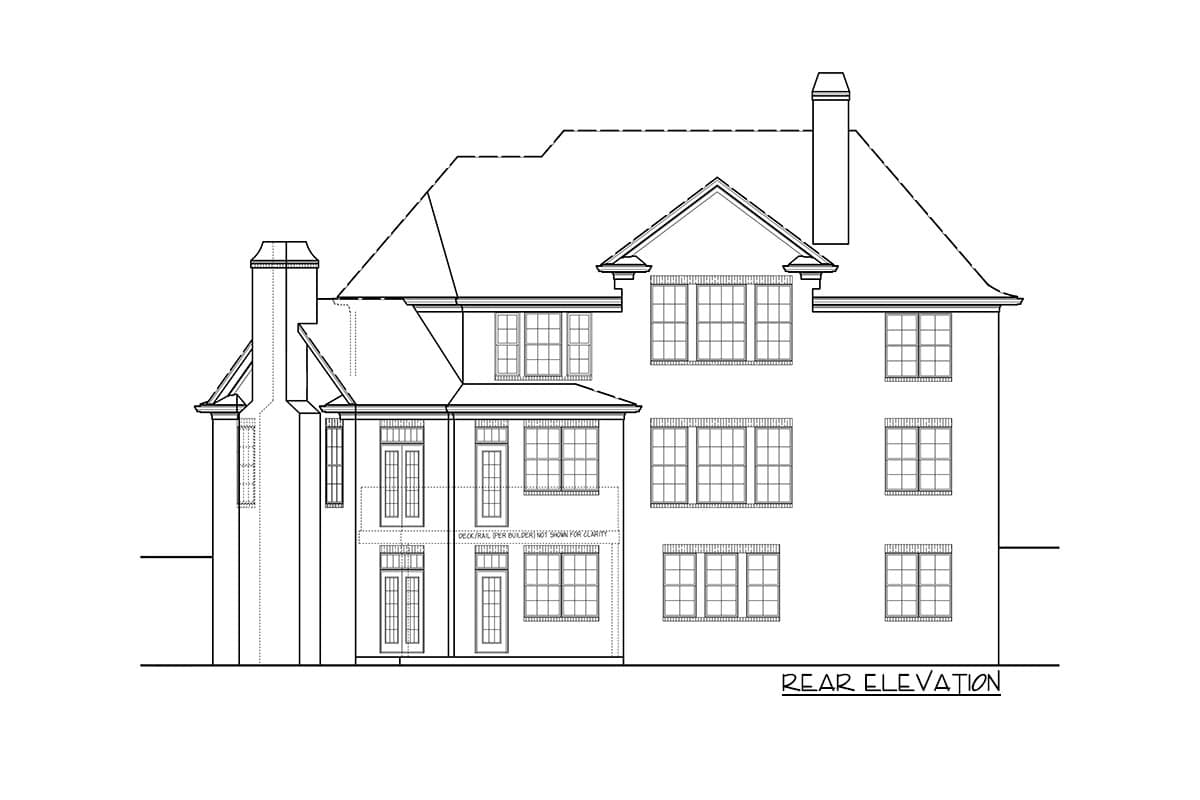

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Five Bedrooms

  • 3,558

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

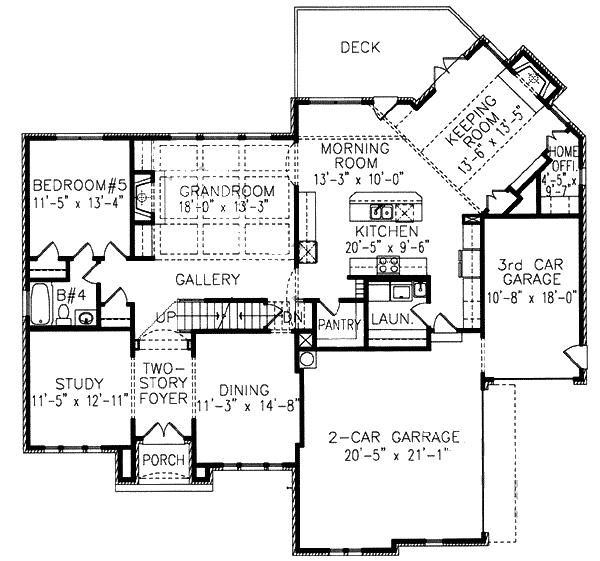

  • Main Level

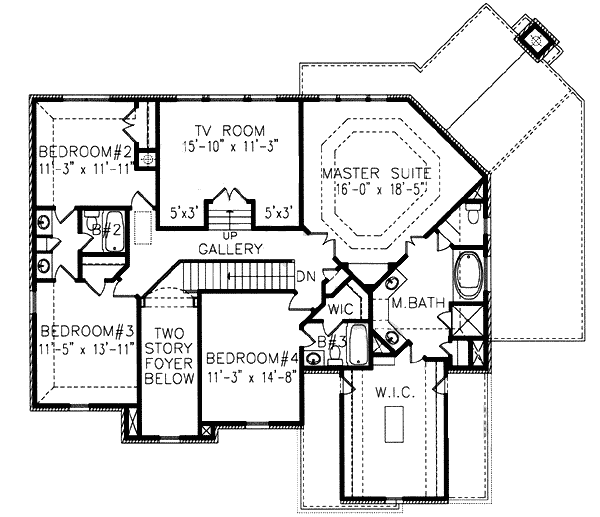

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,558 sq. ft.
  • 1st Floor: 1,829 sq. ft.
  • 2nd Floor: 1,729 sq. ft.

Dimensions

  • Width: 63' 0"
  • Depth: 58' 3"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 622 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6
