Plan 290051IY Five or Six Bedroom Craftsman Farmhouse

Five or Six Bedroom Craftsman Farmhouse

Plan 290051IY

  • 3,951

    Heated s.f.

  • 5-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A gently curved roof covers the entry porch of this Craftsman farmhouse house plan.
  • With five bedrooms and the option for a sixth, the home is suited for large families.
  • The T-shaped dining room, kitchen and family room gives you one large space where family members can be together.
  • The large covered patio in back has plenty of room for table, chairs and your big grill.
  • On the second floor, bedrooms 4 and 5 have vaulted ceilings and the large laundry room has a convenient location to serve all the bedrooms.
  • A cozy fireplace warms the huge master suite that sports a tray ceiling.
  • Finish the optional lower level to gain an extra 1,122 square feet with a rec room, kitchenette and a sixth bedroom with nearby bathroom.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

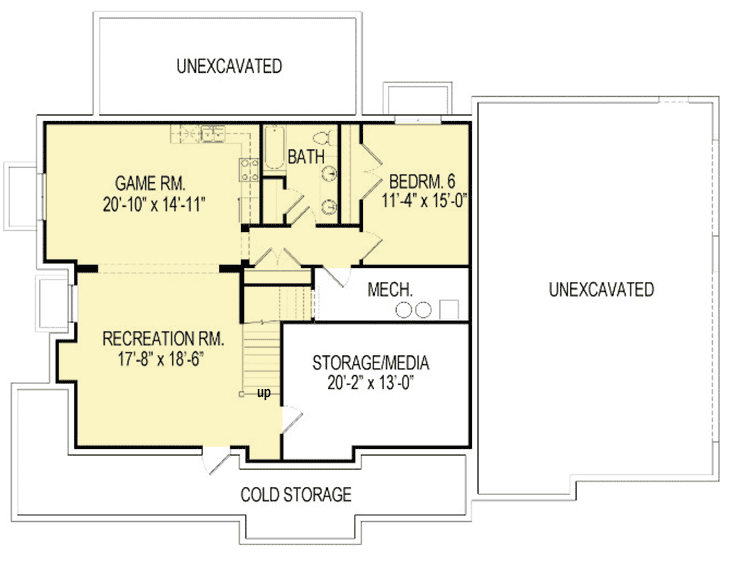

Optional Lower Level

Five or Six Bedroom Craftsman Farmhouse - 290051IY floor plan - Optional Lower Level

Plan details



Five or Six Bedroom Craftsman Farmhouse

  • 3,951

    Heated s.f.

  • 5 - 6

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,963
  • CAD - Single-Build $5,927
  • View all purchase option online

About This Plan

  • A gently curved roof covers the entry porch of this Craftsman farmhouse house plan.
  • With five bedrooms and the option for a sixth, the home is suited for large families.
  • The T-shaped dining room, kitchen and family room gives you one large space where family members can be together.
  • The large covered patio in back has plenty of room for table, chairs and your big grill.
  • On the second floor, bedrooms 4 and 5 have vaulted ceilings and the large laundry room has a convenient location to serve all the bedrooms.
  • A cozy fireplace warms the huge master suite that sports a tray ceiling.
  • Finish the optional lower level to gain an extra 1,122 square feet with a rec room, kitchenette and a sixth bedroom with nearby bathroom.

Floor Plans

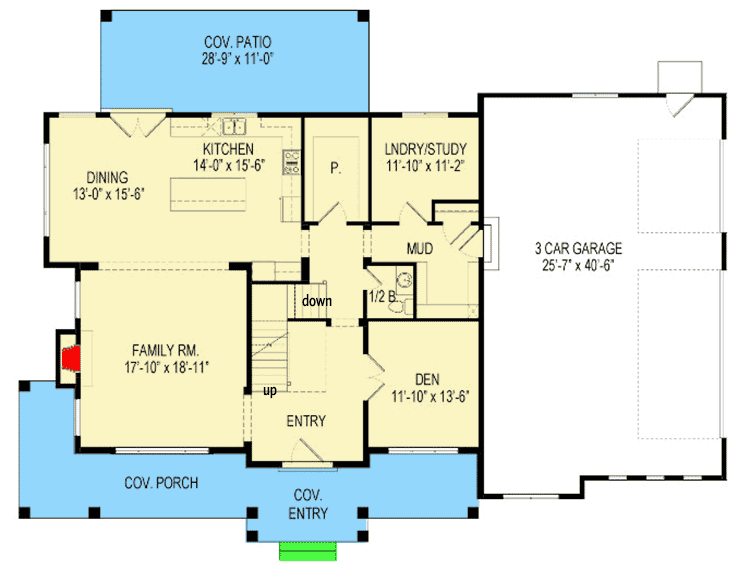

  • Main Level

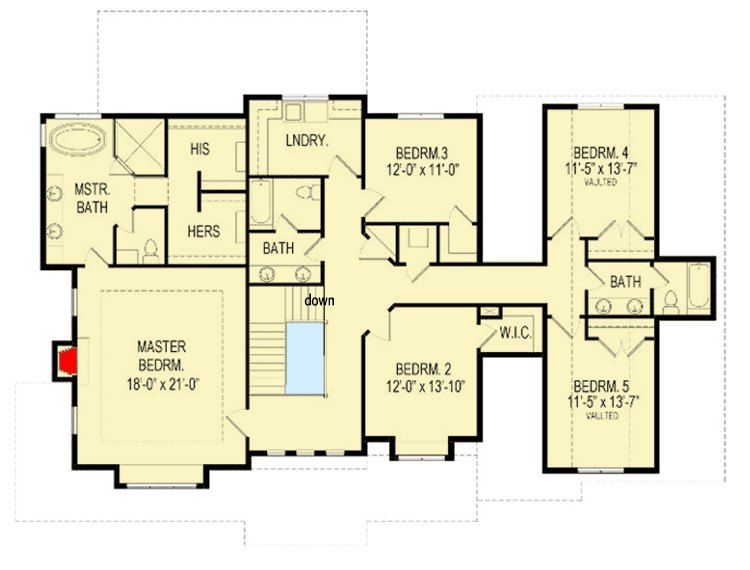

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,951 sq. ft.
  • 1st Floor: 1,673 sq. ft.
  • 2nd Floor: 2,278 sq. ft.
  • Basement Unfinished: 2,808 sq. ft.
  • Optional Lower Level: 1,122 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 75' 8"
  • Depth: 56' 11"
  • Max ridge height: 34' 11"

Garage

  • Type: Attached
  • Area: 1095 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
