Flex Room and Four Bedrooms

Plan 40783DB

  • 2,605

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The flex room in this four bedroom house plan is a great thing. If you need space to work at home, flex the entry room into an office with hallway. You'll be able to focus on your work and still keep an eye on the kids.
  • The kitchen has commanding views of the family room and dining room. The angled fireplace is a nice feature in the family room.
  • This plan could be the chance for your child to have his own room for the first time, giving him some privacy from younger siblings. He'll still be close enough for parental supervision, but far enough away for some independence. Two of the four bedrooms are built economically over the garage, saving you some money for other things.
  • Related Plans: Build with 2x4 4exterior walls with house plans 40626DB and 40627DB.

This house plan set has the following details:

  • General Notes

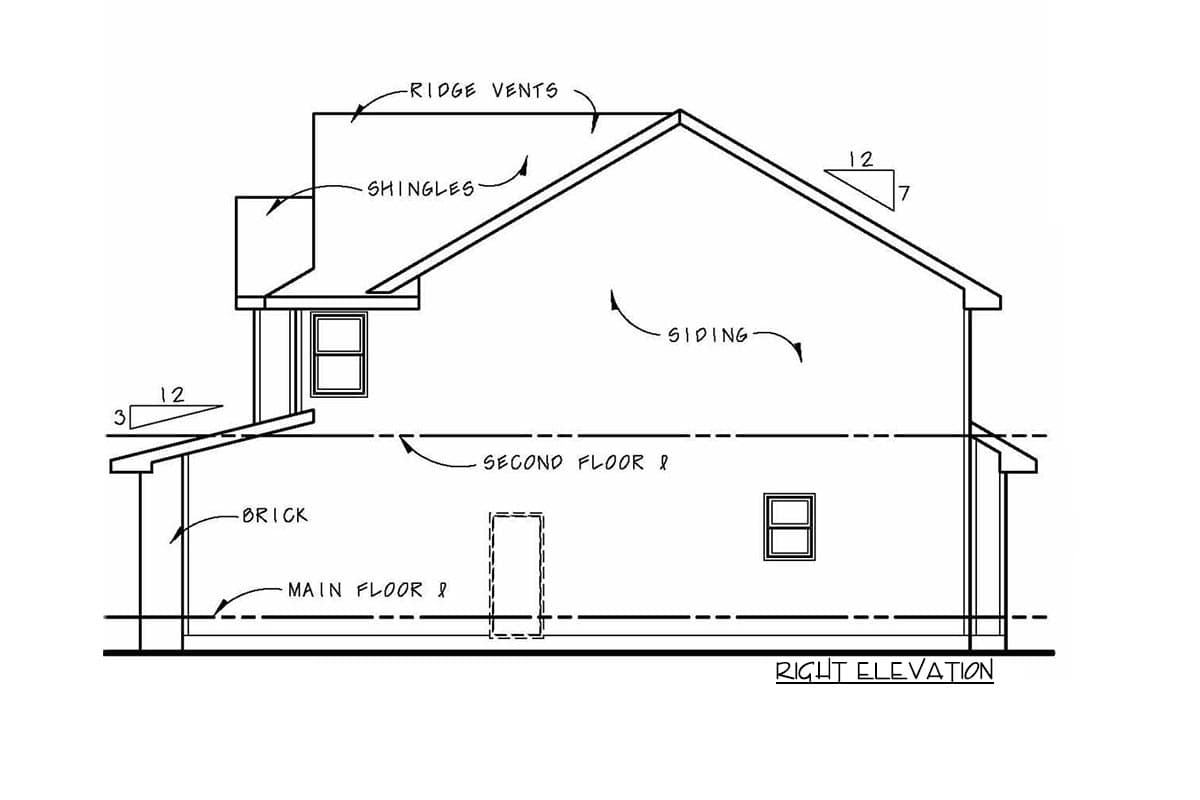

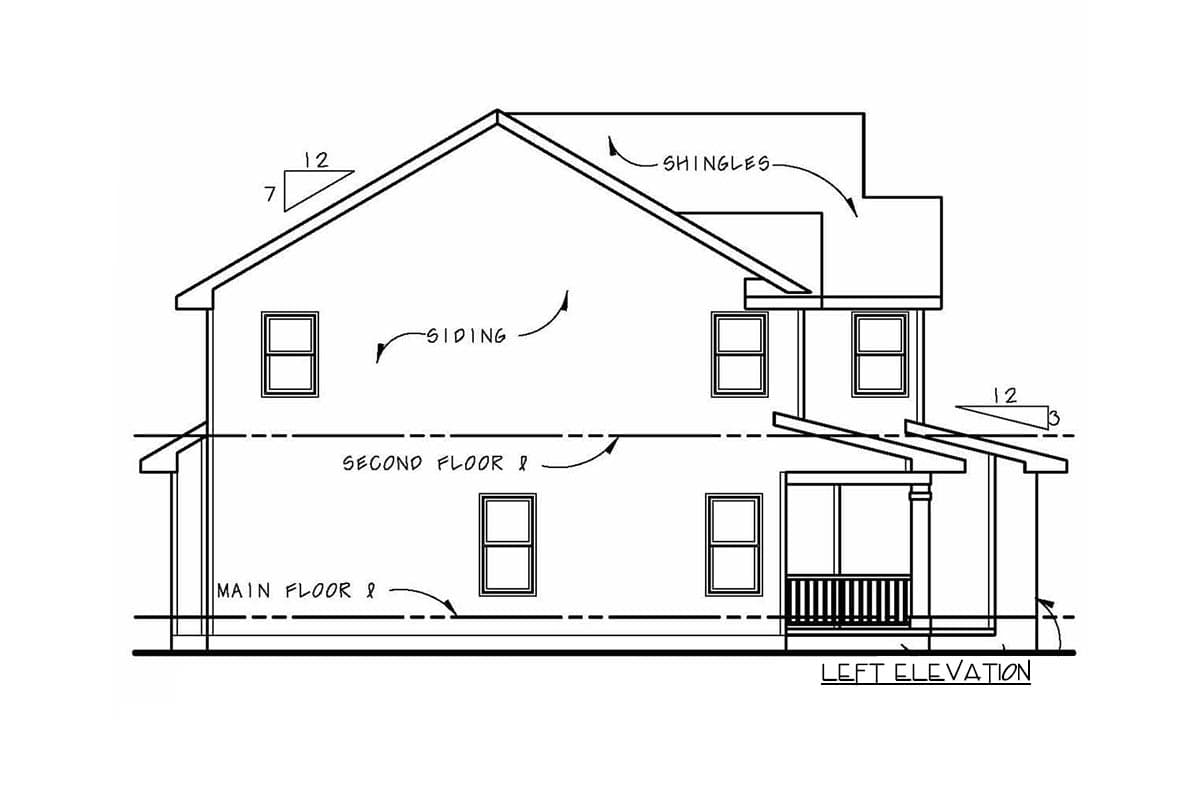

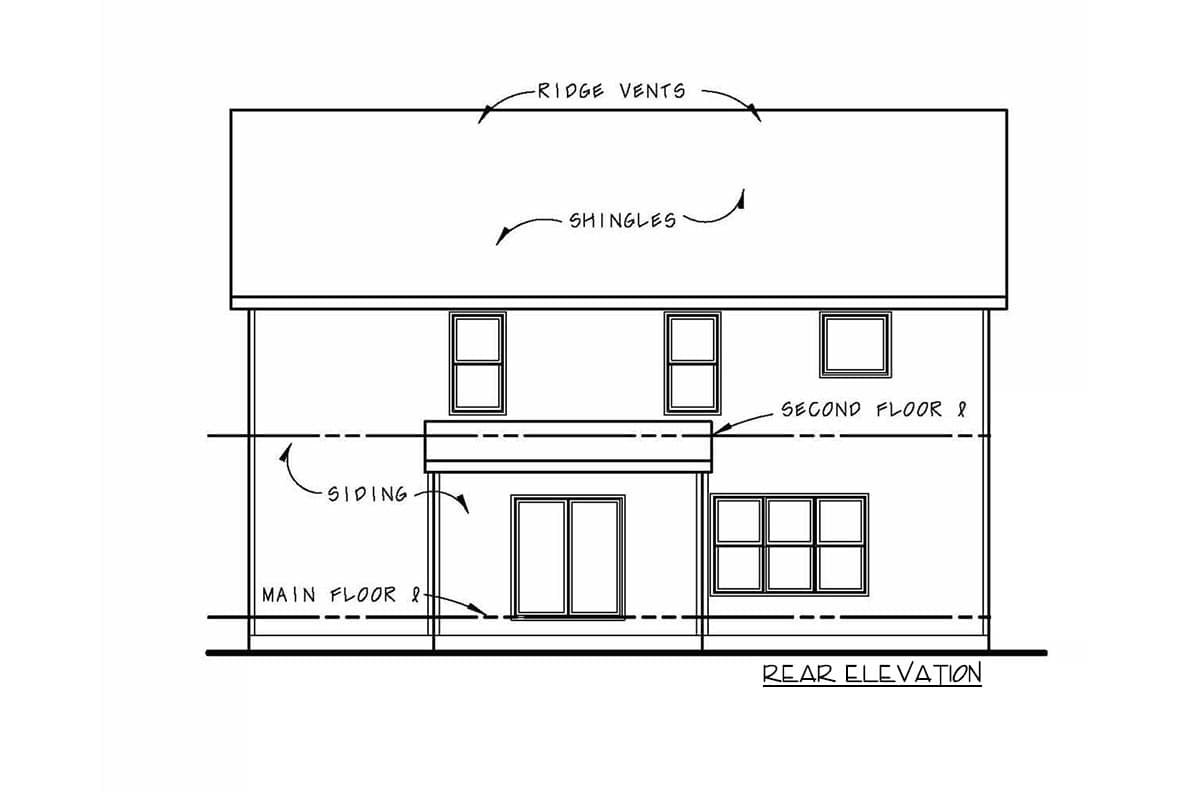

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

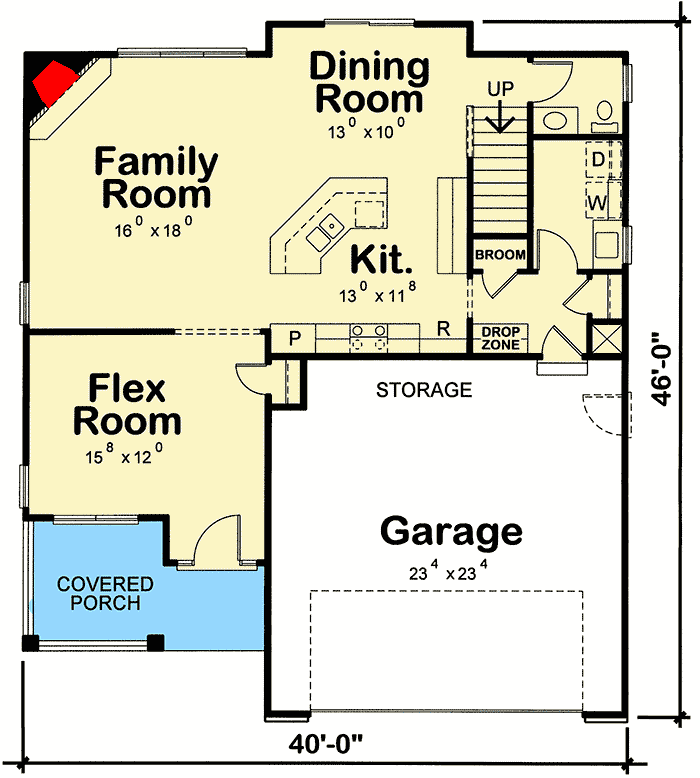

Flex Room and Four Bedrooms - 40783DB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

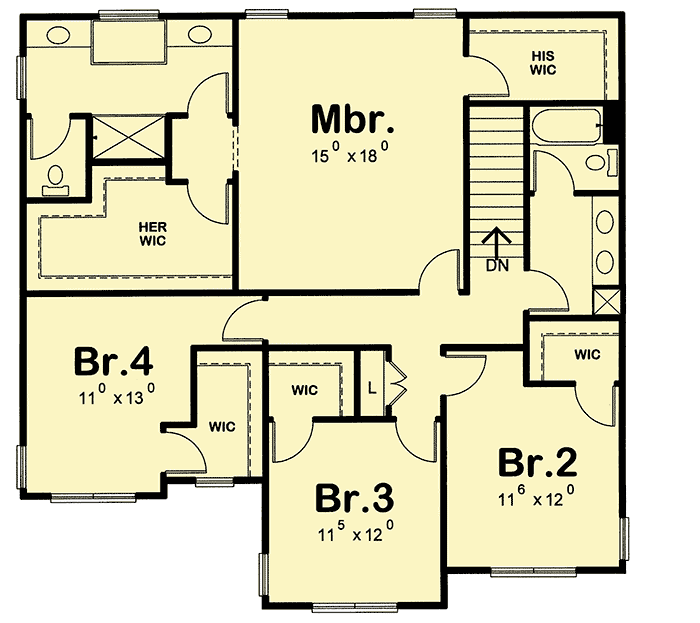

Flex Room and Four Bedrooms - 40783DB floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

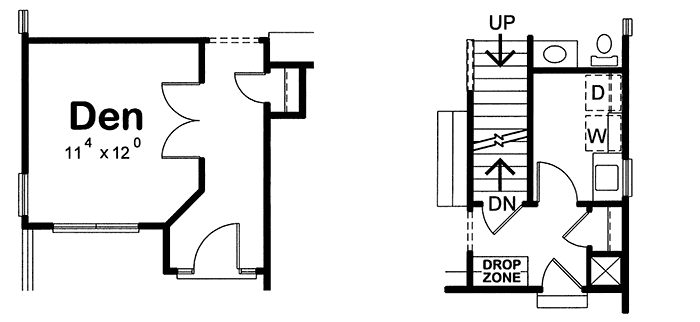

Flex Room and Four Bedrooms - 40783DB floor plan - Optional

Architectural Style

Plan Collections

Flex Room and Four Bedrooms

  • 2,605

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional

Plan Details

Square Footage Breakdown

  • Total: 2,605 sq. ft.
  • 1st Floor: 1,146 sq. ft.
  • 2nd Floor: 1,459 sq. ft.

Dimensions

  • Width: 41' 4"
  • Depth: 48' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 560 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): ICF
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 9 on 12
