Plan 62505DJ

Flex Space

Heated S.F.

2,867

Beds

4

Baths

2.5

Stories

2

Cars

3

What's Included

Floor Plan

Main Level

Reverse Floor Plan

Flex Space - 62505DJ floor plan - Main Level

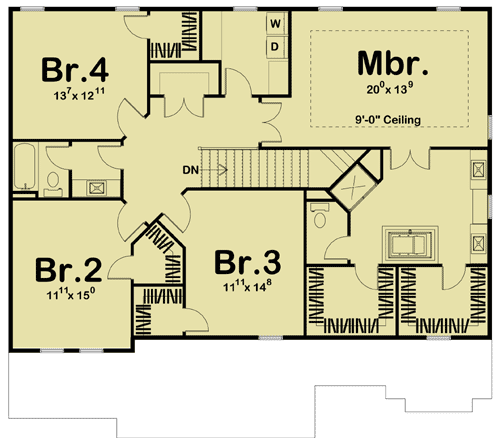

2nd Floor

Reverse Floor Plan

Flex Space - 62505DJ floor plan - 2nd Floor

Plan Details

This handsome Northwest home plan offers an open concept layout and a flex room that gives you options.
Use it as a den, an extra bedroom or even as a formal dining room.
The views from the kitchen island extend all the way to the great room fireplace.
A walk-in pantry, large island and built-in desk make the kitchen functional.
Each of the four bedrooms on the upper floor have walk-in closets.
A second floor laundry room saves you lots of climbing on laundry day and the walk-in linen closet will be much appreciated.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section
Cabinets Elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,867 sq. ft.

1st Floor:

1,255 sq. ft.

2nd Floor:

1,612 sq. ft.

Entry:

35 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Basement

Optional Foundations:

Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

50' 0"

Depth:

43' 8"

Max Ridge Height:

30' 0"

Garage

Type:

Attached

Area:

750 sq. ft.

Count:

3 Cars

Entry Location:

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch:

6 on 12

Framing Type:

Truss

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Laundry - Upstairs

Master Suite - 2nd Floor
