Plan 39208ST

Flexibility

Heated S.F.
2,252
Beds
2 - 3
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 39208ST

Main Level
Main Level

Plan 39208ST

M-F 9am-5pm EST |

1-203-761-8500

Main Level

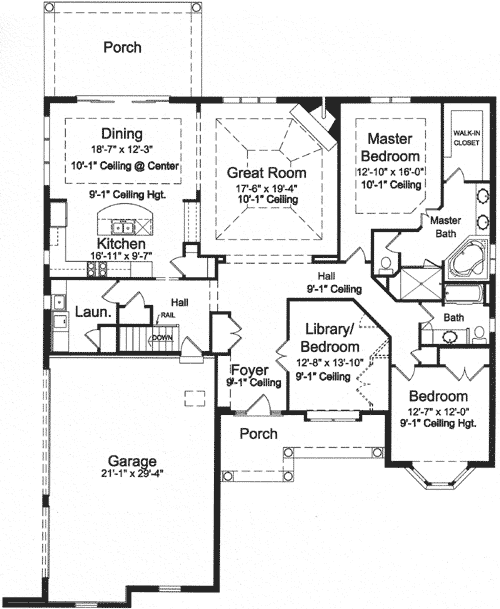

Plan 39208ST: Flexibility - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • An open floor plan and the flexibility to turn the library into another bedroom enhance this one level home plan.
  • Tray ceilings add interest in the great room and dining room that is open to the kitchen.
  • A spacious island adds counter space and gives you wonderful views straight out to the porch.
  • The master suite has all the most requested features from a tray ceiling to a walk-in closet and spa tub.

What's Included

  • General notes and specifications

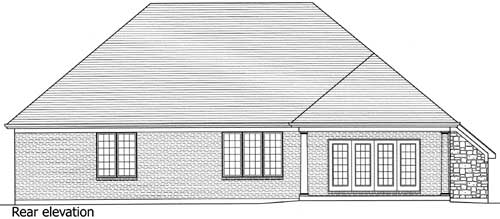

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,252 sq. ft.

1st Floor

2,252 sq. ft.

Porch, Front

147 sq. ft.

Porch, Rear

237 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

57' 6"

Depth

64' 8"

Max Ridge Height

26' 2"

Garage

Type

Attached

Area

638 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry
