Plan 95109RW
Flexible 2-Bed Mountain Craftsman Plan with Den and Optional Lower Level
Heated S.F.
2,889
Beds
2-4
Baths
2.5 - 4.5
Stories
1
Cars
3
Flyer
What's Included
Floor Plan
PRINT PLANS

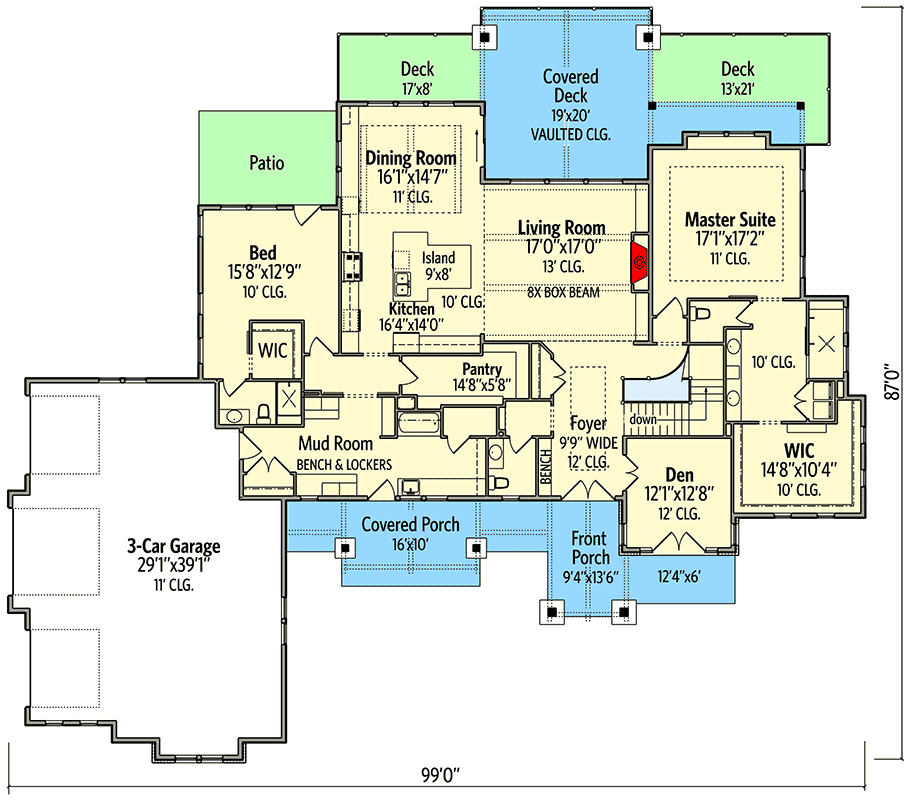

Main Level
Reverse Floor Plan
Flexible 2-Bed Mountain Craftsman Plan with Den and Optional Lower Level - 95109RW floor plan - Main Level

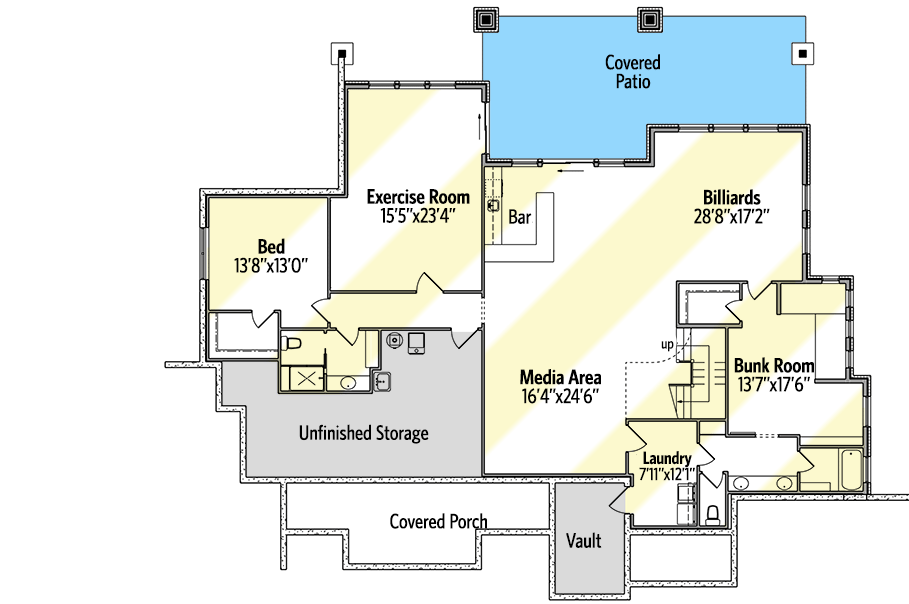

Optional Lower Level
Reverse Floor Plan
Flexible 2-Bed Mountain Craftsman Plan with Den and Optional Lower Level - 95109RW floor plan - Optional Lower Level
Plan Details
  • The optional lower level lends flexibility to this 2-bedroom Mountain Craftsman plan, increasing the total living space by 2,561 square feet.

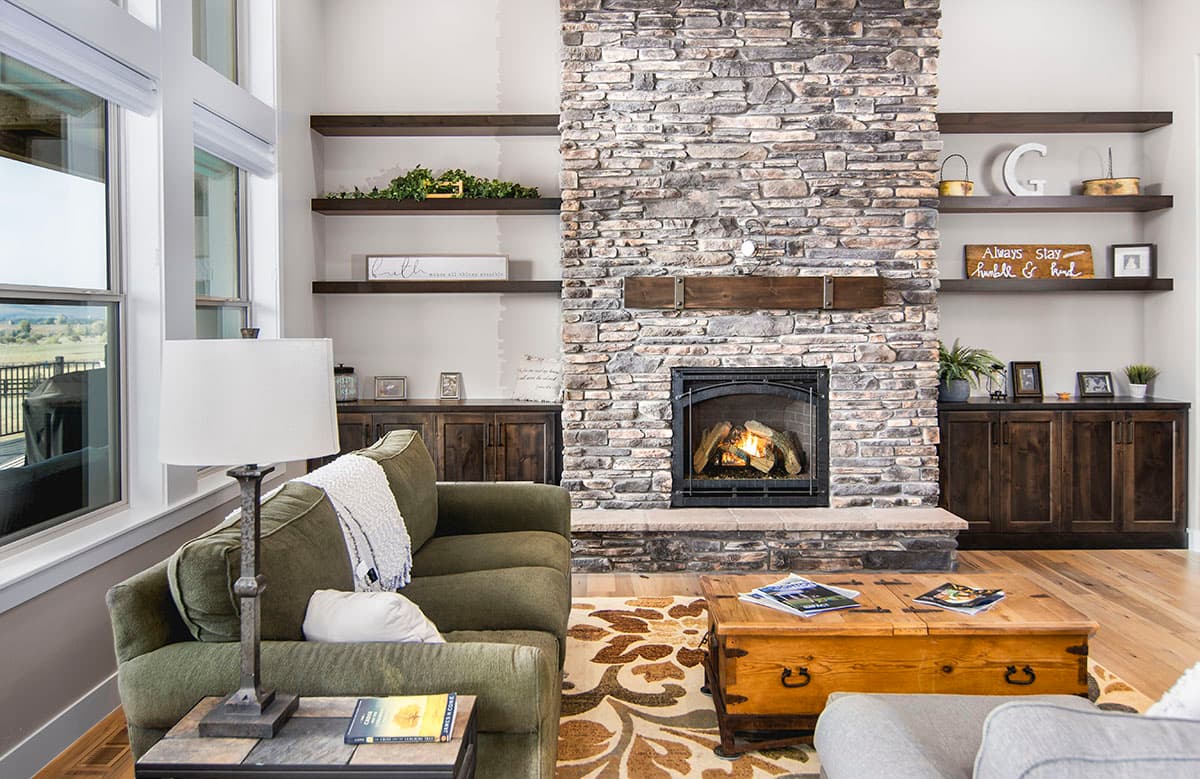

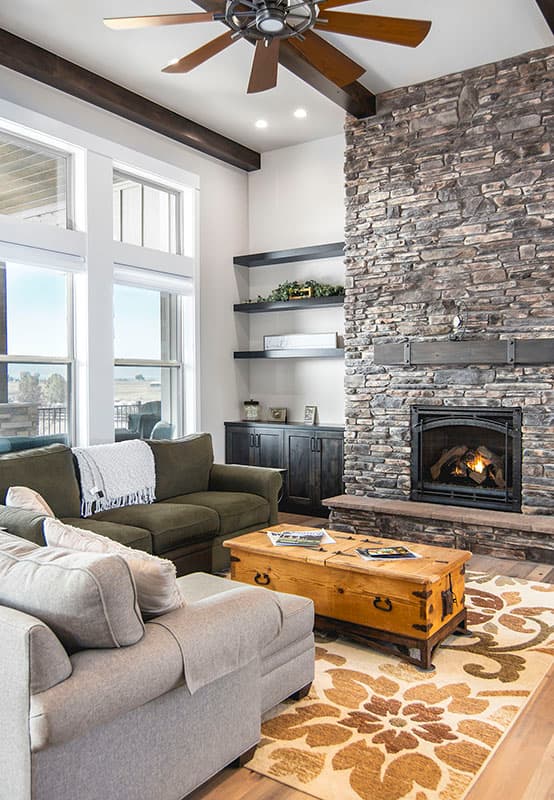

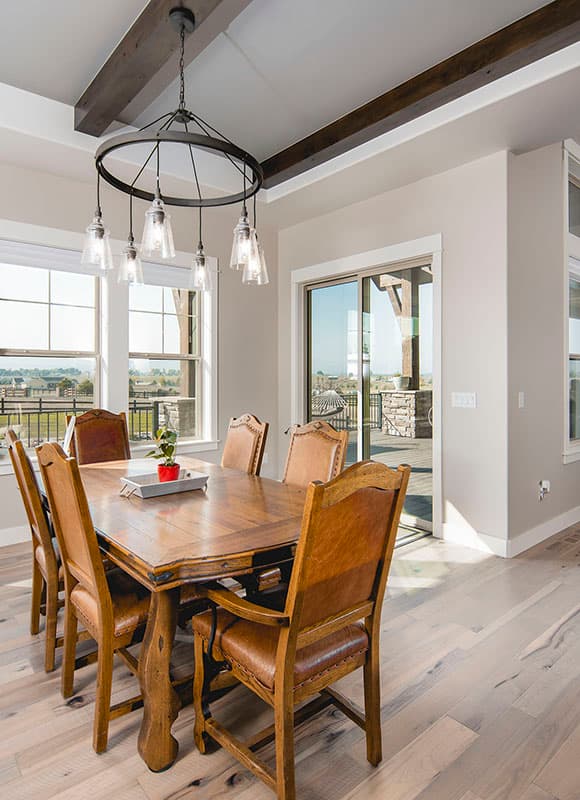

  • On the main level, the homeowner will appreciate the open communal spaces, defined by elegant ceilings and enhanced by a warm fireplace.

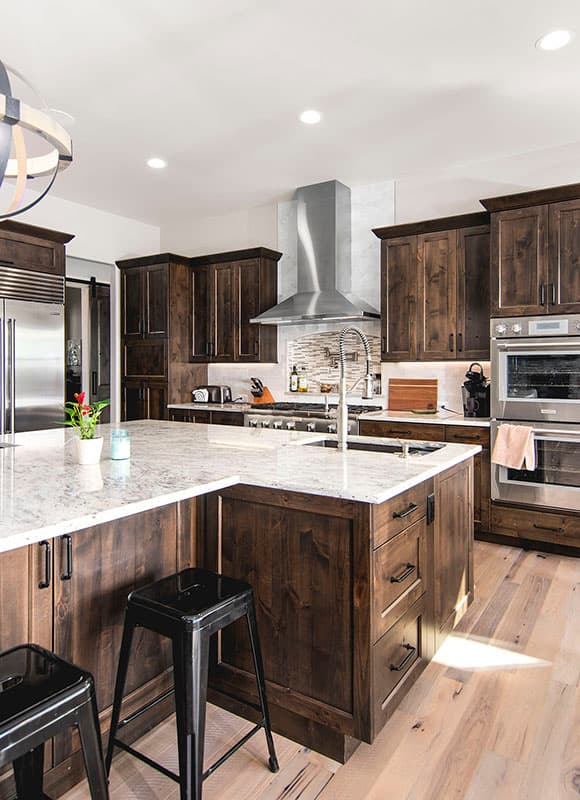

  • The T-shaped kitchen island provides seating for casual meals and conversation, and a nearby walk-in pantry offers plenty of storage space for dried foods and canned goods.

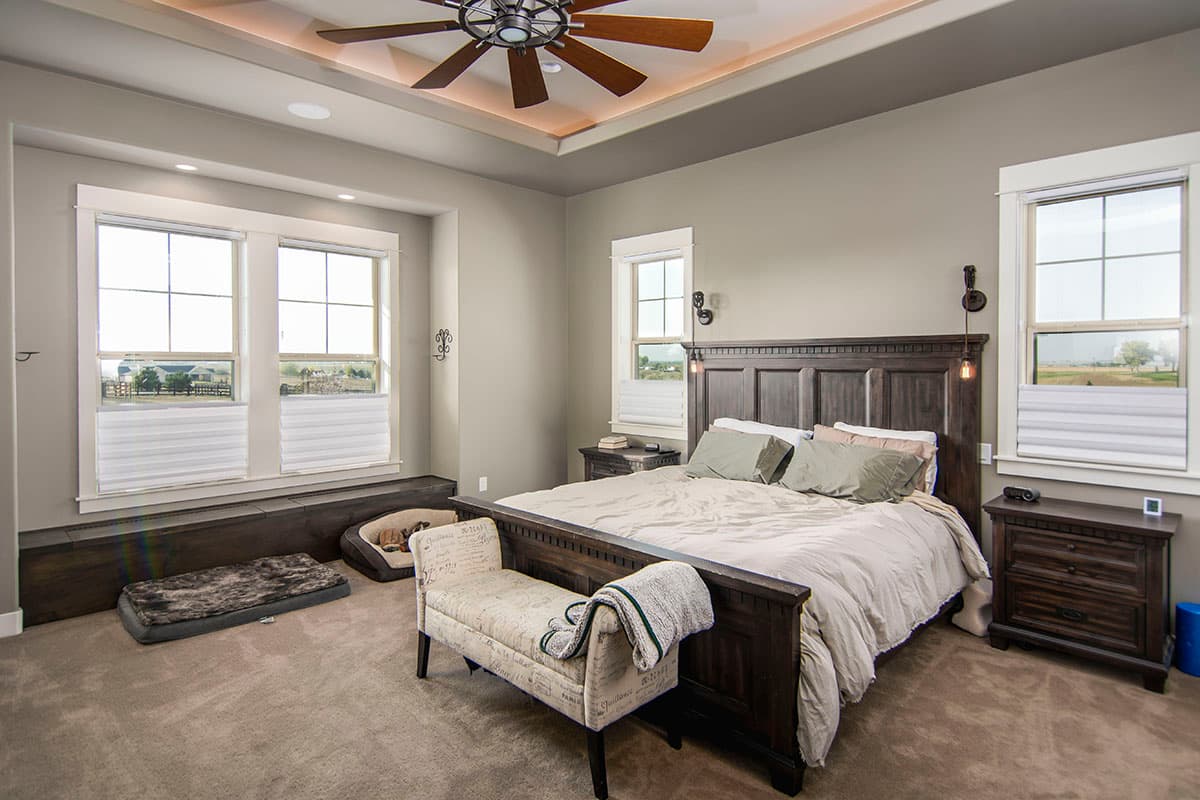

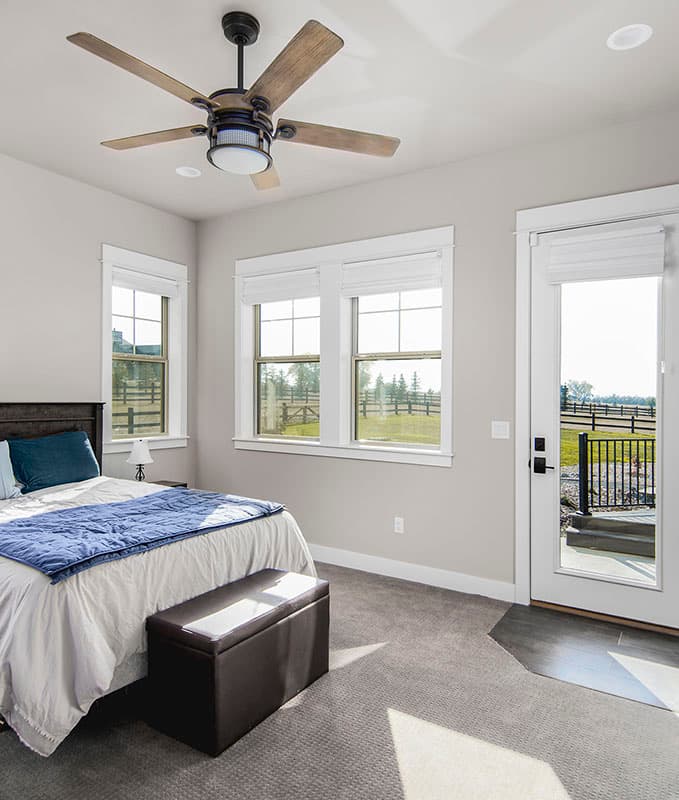

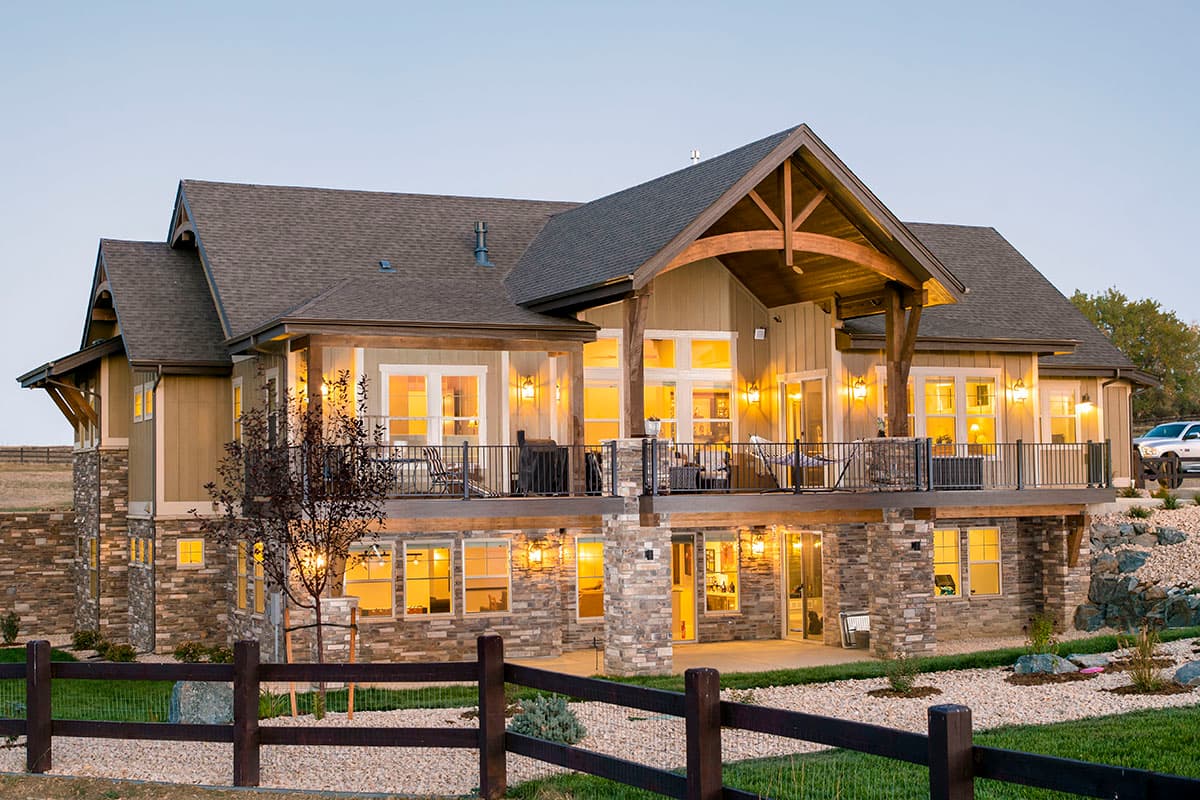

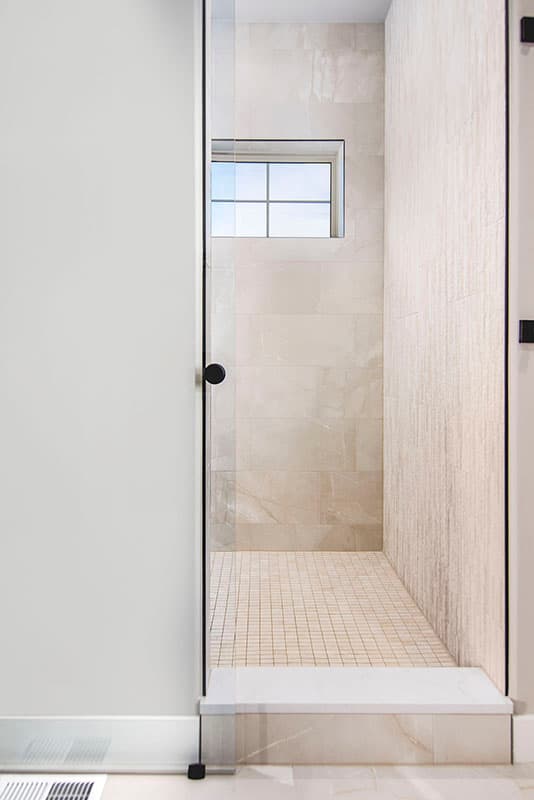

  • A boxed-bay window in the master suite overlooks the partially-covered rear deck, while the master bath boasts an oversized walk-in shower, laundry closet, and large closet.

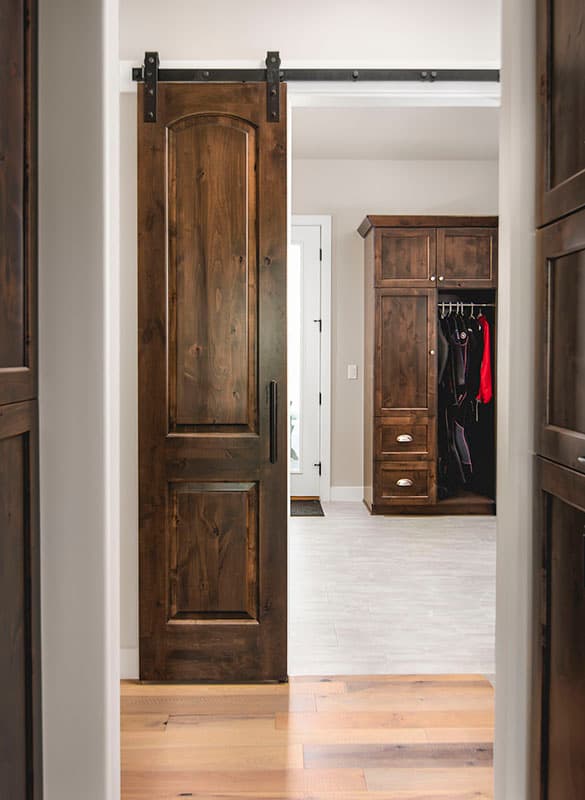

  • The second main-floor bedroom suite is located near the 3-car garage, and the mudroom features a pet station and family / friends entrance from the covered porch.

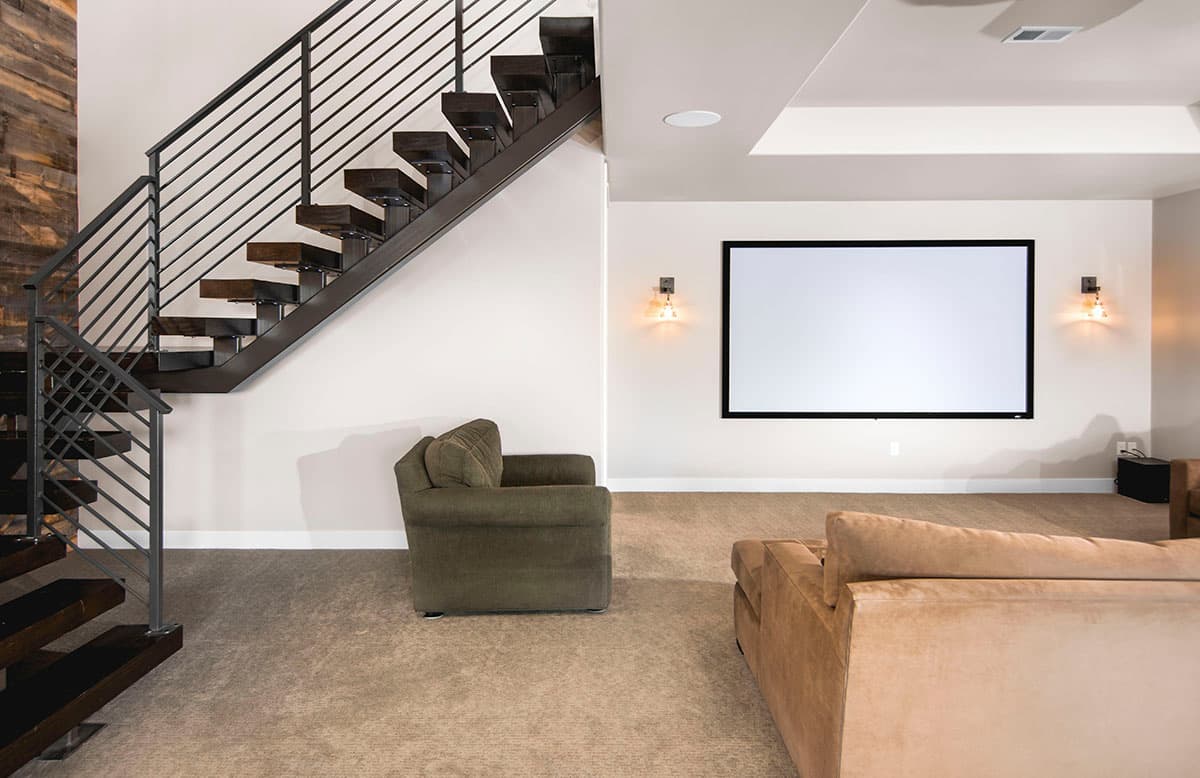

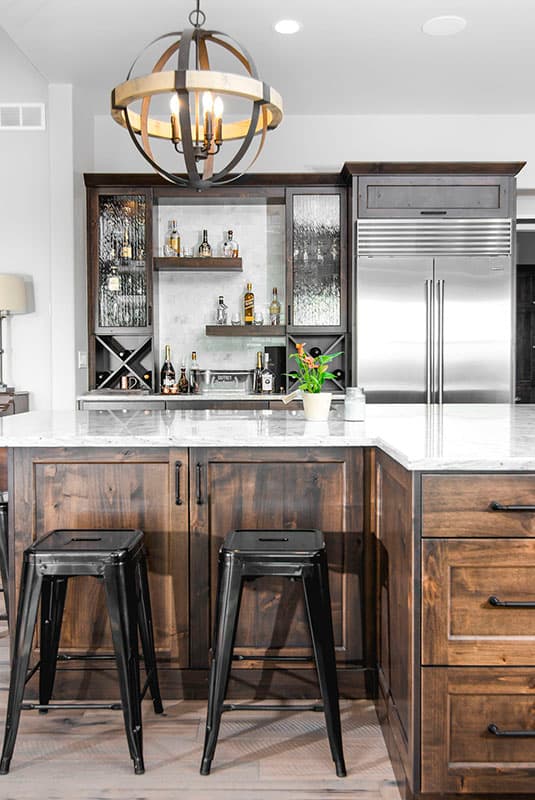

  • Finish the lower level and enjoy a combined media / billiards room with a wet bar, bunk room, exercise room, fourth bedroom, and a full laundry room.
What's Included

  • Cover Page

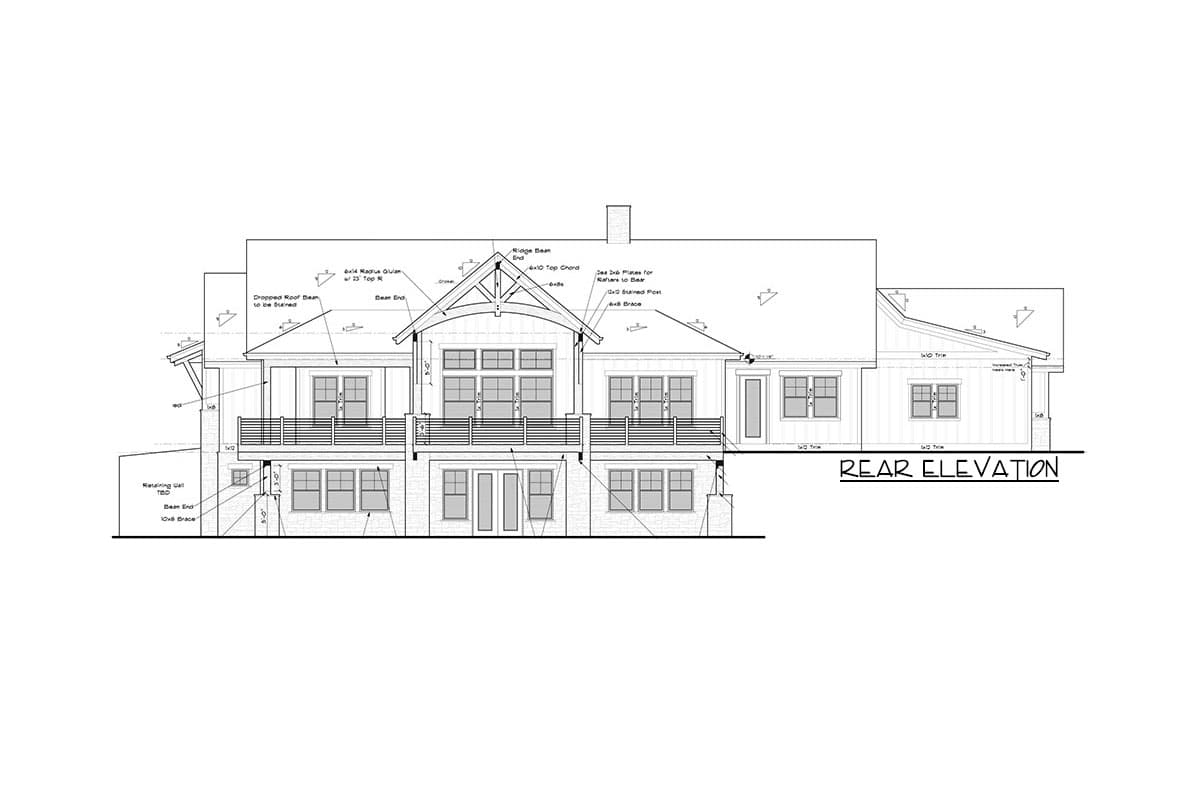

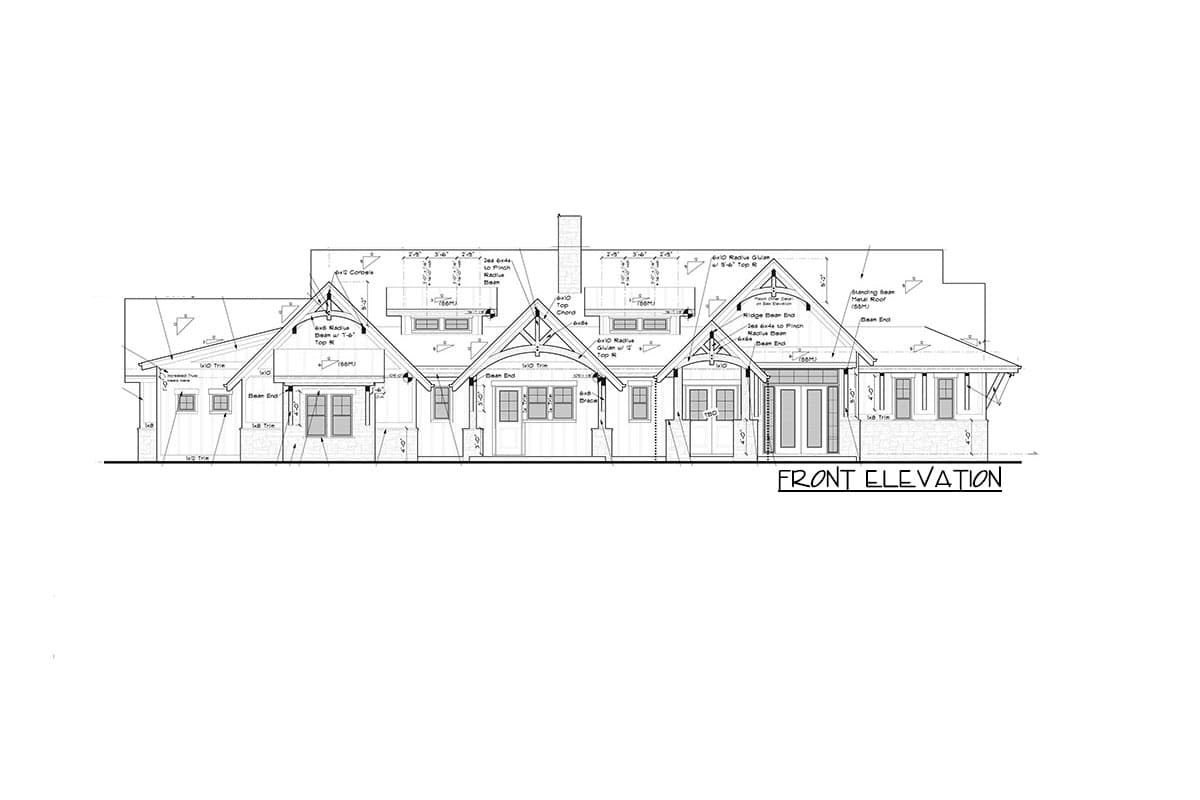

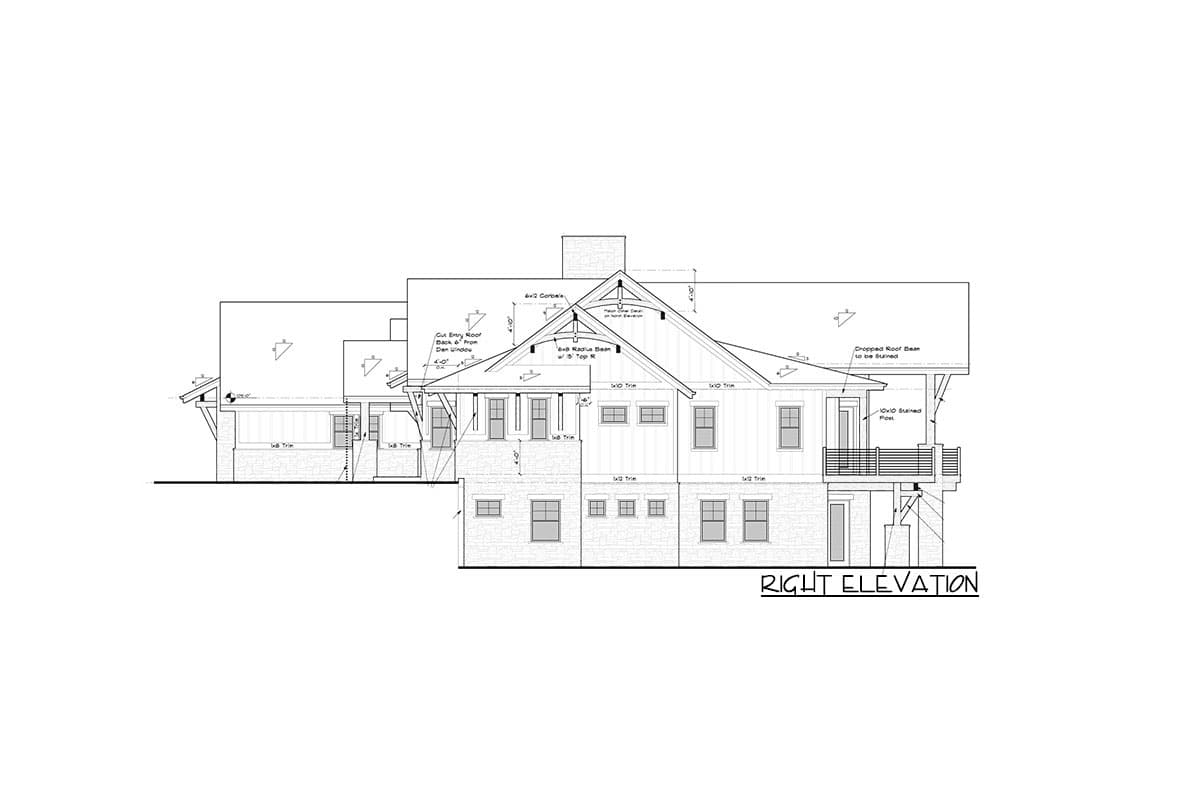

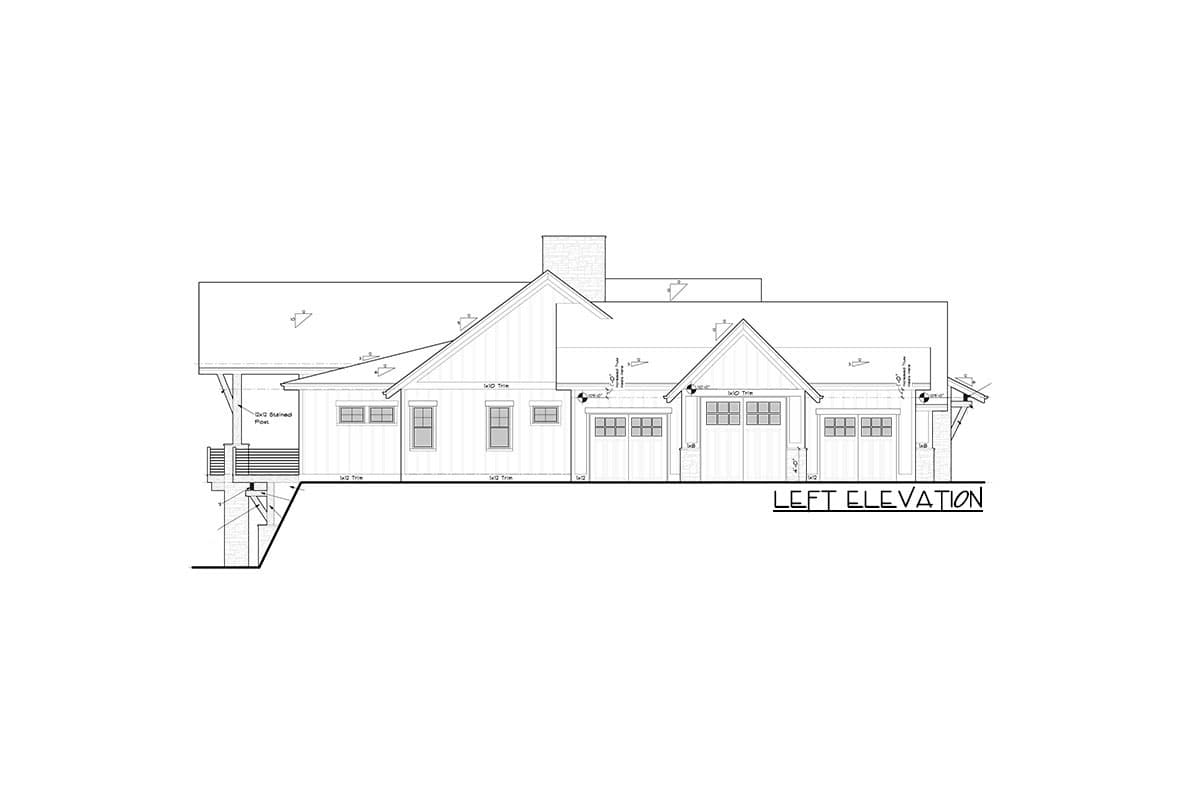

  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Flexible 2-Bed Mountain Craftsman Plan with Den and Optional Lower Level

  • 2,889

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,889 sq. ft.
  • 1st Floor: 2,889 sq. ft.

Dimensions

  • Width: 99' 0"
  • Depth: 87' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1197 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
