Flexible 3-Bed Country Ranch House Plan with Bonus Room

Plan 444330GDN

  • 1,699

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • An inviting front porch (15'4" wide and 6' deep), dormers, gables, and windows topped by half-rounds give curb appeal to this lovely ranch house.
  • Inside, an open floor plan with split bedroom design and a spacious bonus room gives you 331 square feet of expansion space.
  • Two dormers add light and volume to the foyer, while a 16'2" cathedral ceiling enlarges the open great room.
  • Accent columns define the foyer, great room, kitchen, and breakfast area.
  • Both dining room and front bedroom/study have tray ceilings that show off stunning picture windows with half-rounds.
  • The private master suite with 9'8" tray ceiling accesses the rear deck through sliding glass doors, and the bath includes a garden tub, separate shower, and two skylights over a double bowl vanity.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

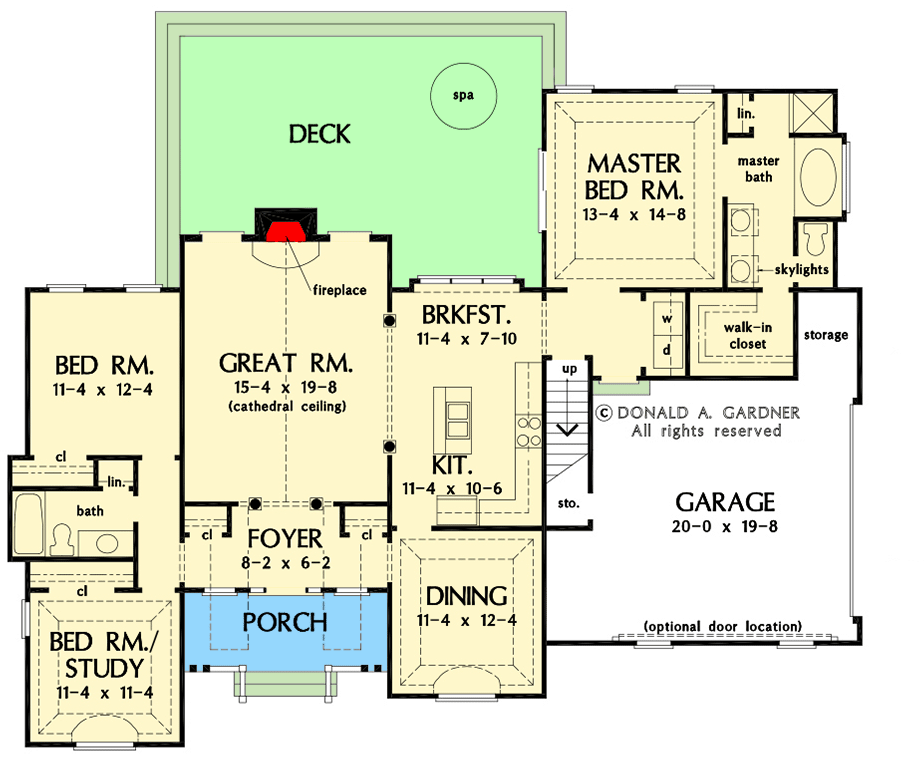

Flexible 3-Bed Country Ranch House Plan with Bonus Room - 444330GDN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

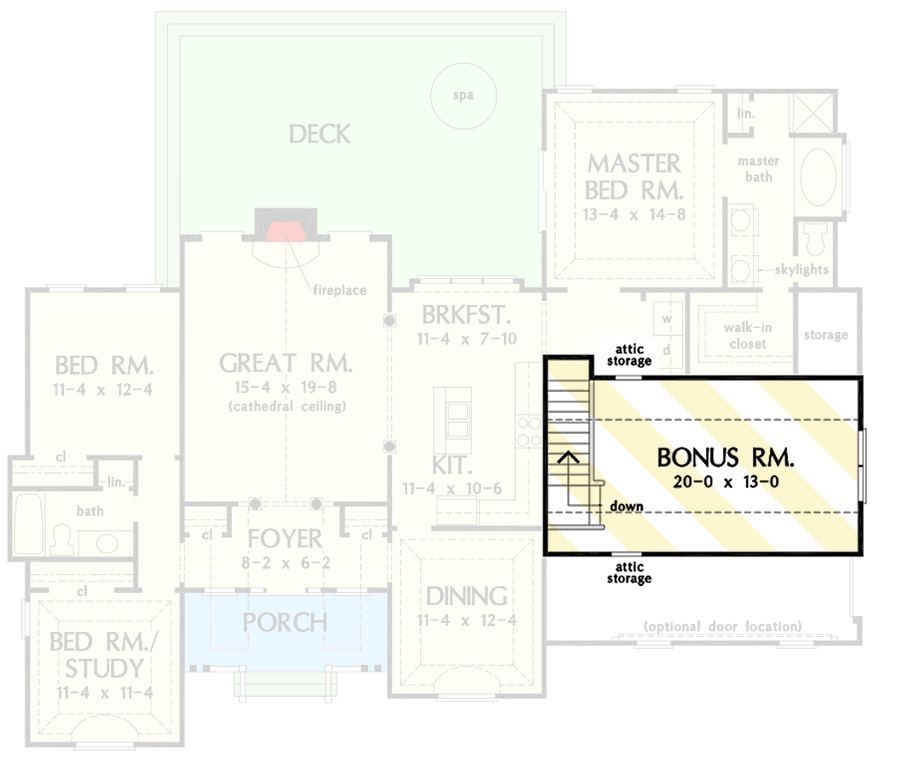

Flexible 3-Bed Country Ranch House Plan with Bonus Room - 444330GDN floor plan - 2nd Floor
