Plan 510019WDY

Flexible 3-Bed Farmhouse Plan with Impressive Features

Heated S.F.
4,002
Beds
3 - 4
Baths
3.5+
Stories
1
Cars
3

Floor Plan

Plan 510019WDY

Main Level
Main Level
Bonus Over Garage
Bonus Over Garage

Plan 510019WDY

M-F 9am-5pm EST |

1-203-761-8500

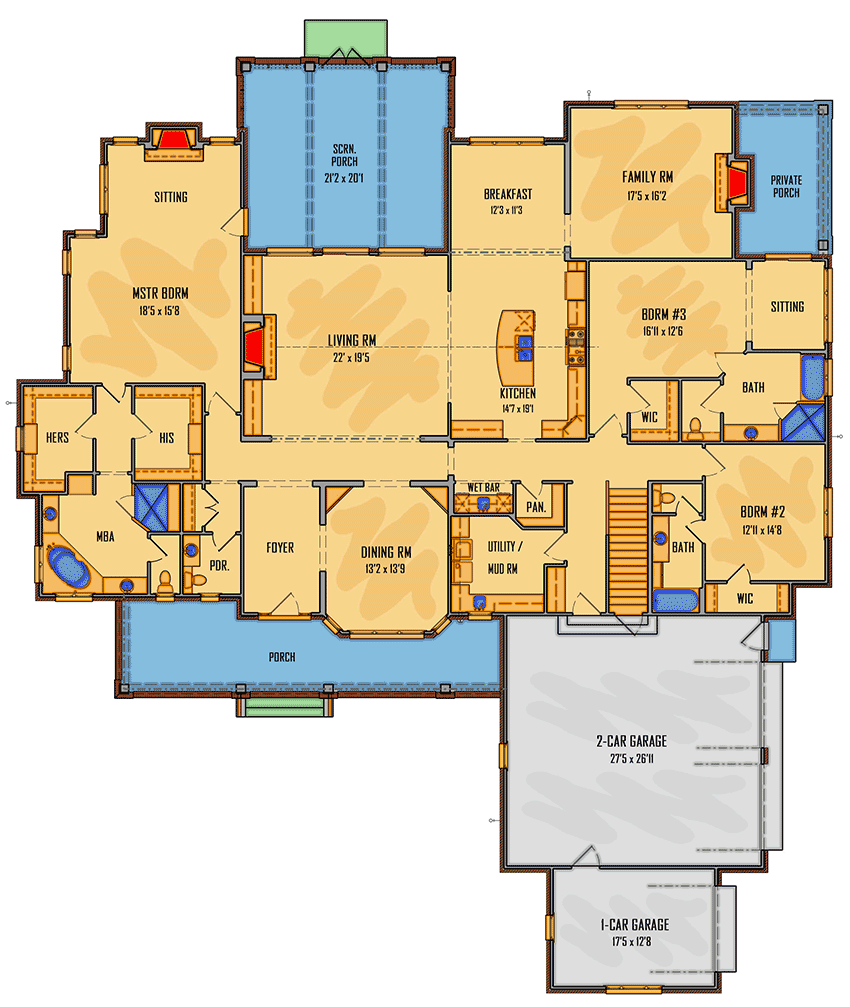

Main Level

Plan 510019WDY: Flexible 3-Bed Farmhouse Plan with Impressive Features - Floor Plan - Main Level - Acadian, Country, European, Farmhouse, Louisiana-Style, Southern

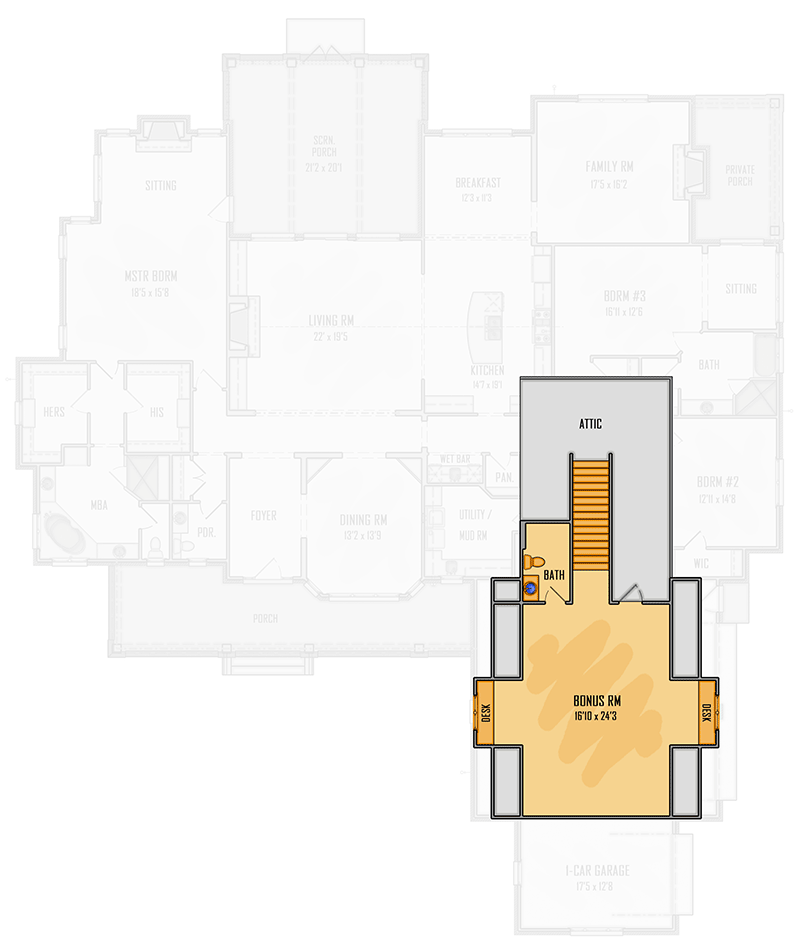

Bonus Over Garage

Plan 510019WDY: Flexible 3-Bed Farmhouse Plan with Impressive Features - Floor Plan - Bonus Over Garage - Acadian, Country, European, Farmhouse, Louisiana-Style, Southern

Plan Details

  • Impressive features throughout this 3-bedroom, farmhouse plan make the design stand out amongst others. The thoughtful flow provides the homeowner with flexibility, and spacious service areas can accommodate any size of family.
  • A sizable living room can be seen from the foyer, and the open kitchen boasts a large island with a double-bowl sink. A wet bar is located near the formal dining room, adjacent the walk-in pantry.
  • A second, more secluded family room provides a quiet space to relax, or read.
  • The location of the master bedroom considers the homeowner's privacy, and the attached sitting nook grants access to the screen porch. Dual closets border the hallway leading to the 5-fixture en suite.
  • Bedrooms 2 and 3 can be found behind the 3-car garage; one of which features a sitting nook and private porch.
  • Spread out by utilizing the bonus room above the garage as common space, or define the space as a fourth bedroom if needed.

What's Included

This plan has 10 pages as follows:
  1. Coversheet Color Rendering
  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. 2nd Floor and Partial Roof Plan

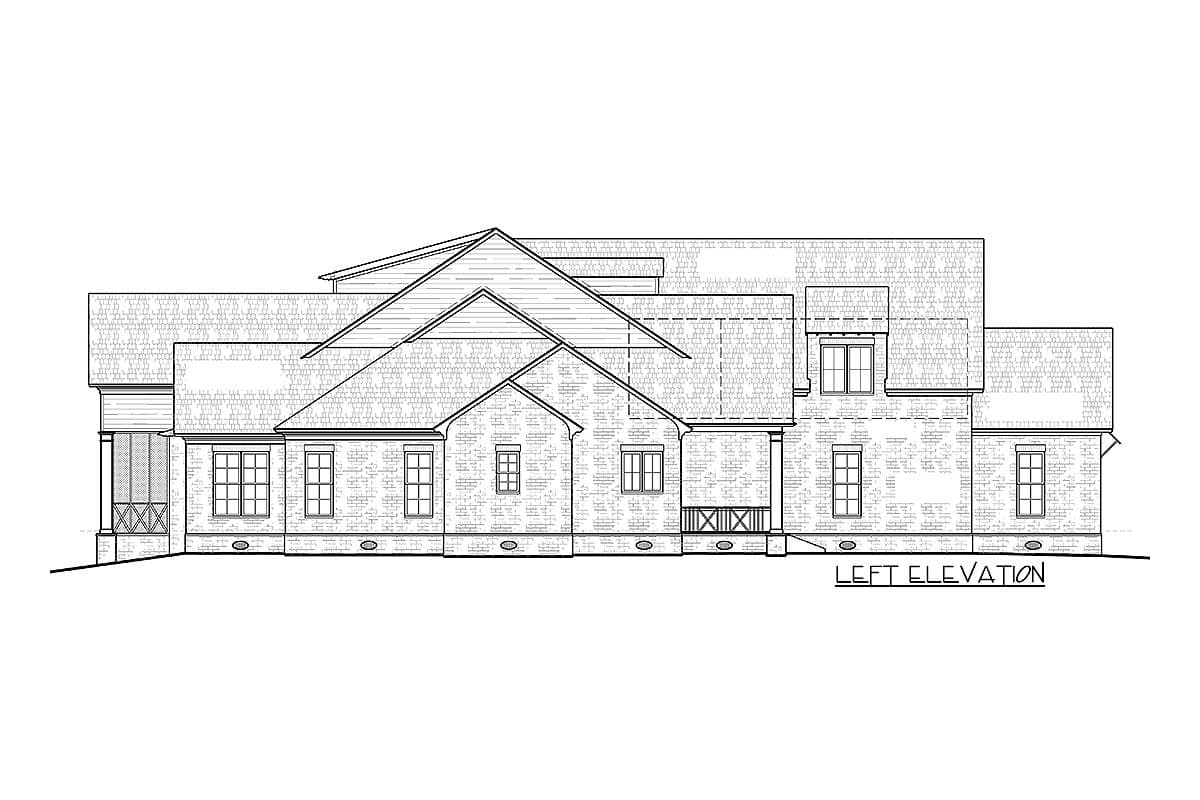

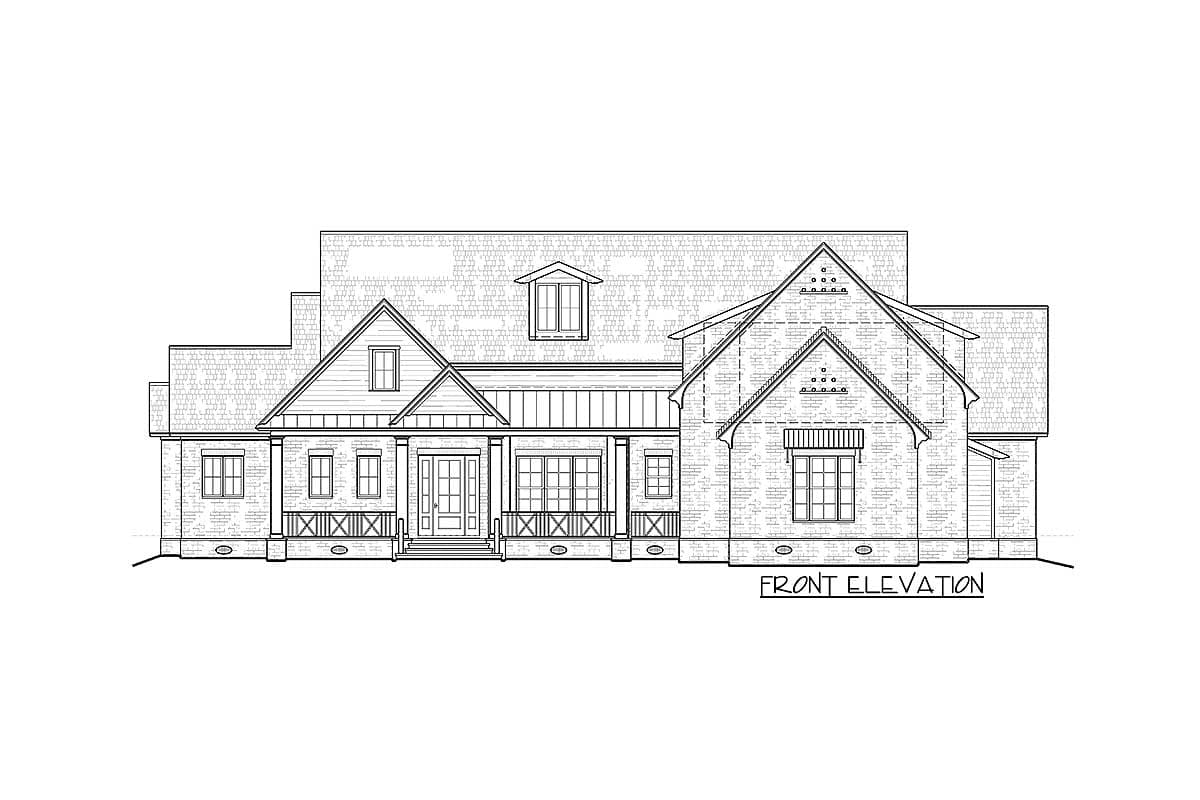

  4. Front and Left side Elevations with Note and Materials

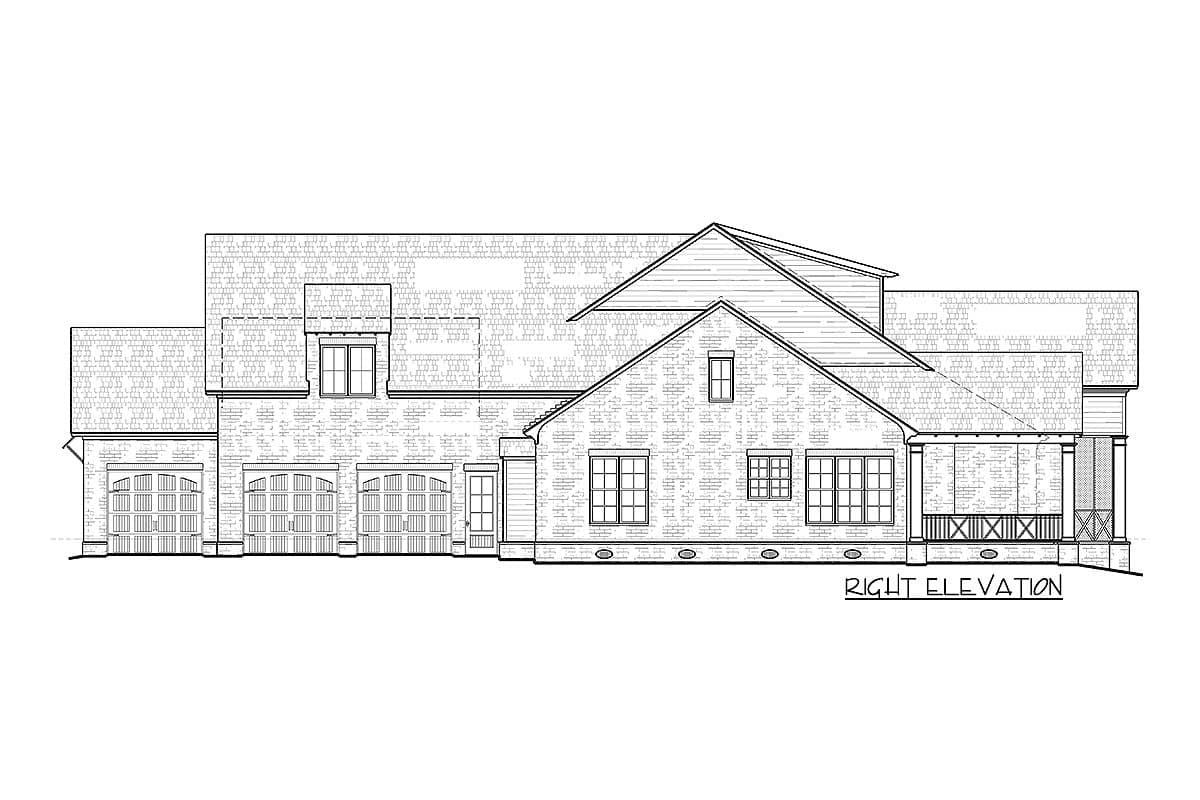

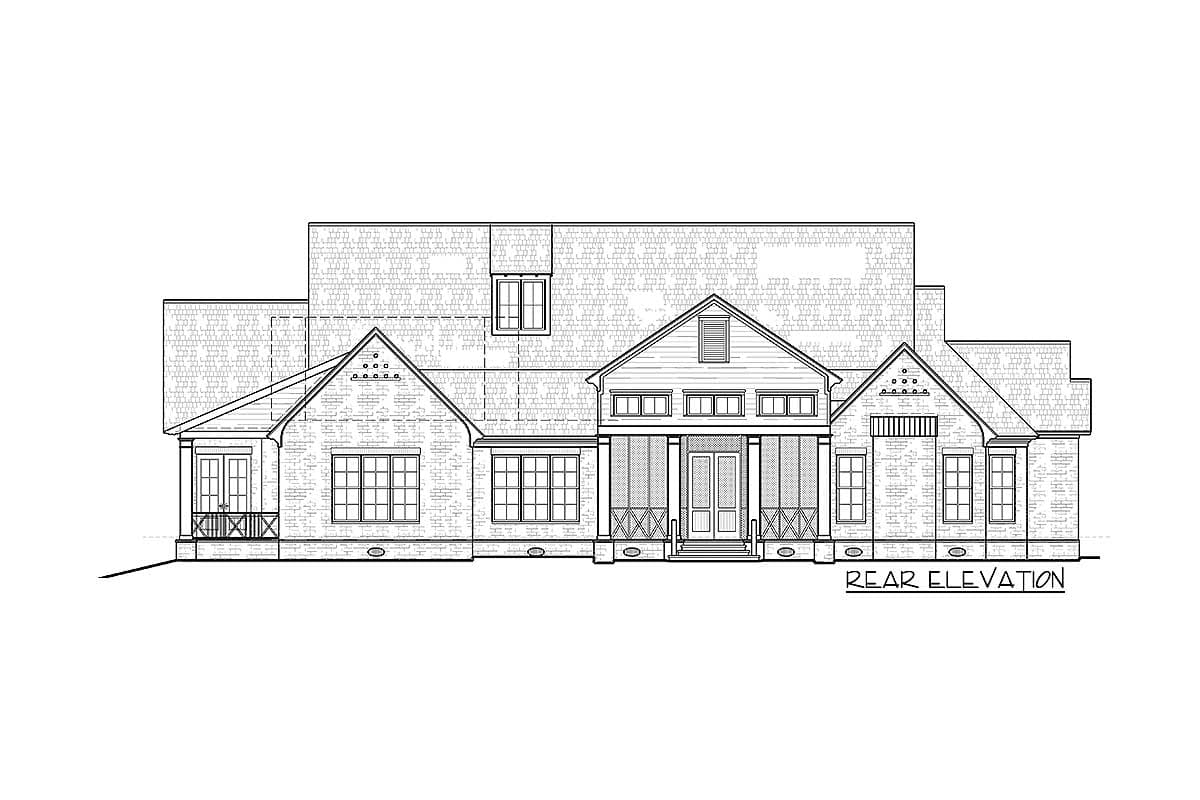

  5. Rear and Right side Elevations with Note and Materials
  6. Building Section and Roof Plan and Misc. Details
  7. Building Sections
  8. Electrical Plans and Schedules
  9. Slab Foundation Plan
  10. Footing Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,002 sq. ft.

1st Floor

4,002 sq. ft.

Bonus

534 sq. ft.

Porch, Front

354 sq. ft.

Porch, Rear

453 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

87' 9"

Depth

100' 8"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

996 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Acadian

Country

European

Farmhouse

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Wet Bar

Square Footage Breakdown

Total Heated Area

4,002 sq. ft.

1st Floor

4,002 sq. ft.

Bonus

534 sq. ft.

Porch, Front

354 sq. ft.

Porch, Rear

453 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

87' 9"

Depth

100' 8"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

996 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Acadian

Country

European

Farmhouse

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Wet Bar
