Plan 69614AM Flexible 3 Bed Prarie Style House Plan

Flexible 3 Bed Prarie Style House Plan

Plan 69614AM

  • 2,136

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Prairie-inspired 3 bed house plan was designed to be highly flexible and easily modifiable to suit multiple homeowner requirements. Elements such as the arrangement of great room built-ins and use of flexible spaces make customization a breeze.
  • An open concept layout greets you as you enter the foyer with the combined living room and dining room area open to the kitchen. The kitchen has a large pantry off the garage entry for easy grocery unloading.
  • A large outdoor living area is accessible from the center portion of the home and is great for entertaining.
  • The garage is designed to accommodate a front or side entry, and the plan is set up to take advantage of views to either the front or rear, making it suitable for many lots and orientations.
  • Related Plans: Get more room with house plan 69693AM (2,374 sq. ft.) and get a side-entry garage with house plan 69603AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

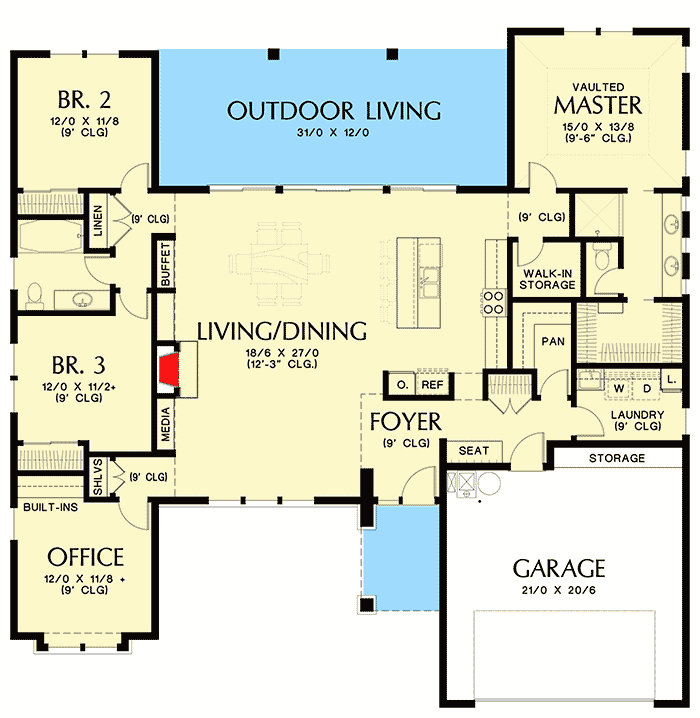

Flexible 3 Bed Prarie Style House Plan - 69614AM floor plan - Main Level

Plan details

Flexible 3 Bed Prarie Style House Plan

  • 2,136

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,440
  • 5 Sets $1,640
  • 5 Sets + PDF $1,690
  • CAD + PDF - Unlimited Build $2,880
  • View all purchase option online

About This Plan

  • This Prairie-inspired 3 bed house plan was designed to be highly flexible and easily modifiable to suit multiple homeowner requirements. Elements such as the arrangement of great room built-ins and use of flexible spaces make customization a breeze.
  • An open concept layout greets you as you enter the foyer with the combined living room and dining room area open to the kitchen. The kitchen has a large pantry off the garage entry for easy grocery unloading.
  • A large outdoor living area is accessible from the center portion of the home and is great for entertaining.
  • The garage is designed to accommodate a front or side entry, and the plan is set up to take advantage of views to either the front or rear, making it suitable for many lots and orientations.
  • Related Plans: Get more room with house plan 69693AM (2,374 sq. ft.) and get a side-entry garage with house plan 69603AM.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,136 sq. ft.
  • 1st Floor: 2,136 sq. ft.
  • Porch, Rear: 372 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 60' 0"
  • Max ridge height: 17' 10"

Garage

  • Type: Attached
  • Area: 485 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
