Flexible 4 Bay Garage Plan with Full Bath and 3 Dormers

Plan 68439VR

  • 1,730

    Heated s.f.

  • 1

    Baths

  • 2

    Stories

  • 4

    Cars

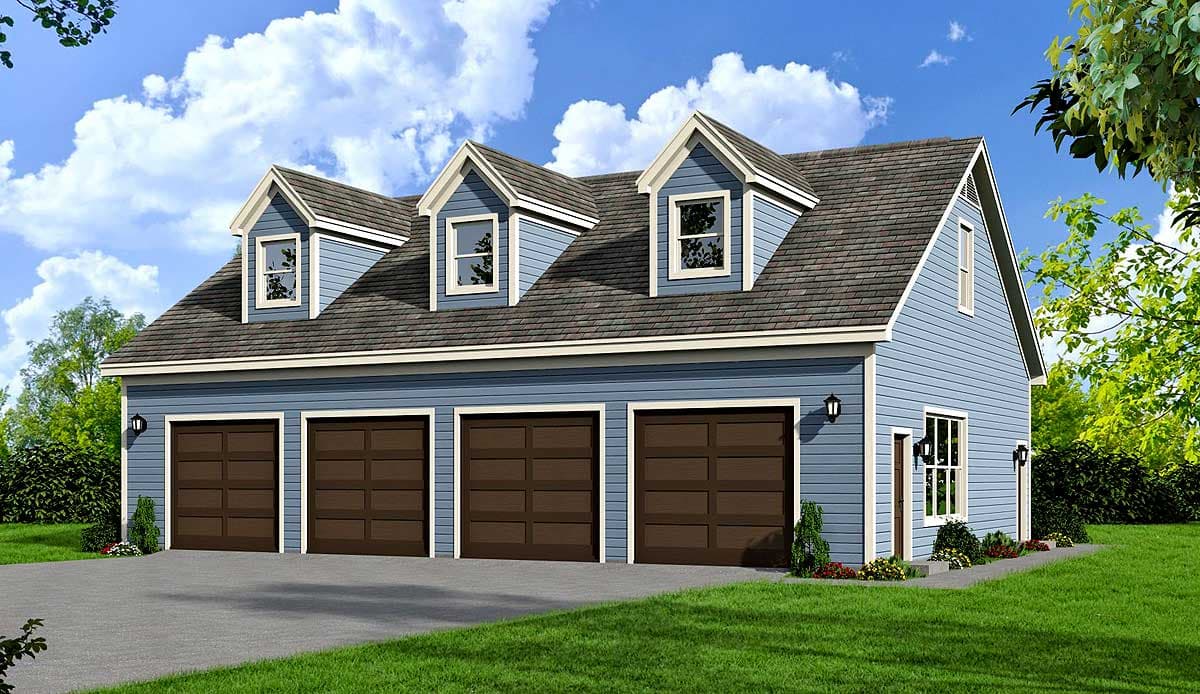

  • This detached garage plan gives you 4 bays with 3 attractive dormers above helping create usable space on the upper level.
  • A full bath on the ground level makes this great as compliment structure to a pool or as a workshop.
  • The garage doors are each 9'x8' giving you wide berth for your vehicles.
  • The upstairs is a raw space that can be used as storage or as a workshop, office, or playroom.
  • Related Plans: Get alternate 4-car garage plans with 68548VR68482VR68545VR68600VR and 68604VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

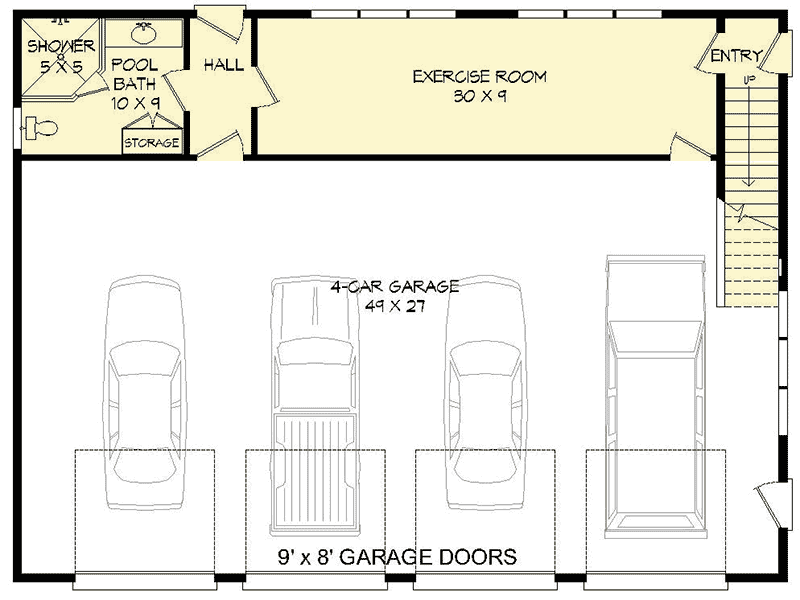

Flexible 4 Bay Garage Plan with Full Bath and 3 Dormers - 68439VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

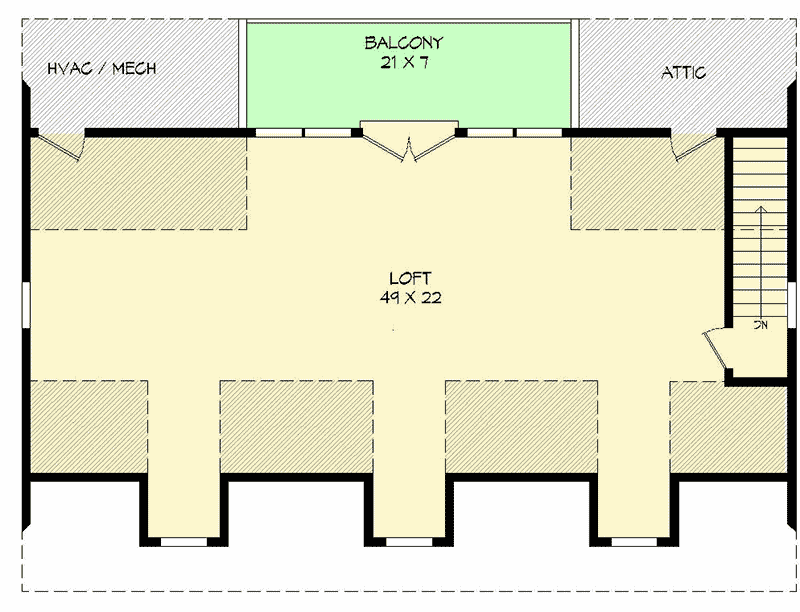

Flexible 4 Bay Garage Plan with Full Bath and 3 Dormers - 68439VR floor plan - 2nd Floor

Special features

Flexible 4 Bay Garage Plan with Full Bath and 3 Dormers

  • 1,730

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,730 sq. ft.
  • 1st Floor: 488 sq. ft.
  • 2nd Floor: 1,242 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 37' 0"
  • Max ridge height: 24' 10"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 1363 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Flexible 4 Bay Garage Plan with Full Bath and 3 Dormers

  • 1,730

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 4

    Car garage

Flexible 4 Bay Garage Plan with Full Bath and 3 Dormers

  • 1,730

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 4

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,730 sq. ft.
  • 1st Floor: 488 sq. ft.
  • 2nd Floor: 1,242 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 37' 0"
  • Max ridge height: 24' 10"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 1363 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
