Plan 51701HZ
Flexible Acadian House Plan With Bonus Room - 2506 Sq Ft
Heated S.F.
2,506
Beds
3-5
Baths
2.5 - 3.5
Stories
1
Cars
2
Plan Details
  • This elegant Acadian house plan gives you 3 to 4 bedrooms with one being used alternatively as study if you wish, and 2.5 baths.
  • The home has an open floor plan the central great room open to the kitchen and keeping room.
  • The oversized kitchen has a large island with raised bar, cooktop, and double ovens and it easily serves the formal dining room as well as casual meals at the island or keeping area. An outdoor kitchen on the covered rear porch gives you al fresco eating options as well.
  • The large master suite has raised ceilings, a large his and her walk-in closet, separate tub and shower, along with dual sinks. The remaining bedrooms are located across the home.
  • Expand over the garage and get another full bath there as well if you need it.
  • The roof is stick framed with a 12:12 main pitch and 8:12 and 10:12 secondary pitches.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

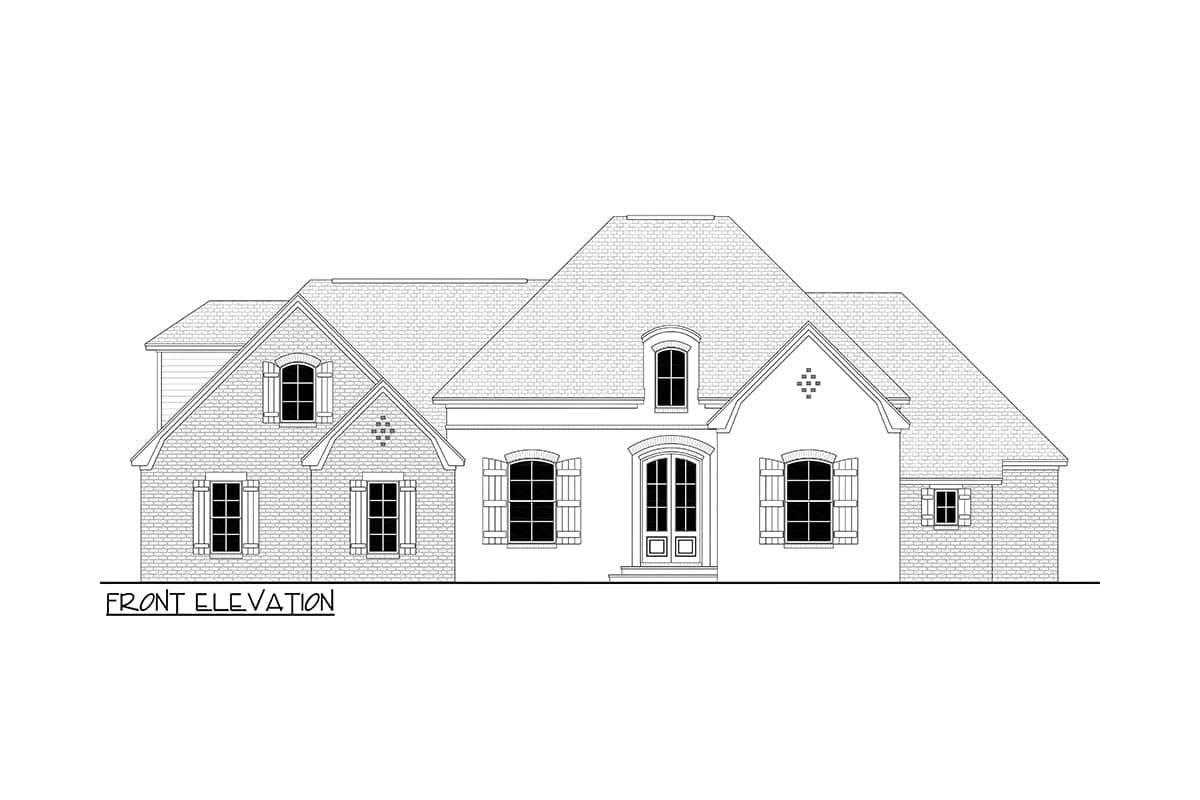

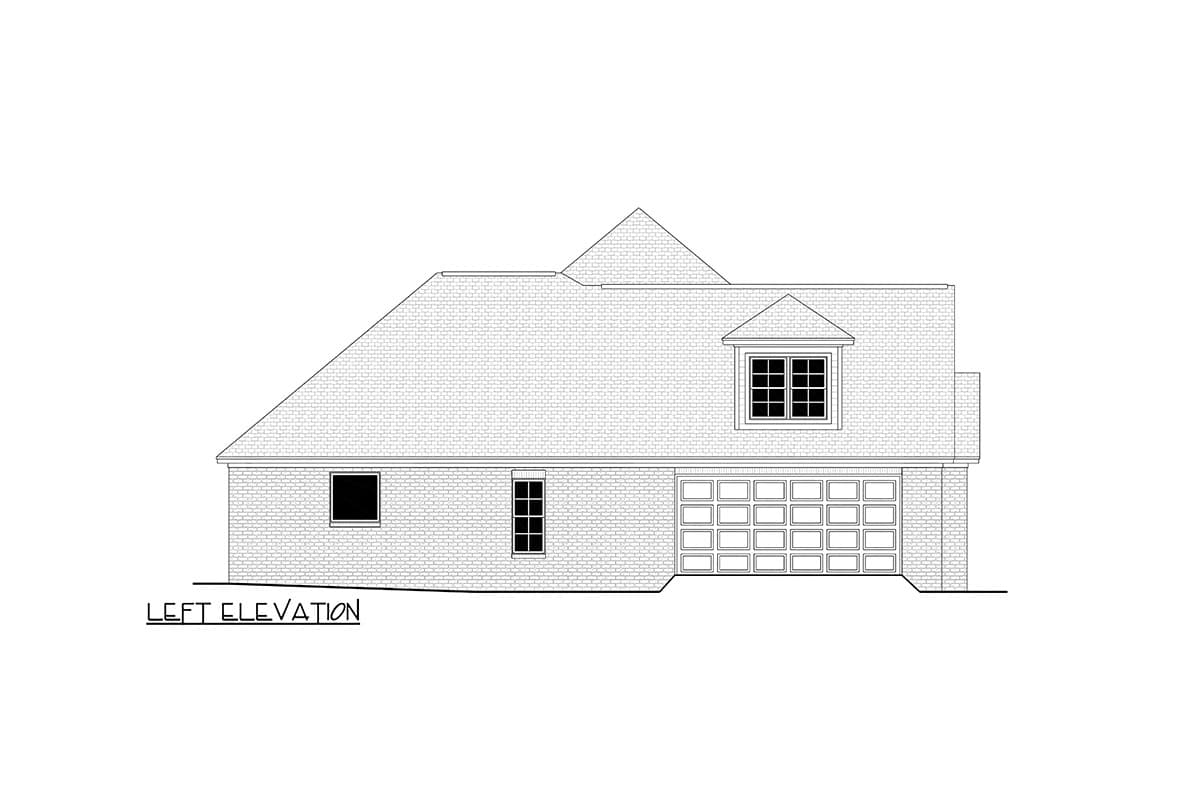

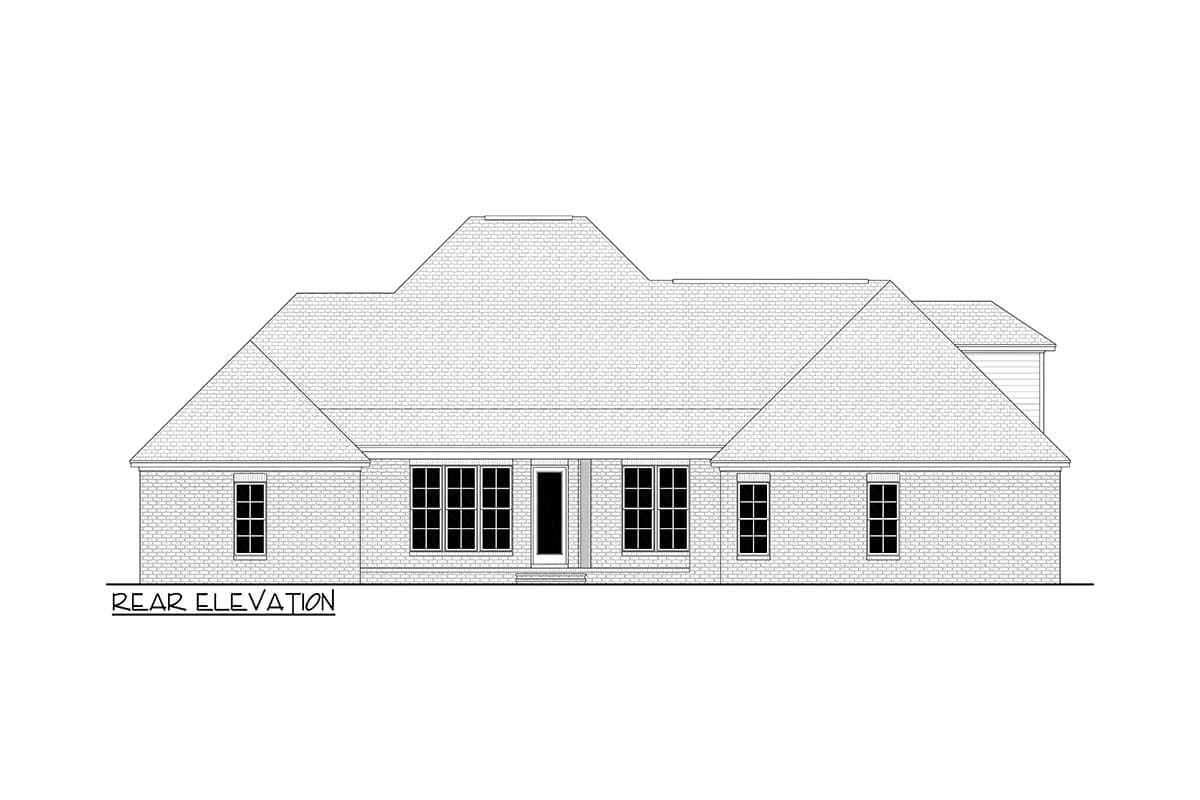

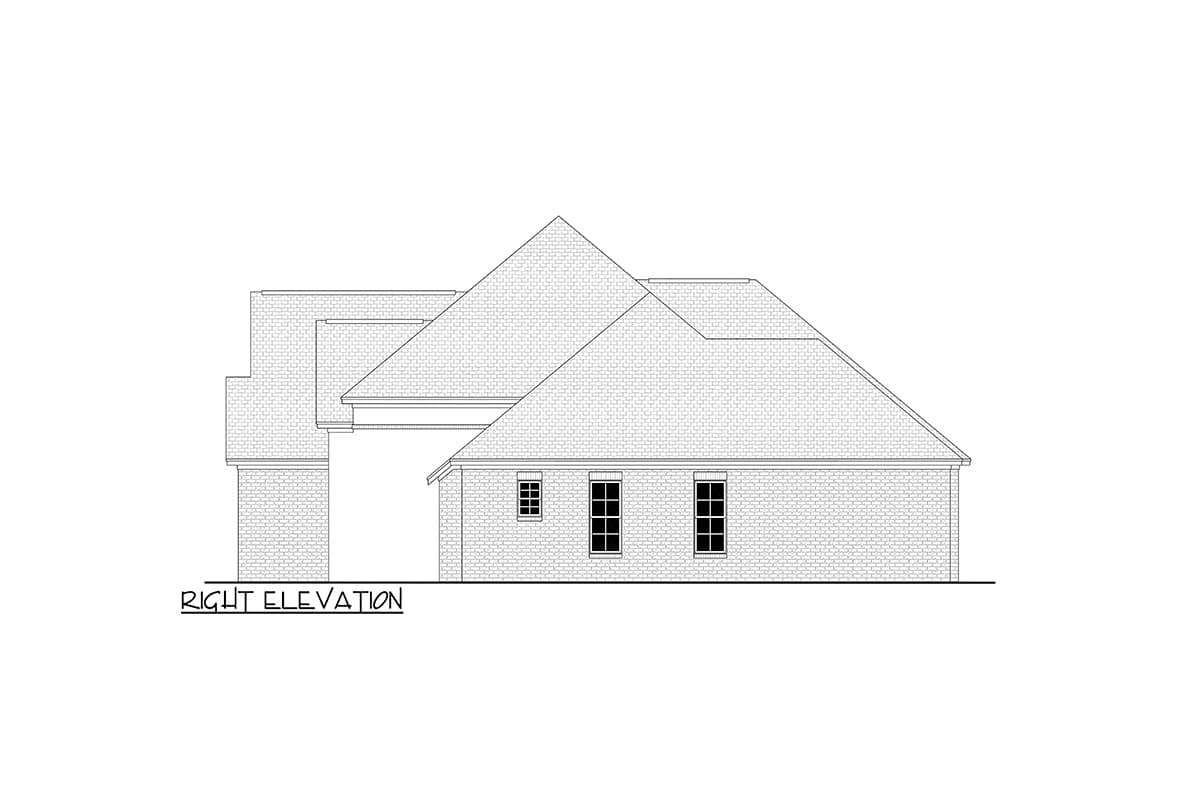

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Flexible Acadian House Plan With Bonus Room - 2506 Sq Ft

  • 2,506

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

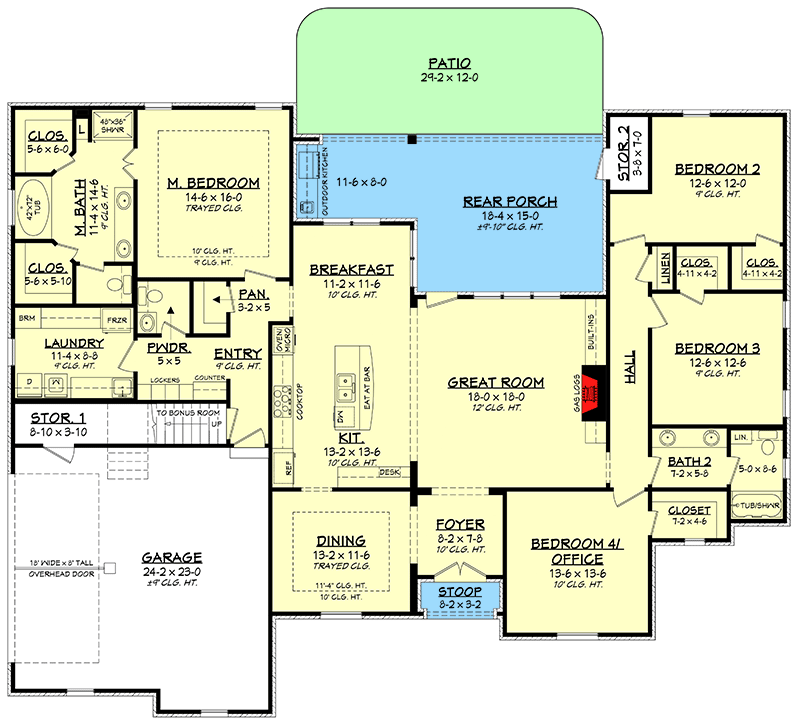

  • Main Level

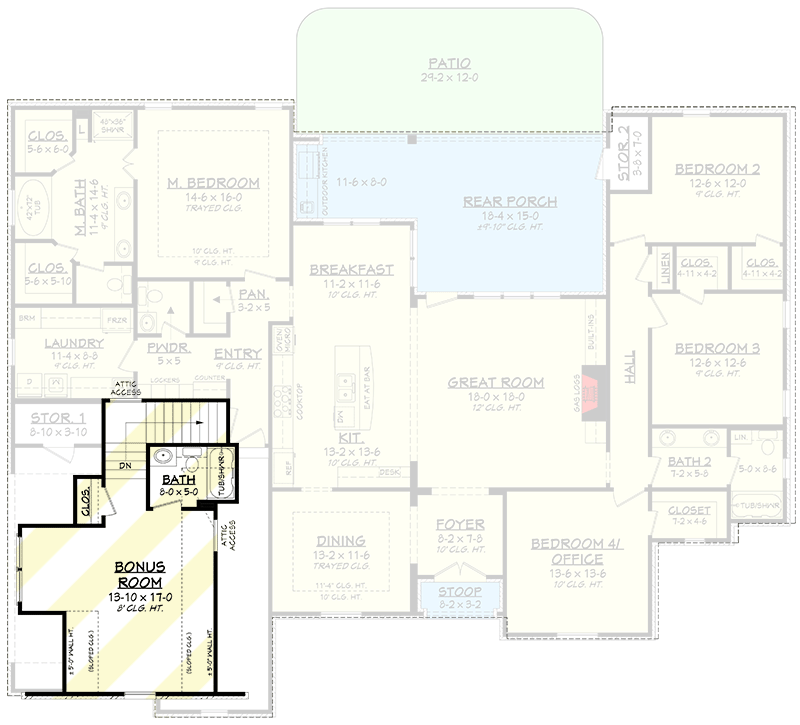

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,506 sq. ft.
  • 1st Floor: 2,506 sq. ft.

Dimensions

  • Width: 73' 10"
  • Depth: 57' 10"
  • Max ridge height: 28' 2"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 595 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
