Plan 72903DA

Flexible and Functional Ranch House Plan

Pageloader

Flexible and Functional Ranch House Plan

Plan 72903DA

  • 2,678

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • The single level layout allows homeowners' to enjoy this home through every stage of life; as a younger family with children to empty nesters looking for a home they can age in place.
  • Walking in the front door a grand foyer opens up to a den on the right which could be used as a home office, study, library or guest room.
  • The great room is tucked into the back of the home and features a cozy fireplace for cold fall days and for those warm summer days - a four panel siding glass door at the back to completely open the great room to the outdoors.
  • For those that work from home, a pocket office is tucked next to the owners' suite and has two desk spaces and lots of cabinets offering plenty of storage space.
  • The owners' suite fills the right, rear corner of the home and features a large walk-in closet, dual vanities and a flush curb walk-in shower.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

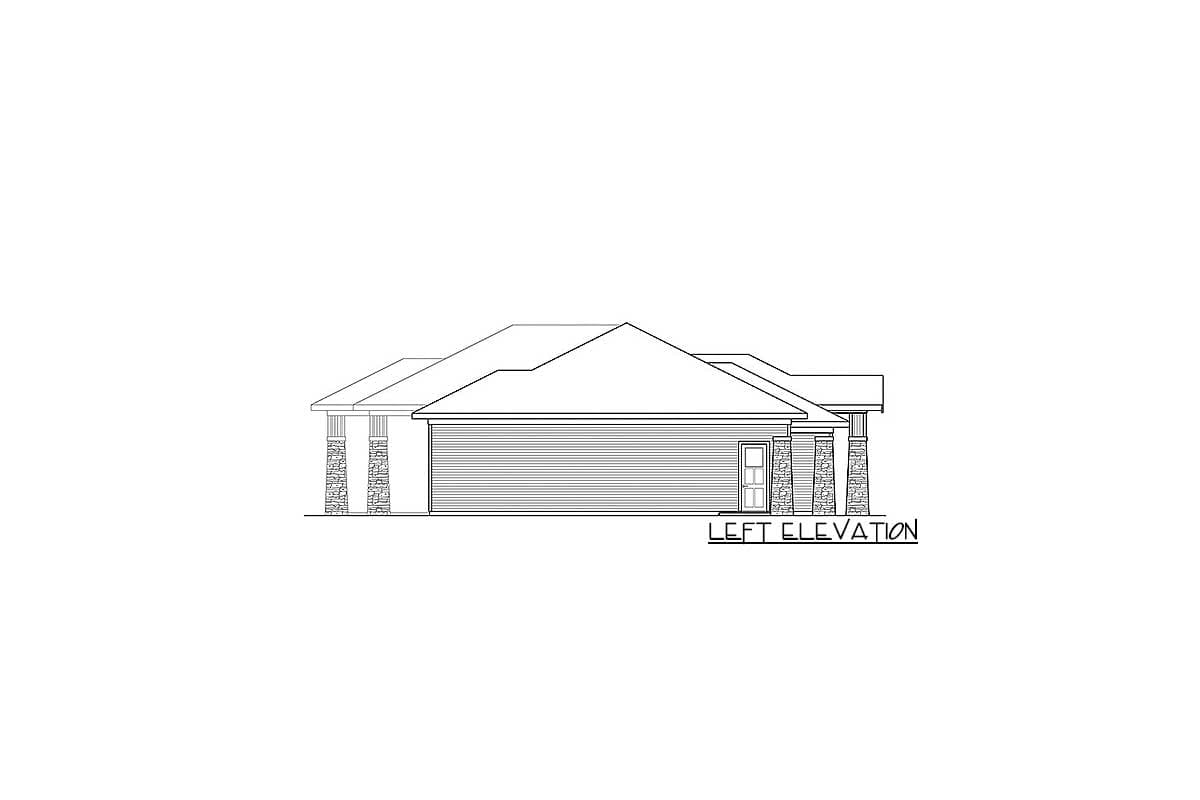

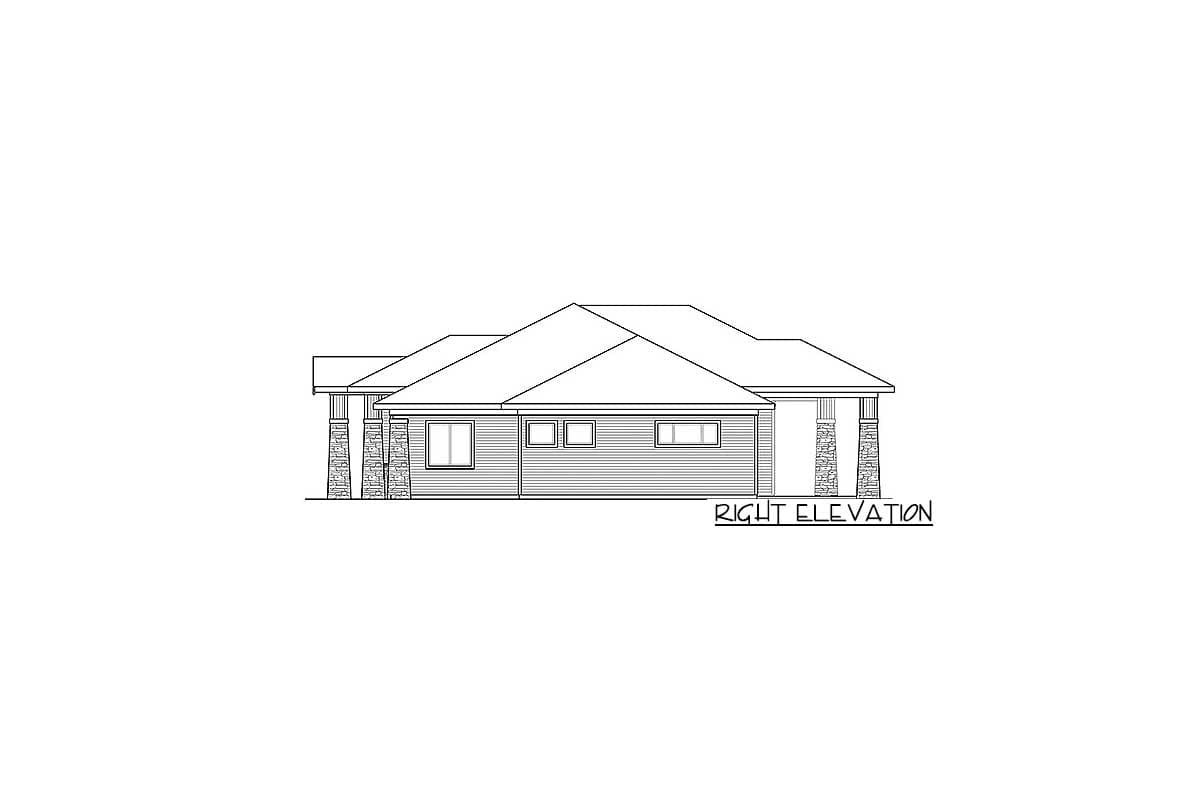

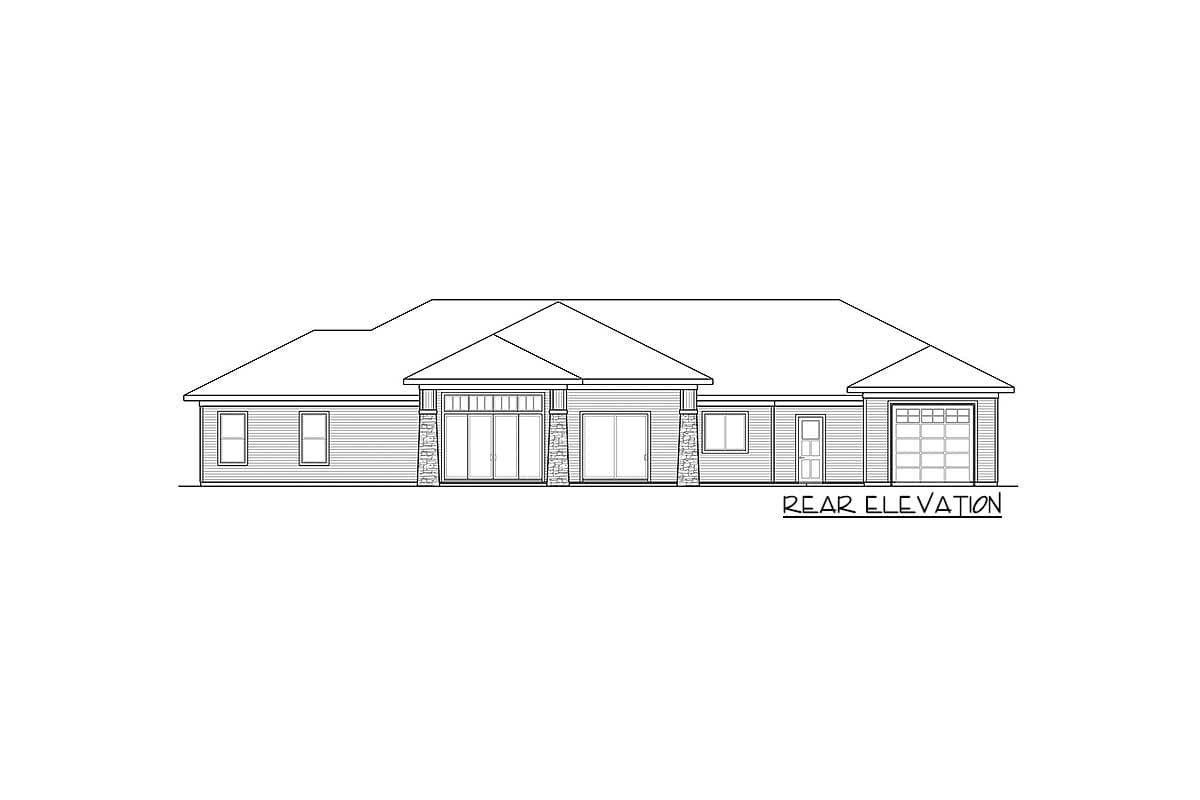

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

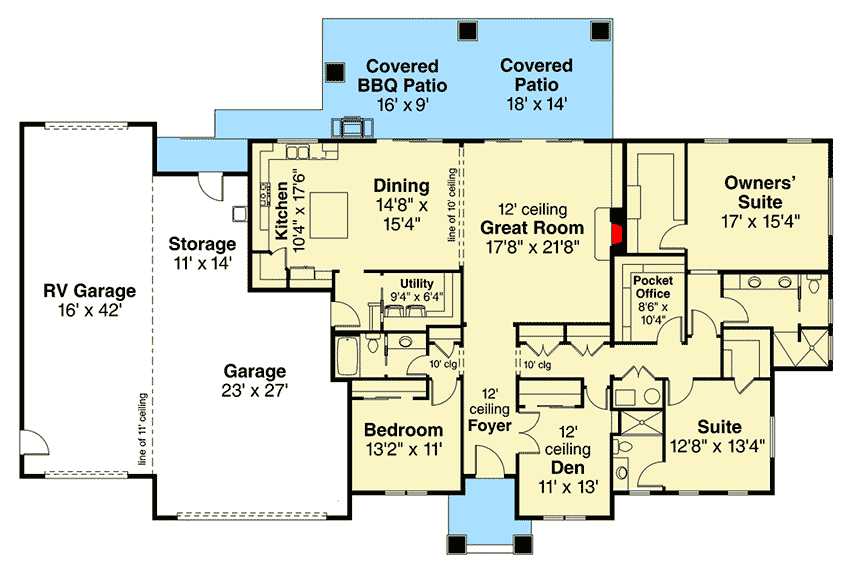

Floor Plan

Plan details



Flexible and Functional Ranch House Plan

  • 2,678

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $870
  • PDF Light $1,110
  • 5 Sets $1,110
  • 5 Sets PLUS $1,230
  • 8 Sets $1,290
  • PDF - single-use $2,165
  • CAD $2,345
  • CAD - multi-use $2,595
  • View all purchase option online

About This Plan

  • The single level layout allows homeowners' to enjoy this home through every stage of life; as a younger family with children to empty nesters looking for a home they can age in place.
  • Walking in the front door a grand foyer opens up to a den on the right which could be used as a home office, study, library or guest room.
  • The great room is tucked into the back of the home and features a cozy fireplace for cold fall days and for those warm summer days - a four panel siding glass door at the back to completely open the great room to the outdoors.
  • For those that work from home, a pocket office is tucked next to the owners' suite and has two desk spaces and lots of cabinets offering plenty of storage space.
  • The owners' suite fills the right, rear corner of the home and features a large walk-in closet, dual vanities and a flush curb walk-in shower.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,678 sq. ft.
  • 1st Floor: 2,678 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 98' 0"
  • Depth: 64' 0"
  • Max ridge height: 22' 11"

Garage

  • Type: RV Garage, Attached
  • Area: 1484 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
