Flexible Beachside Beauty

Plan 1790DW

  • 1,867

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • The welcoming front porch is perfect for catching those seaside breezes. For that matter, so is the rear porch which has multiple points of access.
  • Walk through the front doors and sea the beach through the covered lanai in the rear of this beach home plan.
  • The entire house, excluding the foyer and bathrooms has vaulted ceilings. The cupola's windows bring light into the central living room.
  • The bedrooms in front of the house are separated from the master suite in the rear for added privacy. The master suite opens to the lanai, as does the dining room.
  • Related Plans: Get an alternate layout with house plan 1782DW. Get a smaller version with house plan 1798DW (1,622 sq. ft.). Add an attached garage with house plans 1794DW (2-car attached), 1795DW (3-car attached) and 1801DW (2-car drive-under).

This house plan has 9 pages as follows:

  1. Cover page
  2. Plumbing dimension plan (schematic)
  3. Noted floor plan
  4. Dimensioned floor plan
  5. Electrical layout plan
  6. Roof plan (schematic)

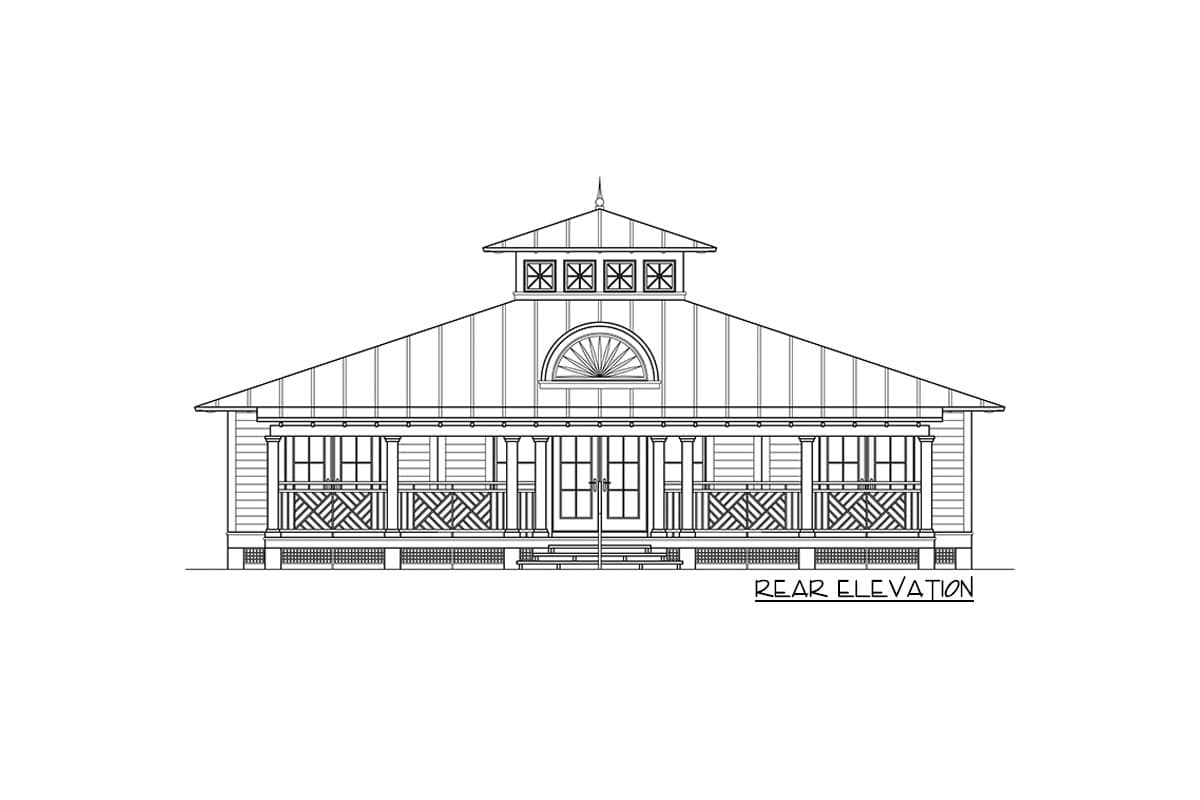

  7. Front and rear elevations

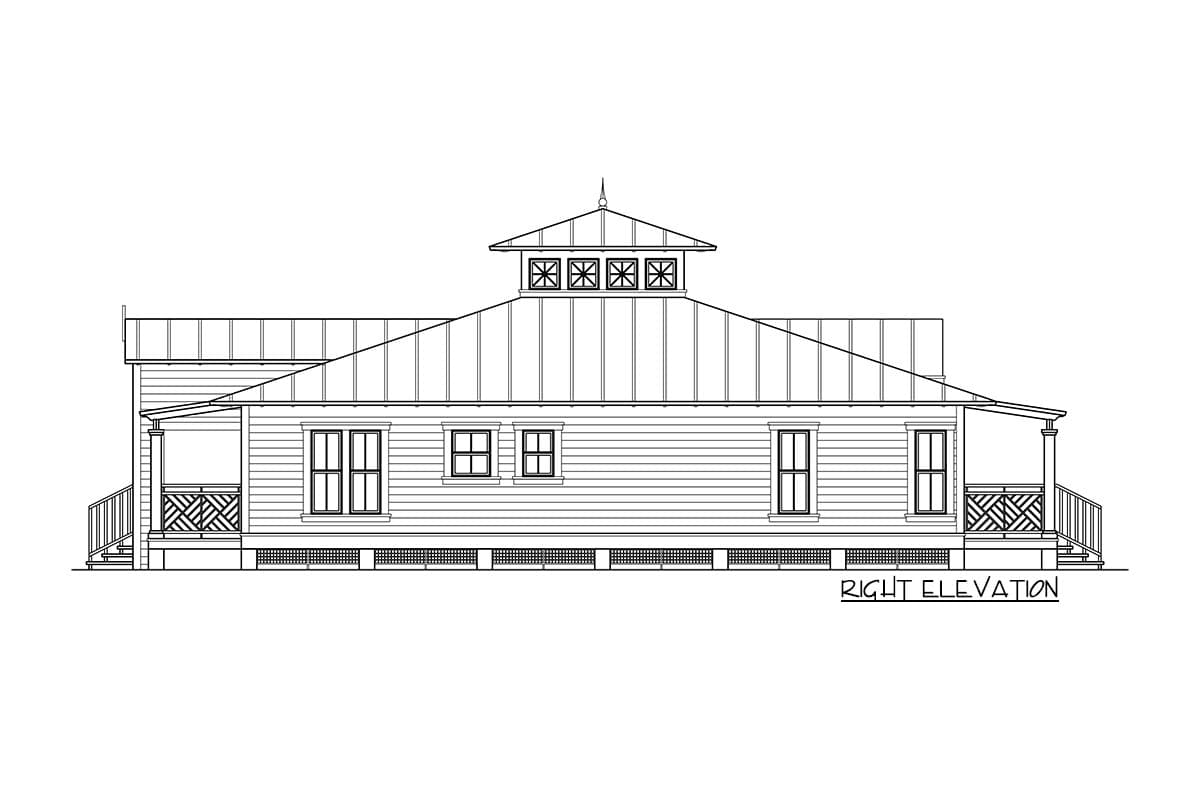

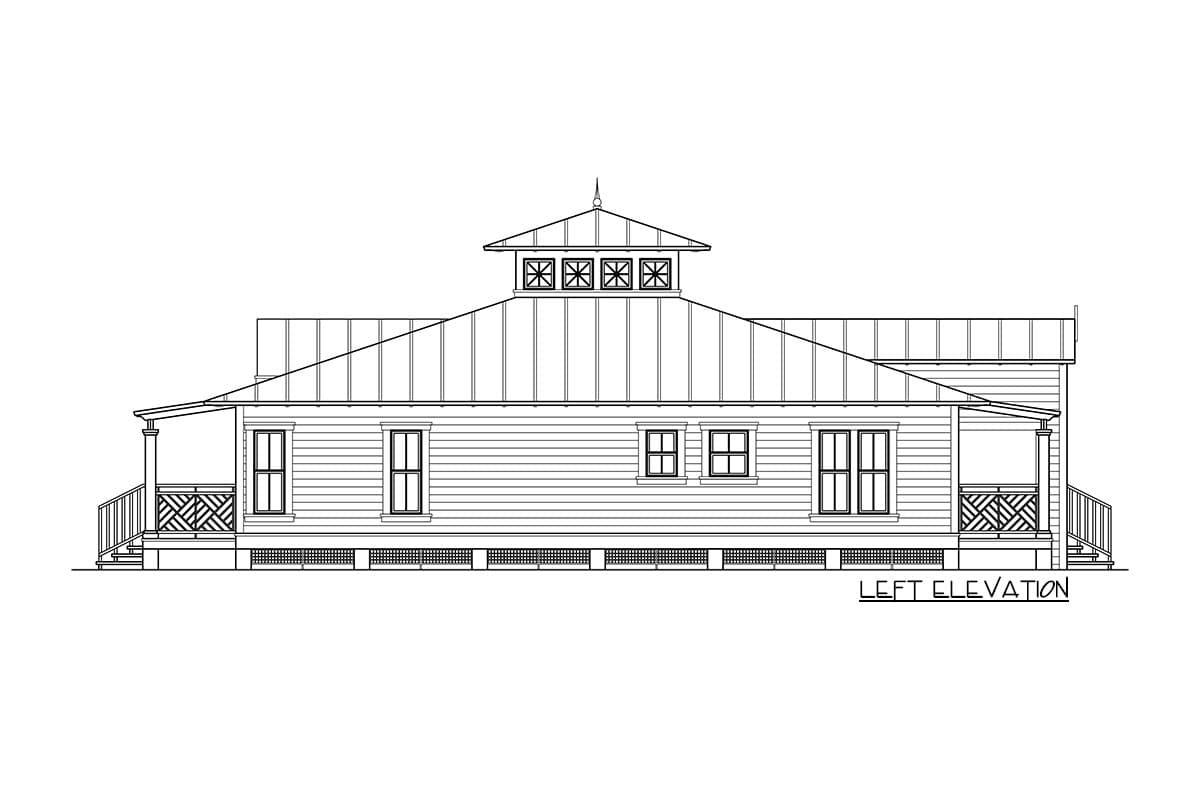

  8. Left and right elevations
  9. Sections
NOTE: The designer of this plan does not supply foundation plans. A local structural engineer will be required to adjust them to suit the conditions of where you are building.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

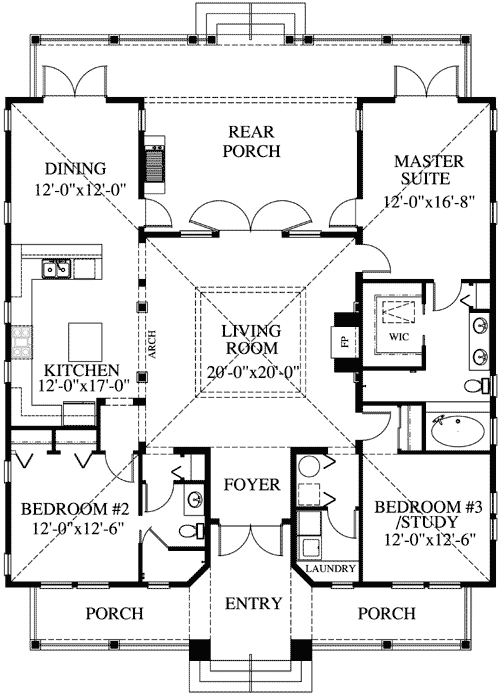

Floor Plan
