  • This shingle-style cottage-like home gives you 2 or 3 beds depending on how you use the front room.
  • The floor plan gives you a living room, dining room and kitchen that flow together. Ceiling lines lend a unique look to the space, angling up from the front and then curving toward the two-sided gas fireplace and across the face of the kitchen on the left. Windows fill much of the front and side walls.
  • A flush eating bar echoes the ceiling's curves where it rims the outer edge of the kitchen's large work island. More light washes in through a side window near the large walk-in pantry. Families that enjoy outdoor dining will appreciate the screened porch at the rear.
  • Flames from the gas fireplace can also be enjoyed from within the vaulted owners' suite, which boasts a huge walk-in closet. The suite offers direct access to the screened porch, an inviting space for pre-sleep relaxation on warm summer nights.
  • Secondary bedrooms could be furnished as a home office, guest room, or you name it.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

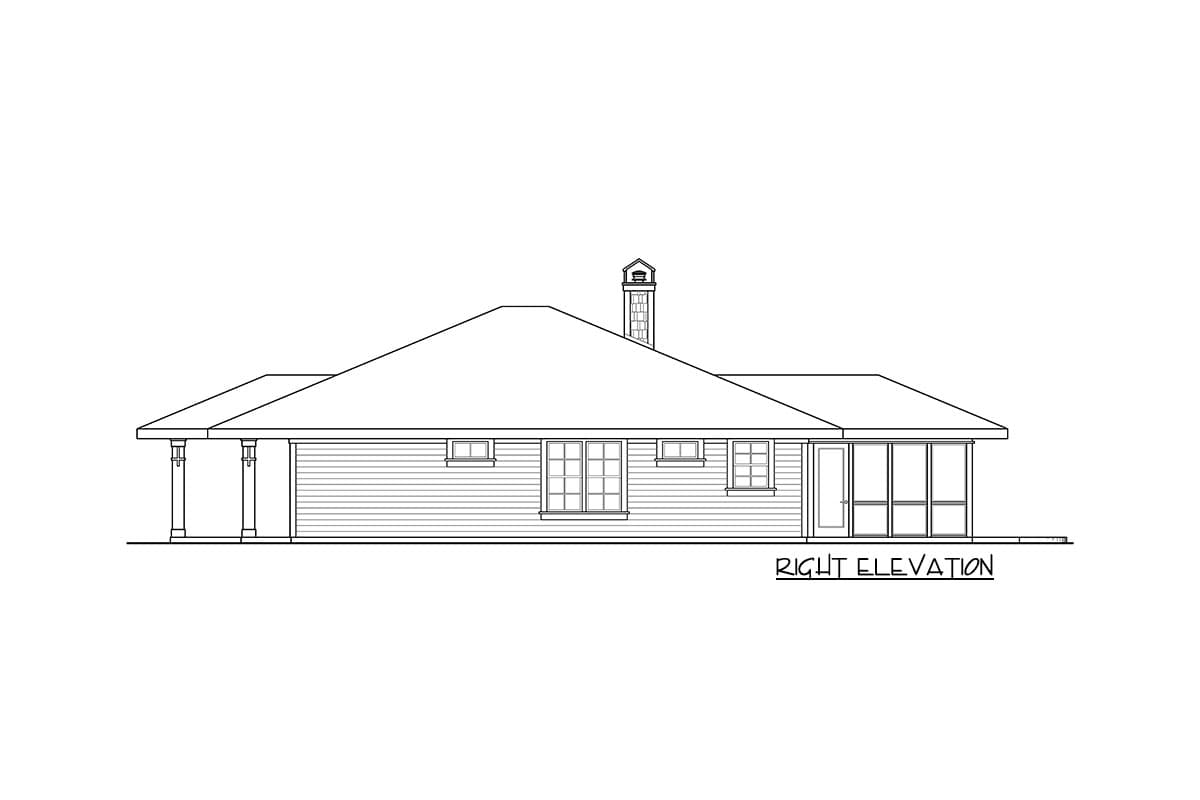

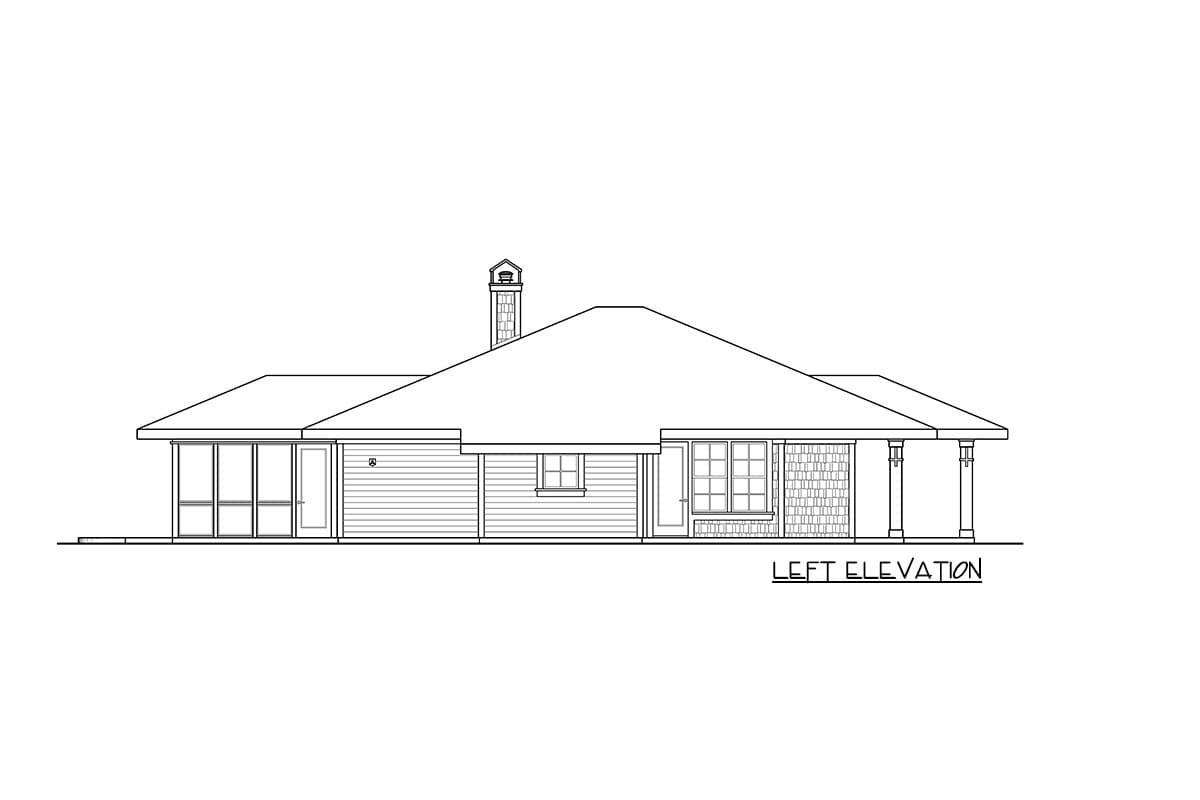

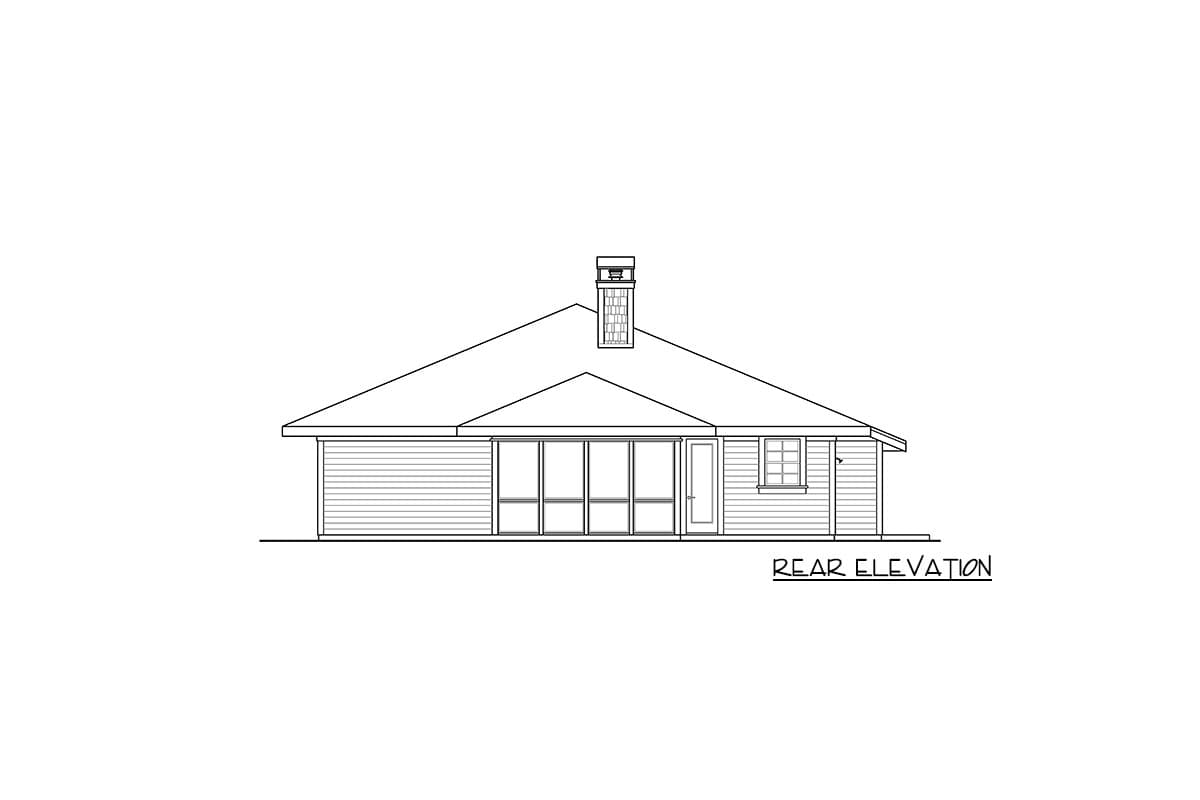

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan

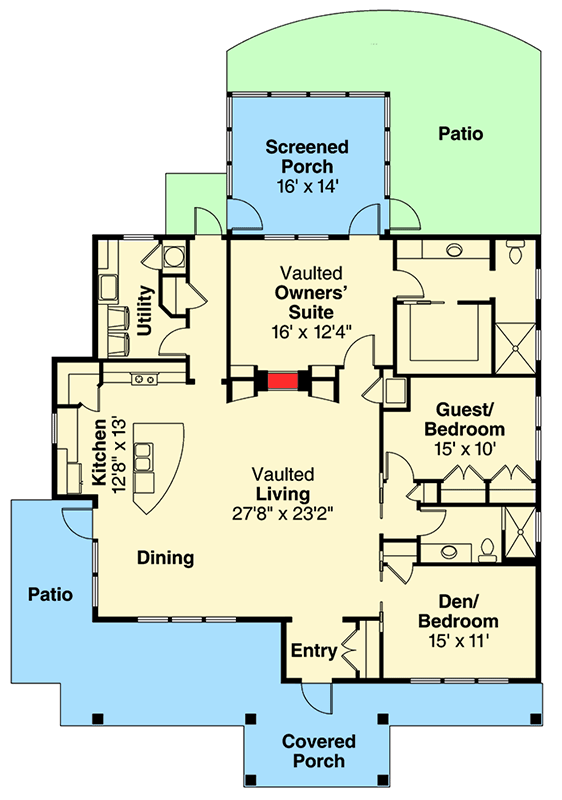

Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



Flexible Bedroom Shingle Style Cottage House Plan

  • 1,881

    Heated s.f.

  • 2 - 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 5 Sets PLUS $1,020
  • 8 Sets $1,070
  • PDF - single-use $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • This shingle-style cottage-like home gives you 2 or 3 beds depending on how you use the front room.
  • The floor plan gives you a living room, dining room and kitchen that flow together. Ceiling lines lend a unique look to the space, angling up from the front and then curving toward the two-sided gas fireplace and across the face of the kitchen on the left. Windows fill much of the front and side walls.
  • A flush eating bar echoes the ceiling's curves where it rims the outer edge of the kitchen's large work island. More light washes in through a side window near the large walk-in pantry. Families that enjoy outdoor dining will appreciate the screened porch at the rear.
  • Flames from the gas fireplace can also be enjoyed from within the vaulted owners' suite, which boasts a huge walk-in closet. The suite offers direct access to the screened porch, an inviting space for pre-sleep relaxation on warm summer nights.
  • Secondary bedrooms could be furnished as a home office, guest room, or you name it.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,881 sq. ft.
  • 1st Floor: 1,881 sq. ft.
  • Screened Porch: 224 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 68' 0"
  • Max ridge height: 20' 2"

Roof

  • Primary Pitch: 5 on 12
