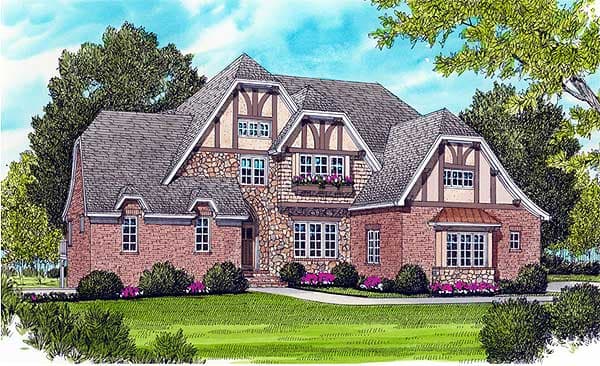

Flexible English Manor

Plan 9390EL

This plan plants 3 trees

4,330
Heated s.f.
4-5
Beds
4.5 - 5.5
Baths
2
Stories
3
Cars

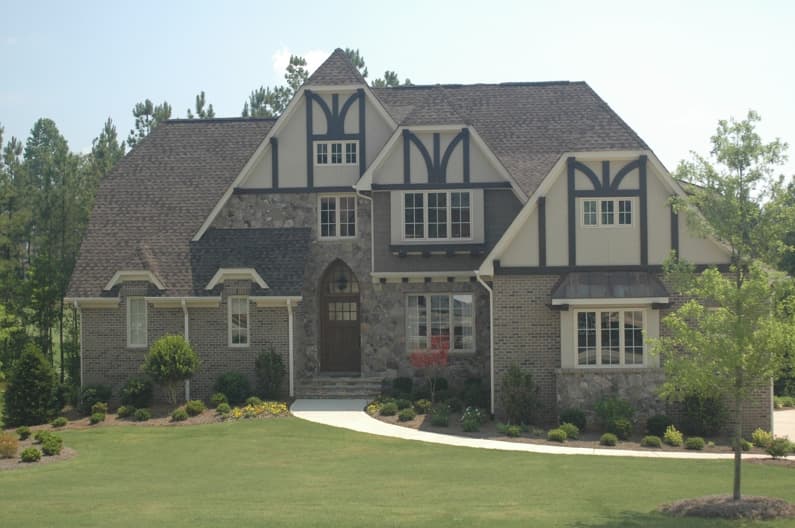

There's plenty of room for the whole family to enjoy time alone or time together in this classic English Manor Tudor style home. For starters, you'll love the two-story foyer entry.
The downstairs master suite features his and her's walk-in closets and a master bath with a spacious walk-in shower.
The master suite leads onto an amazing open terrace in the back of the house.
You'll really enjoy mealtimes, thanks to the large gourmet kitchen with a breakfast area, walk-in pantry, and nearby formal dining. Upstairs you'll find three suites, a bonus room and a media room. Parking is made simple in the garage with 3-car dimensions that leads into a large mud room.
Need more space? An optional basement is available.

Each plan set includes the following:

Cover Sheet
General Note Sheet
Foundation Sheet
First Floor Plan
Second Floor Plan (if applicable)
Roof Framing Plan
Front & Rear Elevation
Left & Right Elevation
Openings & Sections Sheet
Foundation Details
Cornice Details
First Floor Electrical
Second Floor Electrical (if applicable)

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Flexible English Manor - 9390EL floor plan - Basement

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Flexible English Manor - 9390EL floor plan - Main Level

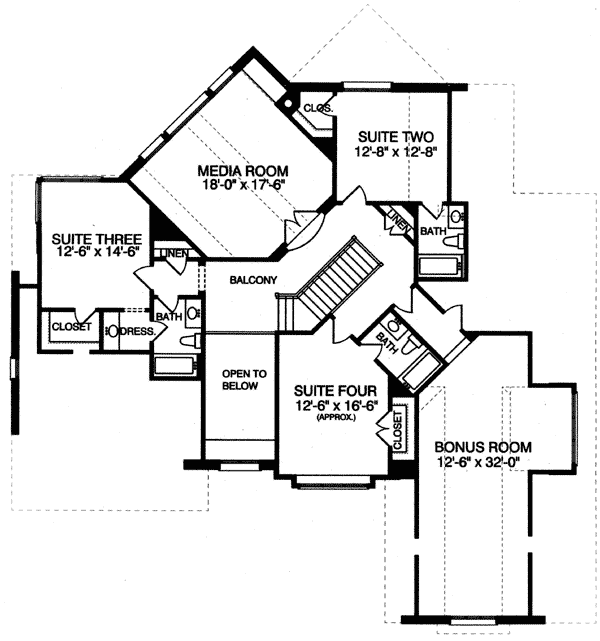

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Flexible English Manor - 9390EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 4,330 sq. ft.
1st Floor: 2,370 sq. ft.
2nd Floor: 1,960 sq. ft.

Entry: 24 sq. ft.

Beds/Baths

Bedrooms: 4 or 5

Full bathrooms: 4 or 5
Half bathrooms: 1

Foundation Type

Standard Foundations: Walkout

Optional Foundations: Basement, Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 65' 2"
Depth: 75' 1"
Max ridge height: 34' 2"

Garage

Type: Attached
Area: 770 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
