Plan 36270TX

Flexible Estate Home Plan

4,775 5 5.5 2 3
Pageloader

Flexible Estate Home Plan

Plan 36270TX

  • 4,775

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

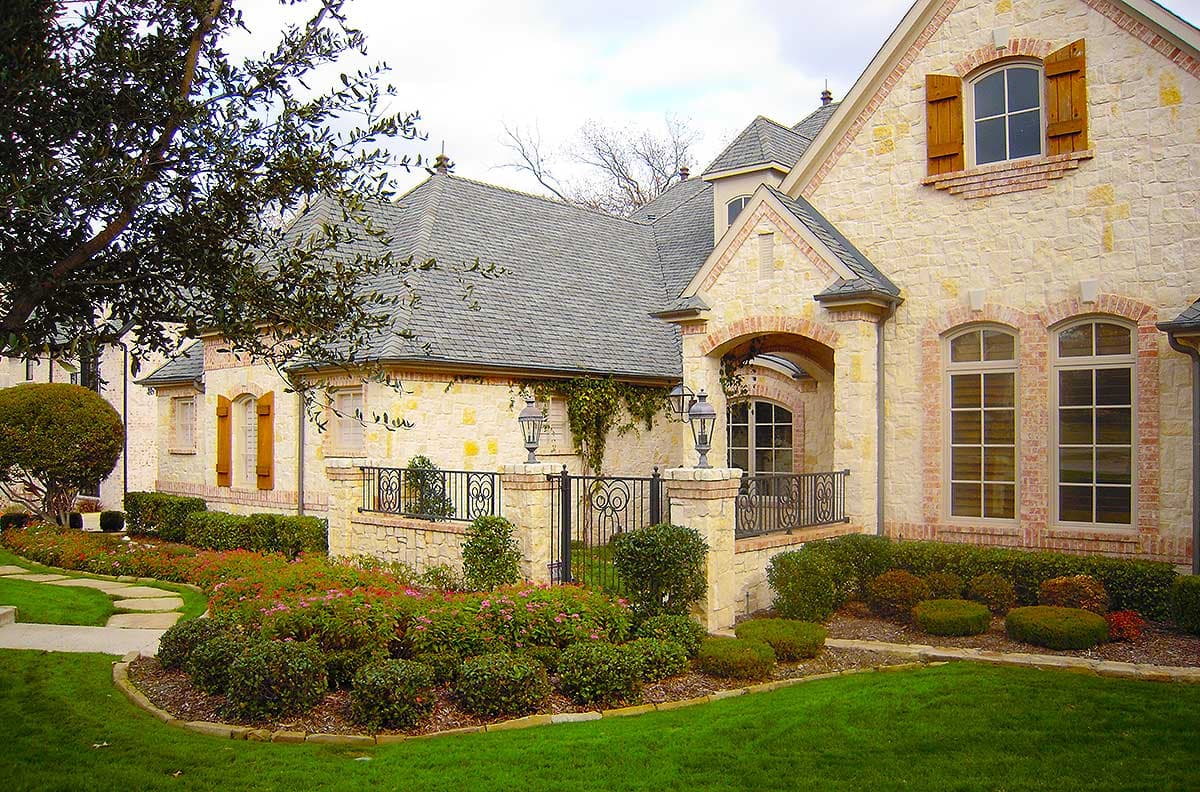

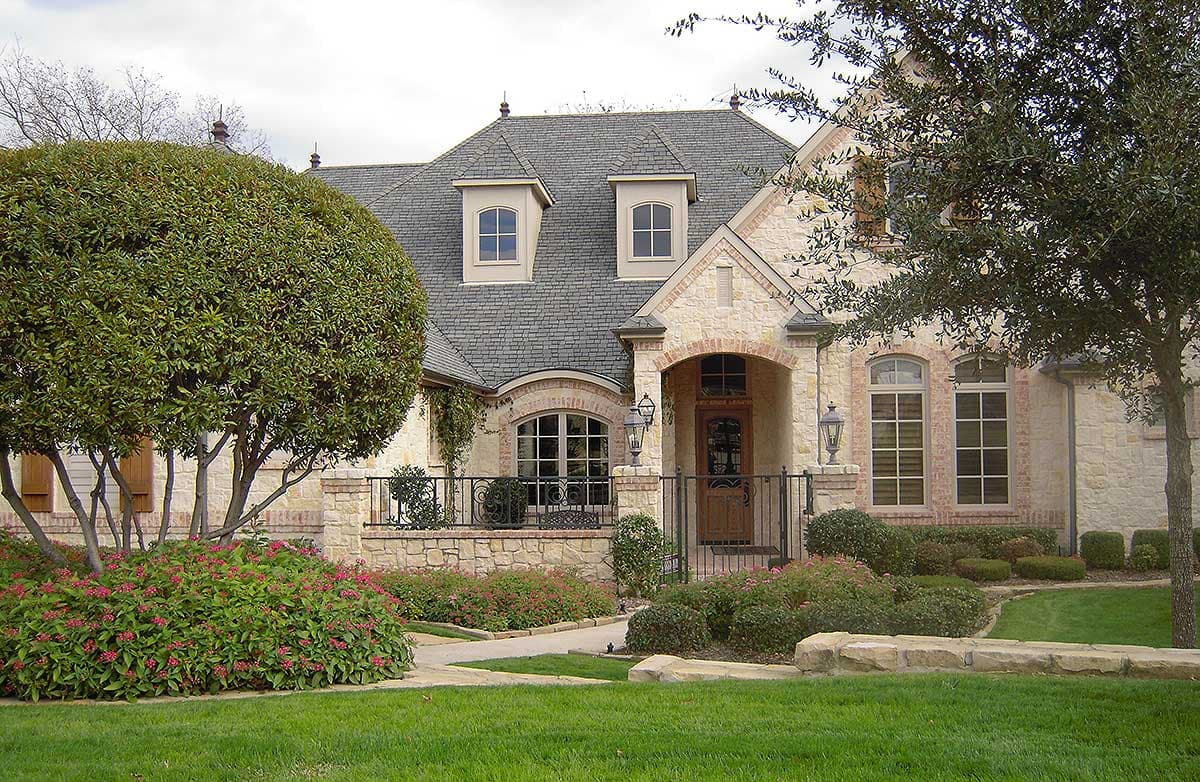

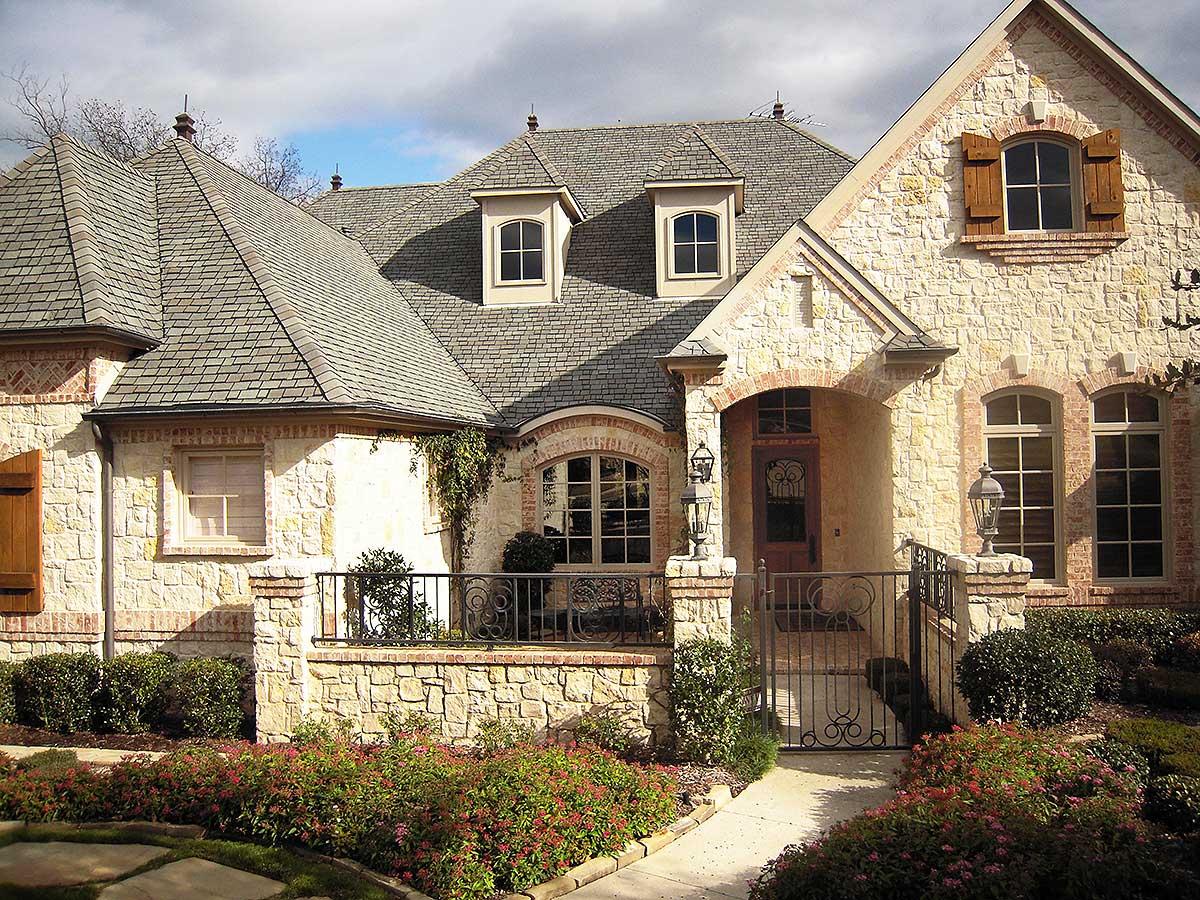

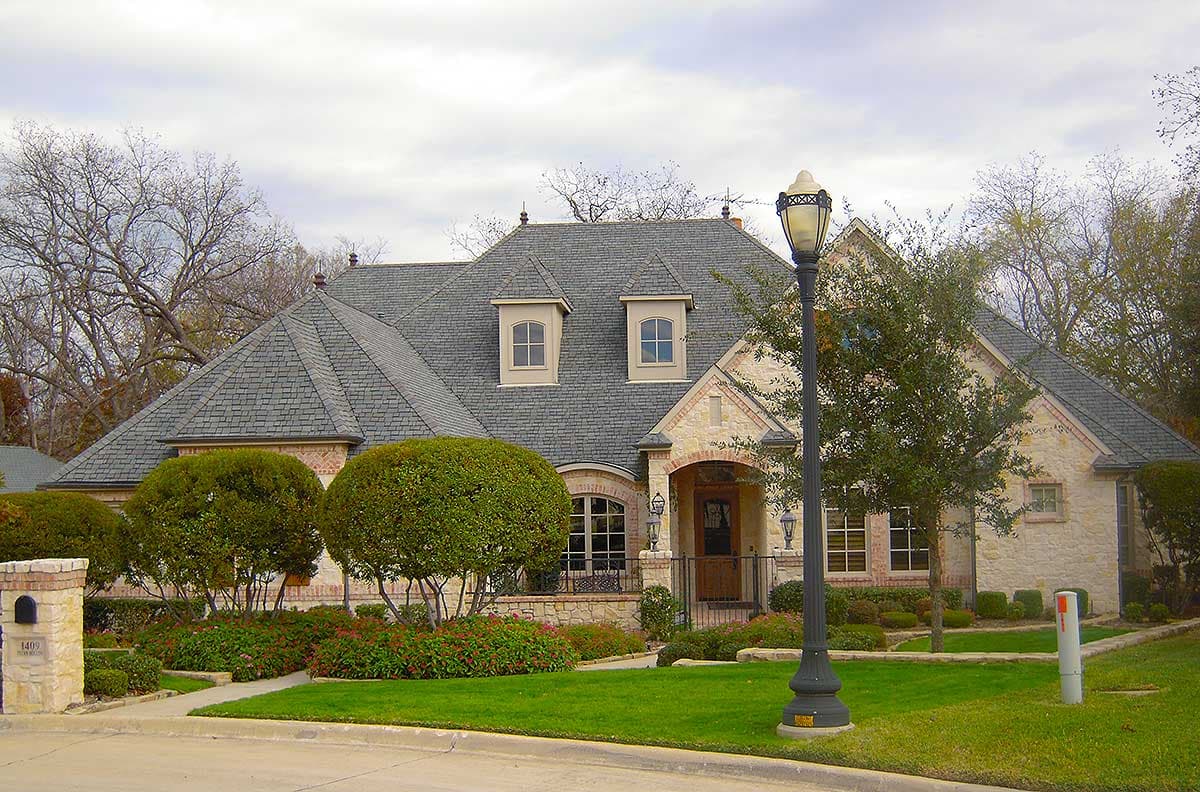

  • This stunningly beautiful estate home plan comes in a one and two story version.
  • Ceiling heights that vary from 10' to 12' create visual interest and add to the elegance of the home.
  • Columns define the formal dining room with its tray ceiling.
  • The massive family room with corner fireplace is the ideal size for large parties and gatherings.
  • This design pampers the homeowners with a very special master suite.
  • An extra large walk-in closet with his and her sections, a sitting area set in a bay and access to the rear porch are but a few of the special features of the master suite.
  • The family/guest bedrooms are separated from each for privacy.
  • Two doors open to the media room with a double tray ceiling.
  • Stairs lead to a second floor giving you a game room and an extra bedroom suite.
  • Related Plan: Eliminate the second floor with house plan 36180TX.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

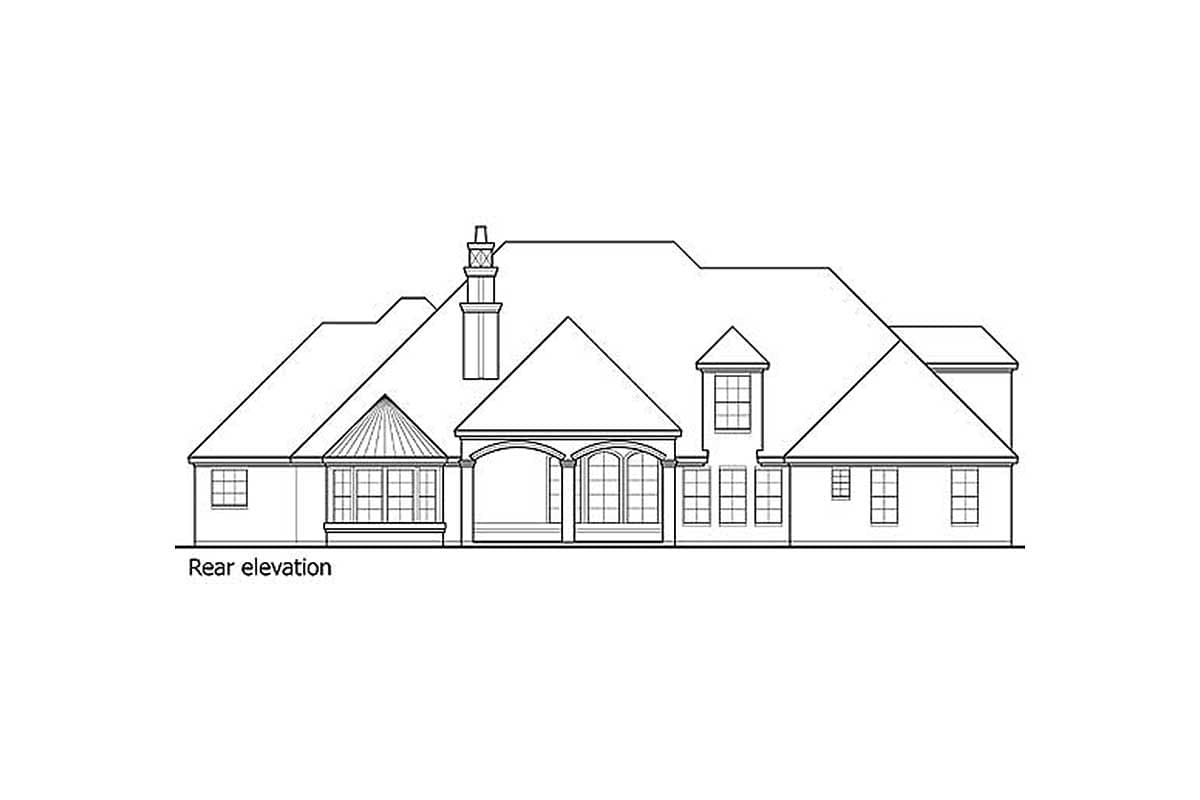

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Flexible Estate Home Plan

  • 4,775

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,650
  • 5 Sets $1,850
  • CAD $2,475
  • View all purchase option online

About This Plan

  • This stunningly beautiful estate home plan comes in a one and two story version.
  • Ceiling heights that vary from 10' to 12' create visual interest and add to the elegance of the home.
  • Columns define the formal dining room with its tray ceiling.
  • The massive family room with corner fireplace is the ideal size for large parties and gatherings.
  • This design pampers the homeowners with a very special master suite.
  • An extra large walk-in closet with his and her sections, a sitting area set in a bay and access to the rear porch are but a few of the special features of the master suite.
  • The family/guest bedrooms are separated from each for privacy.
  • Two doors open to the media room with a double tray ceiling.
  • Stairs lead to a second floor giving you a game room and an extra bedroom suite.
  • Related Plan: Eliminate the second floor with house plan 36180TX.

Floor Plans

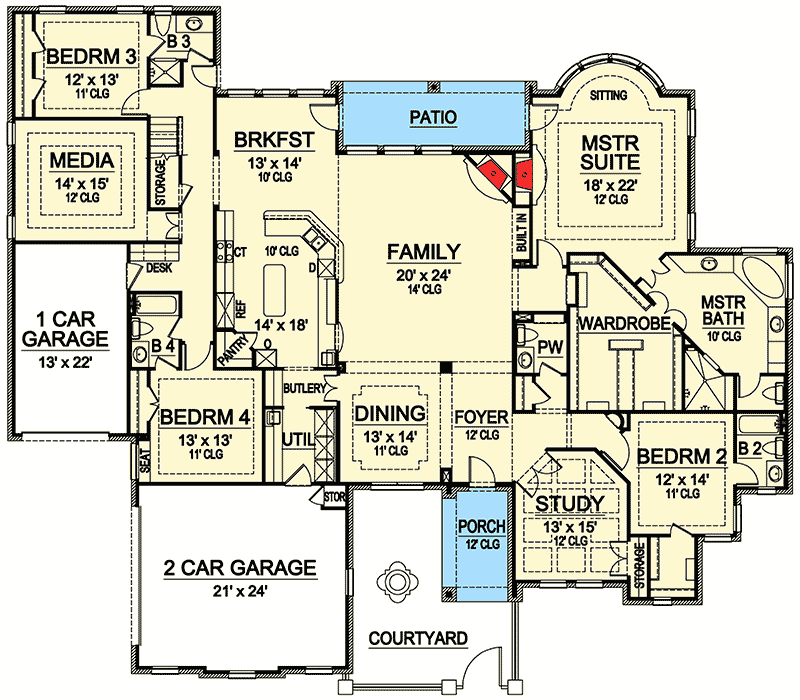

  • Main Level

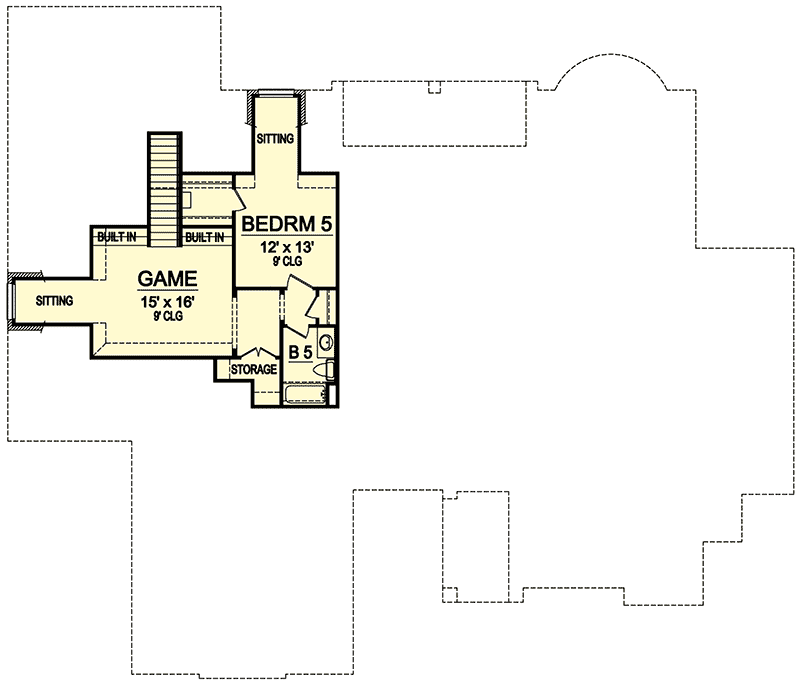

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,775 sq. ft.
  • 1st Floor: 4,045 sq. ft.
  • 2nd Floor: 730 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 91' 0"
  • Depth: 78' 0"
  • Max ridge height: 34' 0"

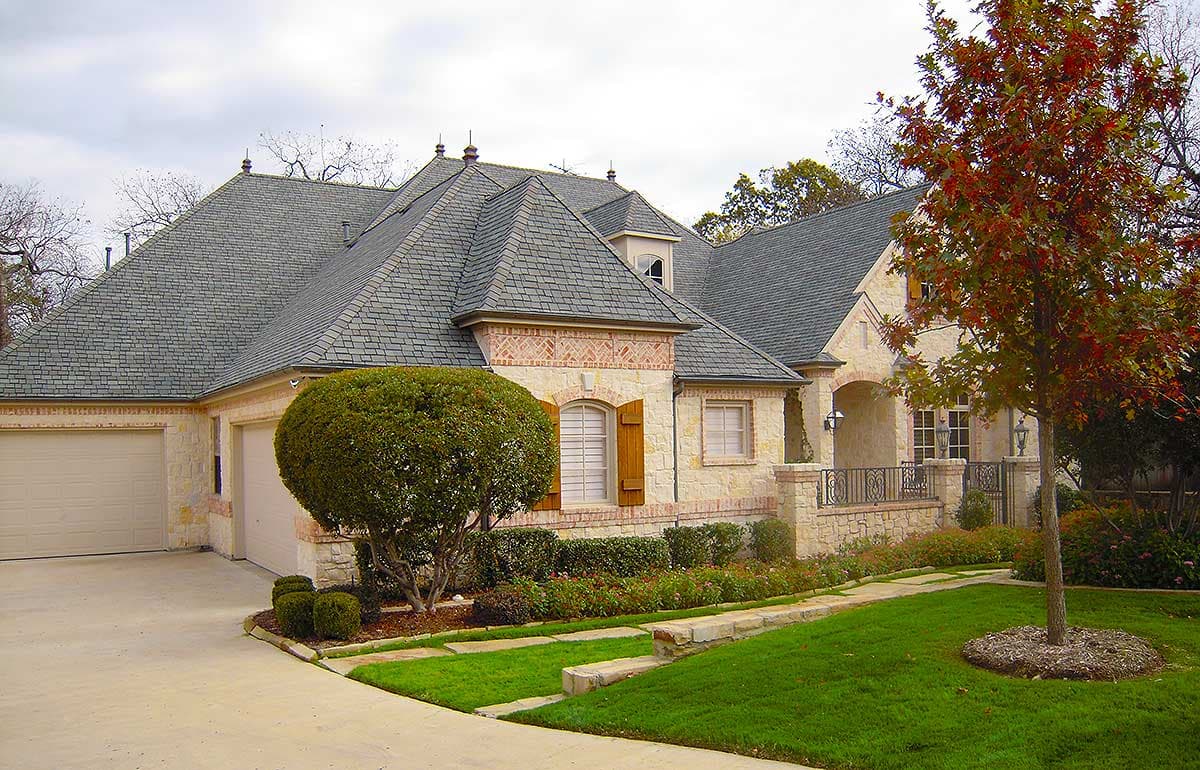

Garage

  • Type: Attached
  • Area: 881 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
