Plan 42339DB

Flexible House Plan with Finished Basement

1,413 1-3 1 + 1 2
Pageloader

Flexible House Plan with Finished Basement

Plan 42339DB

  • 1,413

    Heated s.f.

  • 1-3

    Beds

  • 1 +

    Baths

  • 1

    Stories

  • 2

    Cars

  • This flexible house plan has great curb appeal and comes in multiple layouts.
  • The wide great room is open to the kitchen and dining area making it great for entertaining.
  • The master bedroom is split to one side for added privacy.
  • The kitchen has an angled island with lots of work space and seating.
  • The garage is 24'-wide for added convenience.
  • Related Plans: Get alternate finished lower levels with house plans 42338DB and 42337DB.
  • Flip the master bed with the open living area with house plans 42336DB and 4176DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Flexible House Plan with Finished Basement

  • 1,413

    Heated s.f.

  • 1 - 3

    Beds

  • 1 +

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $600
  • PDF - single-use $925
  • 5 Sets $1,050
  • 8 Sets $1,120
  • PDF - multi-use $1,425
  • CAD $1,619
  • CAD - multi-use $2,119
  • View all purchase option online

About This Plan

  • This flexible house plan has great curb appeal and comes in multiple layouts.
  • The wide great room is open to the kitchen and dining area making it great for entertaining.
  • The master bedroom is split to one side for added privacy.
  • The kitchen has an angled island with lots of work space and seating.
  • The garage is 24'-wide for added convenience.
  • Related Plans: Get alternate finished lower levels with house plans 42338DB and 42337DB.
  • Flip the master bed with the open living area with house plans 42336DB and 4176DB.

Floor Plans

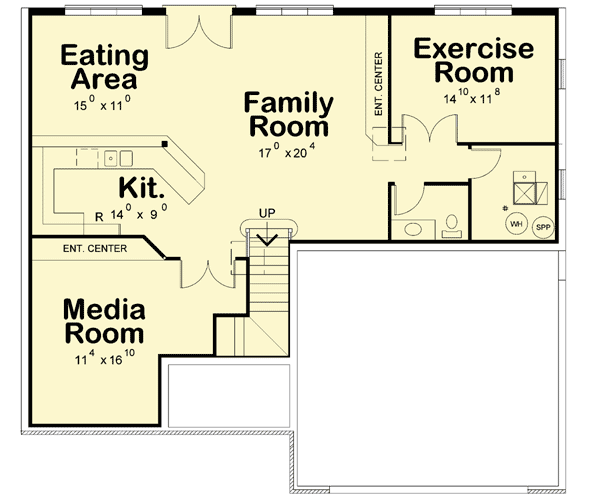

  • Basement

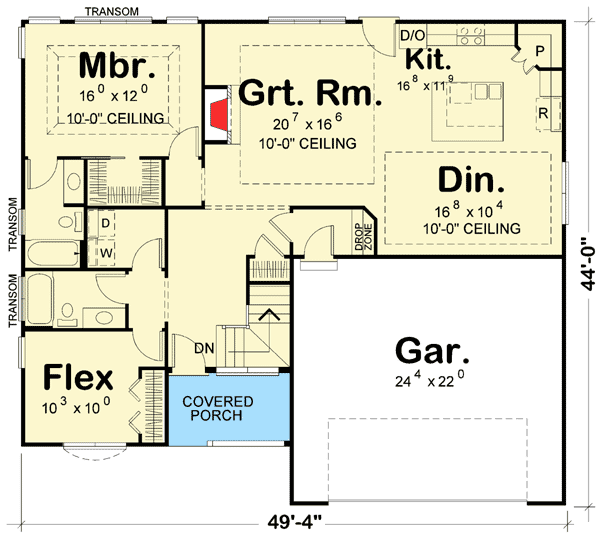

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,413 sq. ft.
  • 1st Floor: 1,413 sq. ft.

Beds/Baths

  • Bedrooms: 1, 2, & 3
  • Full bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 49' 4"
  • Depth: 44' 0"
  • Max ridge height: 24' 6"

Garage

  • Type: Attached
  • Area: 555 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
