Flexible Mountain Ranch Under 1900 Square Feet with 3 Beds and a Vaulted Living Room

Plan 12972KN

  • 1,892

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 1,892 square foot rustic ranch home plan is a flexible design. It comes standard on a slab with a front-facing garage and has a courtyard garage option as well as a walkout basement option.
  • Inside, you'll enjoy an open living area in the center with bedrooms on the sides.
  • Expansive covered porches on the front and rear - 6' deep in front and 10' deep in back - give you fresh air spaces to enjoy.
  • The unfinished lower level option gives you expansion space you can carve out as you please.

Floor plans at ¼" scale

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

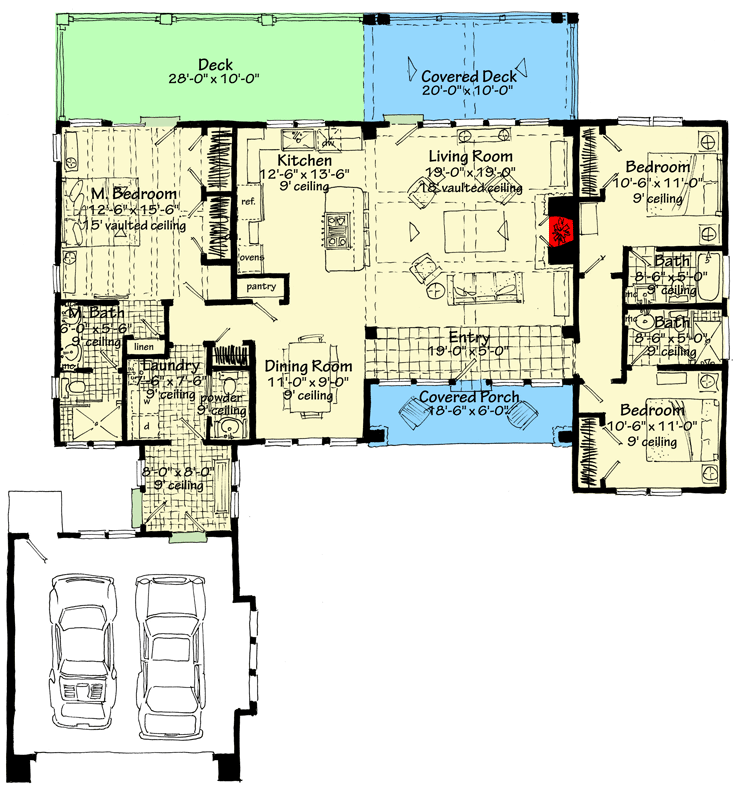

Flexible Mountain Ranch Under 1900 Square Feet with 3 Beds and a Vaulted Living Room - 12972KN floor plan - Main Level

Courtyard Garage Option (+$295)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

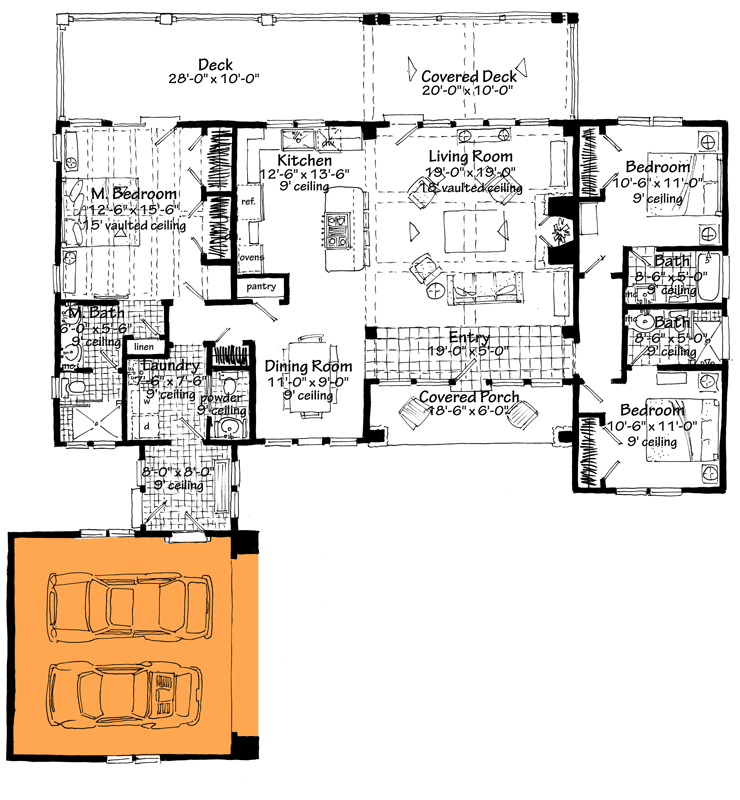

Flexible Mountain Ranch Under 1900 Square Feet with 3 Beds and a Vaulted Living Room - 12972KN floor plan - Courtyard Garage Option (+$295)

Main Level w/ Courtyard Garage and Basement Stairs

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

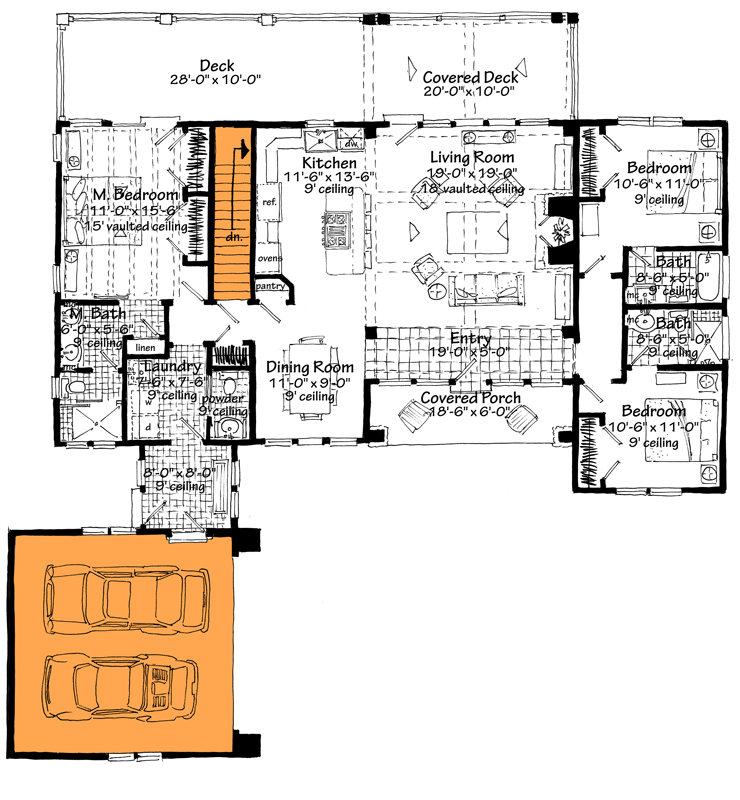

Flexible Mountain Ranch Under 1900 Square Feet with 3 Beds and a Vaulted Living Room - 12972KN floor plan - Main Level w/ Courtyard Garage and Basement Stairs

Main Level - Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

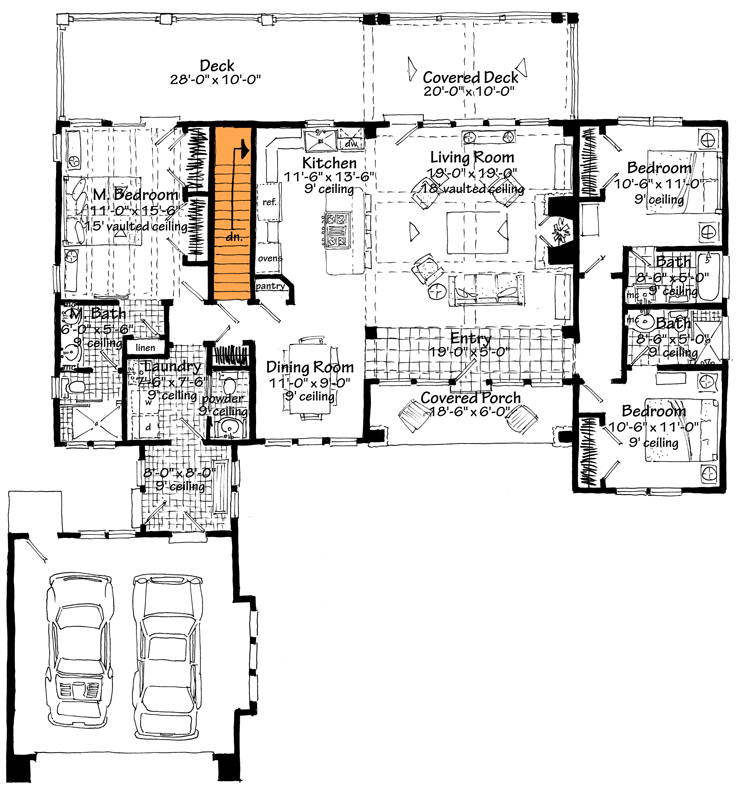

Flexible Mountain Ranch Under 1900 Square Feet with 3 Beds and a Vaulted Living Room - 12972KN floor plan - Main Level - Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Flexible Mountain Ranch Under 1900 Square Feet with 3 Beds and a Vaulted Living Room - 12972KN floor plan - 05

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,892 sq. ft.
  • 1st Floor: 1,892 sq. ft.
  • Deck: 284 sq. ft.
  • Porch, Combined: 344 sq. ft.
  • Optional Lower Level: 1,749 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 3"
  • Depth: 69' 0"
  • Max ridge height: 23' 2"

Garage

  • Type: Attached
  • Area: 450 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard, Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick And Truss

Architectural Style
