Plan 42639DB Flexible One-Story New American House Plan

Flexible One-Story New American House Plan

Plan 42639DB

  • 1,664

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This New American one-story house plan offers you a flexible floor plan with two or three bedrooms and comes has related plans giving you even more options to choose  from.
  • All enjoy an open floor plan combines the family room, kitchen and dining room into a great entertaining space.
  • The owner's suite has a lovely tray ceiling plus a big bathroom and walk-in closet.
  • Choose two bedrooms or a bedroom in front and a flex room - a den or study - in the middle.
  • Related Plans: Get alternate layouts with house plans 42359DB (master in back), 42303DB (master in front) and 42340DB (two bedrooms).

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.

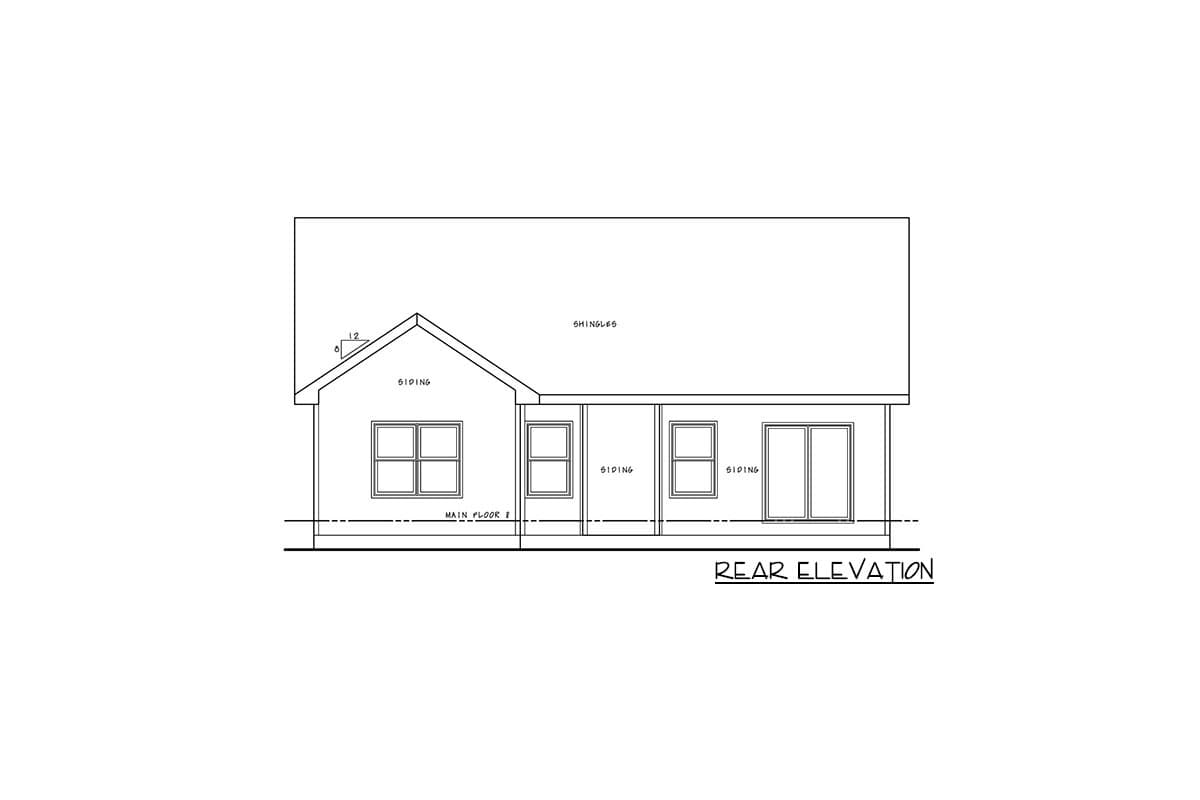

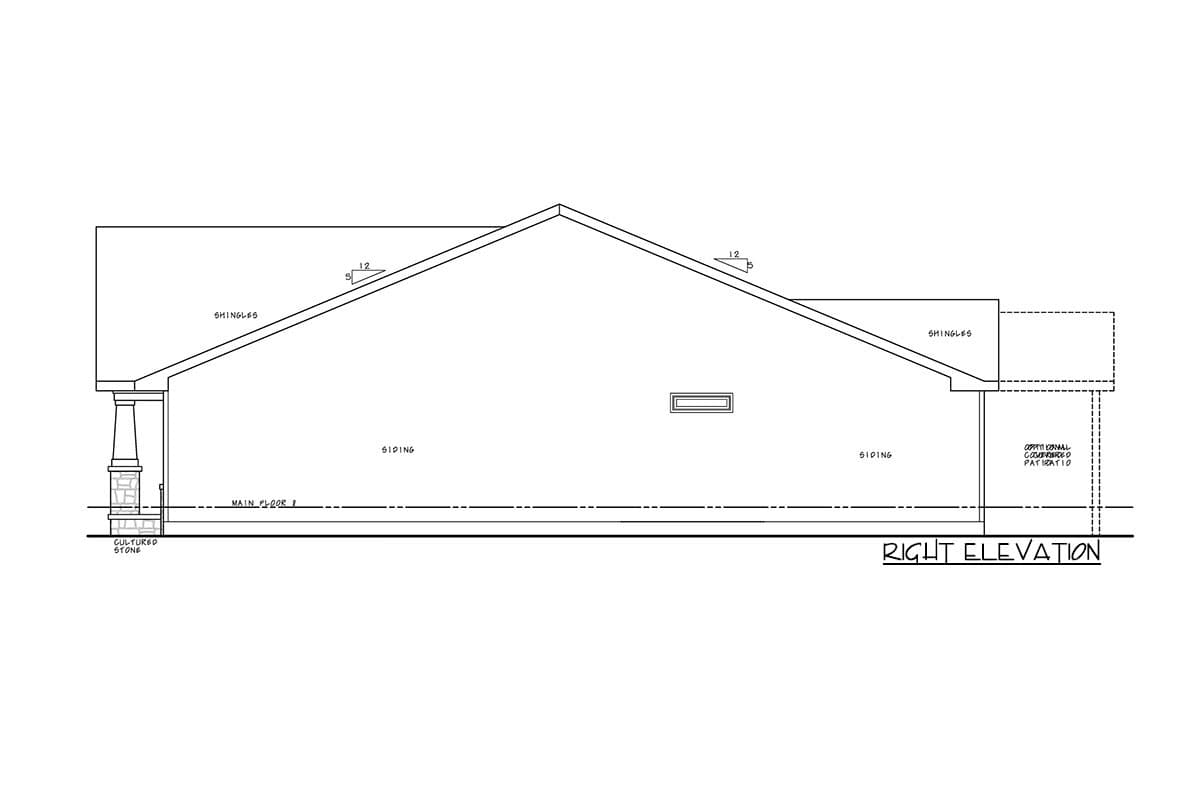

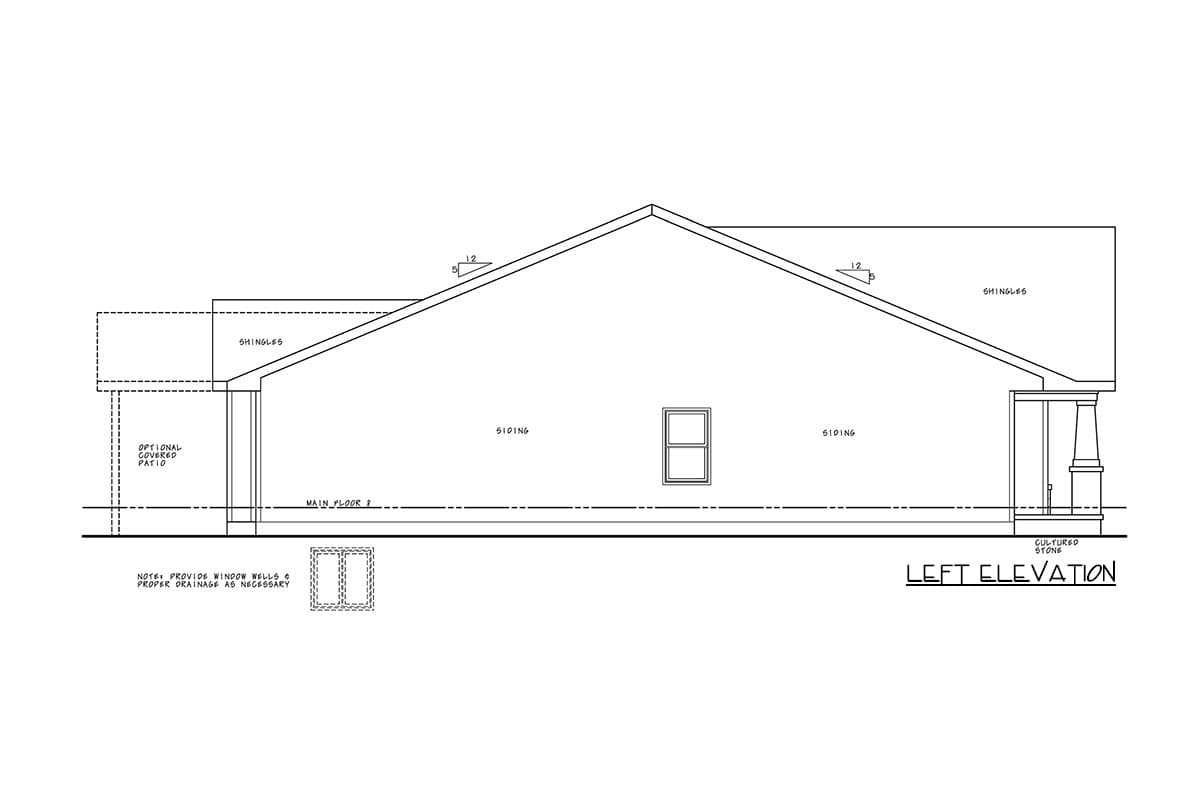

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

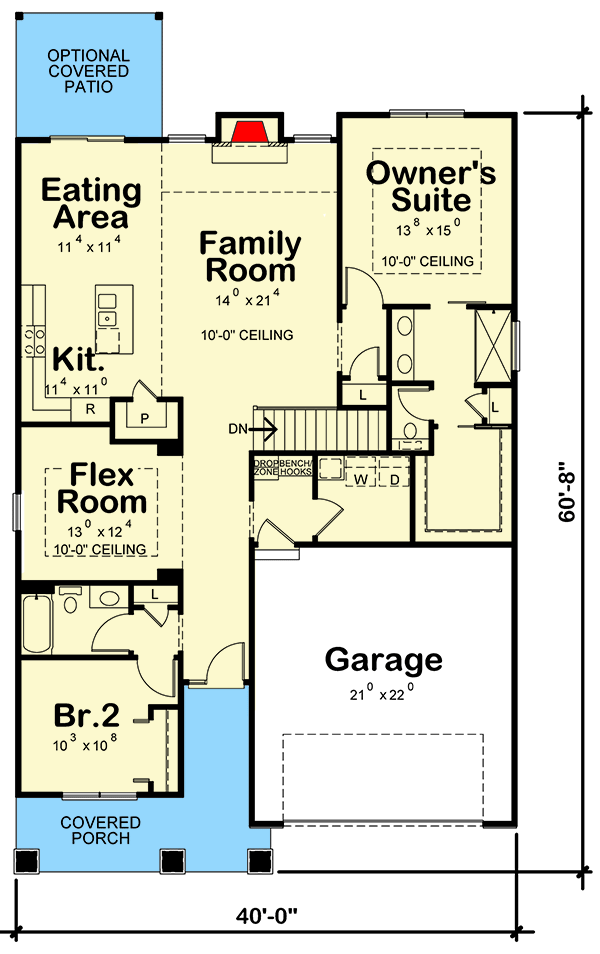

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



Flexible One-Story New American House Plan

  • 1,664

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $620
  • PDF - Single-Build $945
  • PDF - Unlimited Build $1,445
  • CAD - Single-Build $1,654
  • CAD - Unlimited Build $2,154
  • View all purchase option online

About This Plan

  • This New American one-story house plan offers you a flexible floor plan with two or three bedrooms and comes has related plans giving you even more options to choose  from.
  • All enjoy an open floor plan combines the family room, kitchen and dining room into a great entertaining space.
  • The owner's suite has a lovely tray ceiling plus a big bathroom and walk-in closet.
  • Choose two bedrooms or a bedroom in front and a flex room - a den or study - in the middle.
  • Related Plans: Get alternate layouts with house plans 42359DB (master in back), 42303DB (master in front) and 42340DB (two bedrooms).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,664 sq. ft.
  • 1st Floor: 1,664 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 57' 0"
  • Max ridge height: 22' 0"

Garage

  • Type: Attached
  • Area: 473 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Secondary Pitch: 8 on 12
