Plan 17682LV
Flexible Shingle Style Home Plan
Heated S.F.
3,161
Beds
3
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 17682LV

Main Level
slide image 0
2nd Floor
slide image 1

Plan 17682LV

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details

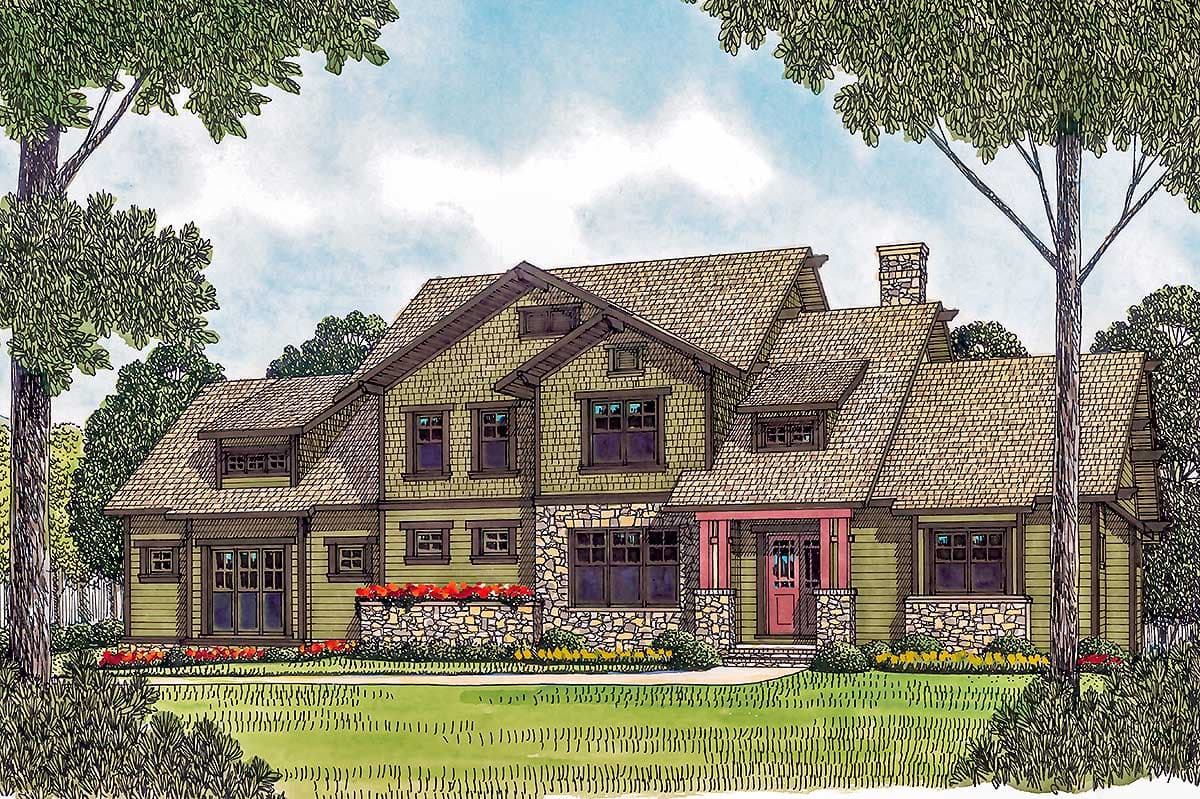

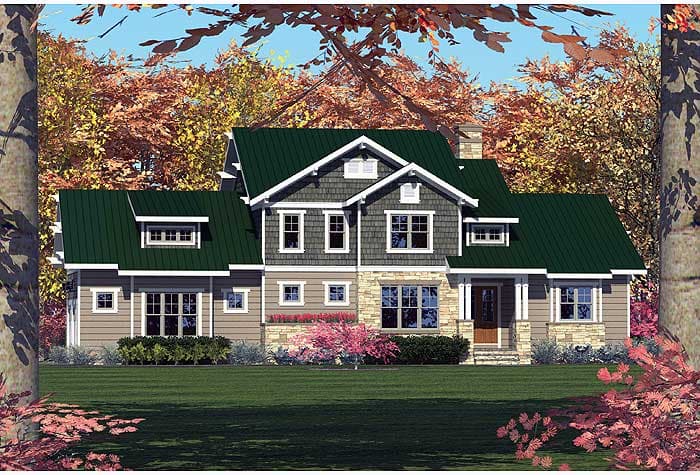

  • Shake and stone accents give this craftsman home plan warmth and beauty. Inside, the fireplace will warm the open living and dining spaces.
  • Areas for conveniently preparing and serving delicious meals have been thoughtfully designed, and include a large butler's pantry by the dining room, a food pantry tucked under the stairs, a vegetable sink in the island by the range, and dual sinks and dishwasher made part of the large snack bar.
  • The master suite is spacious and private. A door leads to the covered terrace.
  • Three bedrooms are located upstairs as well as a bonus room for future expansion.
  • Related Plans: Build in reverse and get a 2-story family room with house plan 17681LV.
  • Convert the dining room to a bedroom with house plan 17683LV.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,161 sq. ft.

1st Floor

2,012 sq. ft.

2nd Floor

1,149 sq. ft.

Bonus

379 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

78' 6"

Depth

51' 4"

Garage

Type

Attached

Area

655 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

Craftsman

Northwest

Shingle

Special Features

Bonus Room

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
