Flexible Shingle Style House Plan

Plan 17683LV

  • 3,161

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • Shake and stone accents give this craftsman home plan warmth and beauty. Inside, the fireplace will warm the open living spaces.
  • Areas for conveniently preparing and serving delicious meals have been thoughtfully designed, and include a large island with sink and a counter with extra space and seating plus a food pantry tucked under the stairs.
  • The master suite is spacious and private. A door leads to the covered terrace.
  • Three bedrooms are located upstairs as well as a bonus room for future expansion.
  • Related Plans: Build in reverse and get a 2-story family room with house plan 17681LV.
  • Convert Suite 5 to a dining room with house plan 17682LV.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Flexible Shingle Style House Plan - 17683LV floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

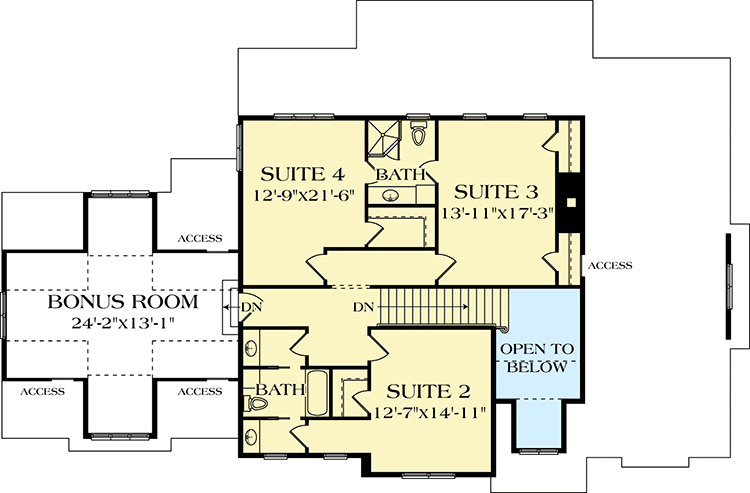

Flexible Shingle Style House Plan - 17683LV floor plan - 2nd Floor

Flexible Shingle Style House Plan

  • 3,161

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,161 sq. ft.
  • 1st Floor: 2,012 sq. ft.
  • 2nd Floor: 1,149 sq. ft.

Dimensions

  • Width: 78' 6"
  • Depth: 51' 4"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 655 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
