Plan 24066BG

Florida Home Plan with a Twist

Heated S.F.

5,566

Beds

4

Baths

4.5

Stories

2

Cars

2

What's Included

Floor Plan

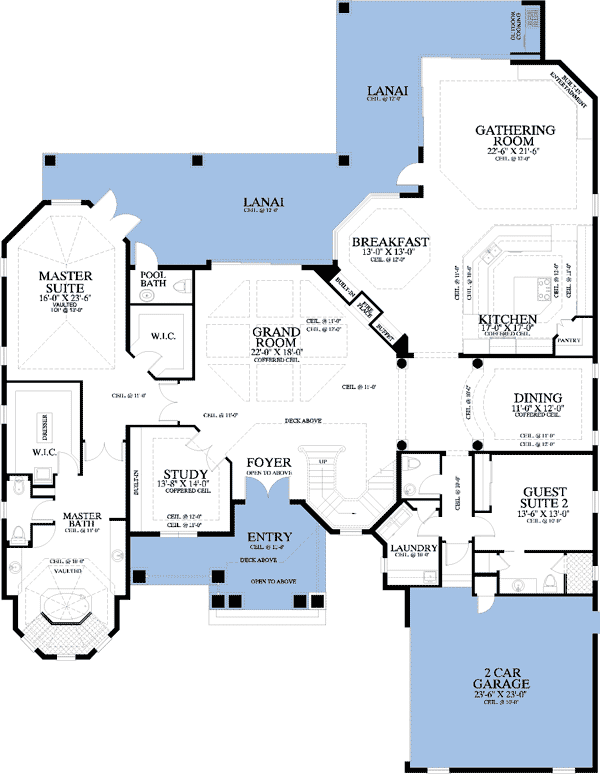

Main Level

Reverse Floor Plan

Florida Home Plan with a Twist - 24066BG floor plan - Main Level

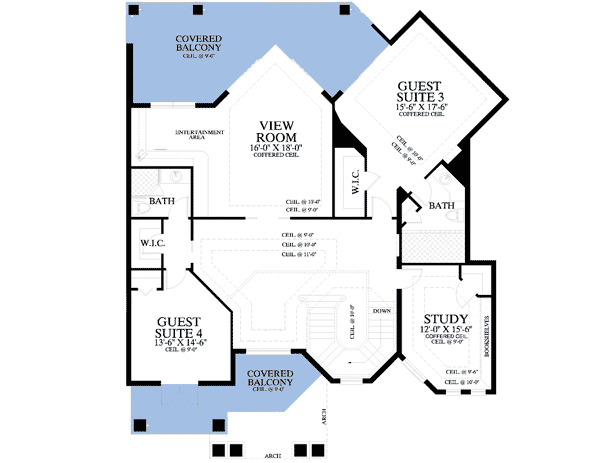

2nd Floor

Reverse Floor Plan

Florida Home Plan with a Twist - 24066BG floor plan - 2nd Floor

Plan Details

A widow's walk tops the peak of this lovely Florida home plan.
Special ceiling treatments abound throughout the house and the open layout makes the home feel even larger.
A big covered lanai in back lets you relax in the shade, with an outdoor grilling station for your barbecues.
The kitchen has a marvelous view of the breakfast nook and gathering room with its built-in entertainment center.
Columns mark the formal dining room nearby.
One guest bedroom is downstairs and the others are up on the second floor along with a study and the amazing view room.
Sliding glass doors open the view room to a large second floor balcony.
Note the wet bar and entertainment corner that makes it easy to serve snacks to your company or family.

What's Included

Cover page showing front elevation, contents and notes
Fully dimensioned floor plans including ceiling heights
Roof plan

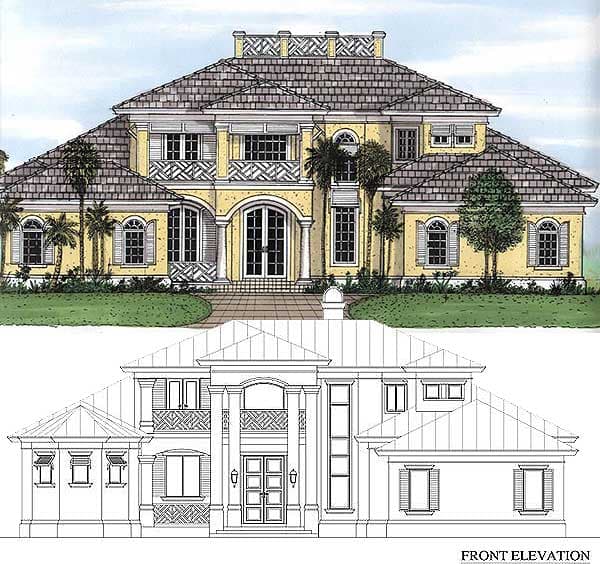

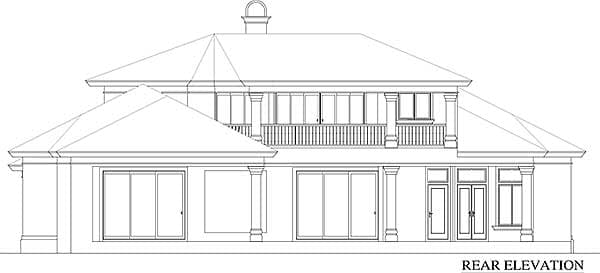

All four exterior elevations
Typical cross section
Suggested electrical schematic

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

5,566 sq. ft.

1st Floor:

3,964 sq. ft.

2nd Floor:

1,602 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

4

Half bathrooms:

1

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

Block / CMU (main floor)

Dimensions

Width:

80' 0"

Depth:

104' 0"

Max Ridge Height:

30' 6"

Garage

Type:

Attached

Area:

540 sq. ft.

Count:

2 Cars

Entry Location:

Courtyard

Ceiling Heights

Floor / Height:

First Floor / 10' 0"

Roof Details

Primary Pitch:

6 on 12

Secondary Pitch:

5 on 12

Framing Type:

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections
