Plan 86017BW

Florida House Plan with Detached Bonus Room

Pageloader

Florida House Plan with Detached Bonus Room

Plan 86017BW

  • 3,731

    Heated s.f.

  • 3-4

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Wide open views greet you as you enter this Florida house plan that is designed with beautiful sightlines in mind.
  • Views from the kitchen island extend over 31' to the end of the great room.
  • Two sets of double doors swing open to take you outside to the huge covered lanai that acts as an outdoor living room.
  • The detached bonus room would make an excellent in-law suite with a walk-in closet and private bathroom.
  • A secluded location was chosen for the master suite but all the bedrooms are separated for wonderful privacy.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)

Floor Plan

Plan details



Florida House Plan with Detached Bonus Room

  • 3,731

    Heated s.f.

  • 3 - 4

    Beds

  • 4 +

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $3,355
  • CAD $3,355
  • View all purchase option online

About This Plan

  • Wide open views greet you as you enter this Florida house plan that is designed with beautiful sightlines in mind.
  • Views from the kitchen island extend over 31' to the end of the great room.
  • Two sets of double doors swing open to take you outside to the huge covered lanai that acts as an outdoor living room.
  • The detached bonus room would make an excellent in-law suite with a walk-in closet and private bathroom.
  • A secluded location was chosen for the master suite but all the bedrooms are separated for wonderful privacy.
  • NOTE:  Restrictions may apply if building in Lee or Collier County, Florida.  Please contact us for details.

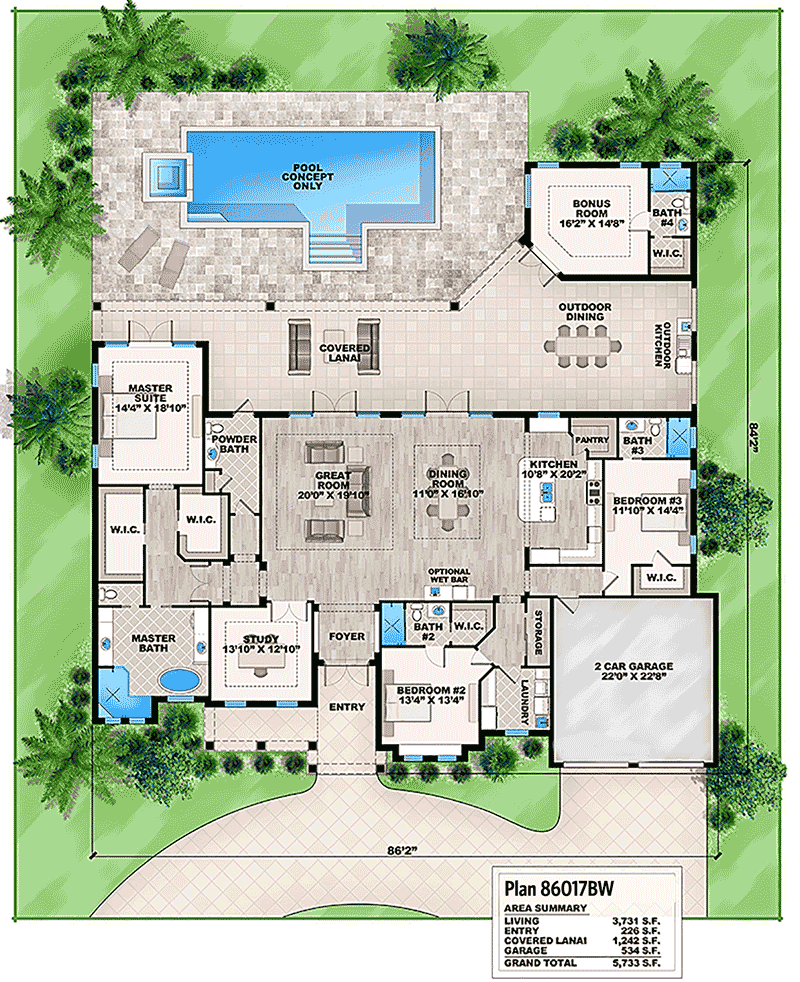

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,731 sq. ft.
  • 1st Floor: 3,731 sq. ft.
  • Entry: 226 sq. ft.
  • Lanai: 1,242 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 86' 2"
  • Depth: 84' 2"

Garage

  • Type: Attached
  • Area: 534 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
