  • Designed for a lot that slopes to the front, this Craftsman style home plan gives you lots of living space mainly on one level.
  • A corner fireplace warms the great room and can be seen as soon as you walk in the front door.
  • The kitchen has a huge walk-in pantry and a eating snack bar.
  • Let the kids play in the playroom off the breakfast nook.
  • Stairs lead up to a loft area that has an open rail so you can see down into the playroom.
  • The utility room is big enough for a craft area and has a closet for extra storage.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

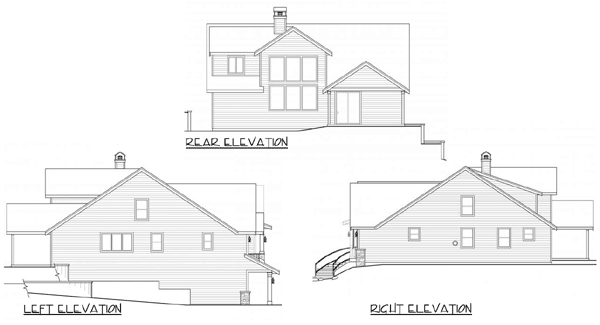

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Plan details

Architectural Style



For The Front Sloping Lot

  • 2,595

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $870
  • PDF Light $1,110
  • 5 Sets $1,110
  • 5 Sets PLUS $1,230
  • 8 Sets $1,290
  • PDF - single-use $2,165
  • CAD $2,345
  • CAD - multi-use $2,595
  • View all purchase option online

About This Plan

  • Designed for a lot that slopes to the front, this Craftsman style home plan gives you lots of living space mainly on one level.
  • A corner fireplace warms the great room and can be seen as soon as you walk in the front door.
  • The kitchen has a huge walk-in pantry and a eating snack bar.
  • Let the kids play in the playroom off the breakfast nook.
  • Stairs lead up to a loft area that has an open rail so you can see down into the playroom.
  • The utility room is big enough for a craft area and has a closet for extra storage.

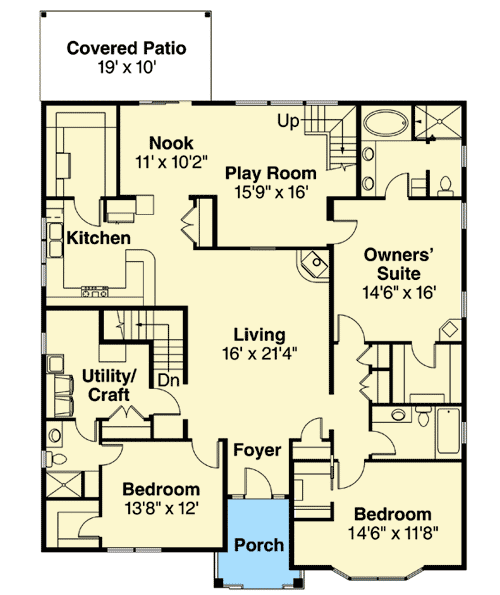

Floor Plans

  • Basement

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,595 sq. ft.
  • 1st Floor: 2,415 sq. ft.
  • 2nd Floor: 180 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 0"
  • Depth: 65' 0"
  • Max ridge height: 35' 5"

Garage

  • Type: Drive Under
  • Area: 585 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 8 on 12
