Plan 81607AB For the Sloping Lot

For the Sloping Lot

Plan 81607AB

  • 1,834

    Heated s.f.

  • 2-5

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 3

    Cars

  • Live all on the main floor or spread out to the lower level of this Northwest home plan with a finished lower floor.
  • Double doors in the dining area open to the large sun deck - plenty of room for that outdoor grill here!
  • The focal point of the great room is the fireplace flanked by built-ins.
  • The front-facing den can easily serve as a bedroom due to the nearby full bathroom.
  • Downstairs is perfect for entertaining with a hobby room, games room and a family room with another fireplace.

Plans include the following:

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

 We also include a list of building specifications, and notes for each page, with any important info the builder may need.

 What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations



Floor Plan

Plan details



For the Sloping Lot

  • 1,834

    Heated s.f.

  • 2 - 5

    Beds

  • 2 +

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • CAD - Single-Build $2,195
  • View all purchase option online

About This Plan

  • Live all on the main floor or spread out to the lower level of this Northwest home plan with a finished lower floor.
  • Double doors in the dining area open to the large sun deck - plenty of room for that outdoor grill here!
  • The focal point of the great room is the fireplace flanked by built-ins.
  • The front-facing den can easily serve as a bedroom due to the nearby full bathroom.
  • Downstairs is perfect for entertaining with a hobby room, games room and a family room with another fireplace.

Floor Plans

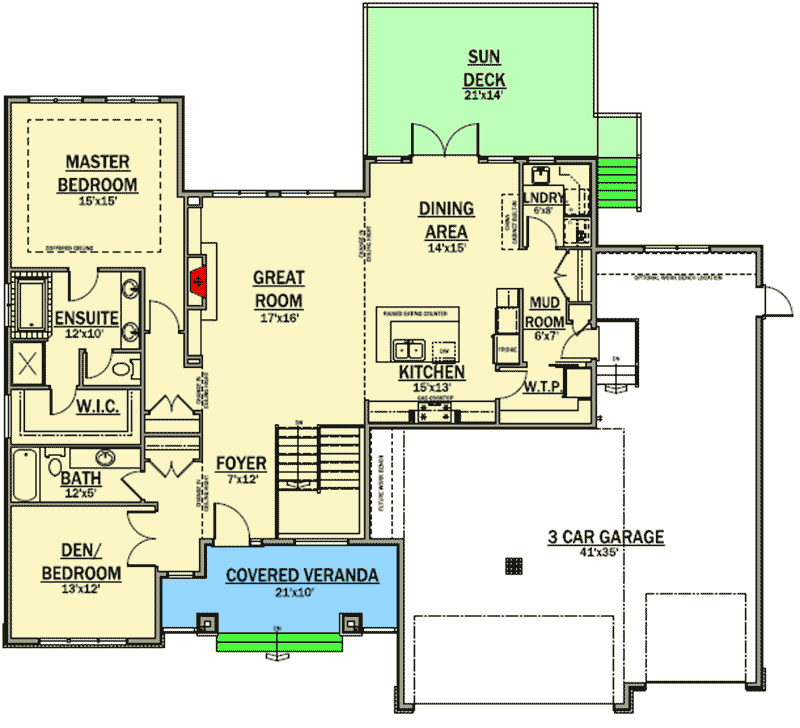

  • Main Level

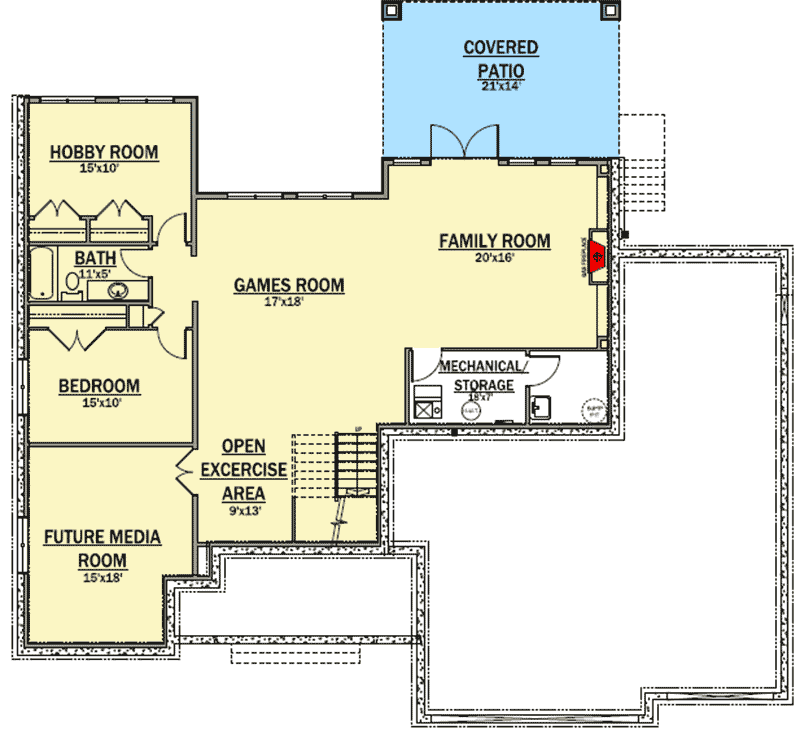

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,834 sq. ft.
  • 1st Floor: 1,834 sq. ft.
  • Optional Lower Level: 1,500 sq. ft.
  • Deck: 296 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, & 5
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 69' 0"
  • Depth: 65' 0"
  • Max ridge height: 28' 4"

Garage

  • Type: Attached
  • Area: 1091 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
