Plan 72902DA

For the View Lot

Heated S.F.
1,750
Beds
2
Baths
2
Stories
2
Cars
2

Floor Plan

Plan 72902DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72902DA

M-F 9am-5pm EST |

1-203-761-8500

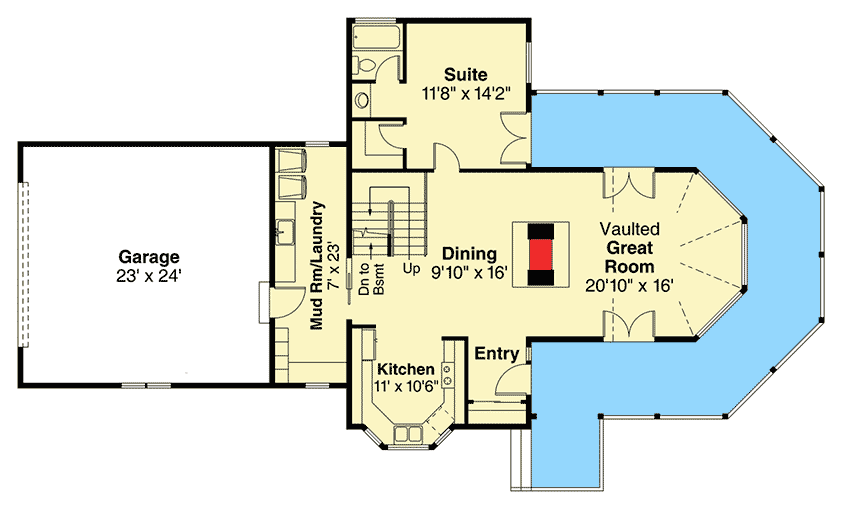

Main Level

Plan 72902DA: For the View Lot - Floor Plan - Main Level - Shingle, Vacation

2nd Floor

Plan 72902DA: For the View Lot - Floor Plan - 2nd Floor - Shingle, Vacation

Plan Details

  • With it's wrap around covered porch, understated entrance and charming stone accents, this home plan is a great vacation home or year round residence.
  • The main level has a multitude of windows allowing plenty of natural light in along with any stunning lake, mountain, river or city view your lot may have.
  • On the right side,  the master suite comes with a walk-in closet and full bathroom.
  • The second floor has a bedroom loft that is open to the great room below and has it's own walk-in closet and full bathroom.
  • The walk-out basement comes unfinished, ready to add to your finishing touches.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

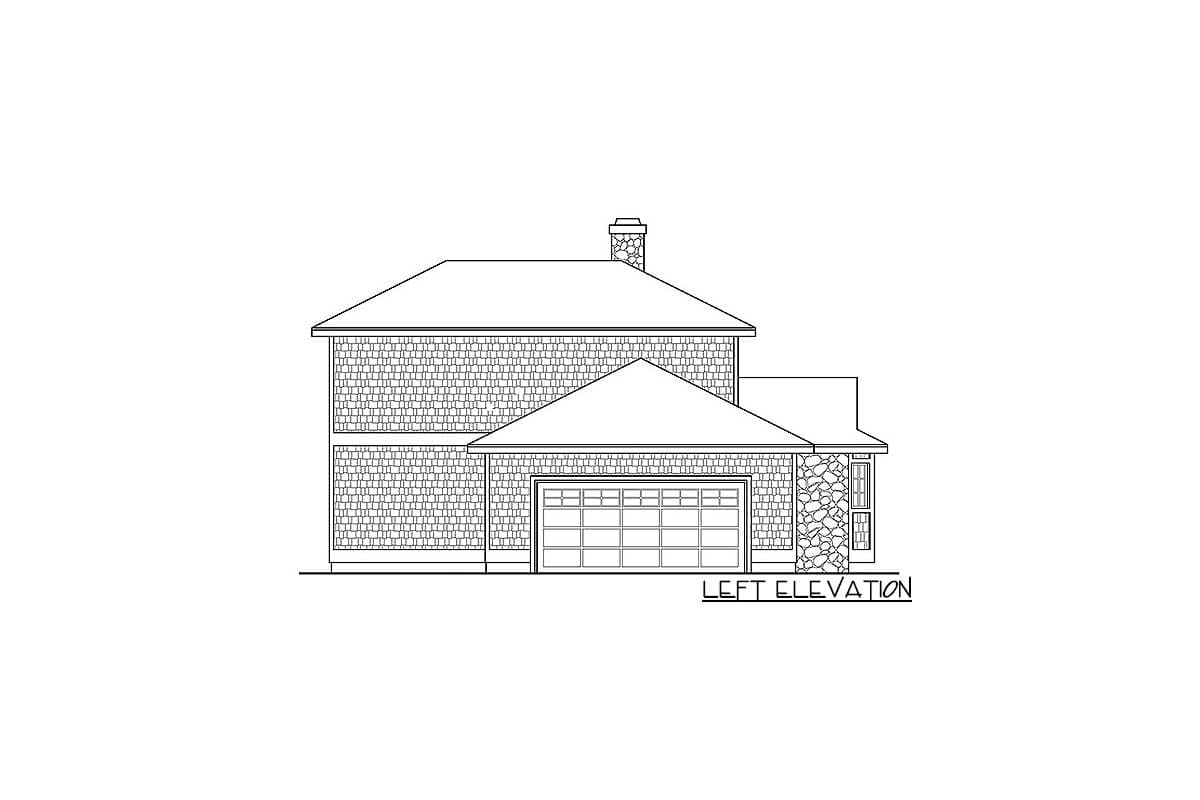

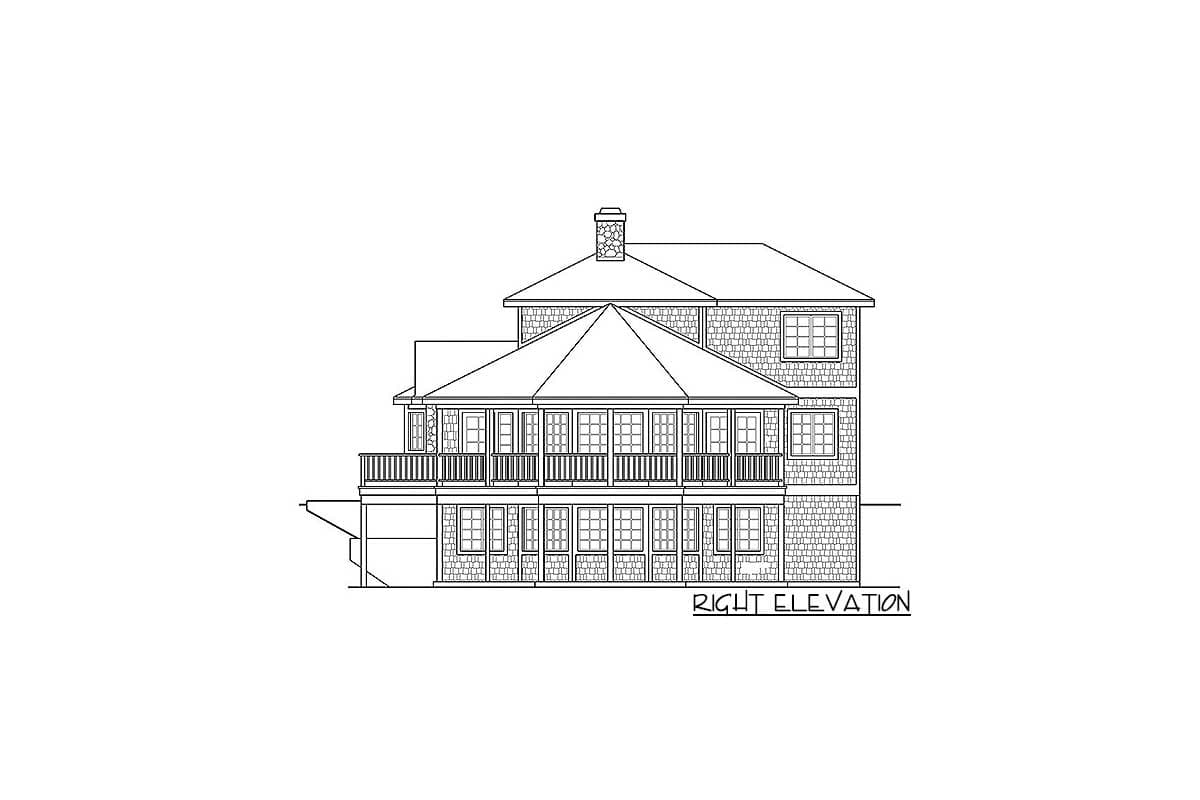

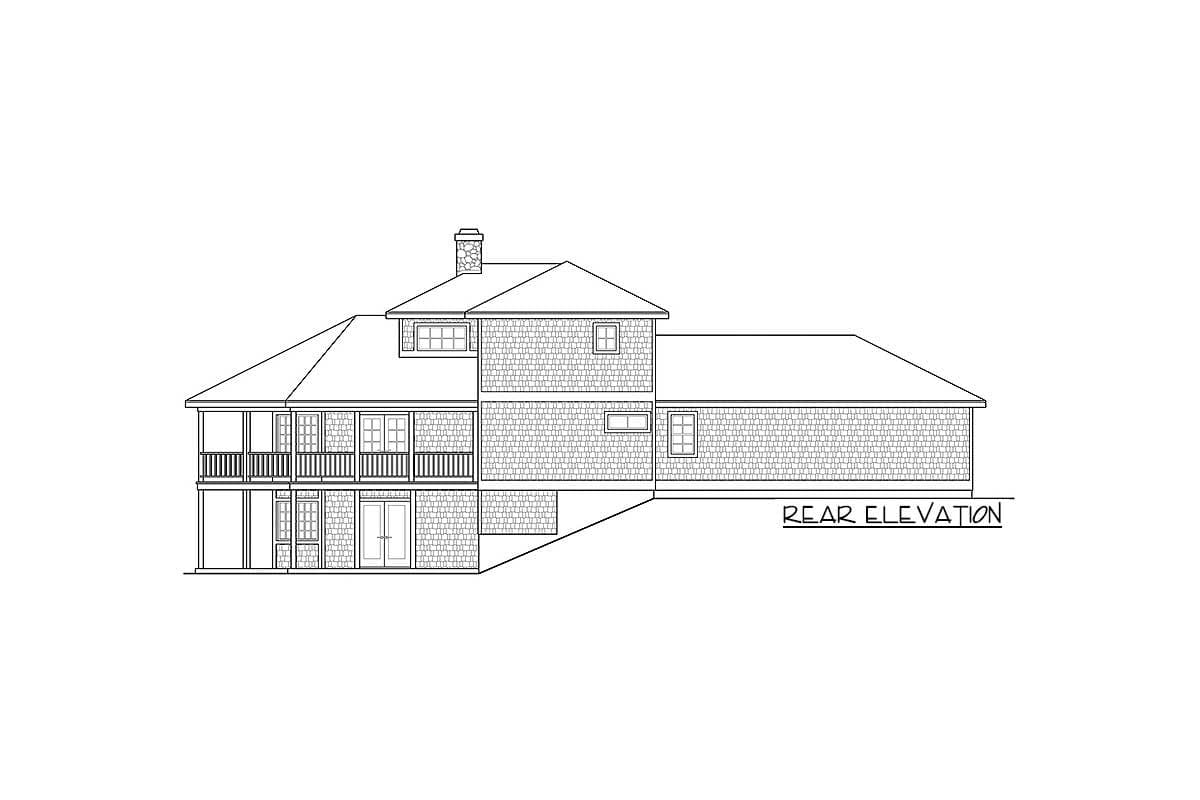

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,750 sq. ft.

1st Floor

1,246 sq. ft.

2nd Floor

504 sq. ft.

Basement Unfinished

1,246 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 6"

Depth

42' 0"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Architectural Style

Shingle

Vacation

Special Features

Loft

Master Suite - 1st Floor

Wraparound Porch

Plan Collections

Lake House Plans

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,750 sq. ft.

1st Floor

1,246 sq. ft.

2nd Floor

504 sq. ft.

Basement Unfinished

1,246 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

78' 6"

Depth

42' 0"

Max Ridge Height

24' 1"

Garage

Type

Attached

Area

588 sq. ft.

Count

2 Cars

Entry Location

Side

Roof Details

Primary Pitch

6 on 12

Architectural Style

Shingle

Vacation

Special Features

Loft

Master Suite - 1st Floor

Wraparound Porch

Plan Collections

Lake House Plans

Sloping Lot
