Plan 56426SM Four Bed Southern Home Plan with Optional Bonus Room

3,073 4 3.5 1-2 3
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Four Bed Southern Home Plan with Optional Bonus Room

Plan 56426SM

  • 3,073

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Acadian styling sets off this graceful Southern house plan that has a big, wide footprint.
  • The wide central foyer has barn doors to the left that slide open to reveal the home office.
  • Head further back to settle down in the gigantic living room that has a fireplace and a wall of windows that overlook the rear covered porch.
  • A wide brick arch leads into the beamed kitchen with its large island that seats four people.
  • There's no formal dining room - instead you get a bright and large dining area 12' high where you can see right into the beautiful kitchen.
  • A guest suite gains privacy by being the only bedroom on the left side of the home.
  • Homeowners get a dream master suite with a vaulted ceiling and giant walk-in closet with a storage island right in the middle.
  • The master bathroom is picture perfect with a stand alone soaking tub, vaulted ceiling and a large, two-entry walk-in shower.
  • Bonus space over the garage can be finished by your builder to suit your needs.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

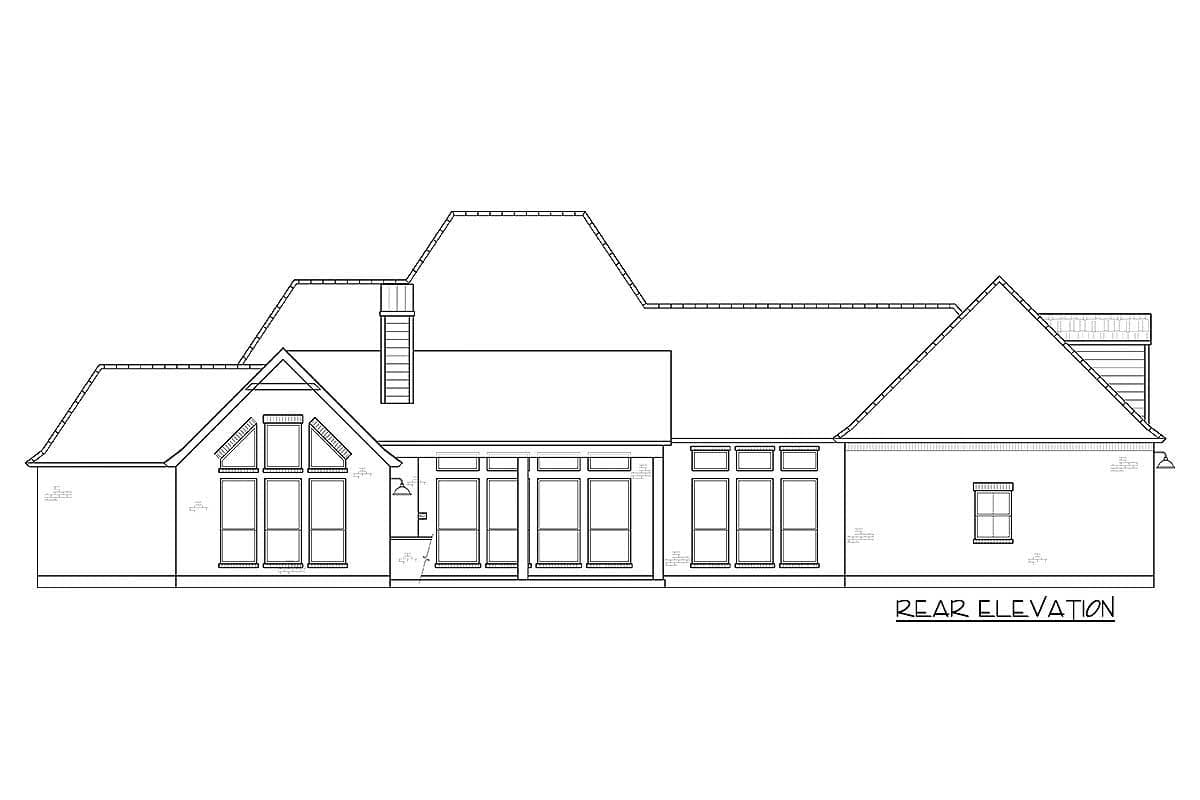

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

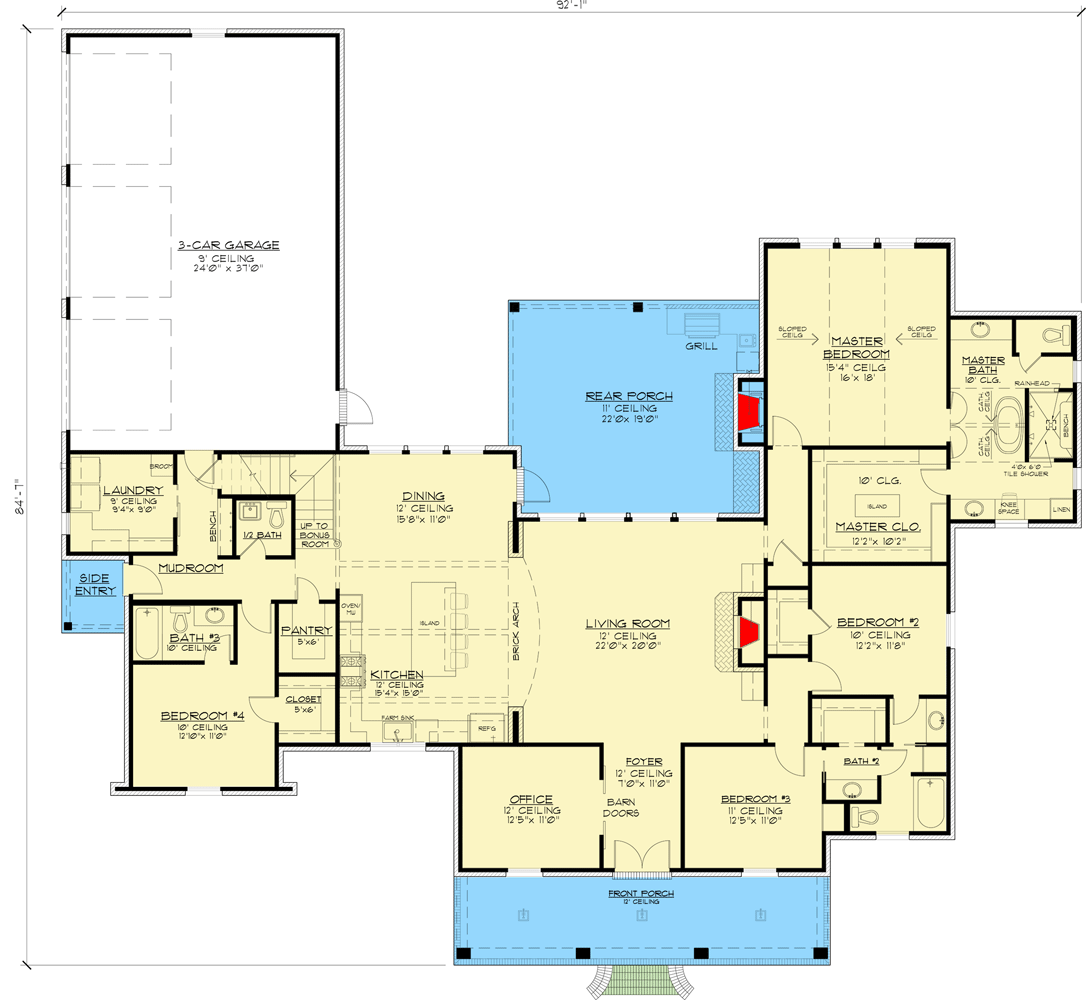

Four Bed Southern Home Plan with Optional Bonus Room - 56426SM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

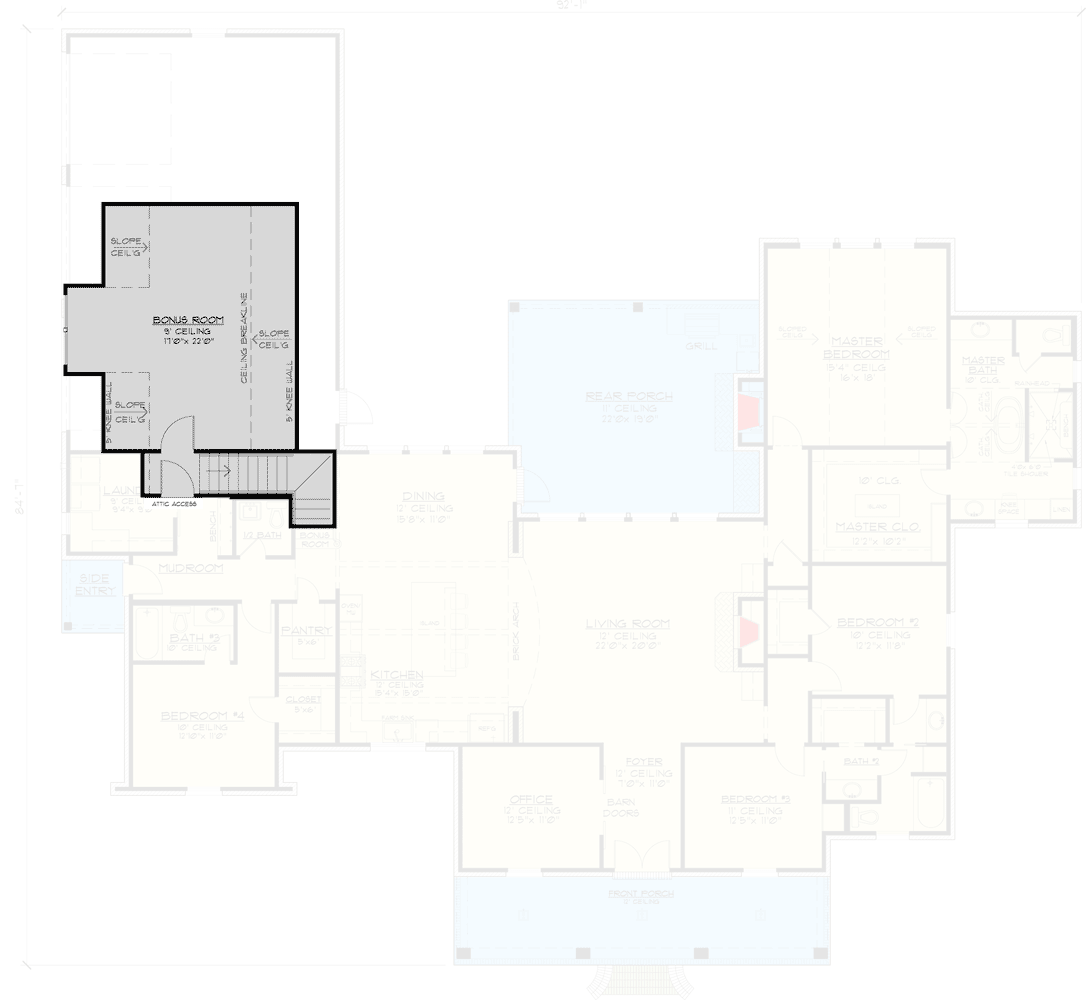

Four Bed Southern Home Plan with Optional Bonus Room - 56426SM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,073 sq. ft.
  • 1st Floor: 3,073 sq. ft.
  • Porch, Rear: 418 sq. ft.
  • Bonus: 454 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 92' 1"
  • Depth: 84' 7"

Garage

  • Area: 888 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Living Room 12' 0"
Foyer 12' 0"
Office 12' 0"
Master Bedroom Vaulted 15' 4"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Four Bed Southern Home Plan with Optional Bonus Room

  • 3,073

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,345
  • 5 Sets $1,445
  • 5 Sets + PDF $1,645
  • PDF - Unlimited Build $2,045
  • CAD Unlimited + PDF $2,845
  • View all purchase option online

About This Plan

  • Acadian styling sets off this graceful Southern house plan that has a big, wide footprint.
  • The wide central foyer has barn doors to the left that slide open to reveal the home office.
  • Head further back to settle down in the gigantic living room that has a fireplace and a wall of windows that overlook the rear covered porch.
  • A wide brick arch leads into the beamed kitchen with its large island that seats four people.
  • There's no formal dining room - instead you get a bright and large dining area 12' high where you can see right into the beautiful kitchen.
  • A guest suite gains privacy by being the only bedroom on the left side of the home.
  • Homeowners get a dream master suite with a vaulted ceiling and giant walk-in closet with a storage island right in the middle.
  • The master bathroom is picture perfect with a stand alone soaking tub, vaulted ceiling and a large, two-entry walk-in shower.
  • Bonus space over the garage can be finished by your builder to suit your needs.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,073 sq. ft.
  • 1st Floor: 3,073 sq. ft.
  • Porch, Rear: 418 sq. ft.
  • Bonus: 454 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 92' 1"
  • Depth: 84' 7"

Garage

  • Area: 888 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Stick
Plan 56426SM
