Plan 290046IY
Four Bedroom Craftsman House Plan
Heated S.F.
2,777
Beds
4-6
Baths
2.5 - 3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

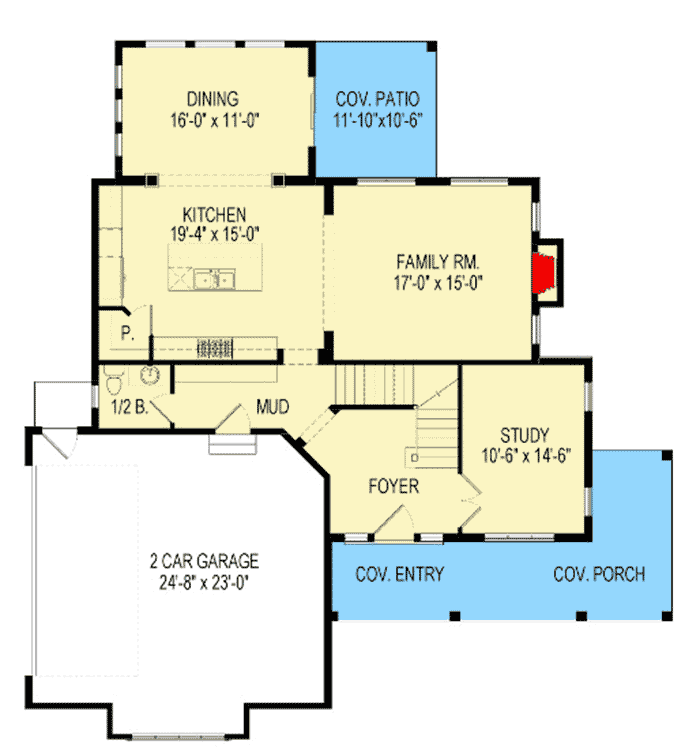

Four Bedroom Craftsman House Plan - 290046IY floor plan - Main Level
2nd Floor
Reverse Floor Plan
Four Bedroom Craftsman House Plan - 290046IY floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan
Four Bedroom Craftsman House Plan - 290046IY floor plan - Optional Lower Level
Plan Details
  • A metal roof covers the front porch that wraps-around this Craftsman house plan.
  • Inside, the foyer rises up two stories for a dramatic effect.
  • Double doors open to a quiet study where you can work from home or relax with a book and your favorite TV show.
  • The L-shaped main living area in back is all open concept.
  • Framed by two interior columns, the dining room has glass on three walls to better enjoy the views outside.
  • The master bedroom is on the second floor along with three other bedrooms and a laundry room.
  • Bedroom 4 gets a vaulted ceiling.
What's Included
This plan set includes the following:
Rendering and schematic floor plans
General Notes
Door and window schedules
Terrace level floor plan
Terrace level dimension plan
Main level floor plan
Main level dimension plan
Upper level floor plan
Upper level
Front & rear elevations
Left & right elevations
Building sections
Details
Roof plan
Lower level power plan
Lower level lighting plan
Main level power plan
Main level lighting plan
Upper level power plan
Upper level lighting plan




What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Four Bedroom Craftsman House Plan

  • 2,777

    Heated s.f.

  • 4-6

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,777 sq. ft.
  • 1st Floor: 1,274 sq. ft.
  • 2nd Floor: 1,503 sq. ft.

Dimensions

  • Width: 42' 8"
  • Depth: 54' 0"
  • Max ridge height: 32' 11"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 644 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
