Four Dormered House Plan with 3 Beds and 1939 Square Feet of Heated Living Space
Heated S.F.
1,939
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • Four functioning dormers above the front entry porch with decorative truss gives this3 bed, 1939 square foot house plan great curb appeal.
  • Enter the living room with fireplace from the front porch and discover an open floor plan with the kitchen and dining room in back. Sliding doors open to the back porch.
  • The master suite is on the main floor and has a vaulted ceiling and a large walk-in closet. Upstairs, two bedrooms share a bath and there's an open loft space that gets light from two of the dormers.
What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Four Dormered House Plan with 3 Beds and 1939 Square Feet of Heated Living Space

  • 1,939

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

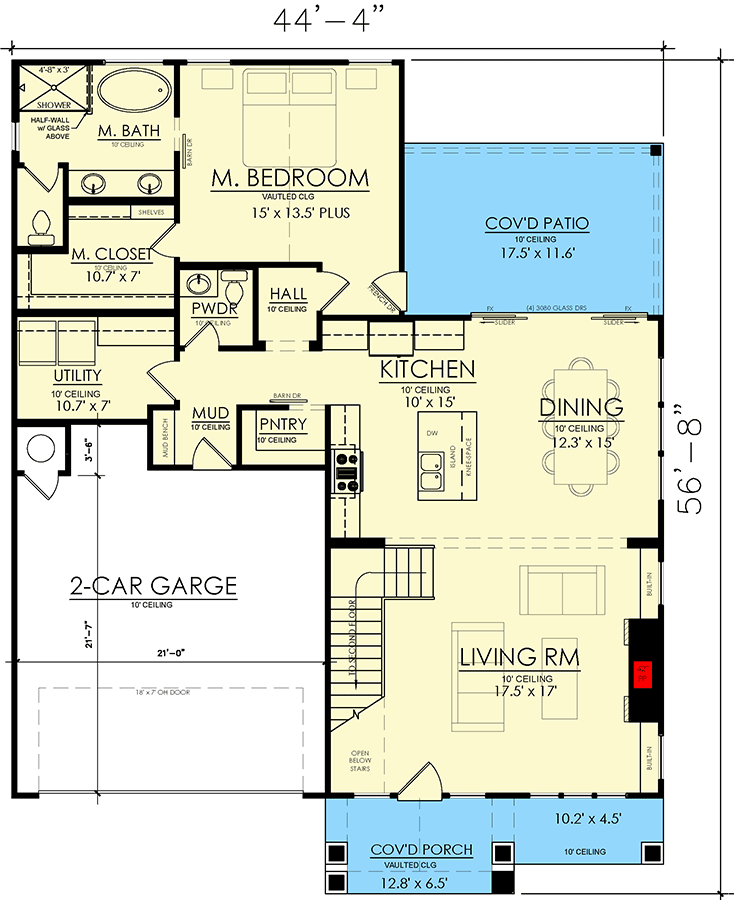

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,939 sq. ft.
  • 1st Floor: 1,414 sq. ft.
  • 2nd Floor: 525 sq. ft.

Dimensions

  • Width: 44' 4"
  • Depth: 56' 8"
  • Max ridge height: 28' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 505 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
