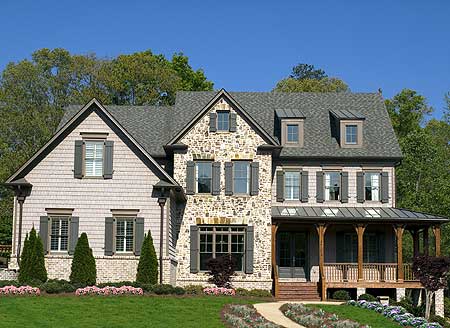

Plan: 15828GE

Four or Five Bedrooms with Options

3,695 4-5 4 2 2
Pageloader

Four or Five Bedrooms with Options

Plan 15828GE

  • 3,695

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • Lots of bedrooms make this the perfect home for a large family.
  • If you don't need that many, the first floor bedroom can be used as a study.
  • Two-story ceilings add grandeur to the foyer and the grand room.
  • Coffered ceilings top the kitchen and keeping room that are open to each other.
  • Open railing on the second floor allows views down into the grand room and foyer below.
  • When you need some quiet time, head for the master sitting room with built-in shelves for all your books.
  • The small second floor laundry room adds convenience.
  • Related Plans: Get an alternate exterior with house plan 15827GE.
    Get more room with house plan 15825GE (3,994 sq. ft.).

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • The plans are designed to meet the International Residential Code but are not designed for a specific area.  These plans do not come engineered or with structural drawings. They do not include framing plans.
  • Plans do include wall and cornice sections, general foundation sections and details.



Floor Plan

Plan details



Four or Five Bedrooms with Options

  • 3,695

    Heated s.f.

  • 4 - 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,595
  • CAD $2,545
  • View all purchase option online

About This Plan

  • Lots of bedrooms make this the perfect home for a large family.
  • If you don't need that many, the first floor bedroom can be used as a study.
  • Two-story ceilings add grandeur to the foyer and the grand room.
  • Coffered ceilings top the kitchen and keeping room that are open to each other.
  • Open railing on the second floor allows views down into the grand room and foyer below.
  • When you need some quiet time, head for the master sitting room with built-in shelves for all your books.
  • The small second floor laundry room adds convenience.
  • Related Plans: Get an alternate exterior with house plan 15827GE.
    Get more room with house plan 15825GE (3,994 sq. ft.).

Floor Plans

  • Main Level

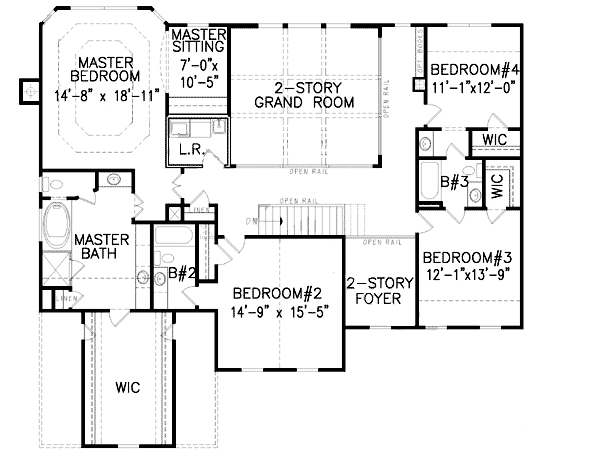

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,695 sq. ft.
  • 1st Floor: 1,892 sq. ft.
  • 2nd Floor: 1,803 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 4"
  • Depth: 55' 4"

Garage

  • Type: Attached
  • Area: 458 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Architectural Style

  • Country
  • Traditional

Special features

  • 2nd Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • MBR Sitting Area
  • PDF
