Plan 8184LB

Four-Plex Great for Combining

Heated S.F.
6,128
Units
4
Width
Depth

Floor Plan

Plan 8184LB

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 8184LB

M-F 9am-5pm EST |

1-203-761-8500

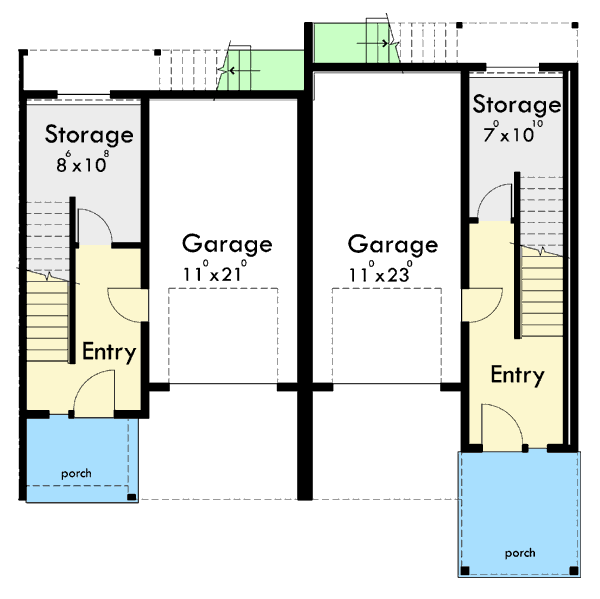

Basement

Plan 8184LB: Four-Plex Great for Combining - Floor Plan - Basement

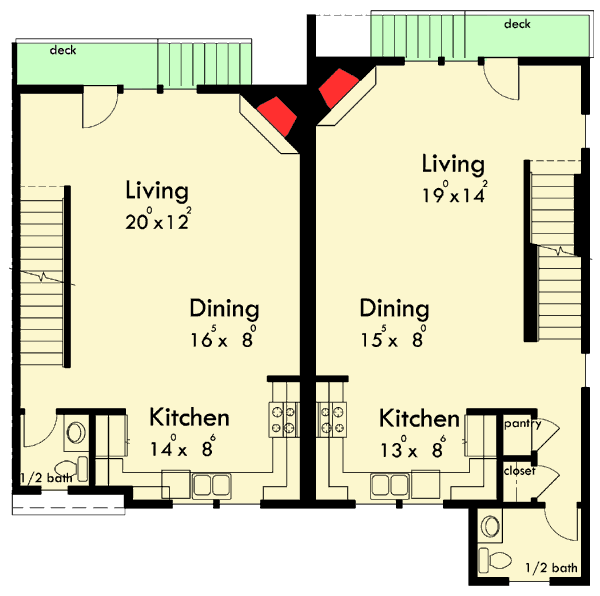

Main Level

Plan 8184LB: Four-Plex Great for Combining - Floor Plan - Main Level

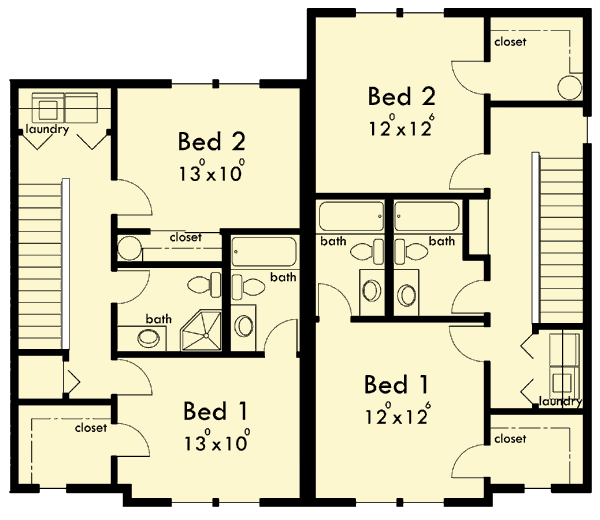

2nd Floor

Plan 8184LB: Four-Plex Great for Combining - Floor Plan - 2nd Floor

Plan Details

  • This four-plex house plan gives you side-by-side asymmetrical units that can be combined to create more units.
  • Unit A gives you 1,598 sq. ft. of living space (218 sq. ft. on the lower level, 687 sq. ft. on the first floor and 693 on the upper floor).
  • Unit B gives you 1,466 sq. ft. of living space (222 sq. ft. on the lower level, 622 sq. ft. on the first and second floors).
  • Both units give you parking and ground floor porches. Stairs in back give you access to the deck off the great rooms with fireplaces.
Unit A
Heated Area
1,598Sq. Ft.
218 Sq. Ft. LL
687 Sq. Ft. 1st
693 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
267 Sq. Ft.
Dimensions
20' 6"width
40' 6"depth
35' 5"height
Unfinished Areas
267 Sq. Ft. Garage
Unit B
Heated Area
1,466Sq. Ft.
222 Sq. Ft. LL
622 Sq. Ft. 1st
622 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
245 Sq. Ft.
Dimensions
20' 6"width
40' 6"depth
35' 5"height
Unfinished Areas
245 Sq. Ft. Garage
Unit C
Heated Area
1,466Sq. Ft.
222 Sq. Ft. LL
622 Sq. Ft. 1st
622 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
245 Sq. Ft.
Dimensions
20' 6"width
40' 6"depth
35' 5"height
Unfinished Areas
245 Sq. Ft. Garage
Unit D
Heated Area
1,598Sq. Ft.
218 Sq. Ft. LL
687 Sq. Ft. 1st
693 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
267 Sq. Ft.
Dimensions
20' 6"width
40' 6"depth
35' 5"height
Unfinished Areas
267 Sq. Ft. Garage

What's Included

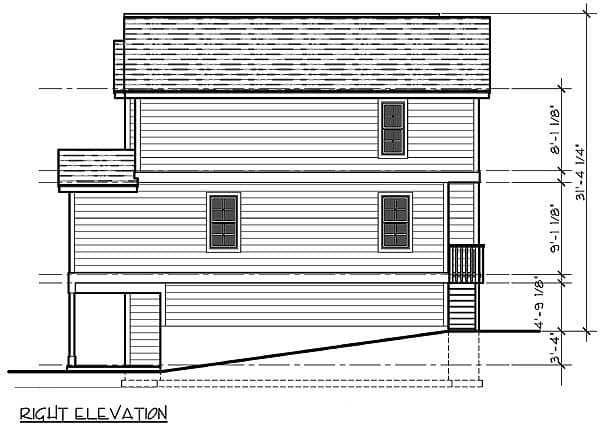

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,128 sq. ft.

Lower Level

880 sq. ft.

1st Floor

2,618 sq. ft.

2nd Floor

2,630 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

40' 6"

Max Ridge Height

35' 5"

Garage

Type

Drive Under

Area

1024 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

6,128 sq. ft.

Lower Level

880 sq. ft.

1st Floor

2,618 sq. ft.

2nd Floor

2,630 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

40' 6"

Max Ridge Height

35' 5"

Garage

Type

Drive Under

Area

1024 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Special Features

Master Suite - Upstairs
