Plan 11732HZ Four Unit Multi-Family with Matching 544 Sq Ft 1 Bed Units

2,176 4 32' 0" 39' 0"
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Four Unit Multi-Family with Matching 544 Sq Ft 1 Bed Units

Plan 11732HZ

  • 2,176

    Heated s.f.

  • 4

    Units

  • 32' 0"

    Width

  • 39' 0"

    Depth

  • This 4 unit multifamily plan is a great investment for anyone interested.
  • Each unit gives you 544 square feet of heated living space with a bedroom, bath, laundry, living room and kitchen.
  • The narrow footprint along with the spacious rooms make this a must have for renters.
  • This plan offers a nice kitchen with stacked washer/dryer and large living room and bedroom with plenty of closets and storage.

This designer's plans include the following details:

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

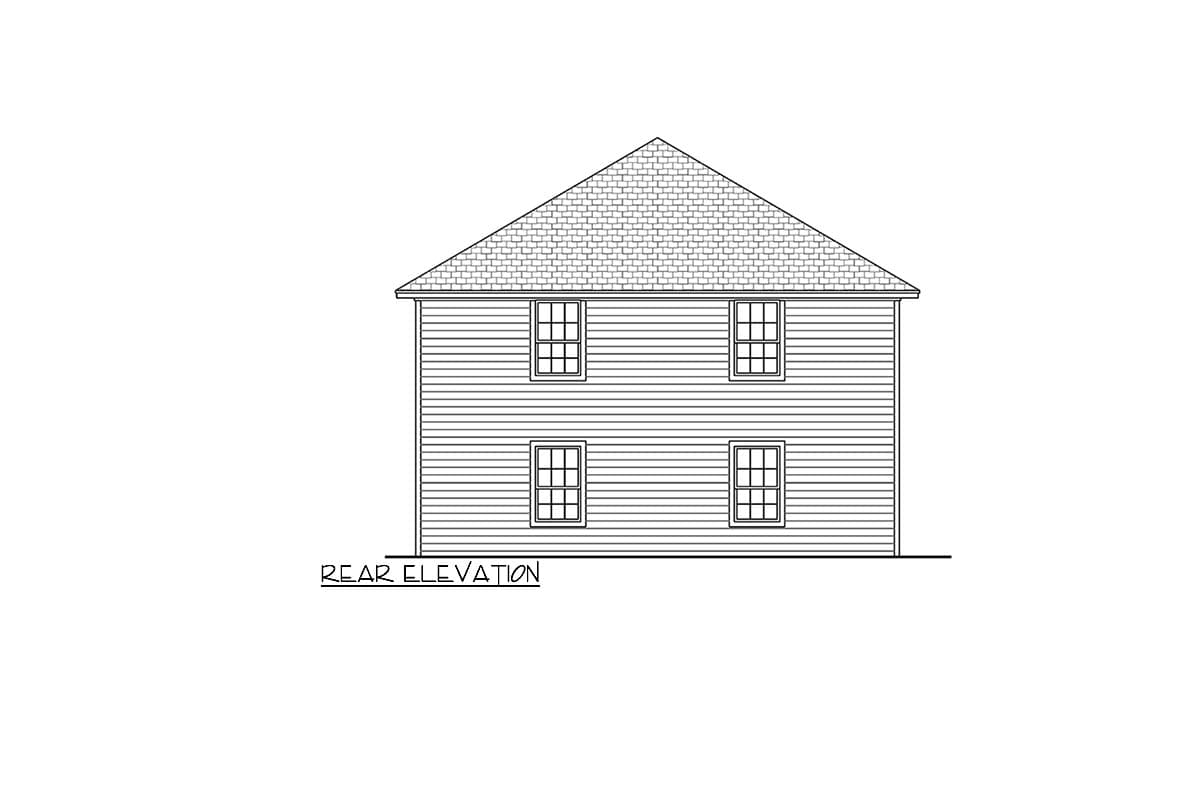

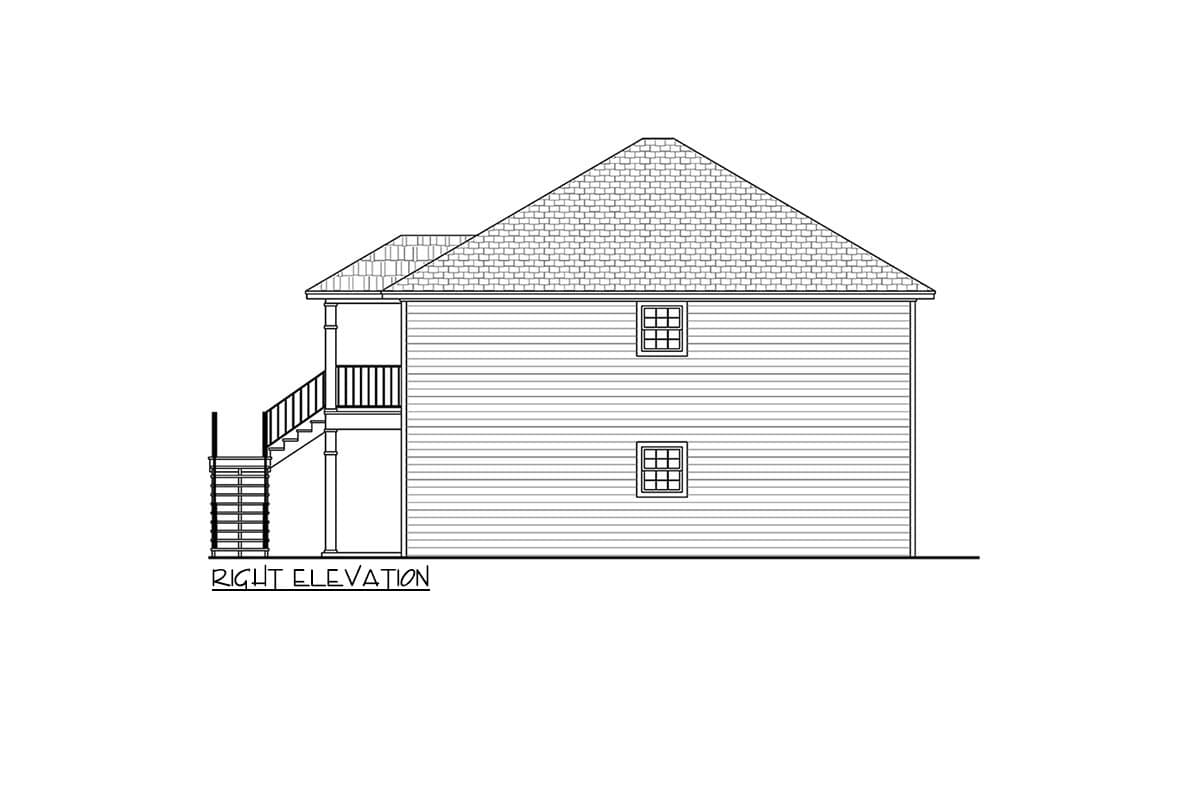

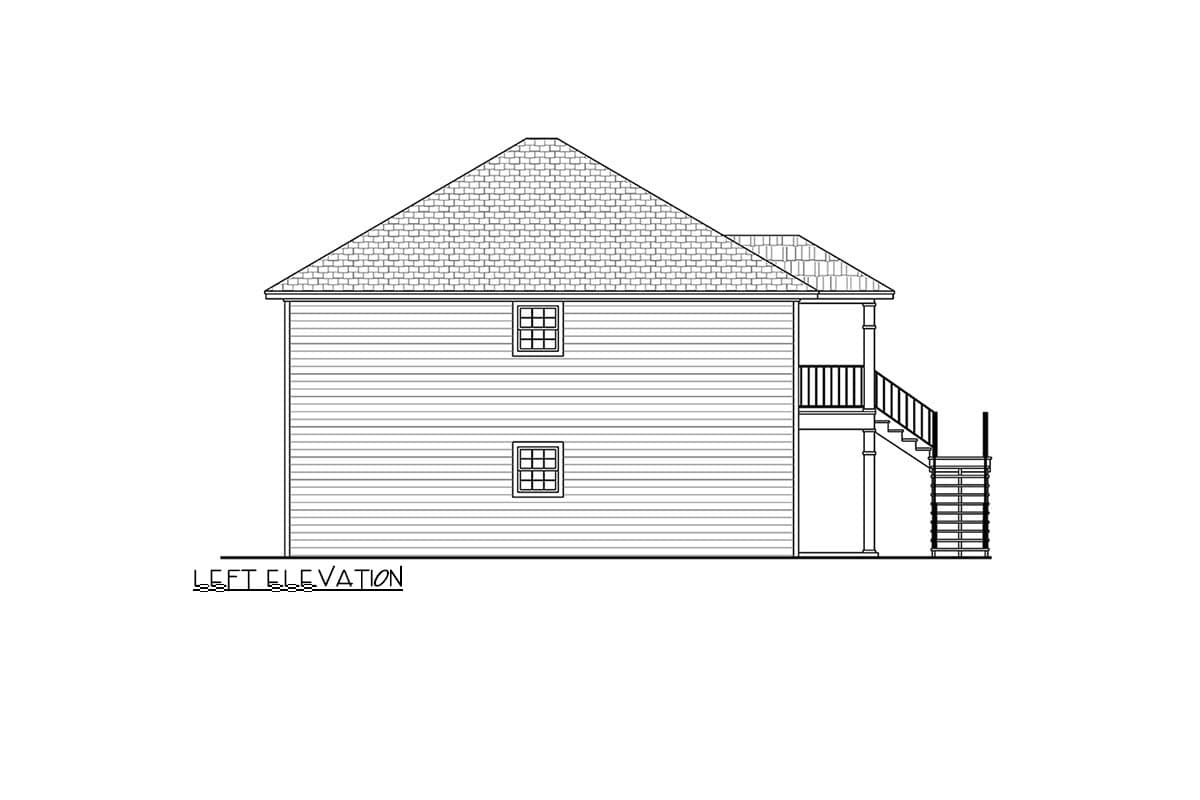

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

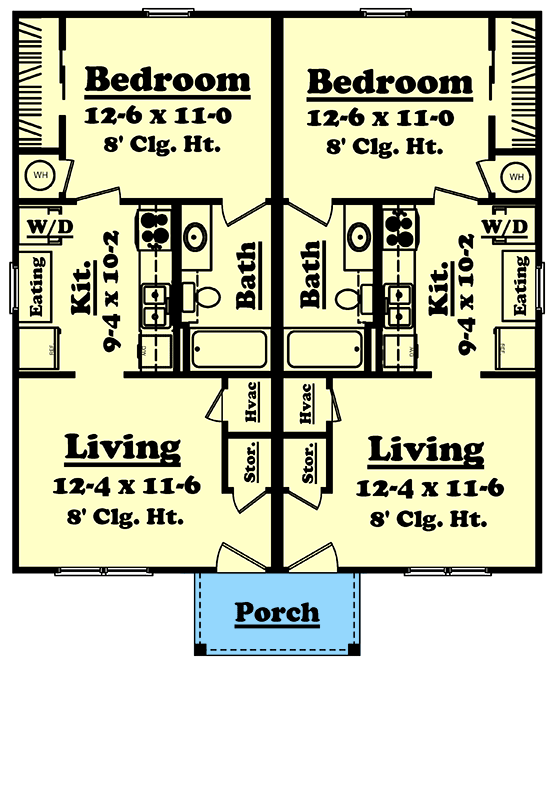

Four Unit Multi-Family with Matching 544 Sq Ft 1 Bed Units - 11732HZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

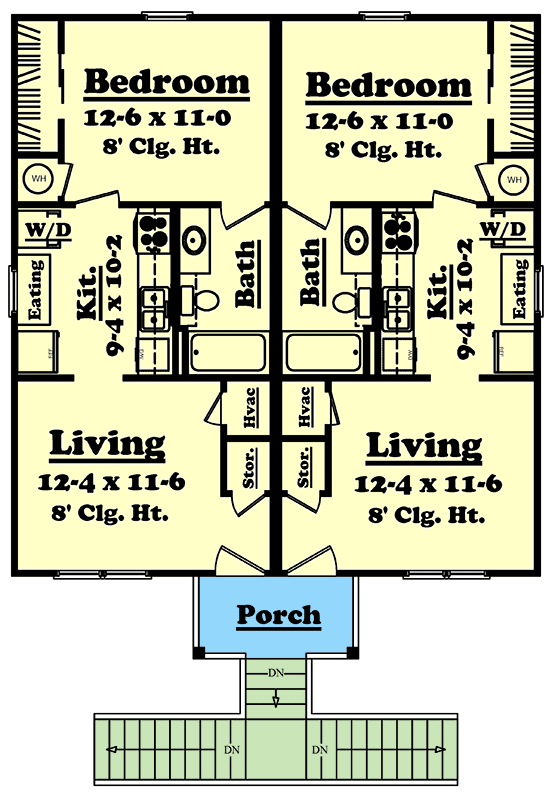

Four Unit Multi-Family with Matching 544 Sq Ft 1 Bed Units - 11732HZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,176 sq. ft.
  • 1st Floor: 1,088 sq. ft.
  • 2nd Floor: 1,088 sq. ft.
  • Porch, Front: 200 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 39' 0"
  • Max ridge height: 27' 1"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 8' 0"

Roof Details

  • Primary Pitch: 7 on 12
  • Framing Type: Stick Or Truss

Architectural Style

Special features

Plan Collections

Four Unit Multi-Family with Matching 544 Sq Ft 1 Bed Units

  • 2,176

    Heated s.f.

  • 4

    Units

  • 32' 0"

    Width

  • 39' 0"

    Depth

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets +PDF Single-Build $1,545
  • PDF - Unlimited Build $1,995
  • CAD + PDF - Unlimited Build $2,295
  • View all purchase option online

About This Plan

  • This 4 unit multifamily plan is a great investment for anyone interested.
  • Each unit gives you 544 square feet of heated living space with a bedroom, bath, laundry, living room and kitchen.
  • The narrow footprint along with the spacious rooms make this a must have for renters.
  • This plan offers a nice kitchen with stacked washer/dryer and large living room and bedroom with plenty of closets and storage.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,176 sq. ft.
  • 1st Floor: 1,088 sq. ft.
  • 2nd Floor: 1,088 sq. ft.
  • Porch, Front: 200 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 39' 0"
  • Max ridge height: 27' 1"

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick Or Truss
Plan 11732HZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/11732HZ
|
Need Help? 800-854-7852
|
Plan 11732HZ
