Plan 59854ND

Fourth Bedroom or Bonus Room

2,721 3-4 3 2 2
Pageloader

Fourth Bedroom or Bonus Room

Plan 59854ND

  • 2,721

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • A tile roof, transom windows and stone accent this appealing Tuscan house plan.
  • Interior columns frame the entrance to both the dining room and breakfast nook, for an elegant look.
  • Seat three people comfortably at the peninsula eating bar in the compact kitchen where you can see out into the front courtyard.
  • The huge great room comes with a fireplace and built-in media center.
  • French doors take you out to the shaded grilling porch.
  • The master suite has a great spa-like bathroom with a corner soaking tub, make-up area and double sinks.
  • Two spacious bedrooms on the second floor have easy access to the bonus room/home theater and an open rail hall lets you look down into the foyer below.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



Fourth Bedroom or Bonus Room

  • 2,721

    Heated s.f.

  • 3 - 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • 5 Sets $830
  • 8 Sets $1,020
  • Reproducible Set $1,560
  • PDF - single-use $1,560
  • CAD $2,400
  • View all purchase option online

About This Plan

  • A tile roof, transom windows and stone accent this appealing Tuscan house plan.
  • Interior columns frame the entrance to both the dining room and breakfast nook, for an elegant look.
  • Seat three people comfortably at the peninsula eating bar in the compact kitchen where you can see out into the front courtyard.
  • The huge great room comes with a fireplace and built-in media center.
  • French doors take you out to the shaded grilling porch.
  • The master suite has a great spa-like bathroom with a corner soaking tub, make-up area and double sinks.
  • Two spacious bedrooms on the second floor have easy access to the bonus room/home theater and an open rail hall lets you look down into the foyer below.

Floor Plans

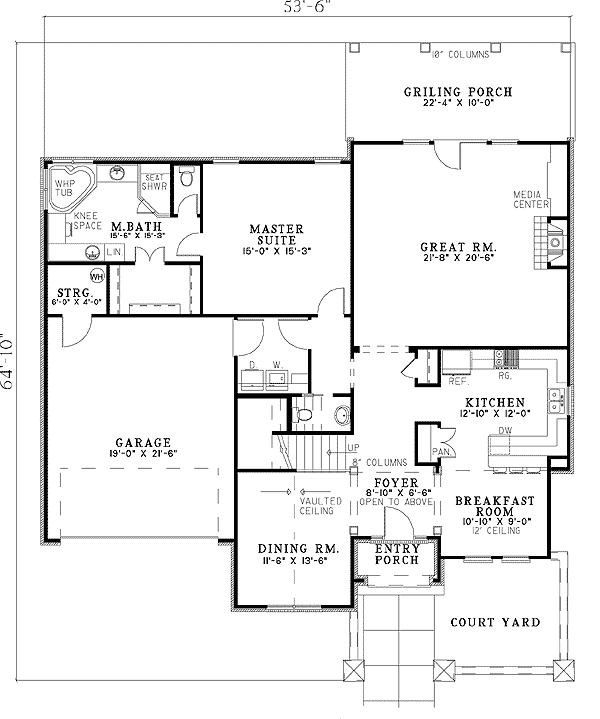

  • Main Level

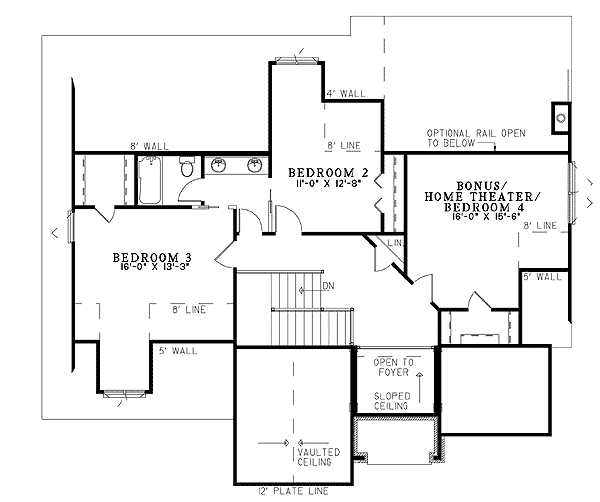

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,721 sq. ft.
  • 1st Floor: 1,728 sq. ft.
  • 2nd Floor: 993 sq. ft.
  • Porch, Rear: 224 sq. ft.
  • Entry: 36 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 53' 6"
  • Depth: 64' 10"
  • Max ridge height: 27' 4"

Garage

  • Type: Attached
  • Area: 475 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
