Plan 623234DJ French Country House Plan Under 5000 Square Feet with Separate Apartment Above Garage

4,817 5 5.5 2 3
watch
video Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

French Country House Plan Under 5000 Square Feet with Separate Apartment Above Garage

Plan 623234DJ

  • 4,817

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

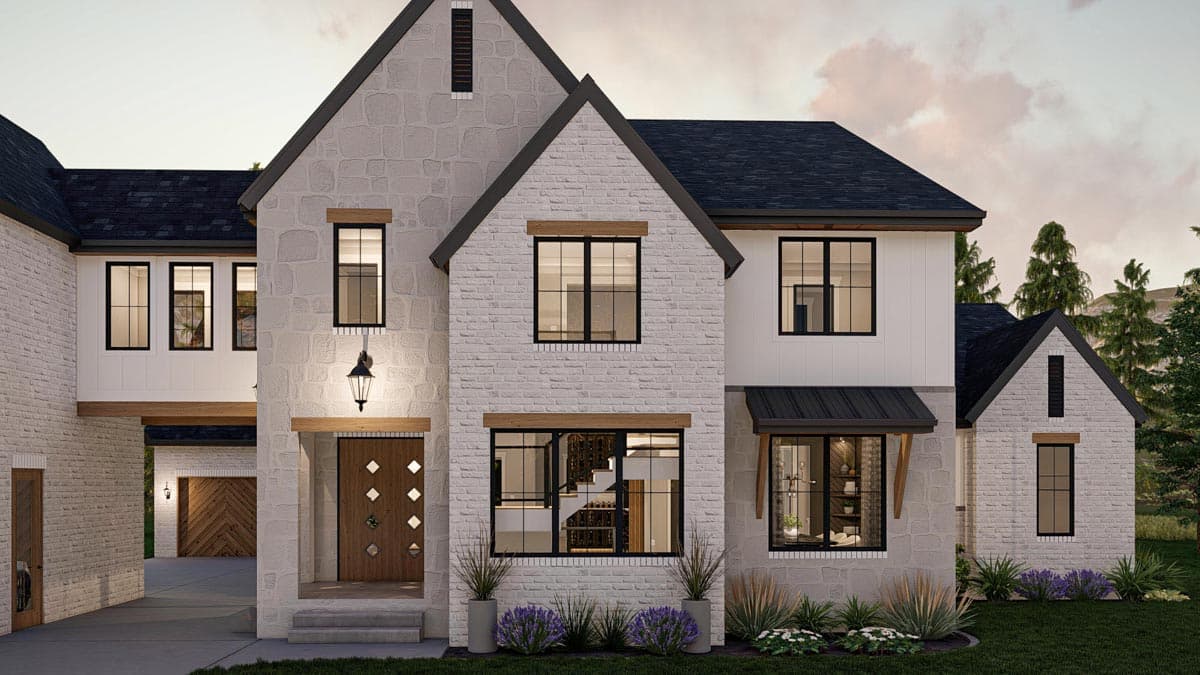

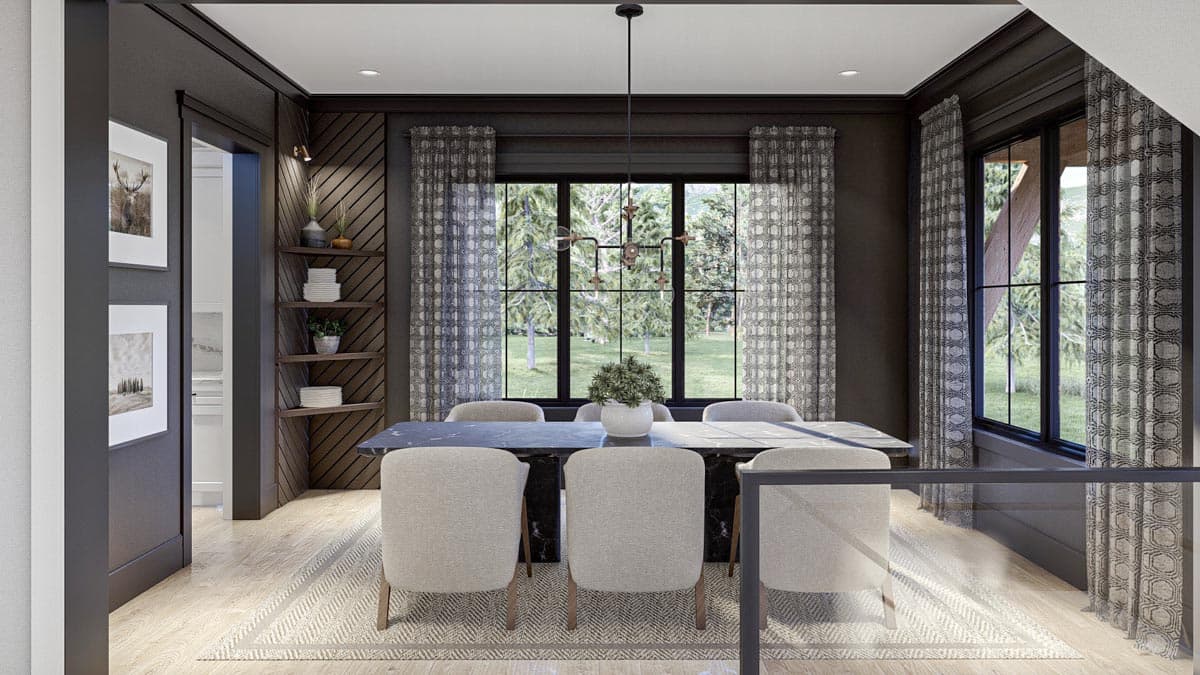

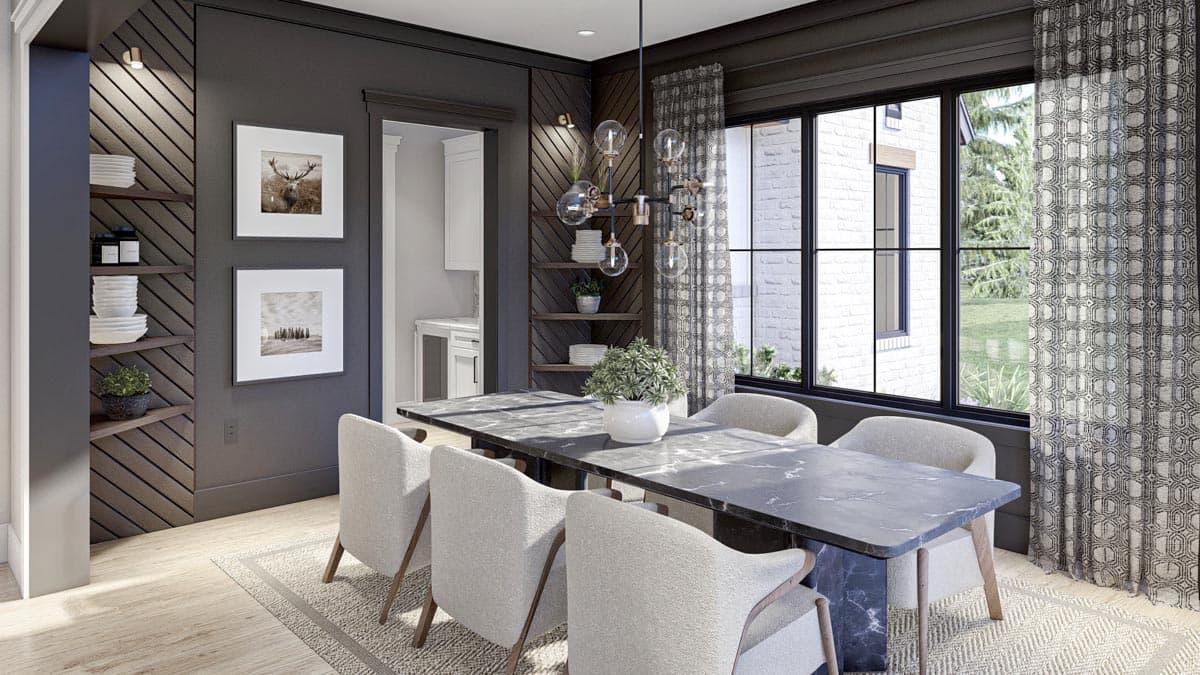

  • This 5 bed, 5.5 bath house plan blends classic elegance with a contemporary open-concept design, creating a space that is both inviting and functional. Step inside and you are greeted by a grand foyer with a soaring staircase. To your right, a formal dining room has windows on two walls.

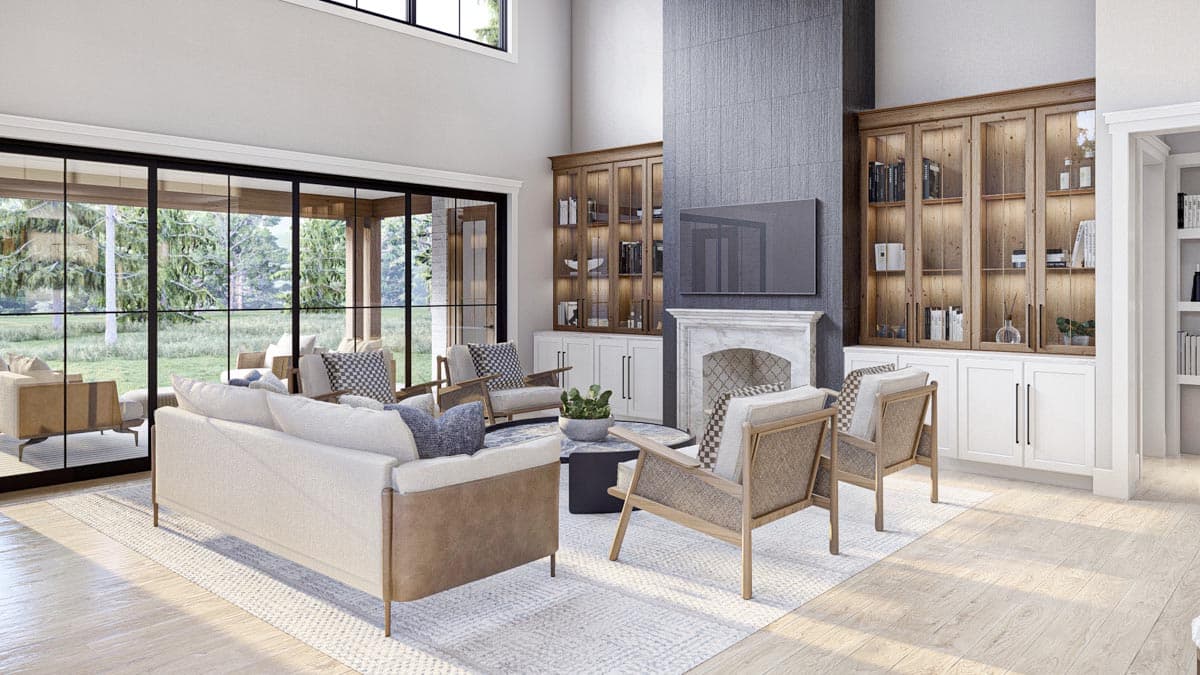

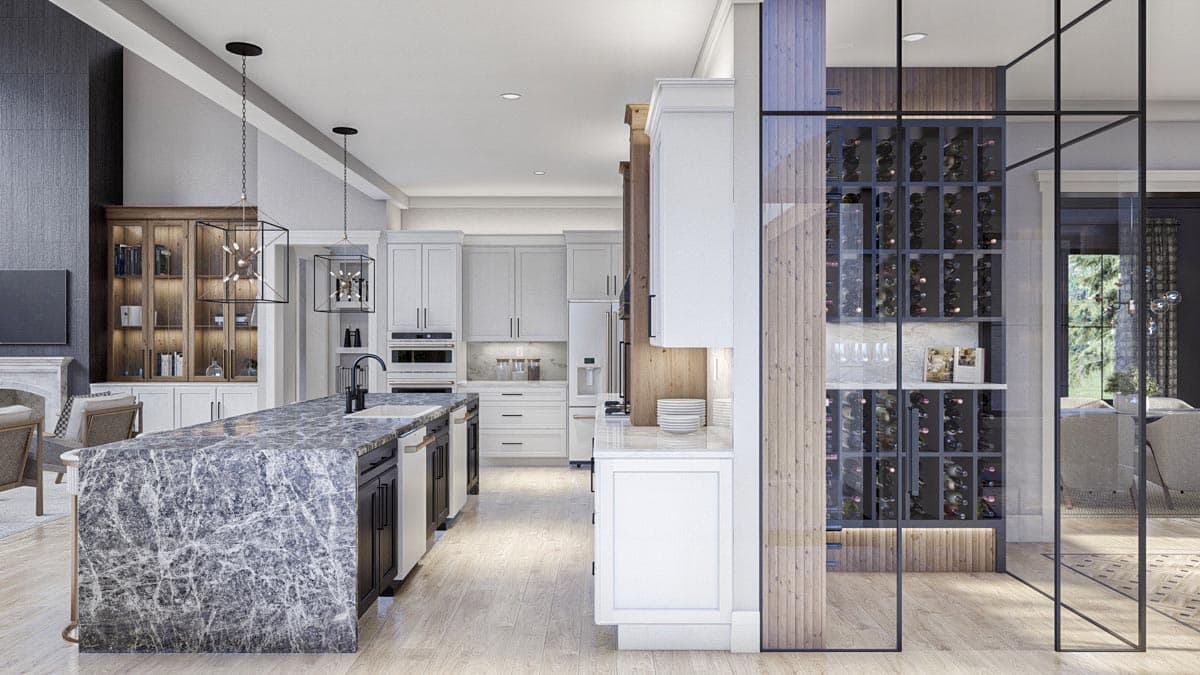

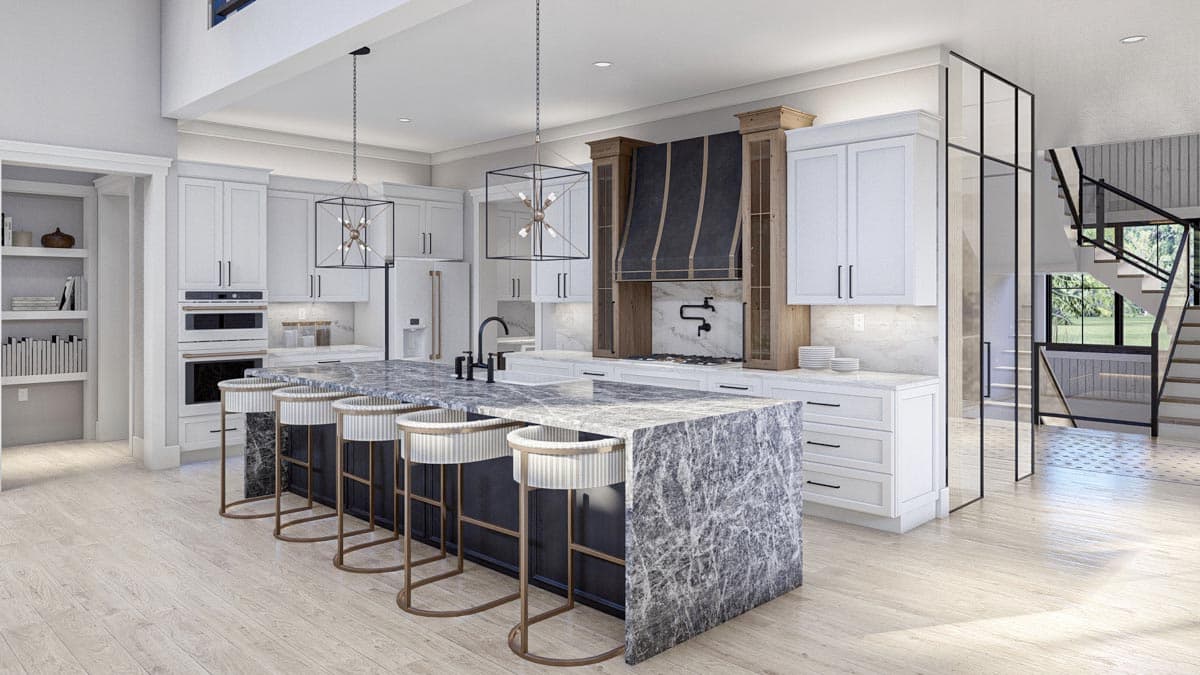

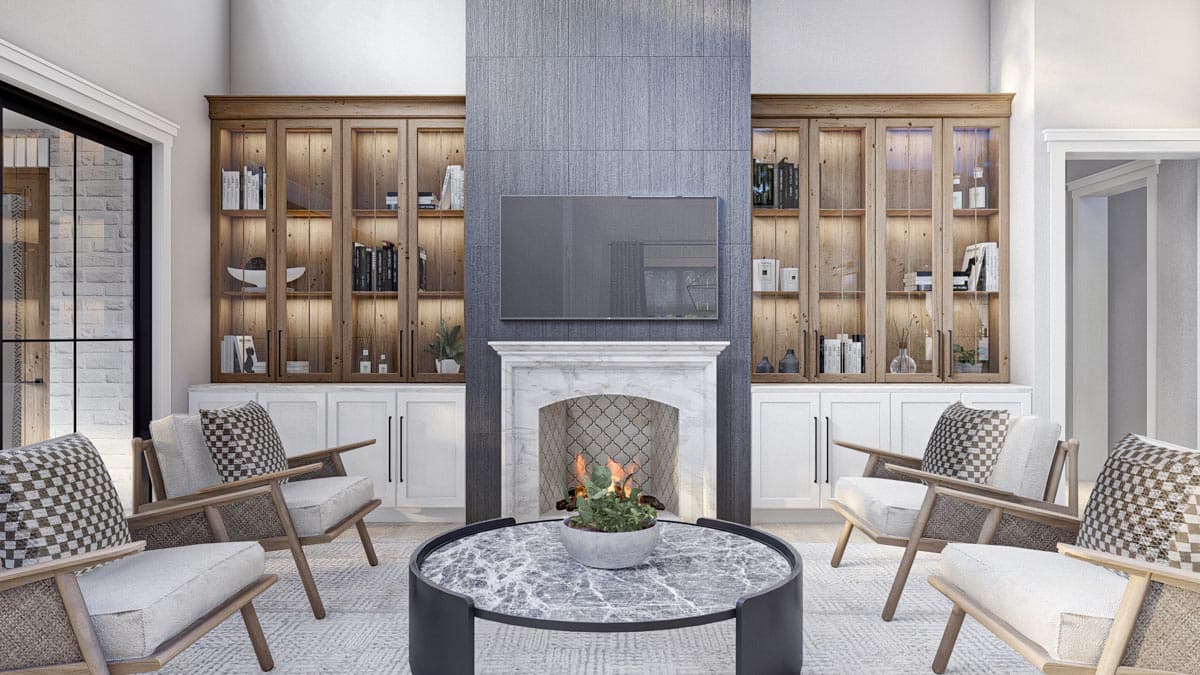

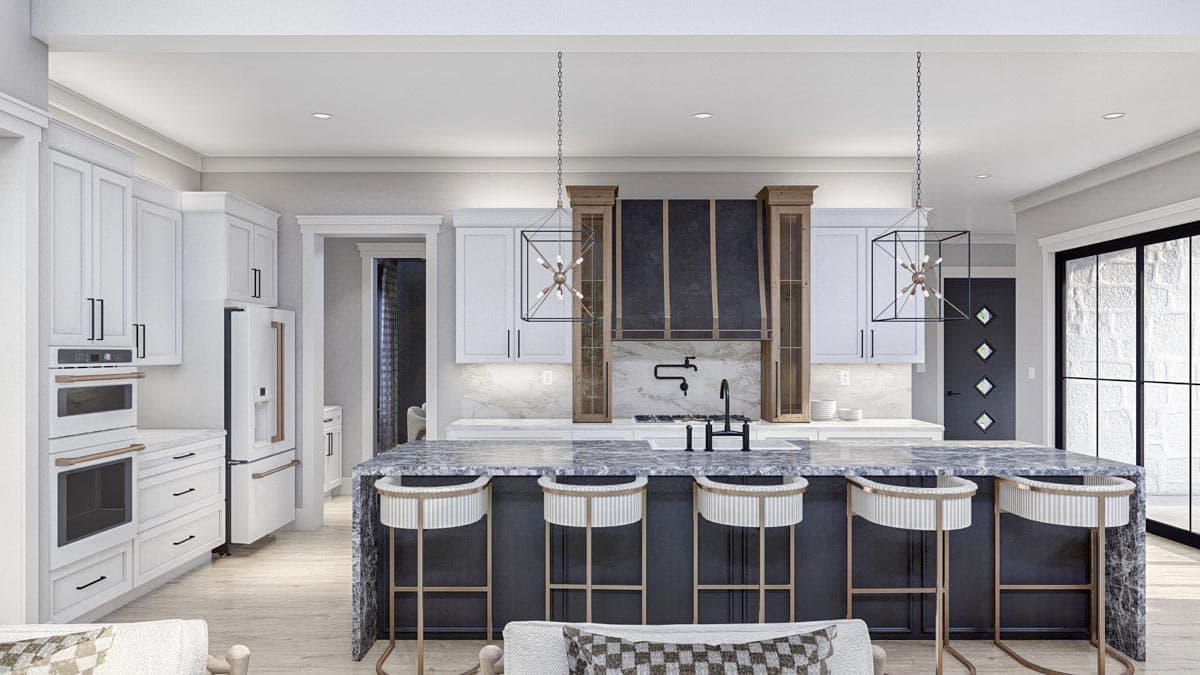

  • The open concept dinette, great room, and kitchen flow together with natural light cascading through large windows. The kitchen boasts has a large island and walk-in pantry.

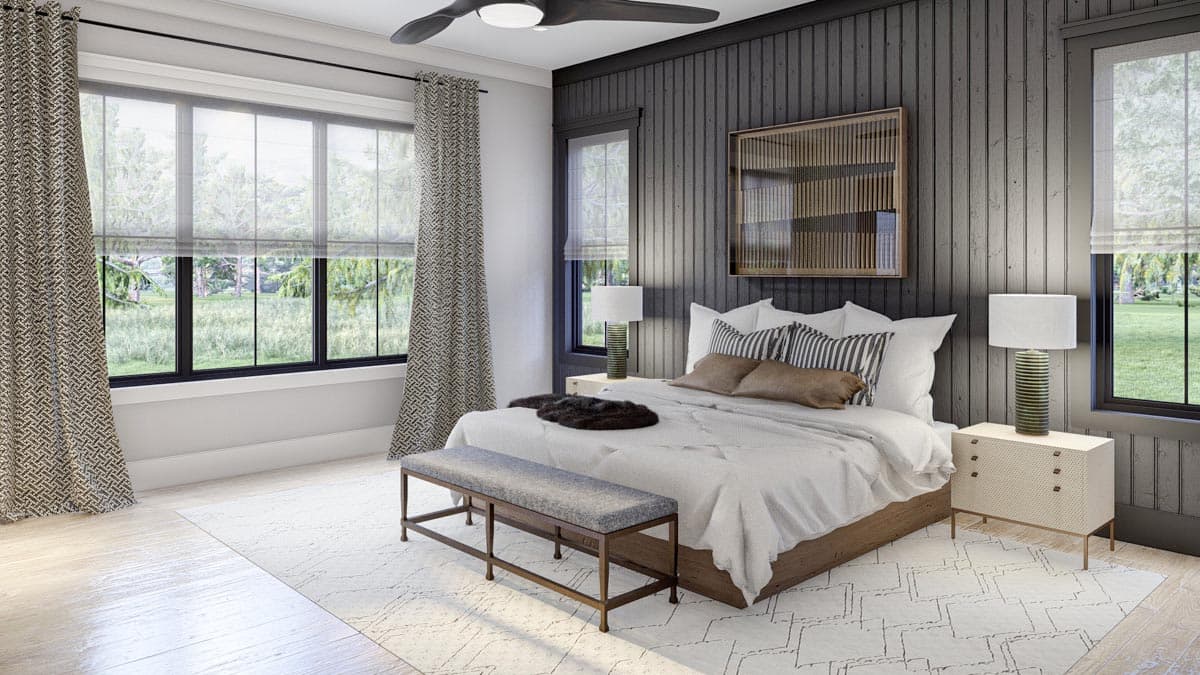

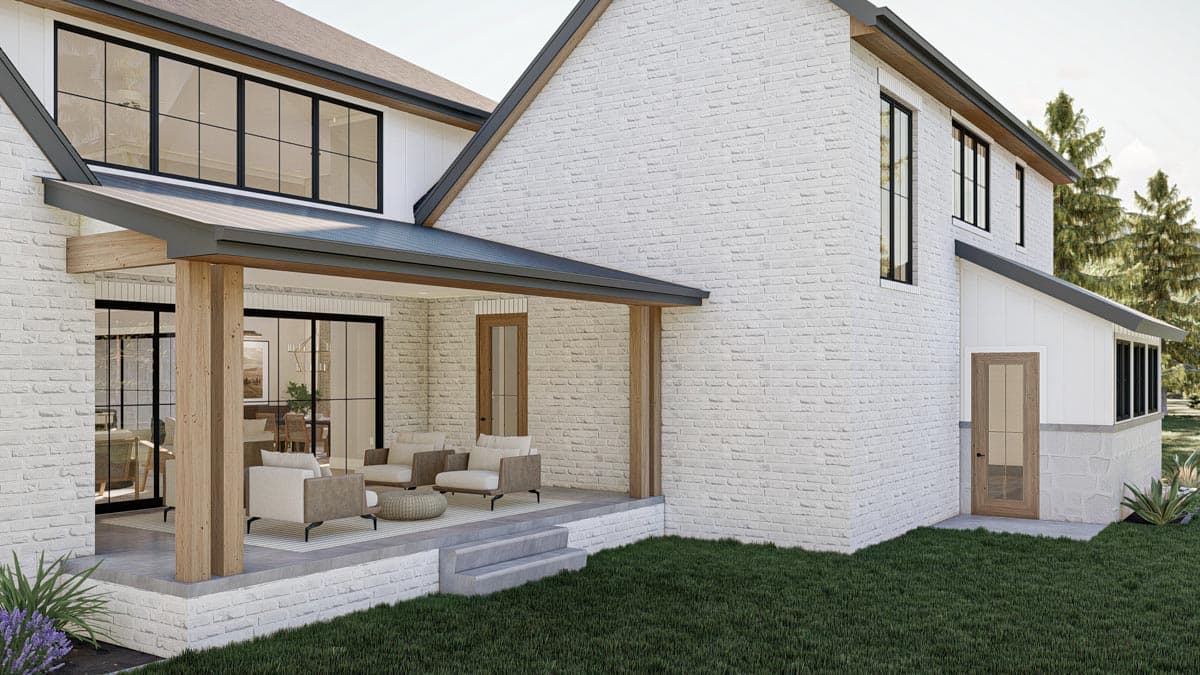

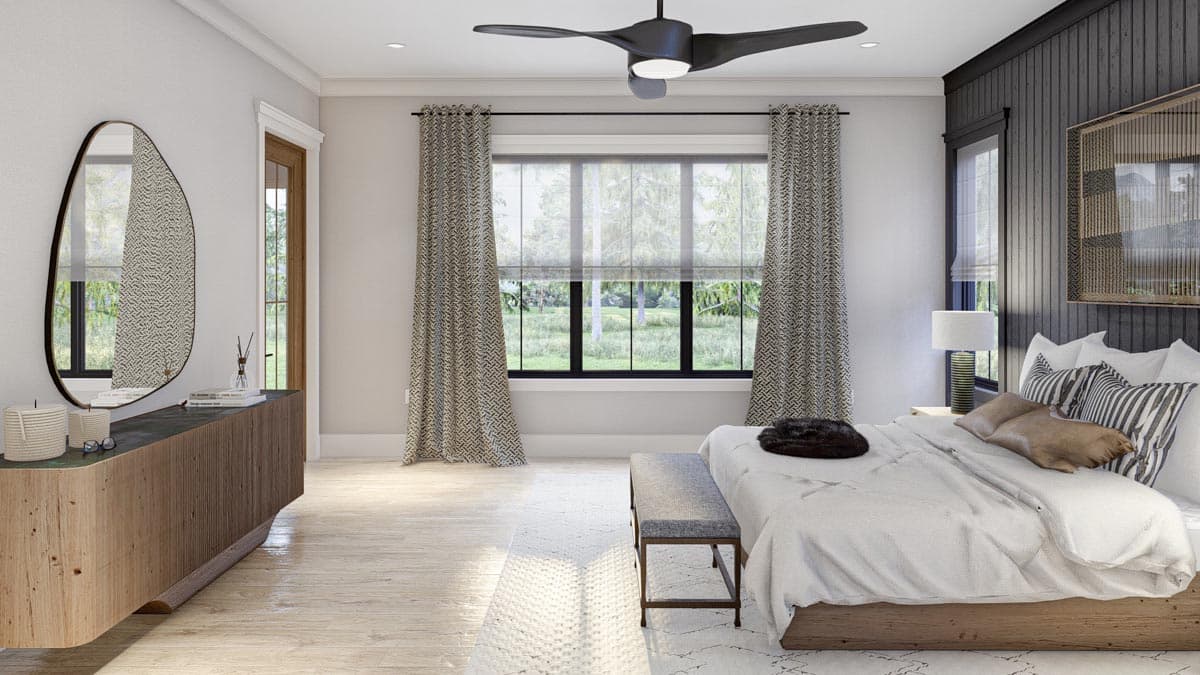

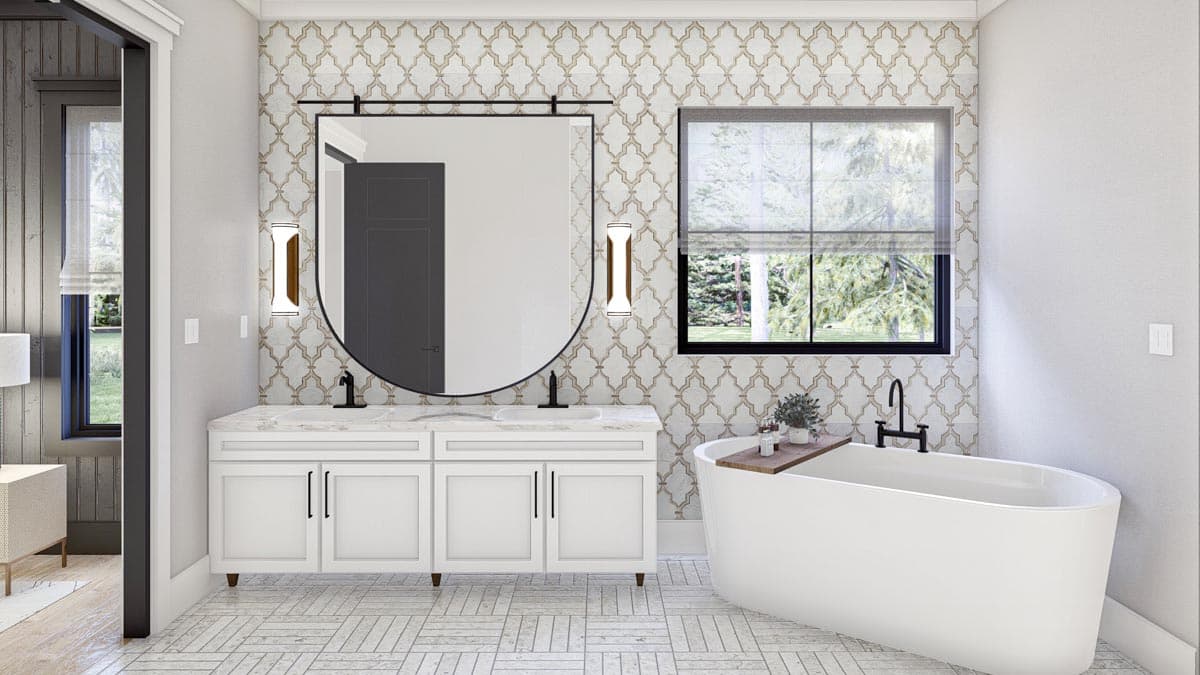

  • The main floor master features a generously sized bedroom with access to the rear covered porch. The en-suite bathroom has a double vanity, soaking tub, and separate shower. A walk-in closet offers great storage space.
  • Upstairs, three spacious bedrooms each have walk-in closets and their own bathrooms. A second laundry room upstairs is a great convenience.
  • Above the 2-car garage, a 576 square foot apartment comes complete with a fully equipped kitchen, a bath, a bedroom, and a family room. Note, the 576 square feet is factored into the 2036 square foot second floor figure; the upper floor of the main house comes to 1,460 square feet).
  • A 1-car garage adds convenience and functionality, accommodating vehicles and additional storage needs.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

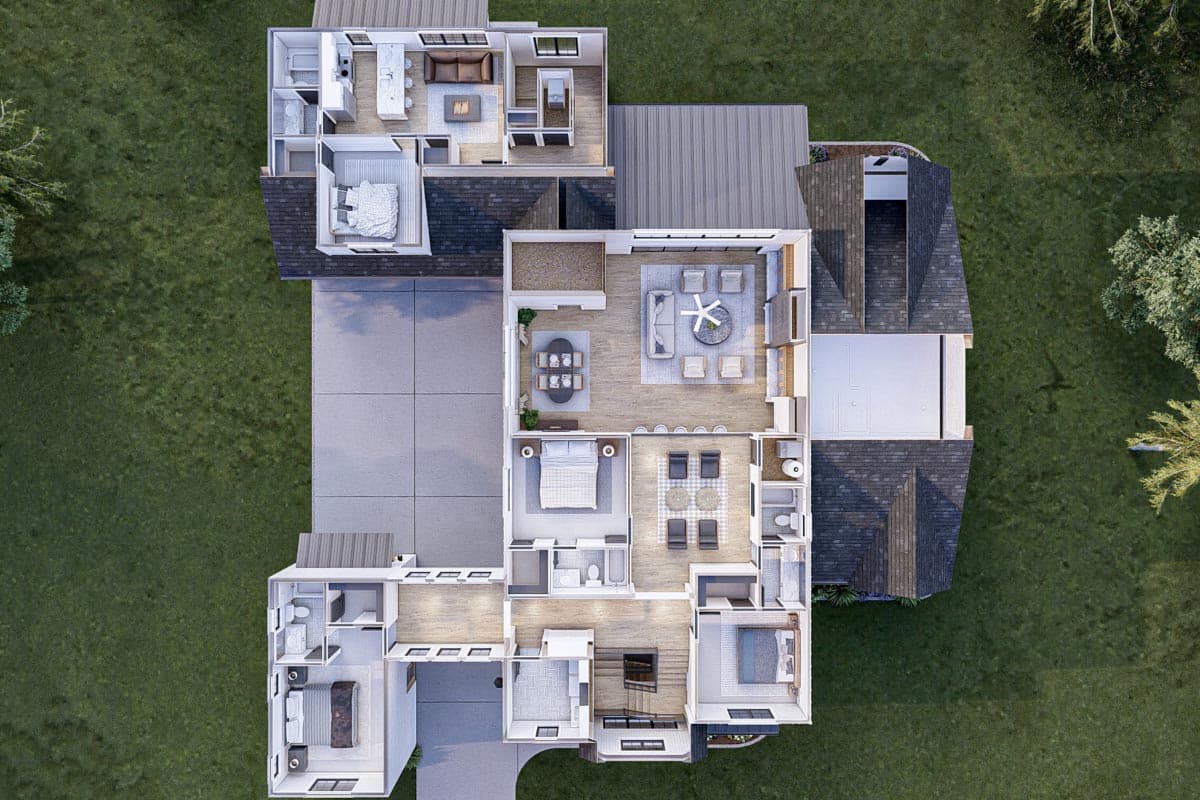

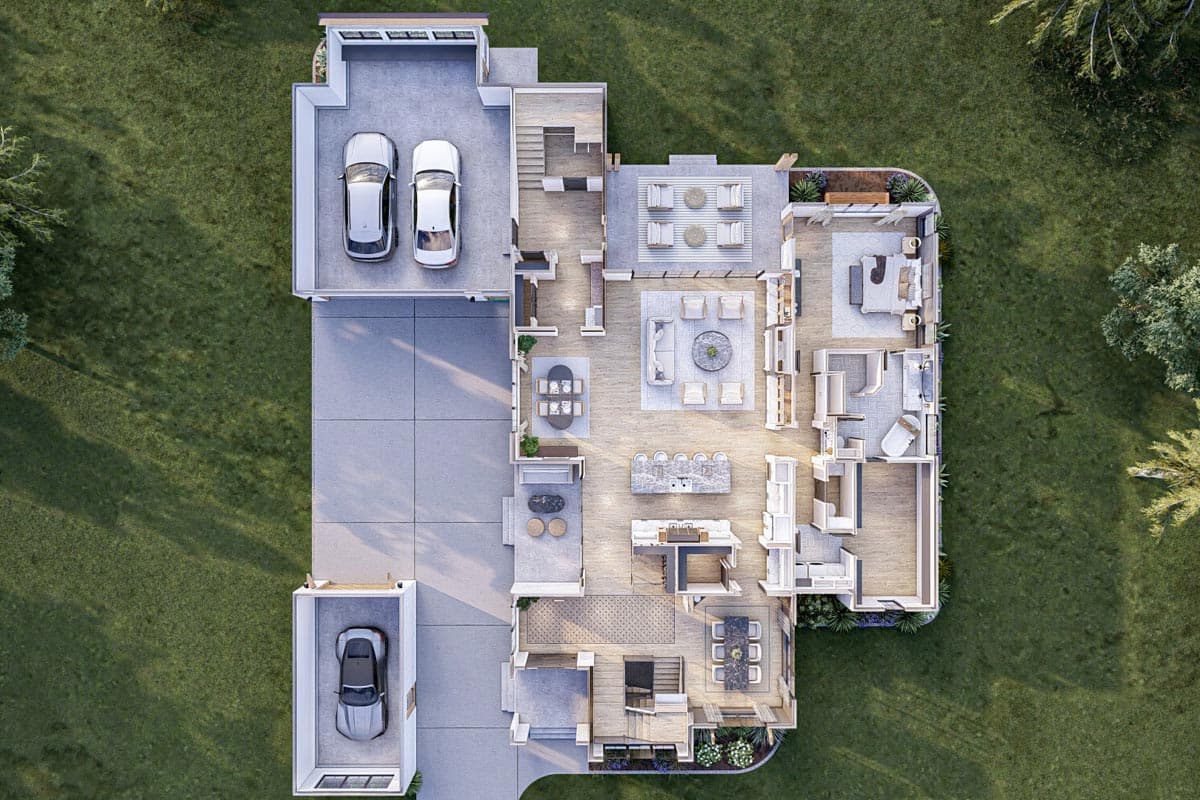

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

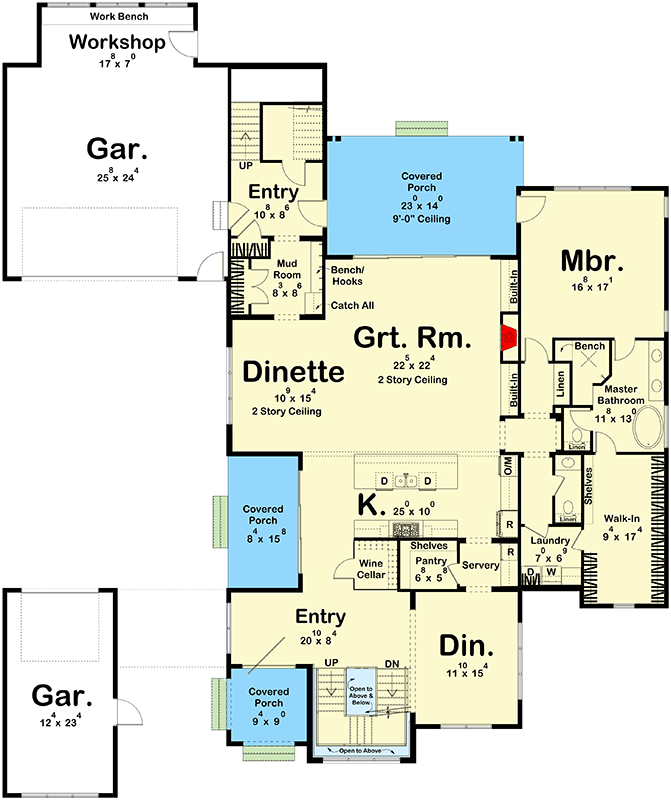

French Country House Plan Under 5000 Square Feet with Separate Apartment Above Garage - 623234DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

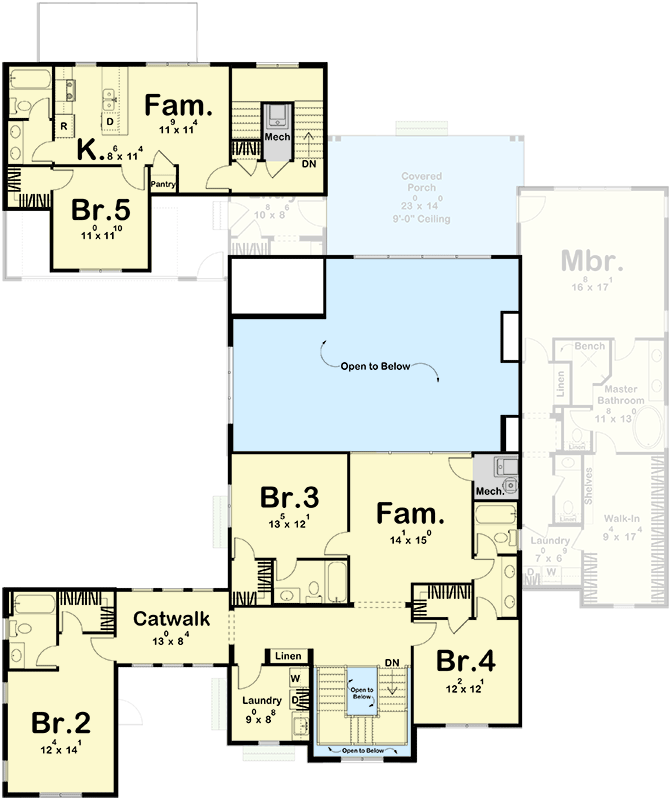

French Country House Plan Under 5000 Square Feet with Separate Apartment Above Garage - 623234DJ floor plan - 2nd Floor

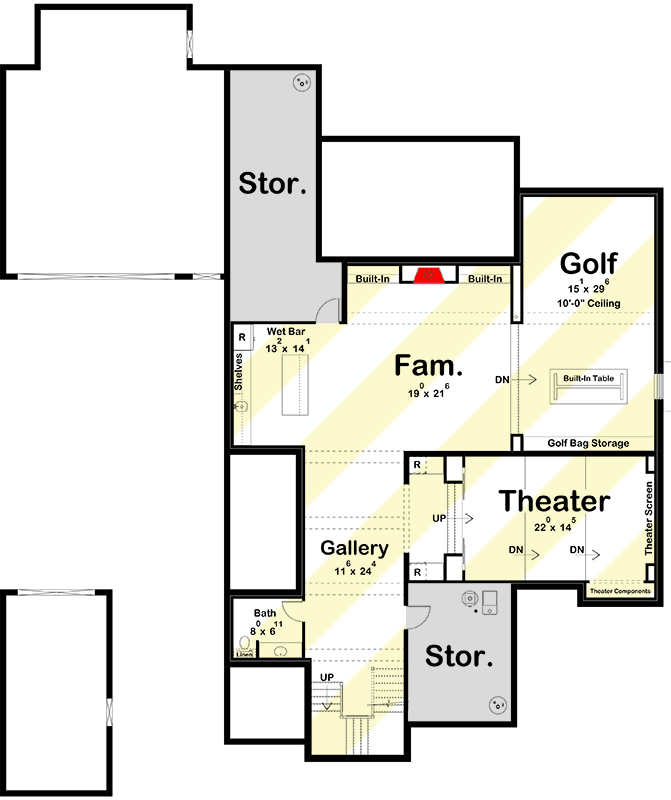

Optional Finished Lower Level Layout (+$250)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
French Country House Plan Under 5000 Square Feet with Separate Apartment Above Garage - 623234DJ floor plan - Optional Finished Lower Level Layout (+$250)

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,817 sq. ft.
  • 1st Floor: 2,781 sq. ft.
  • 2nd Floor: 2,036 sq. ft.
  • Porch, Combined: 532 sq. ft.
  • Apartment: 576 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 0"
  • Depth: 92' 0"
  • Max ridge height: 33' 4"

Garage

  • Type: Detached, Attached
  • Area: 1090 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 14 on 12

Architectural Style

Special features

French Country House Plan Under 5000 Square Feet with Separate Apartment Above Garage

  • 4,817

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,200
  • 5 Sets + PDF $2,450
  • PDF - Unlimited Build $2,700
  • CAD + PDF - Single-Build $2,700
  • CAD Unlimited + PDF $3,200
  • View all purchase option online

About This Plan

  • This 5 bed, 5.5 bath house plan blends classic elegance with a contemporary open-concept design, creating a space that is both inviting and functional. Step inside and you are greeted by a grand foyer with a soaring staircase. To your right, a formal dining room has windows on two walls.
  • The open concept dinette, great room, and kitchen flow together with natural light cascading through large windows. The kitchen boasts has a large island and walk-in pantry.
  • The main floor master features a generously sized bedroom with access to the rear covered porch. The en-suite bathroom has a double vanity, soaking tub, and separate shower. A walk-in closet offers great storage space.
  • Upstairs, three spacious bedrooms each have walk-in closets and their own bathrooms. A second laundry room upstairs is a great convenience.
  • Above the 2-car garage, a 576 square foot apartment comes complete with a fully equipped kitchen, a bath, a bedroom, and a family room. Note, the 576 square feet is factored into the 2036 square foot second floor figure; the upper floor of the main house comes to 1,460 square feet).
  • A 1-car garage adds convenience and functionality, accommodating vehicles and additional storage needs.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Finished Lower Level Layout (+$250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,817 sq. ft.
  • 1st Floor: 2,781 sq. ft.
  • 2nd Floor: 2,036 sq. ft.
  • Porch, Combined: 532 sq. ft.
  • Apartment: 576 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 0"
  • Depth: 92' 0"
  • Max ridge height: 33' 4"

Garage

  • Type: Detached, Attached
  • Area: 1090 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear, Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 14 on 12
