Plan 56401SM

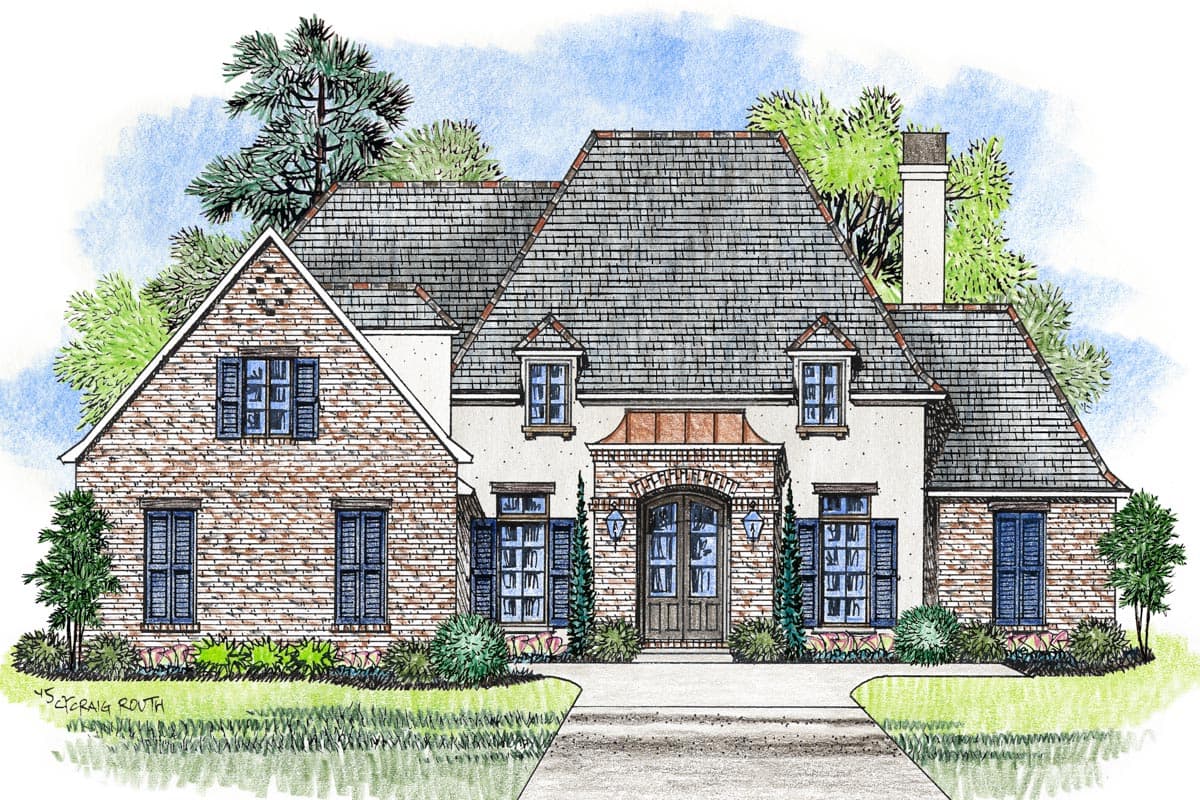

French Country with Outdoor Entertaining
Heated S.F.
2,893
Beds
4
Baths
3.5 - 4.5
Stories
1-2
Cars
2
What's Included
Plan Details
  • This beautiful French Country home design features a triple split floor plan layout, providing privacy for the master suite, the mother-in-law or guest suite, and also the kids' bedrooms which are on the opposite side of the house from the master suite.
  • An open floor plan keeps the kitchen feeling large and makes it perfect for entertaining.
  • Most of the bedrooms have walk-in closets, making for great storage, organization and upkeep of the bedrooms. The master suite is beautiful, with a moderately sized bedroom, split vanities and a barrel ceiling over the tub, and walk-through shower. The master closet is enormous with an island in the middle.
  • Outdoor entertaining takes place on the covered loggia in back complete with outdoor kitchen, fireplace, and brick arches.
  • Related Plan: Get an alternate exterior with house plan 56334SM.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

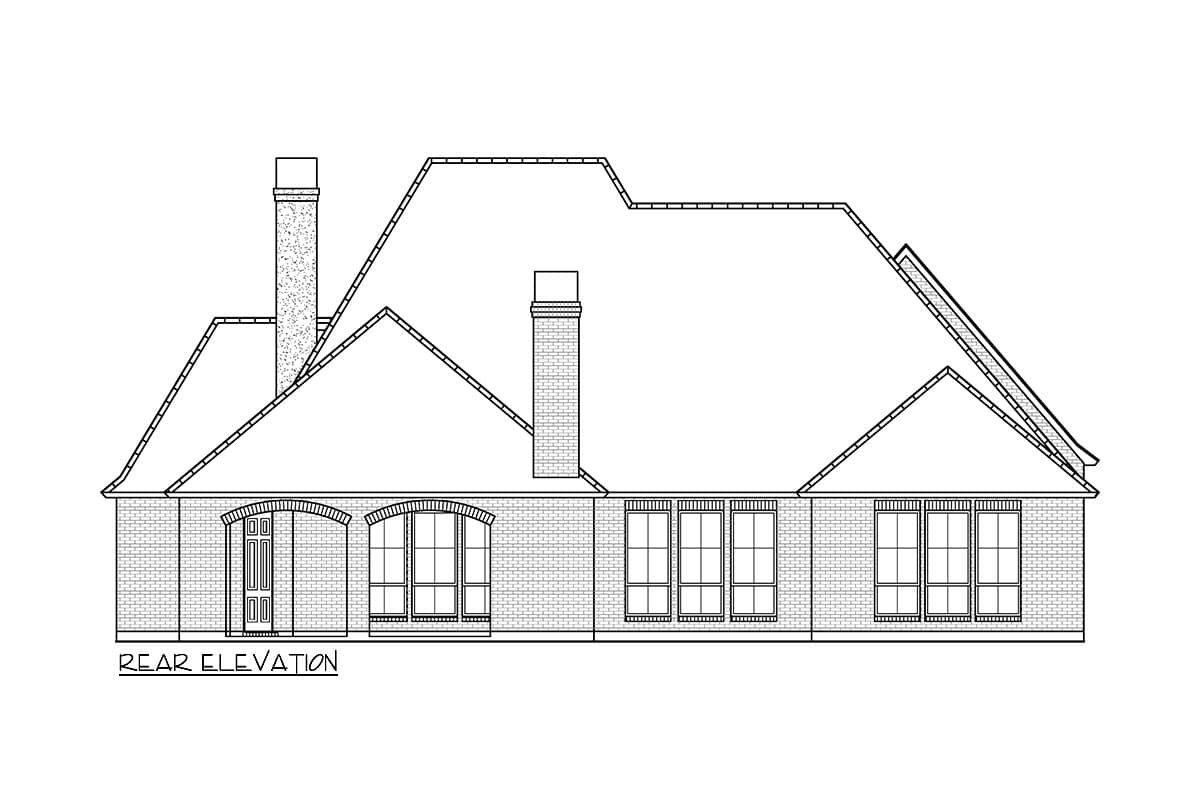

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

French Country with Outdoor Entertaining

  • 2,893

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

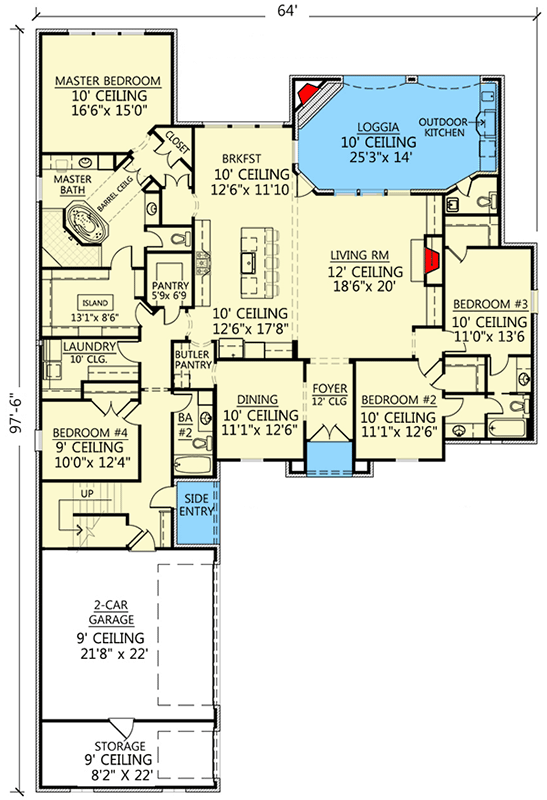

  • Main Level

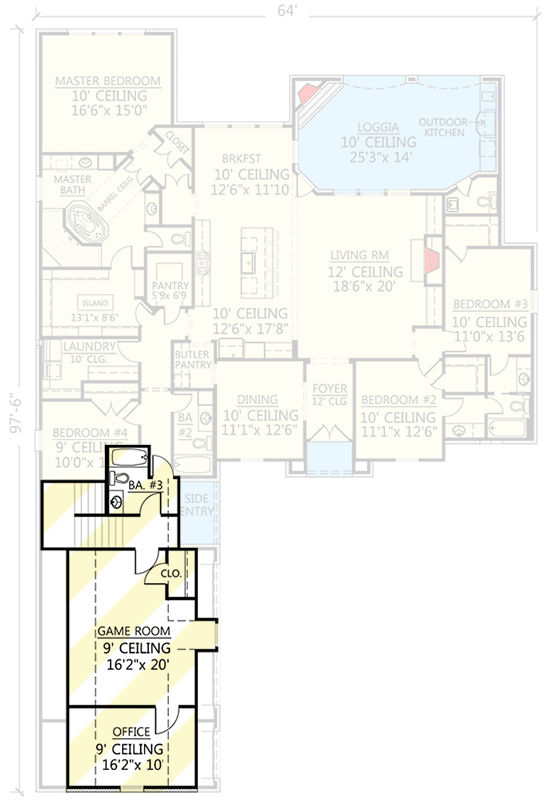

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,893 sq. ft.
  • 1st Floor: 2,893 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 92' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

French Country with Outdoor Entertaining

  • 2,893

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

French Country with Outdoor Entertaining

  • 2,893

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,893 sq. ft.
  • 1st Floor: 2,893 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 92' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12

    Main Level

    Bonus
