Fresh 4-Bed House Plan with Vaulted Ceiling in Great Room

Plan 54020LK

  • 3,220

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • This fresh, 4-bedroom house plan boasts a stone and stucco exterior and ample outdoor living space for friends and family to enjoy.
  • The vaulted ceiling in the great room provides a feeling of grandeur, and continues outdoors onto the back, covered porch.
  • The open, eat-in kitchen boasts a large island with a wrap-around, breakfast bar, and a pocket office leads to a pantry for additional storage space.
  • The master suite is attached to the home at a slight angle, and features a tray ceiling, sitting nook, and luxurious en suite with an oversized, walk-in closet.
  • Bedrooms 2 and 3, each with a full bath, occupy the right wing of the home.
  • Upstairs, discover a fourth bedroom, which includes a full bath, along with a future game room with bonus storage space.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
  • ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
  • BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
  • INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
  • NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

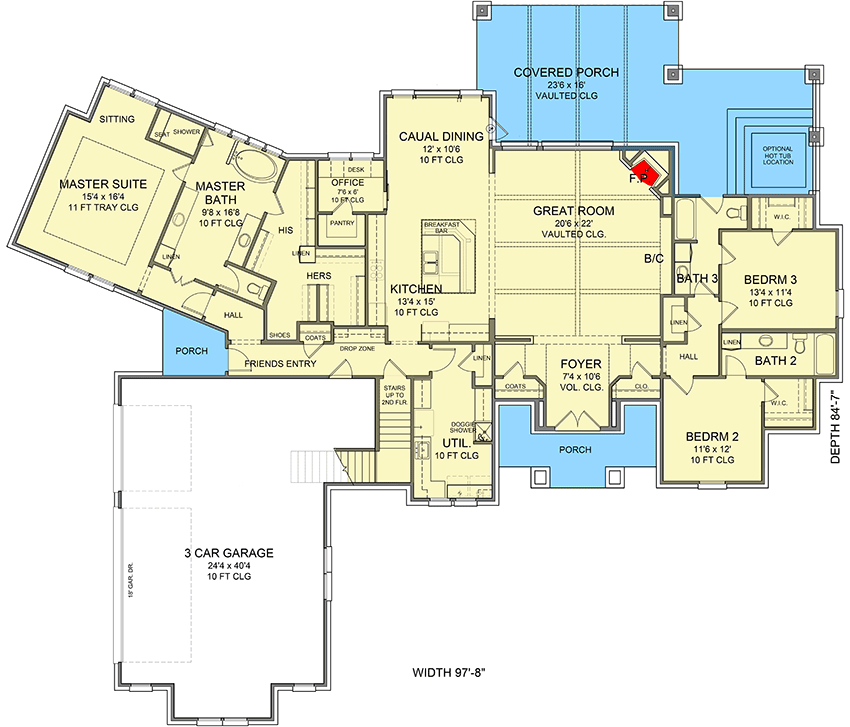

Fresh 4-Bed House Plan with Vaulted Ceiling in Great Room - 54020LK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

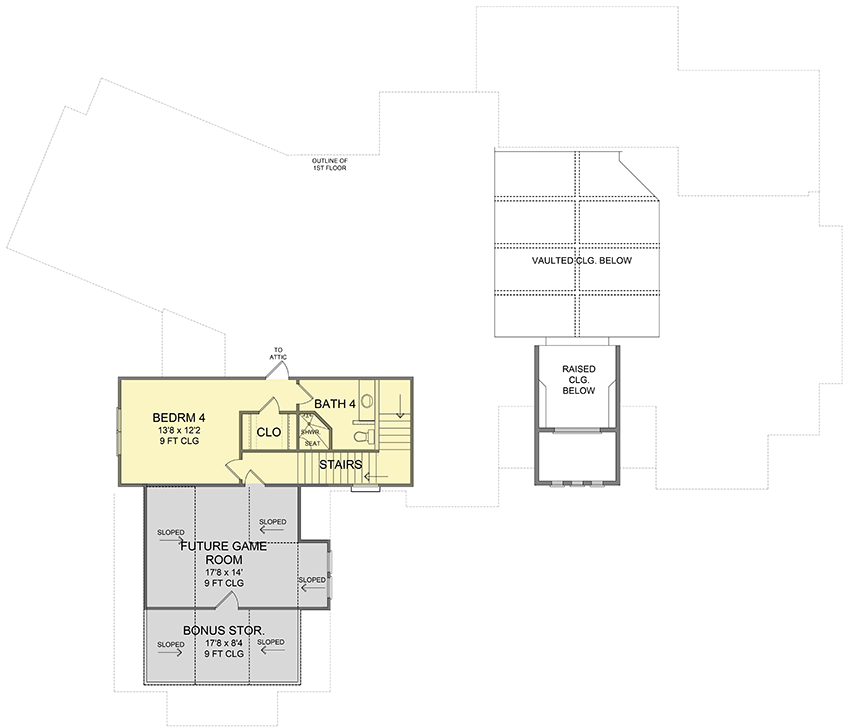

Fresh 4-Bed House Plan with Vaulted Ceiling in Great Room - 54020LK floor plan - 2nd Floor

Fresh 4-Bed House Plan with Vaulted Ceiling in Great Room

  • 3,220

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,220 sq. ft.
  • 1st Floor: 2,778 sq. ft.
  • 2nd Floor: 442 sq. ft.

Dimensions

  • Width: 97' 8"
  • Depth: 84' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 1101 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
