Plan 860071MCD Fresh 5-Bed House Plan with Private Master Bedroom

Fresh 5-Bed House Plan with Private Master Bedroom

Plan 860071MCD

  • 4,505

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

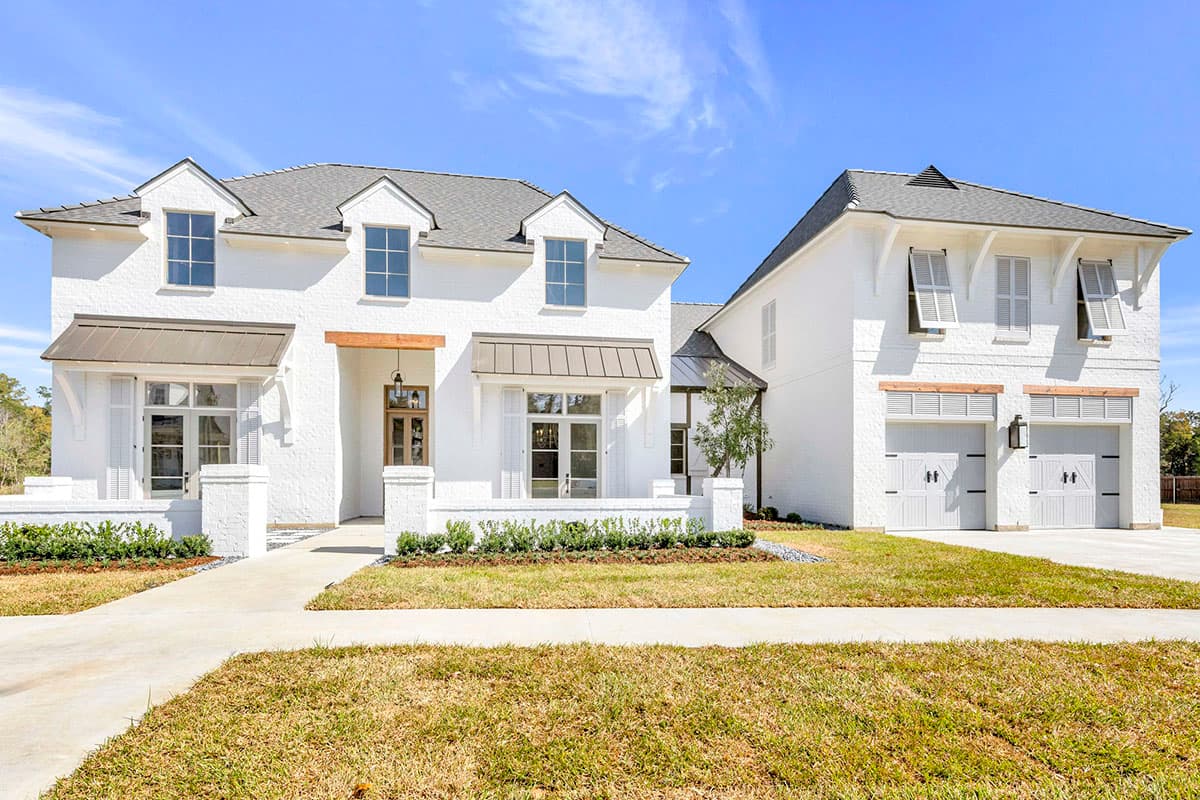

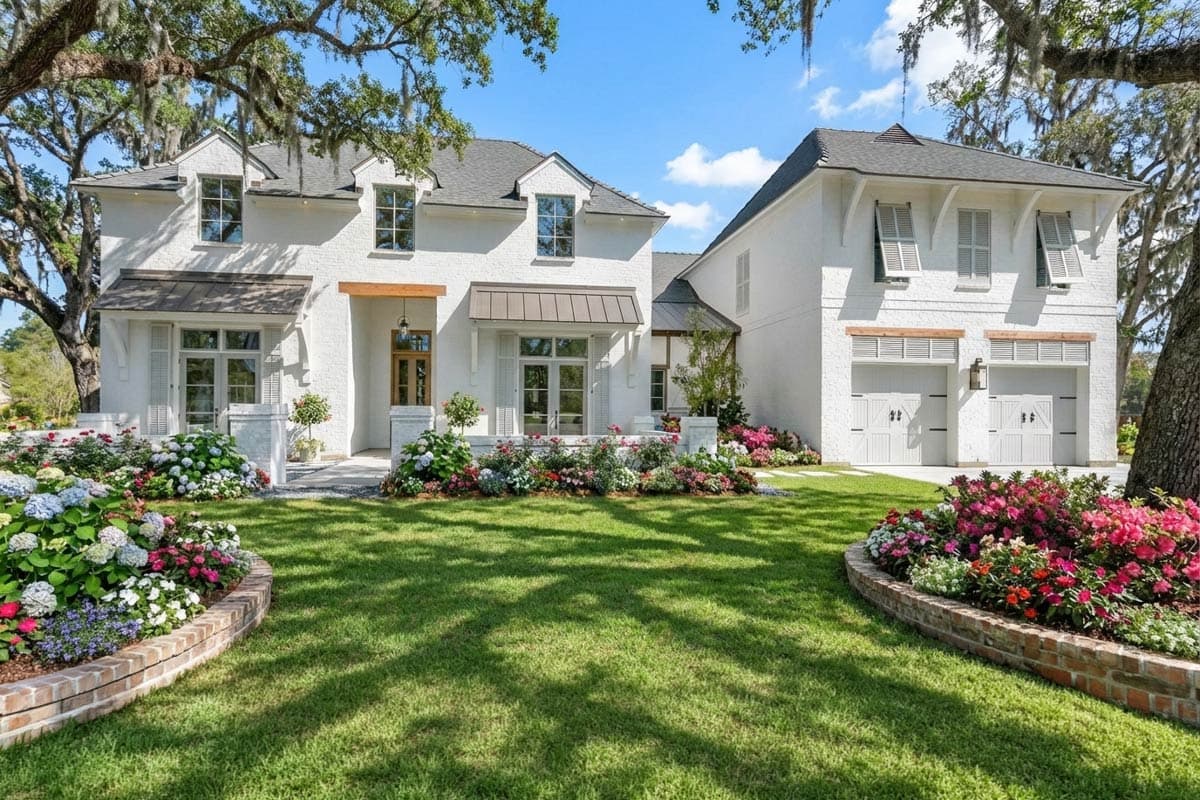

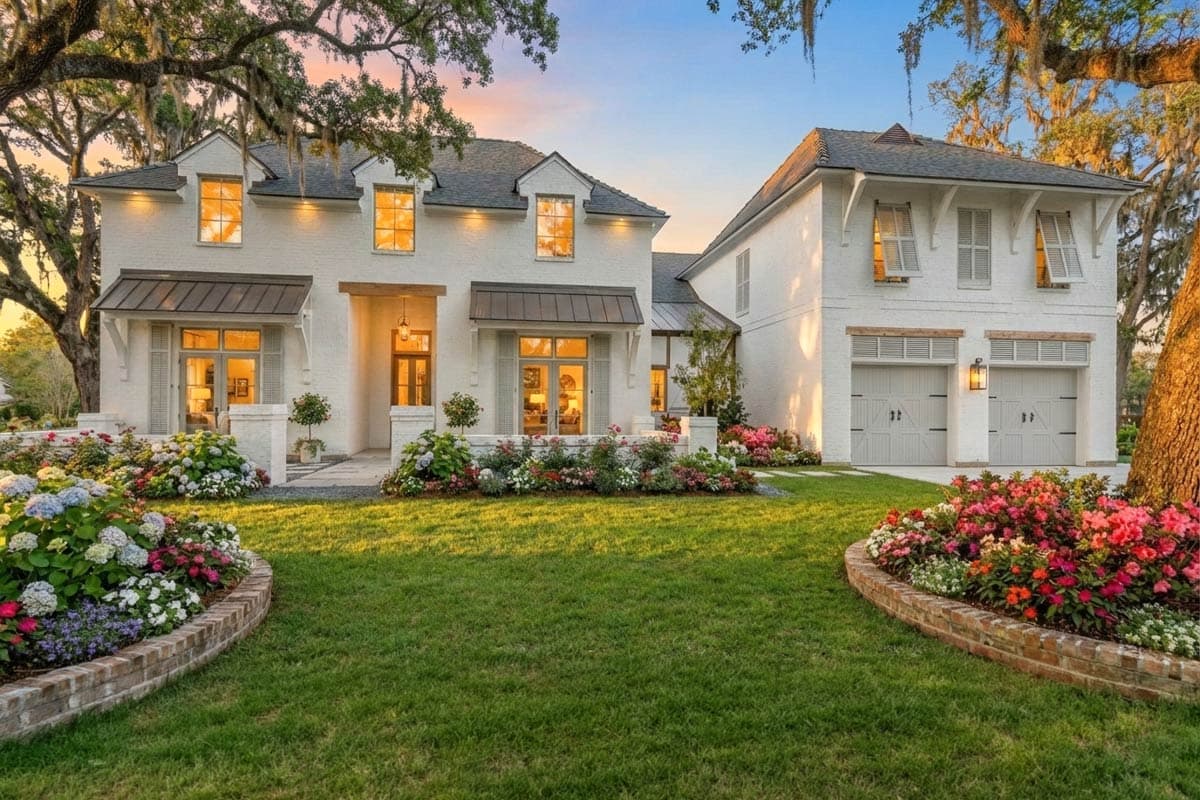

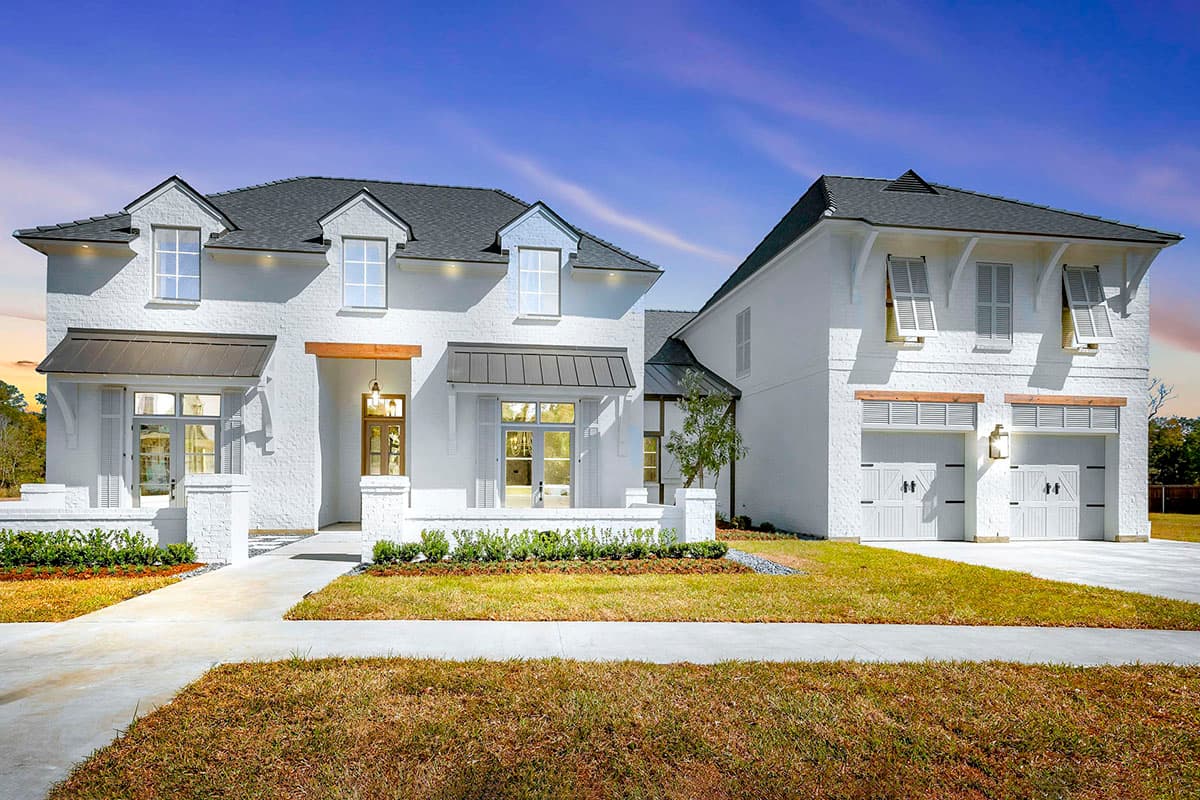

  • This 5-bedroom house plan presents a fresh exterior complimented by an interior that is full of charming builtins, textures, and an intuitive flow.

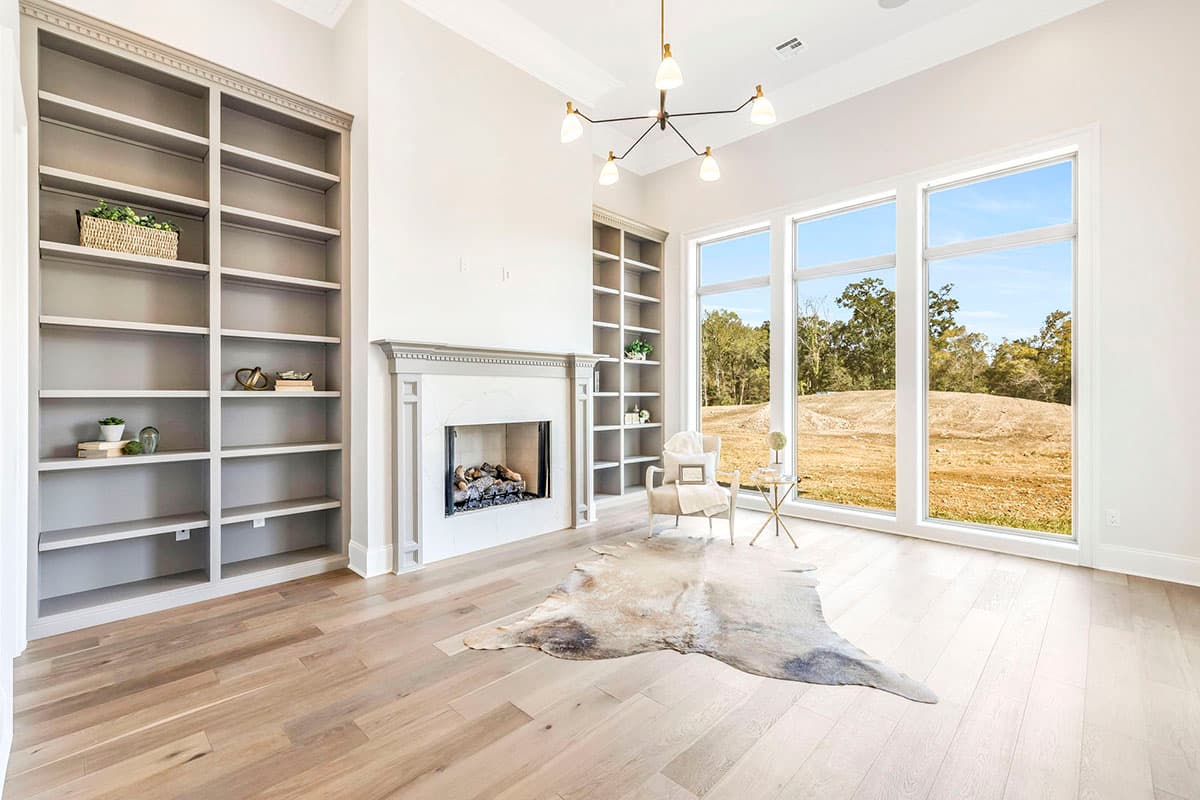

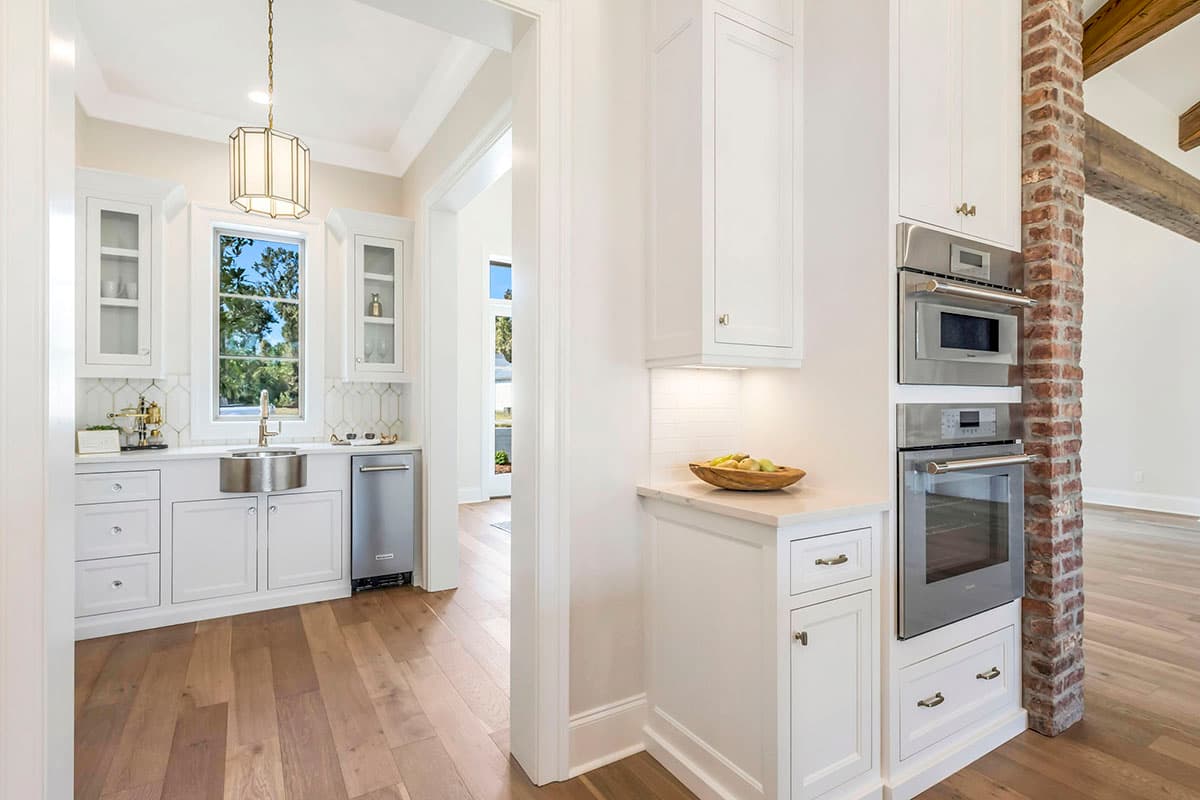

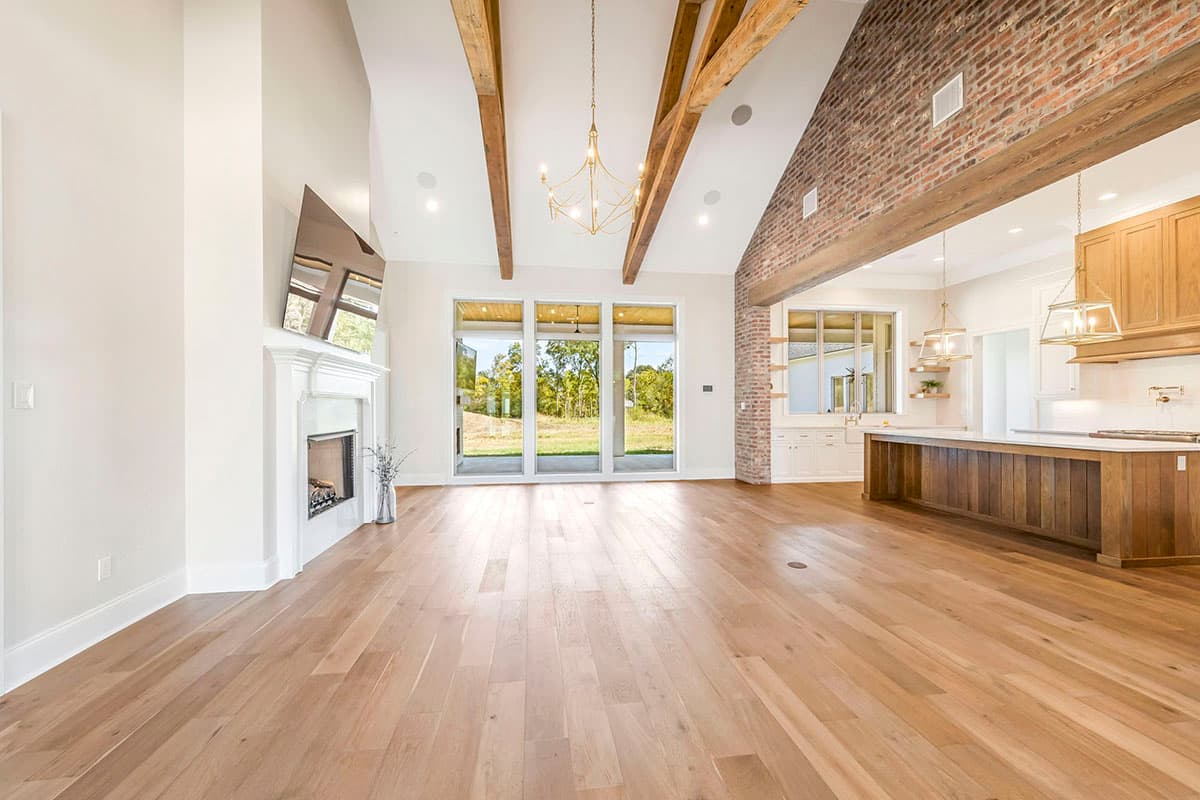

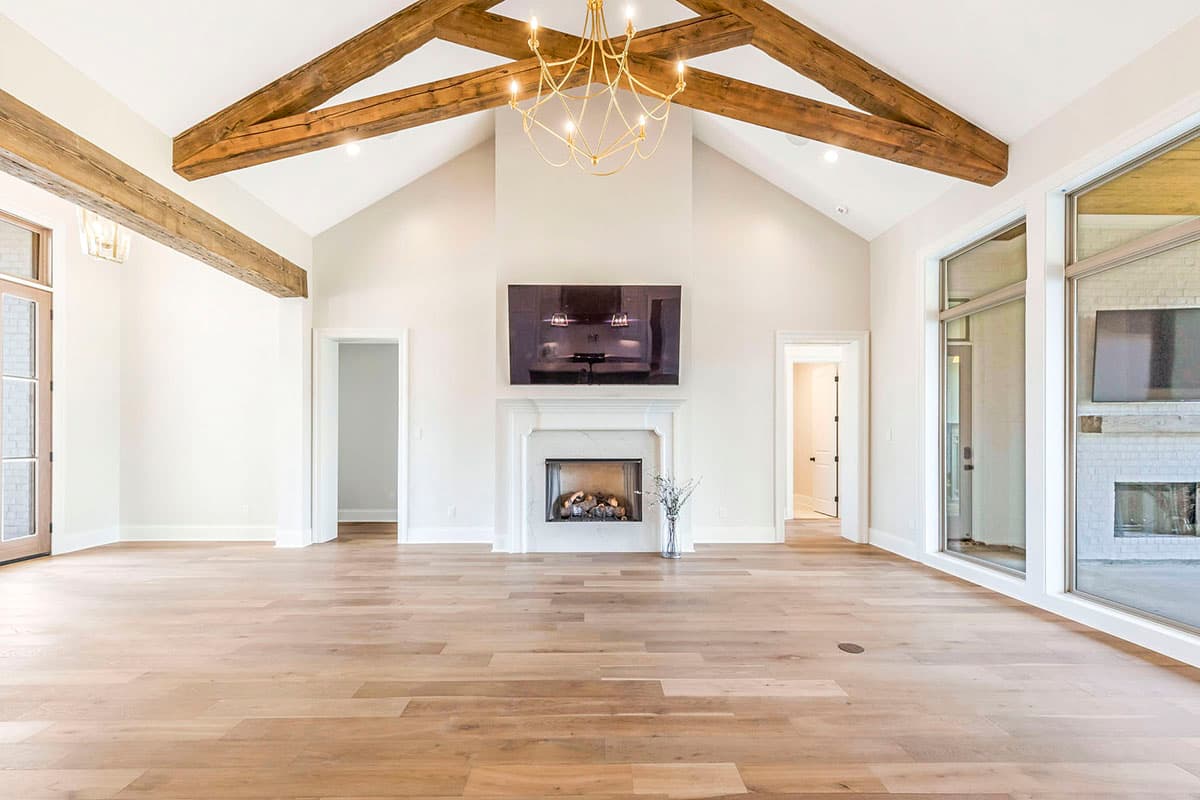

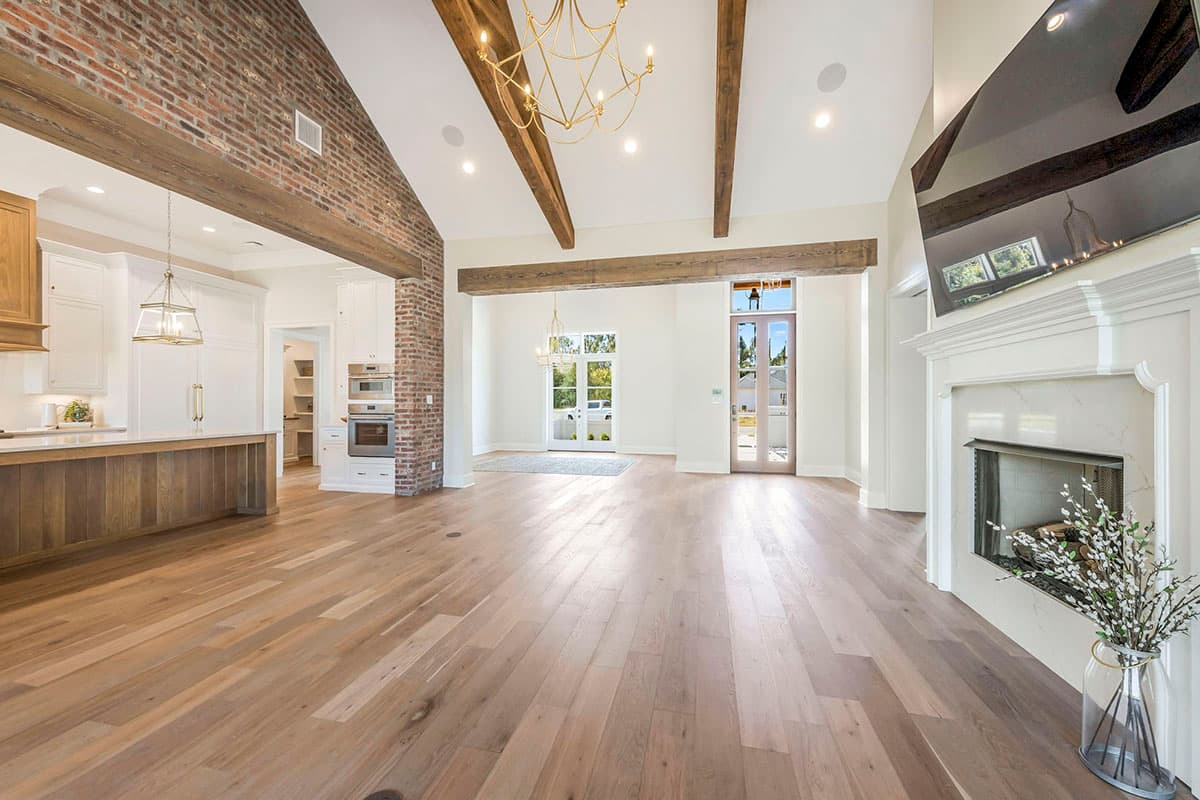

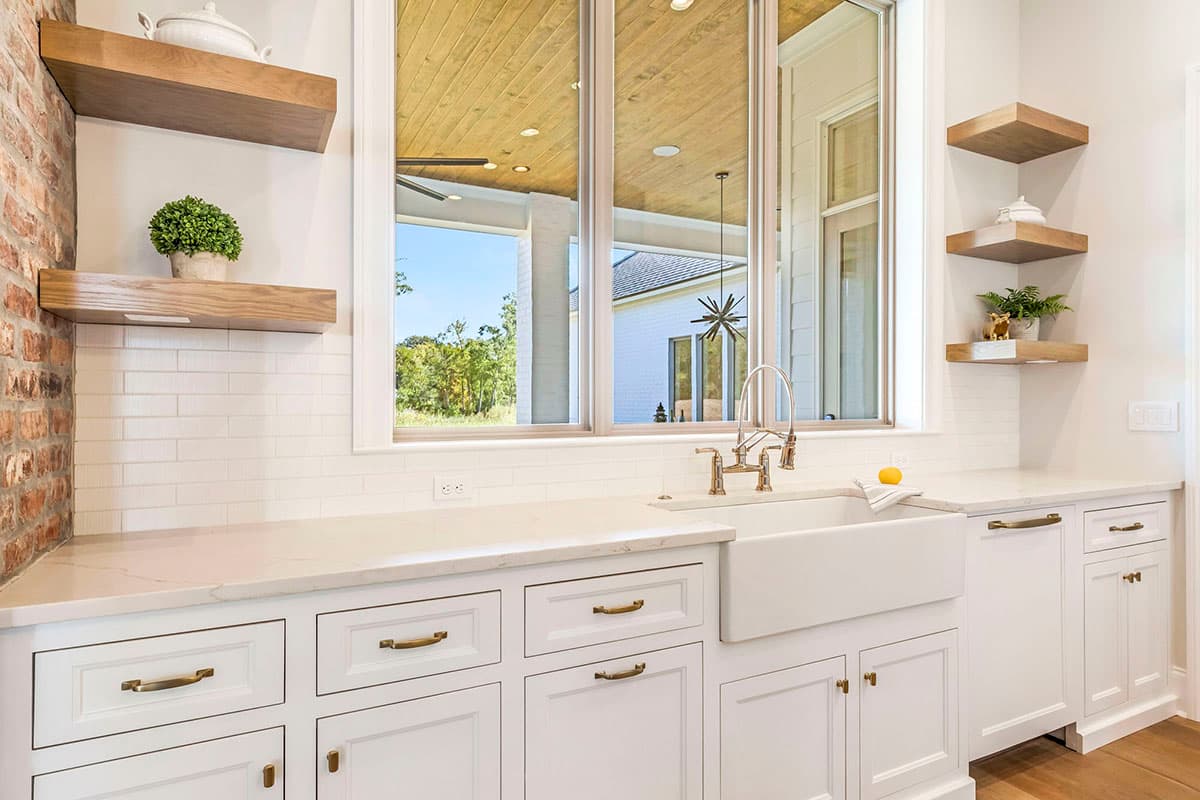

  • Brick accents and exposed beams add warmth to the open living space, where you'll find the gourmet kitchen awaiting to serve family and friends. A built-in bar leads to the formal dining room and provides access to the walk-in pantry.

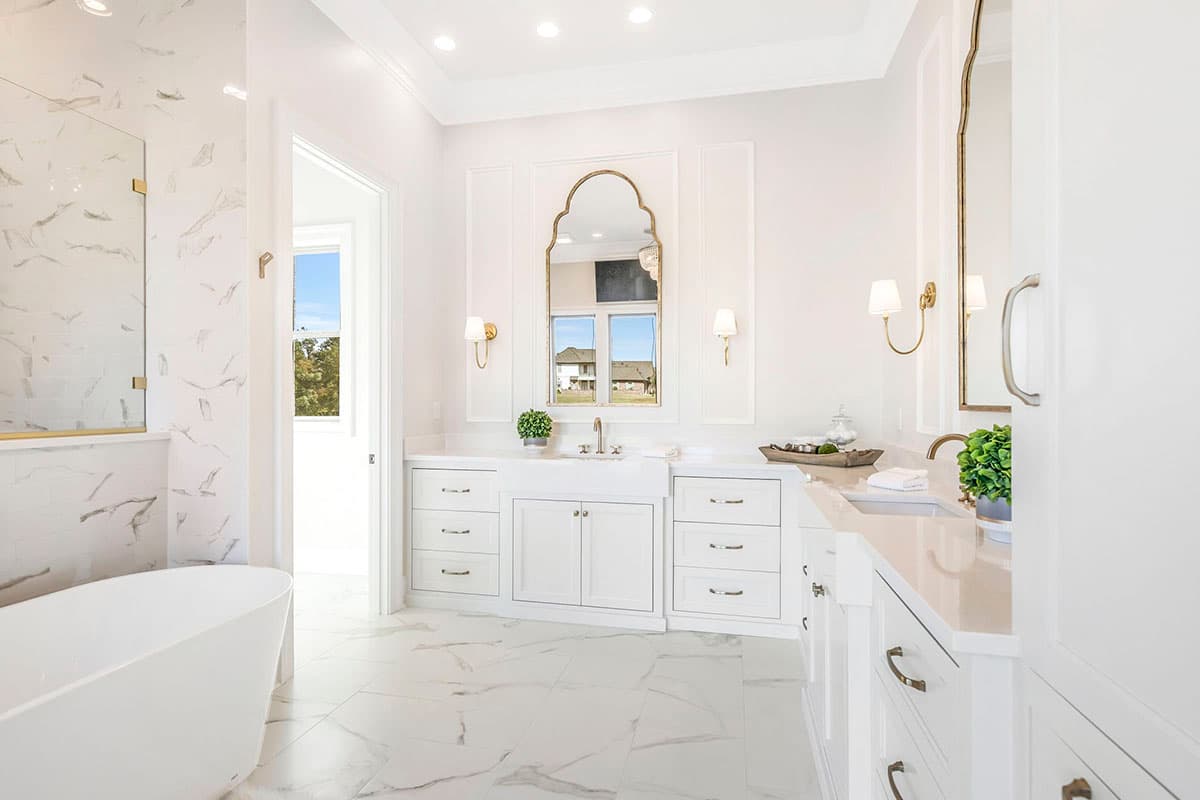

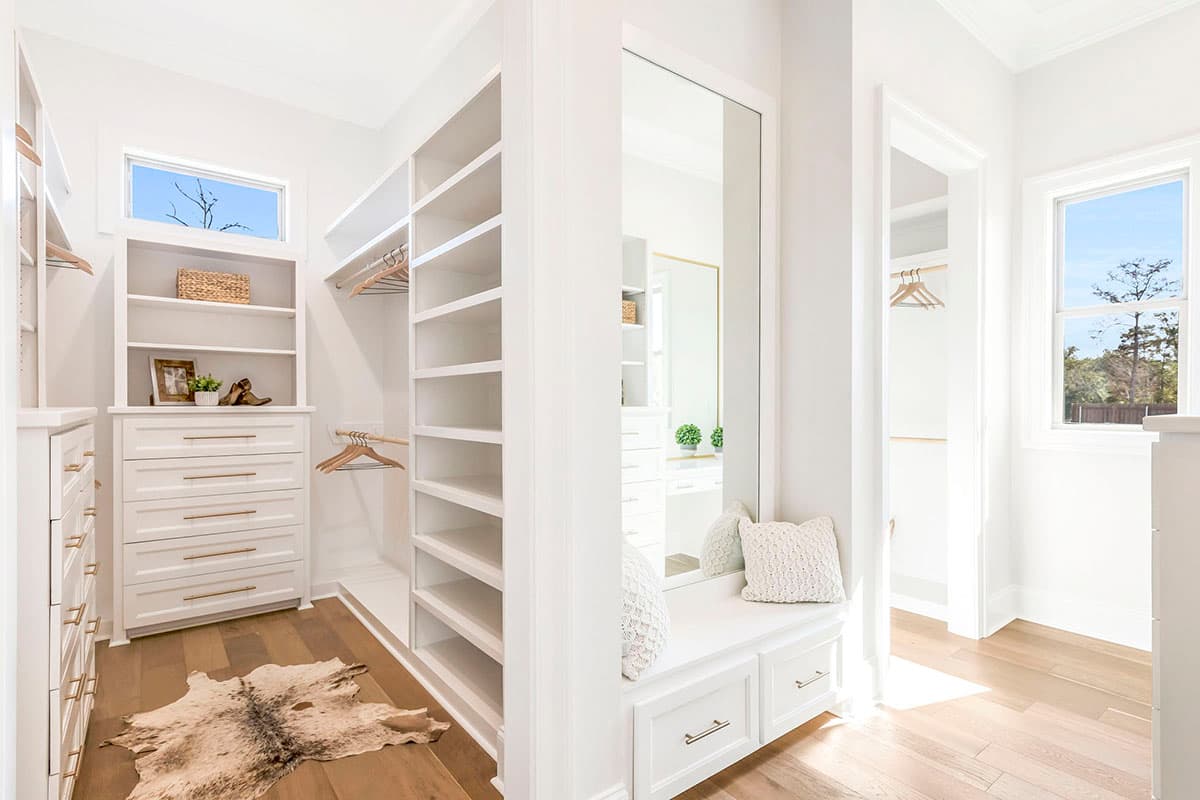

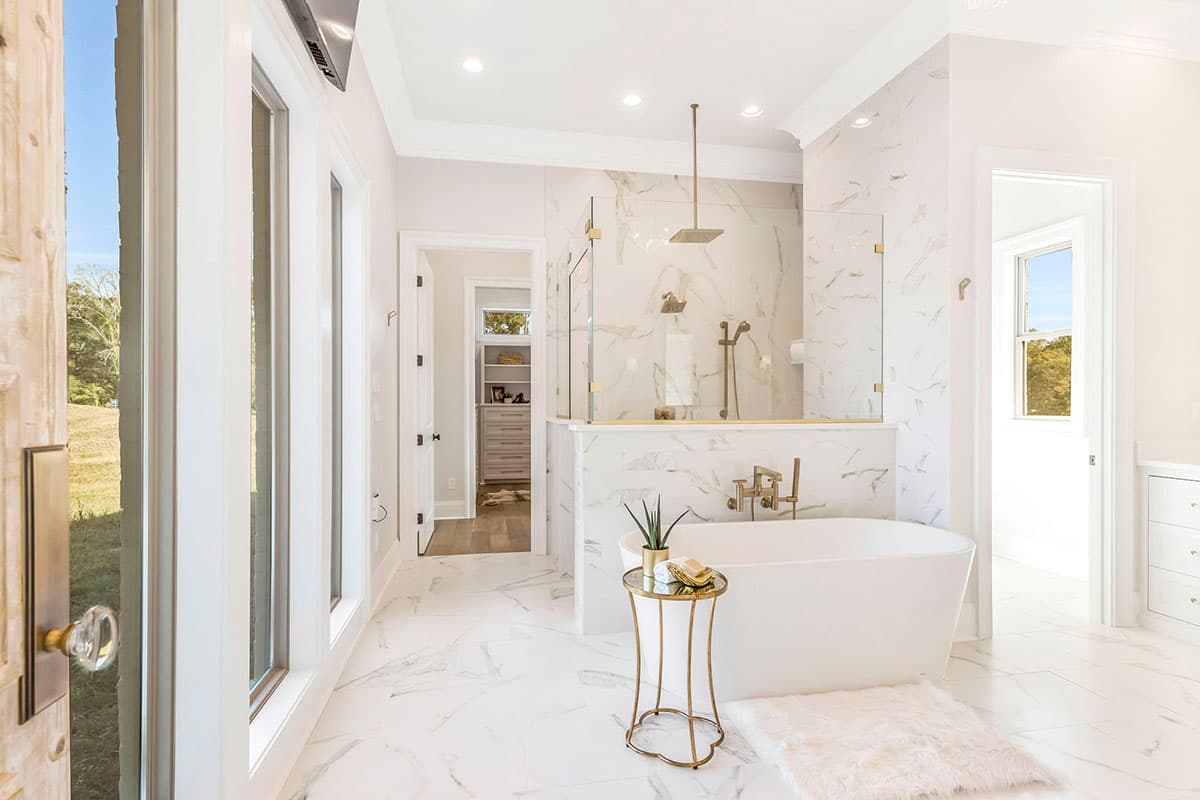

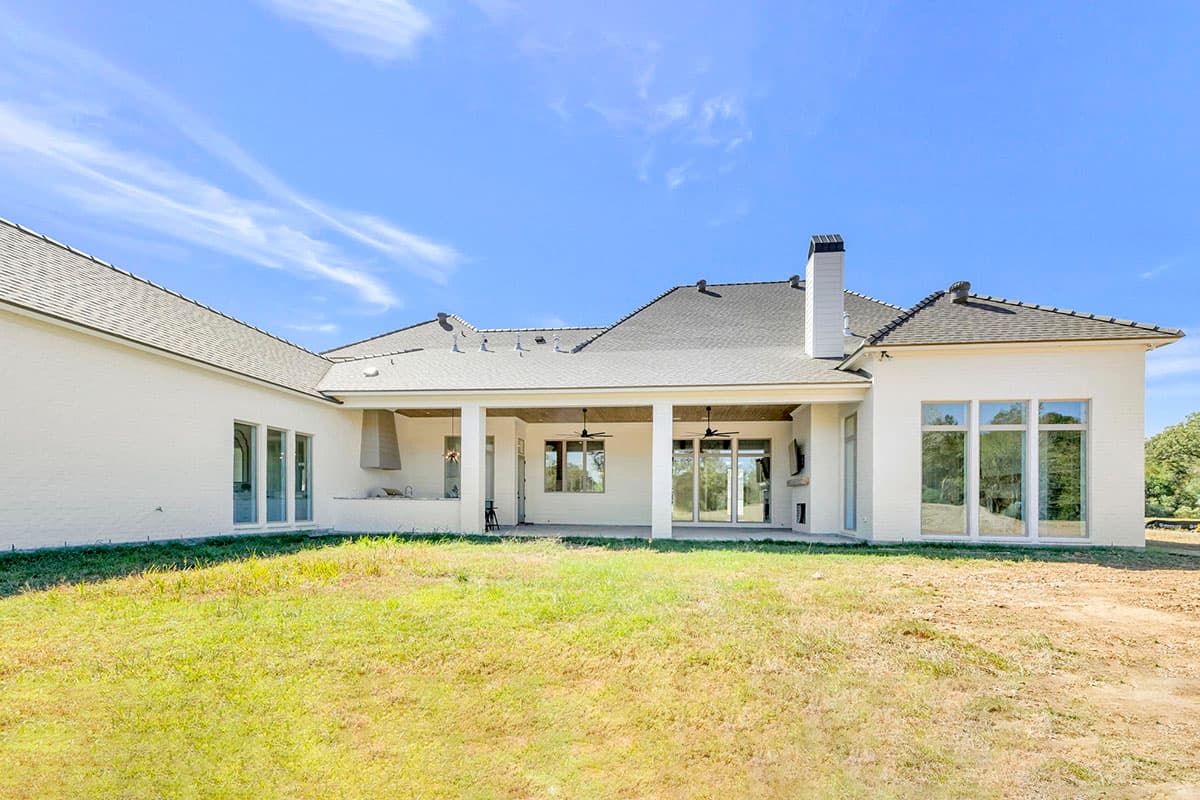

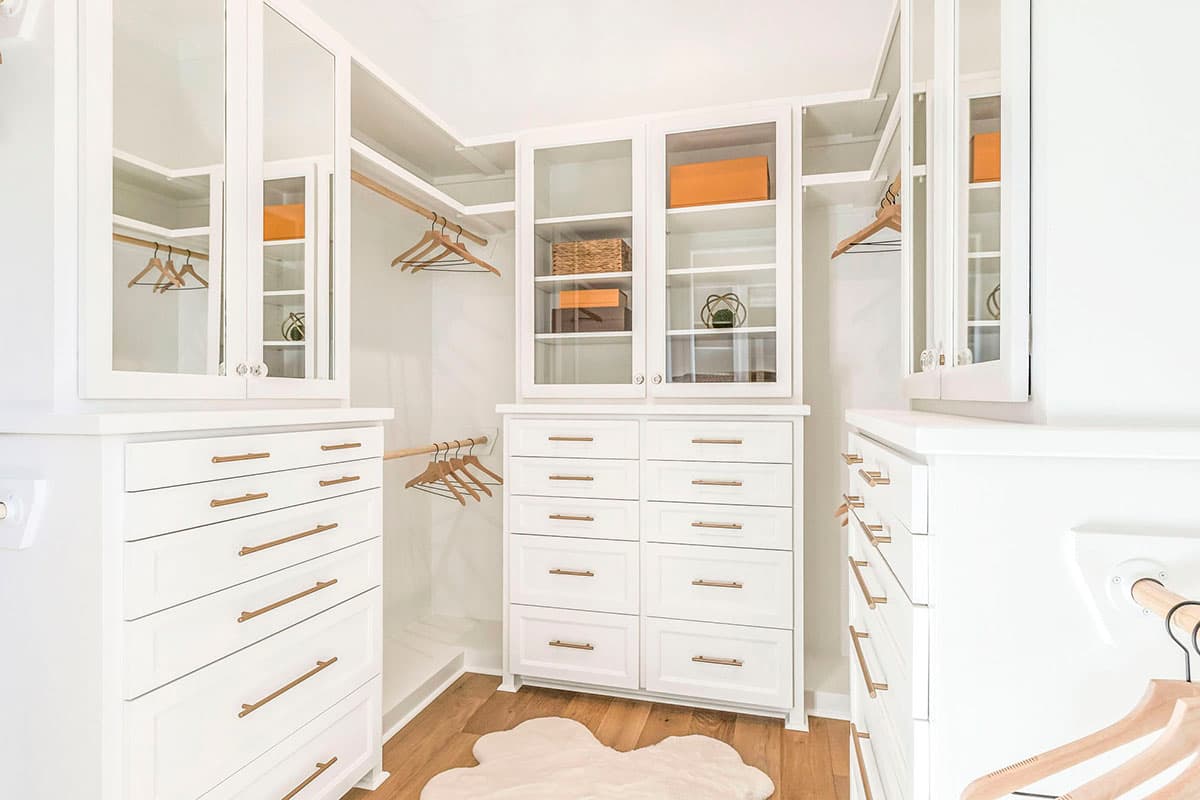

  • The master bedroom protrudes from the rear and features a spa-like ensuite and dual closets connected by a dressing area. Two additional bedrooms on the main level share a Jack-and-Jill bath.

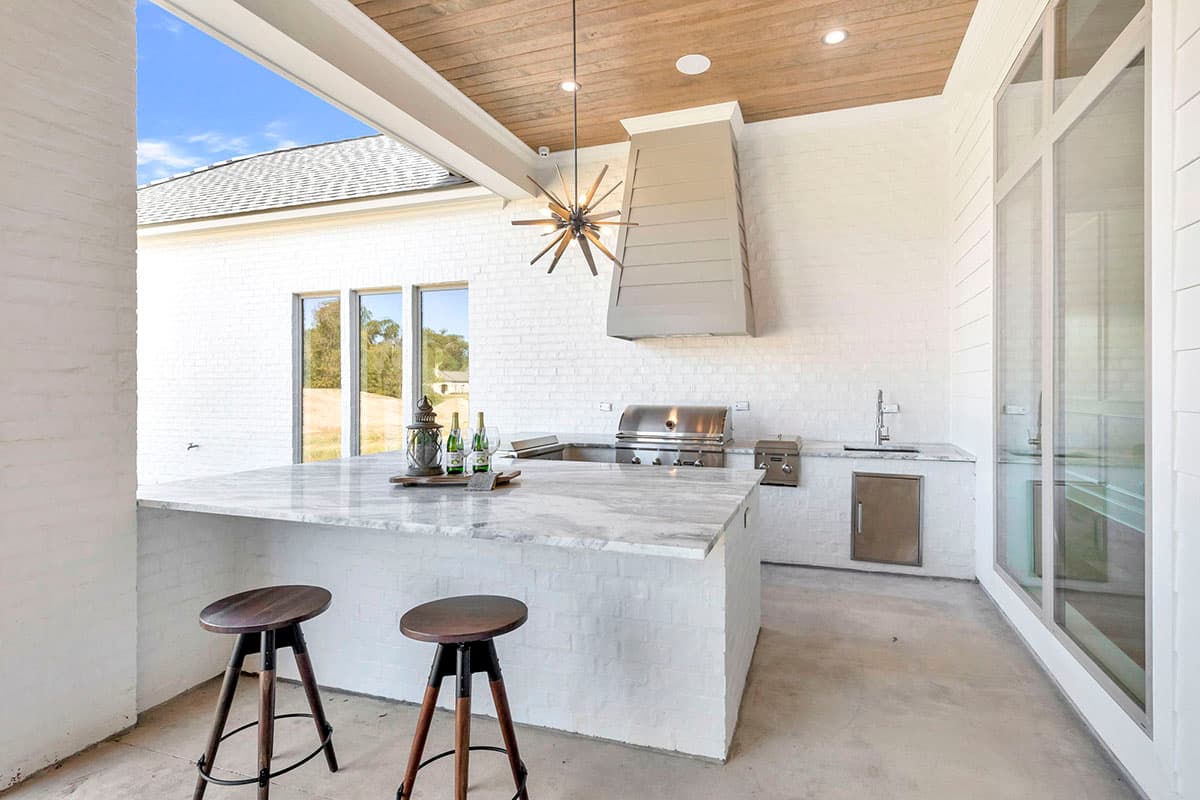

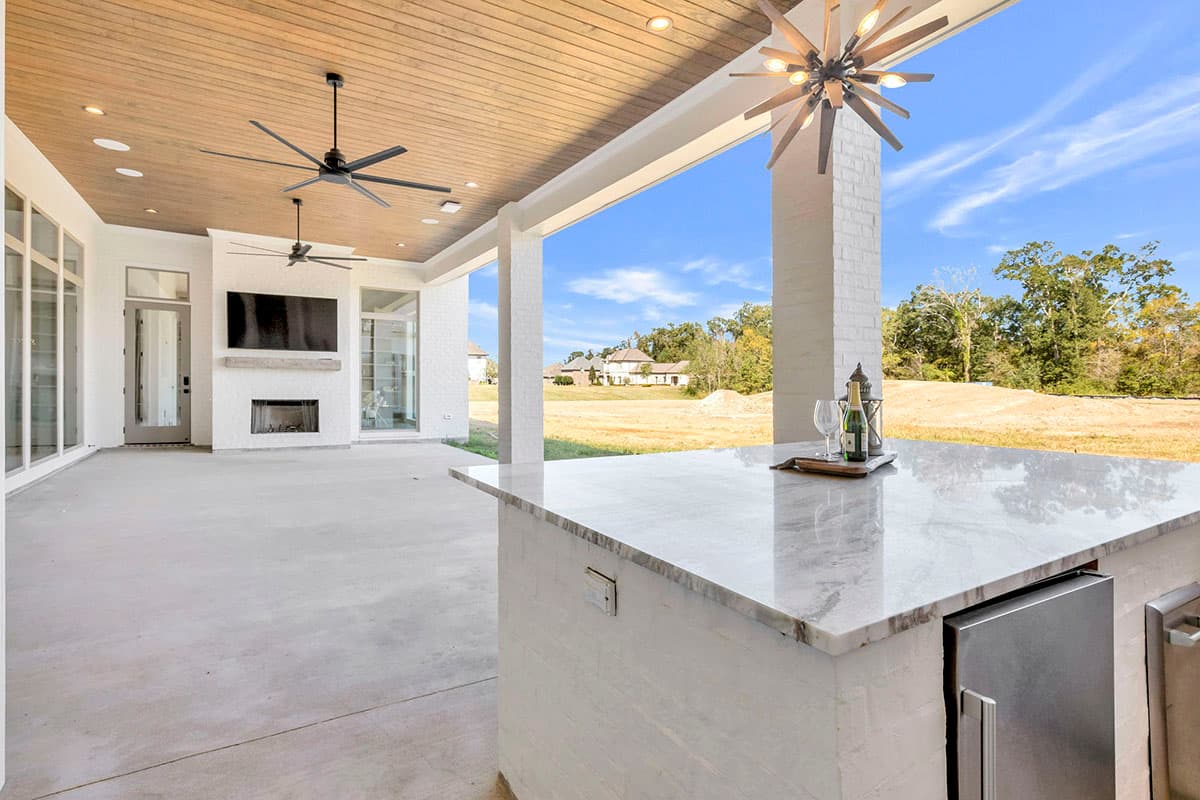

  • A game room completes the first floor and provides access to a generous rear porch, complete with a fireplace and summer kitchen.
  • The tandem garage provides space for 3 vehicles and a staircase just inside grants access to a cozy den and bedroom suites 4 and 5 on the second level.

This set of working drawings contains the following components

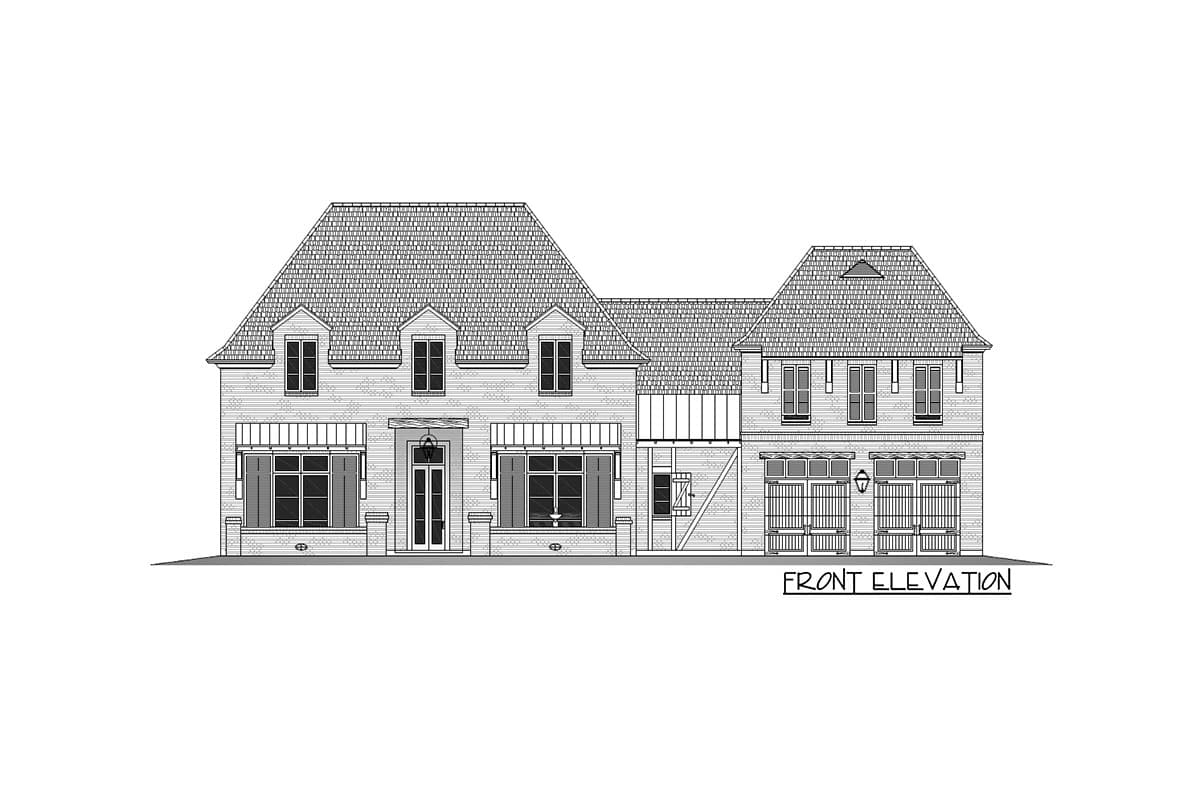

  • Exterior elevations
  • Roof Plan
  • Floor plan(s)
  • Window, door and finish schedules
  • Slab foundation plan
  • Footing details
  • Building section
  • Wall Sections
  • Electrical plan
  • General notes
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

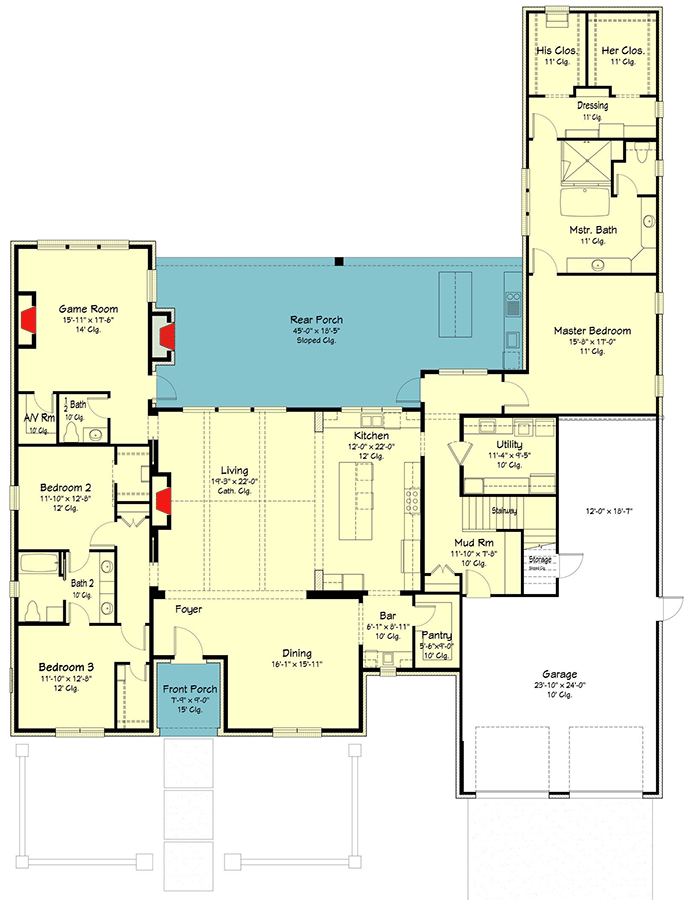

Fresh 5-Bed House Plan with Private Master Bedroom - 860071MCD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

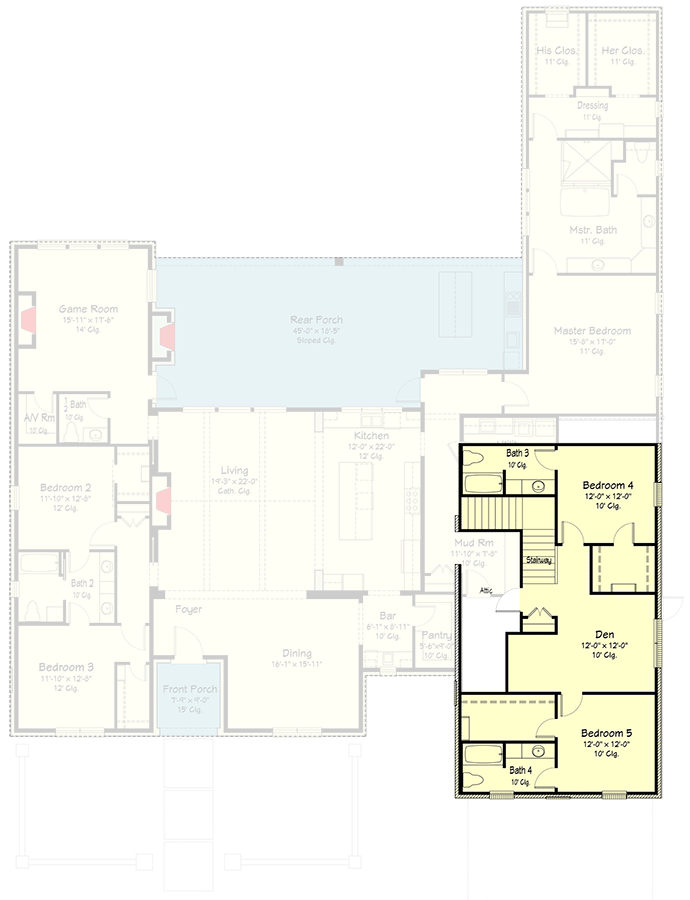

Fresh 5-Bed House Plan with Private Master Bedroom - 860071MCD floor plan - 2nd Floor

Plan details

Fresh 5-Bed House Plan with Private Master Bedroom

  • 4,505

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,405
  • 5 Sets + PDF $2,525
  • 8 Sets + PDF $2,625
  • CAD - Single-Build $3,405
  • PDF - Unlimited Build $4,810
  • CAD - Unlimited Build $5,810
  • View all purchase option online

About This Plan

  • This 5-bedroom house plan presents a fresh exterior complimented by an interior that is full of charming builtins, textures, and an intuitive flow.
  • Brick accents and exposed beams add warmth to the open living space, where you'll find the gourmet kitchen awaiting to serve family and friends. A built-in bar leads to the formal dining room and provides access to the walk-in pantry.
  • The master bedroom protrudes from the rear and features a spa-like ensuite and dual closets connected by a dressing area. Two additional bedrooms on the main level share a Jack-and-Jill bath.
  • A game room completes the first floor and provides access to a generous rear porch, complete with a fireplace and summer kitchen.
  • The tandem garage provides space for 3 vehicles and a staircase just inside grants access to a cozy den and bedroom suites 4 and 5 on the second level.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,505 sq. ft.
  • 1st Floor: 3,549 sq. ft.
  • 2nd Floor: 956 sq. ft.
  • Porch, Combined: 843 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 0"
  • Depth: 97' 2"
  • Max ridge height: 37' 0"

Garage

  • Type: Attached
  • Area: 931 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
