Plan 56354SM

Front and Rear Porches

2,117 4 3 1 2
Pageloader

Front and Rear Porches

Plan 56354SM

  • 2,117

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • A steep hip roof and decorative shutters give this French Country home plan its warm style.
  • Four columns support the covered front porch with double doors leading to the large foyer that is open to the formal dining room.
  • Designed with an open layout, the family room fireplace can be seen all the way from the big kitchen with its walk-in pantry.
  • The rear covered porch is large enough for a hammock or outdoor dining table.
  • Guests and family members will appreciate the separate guest suite off by itself.
  • The double car garage also has a handy third bay or storage area.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT:  Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.

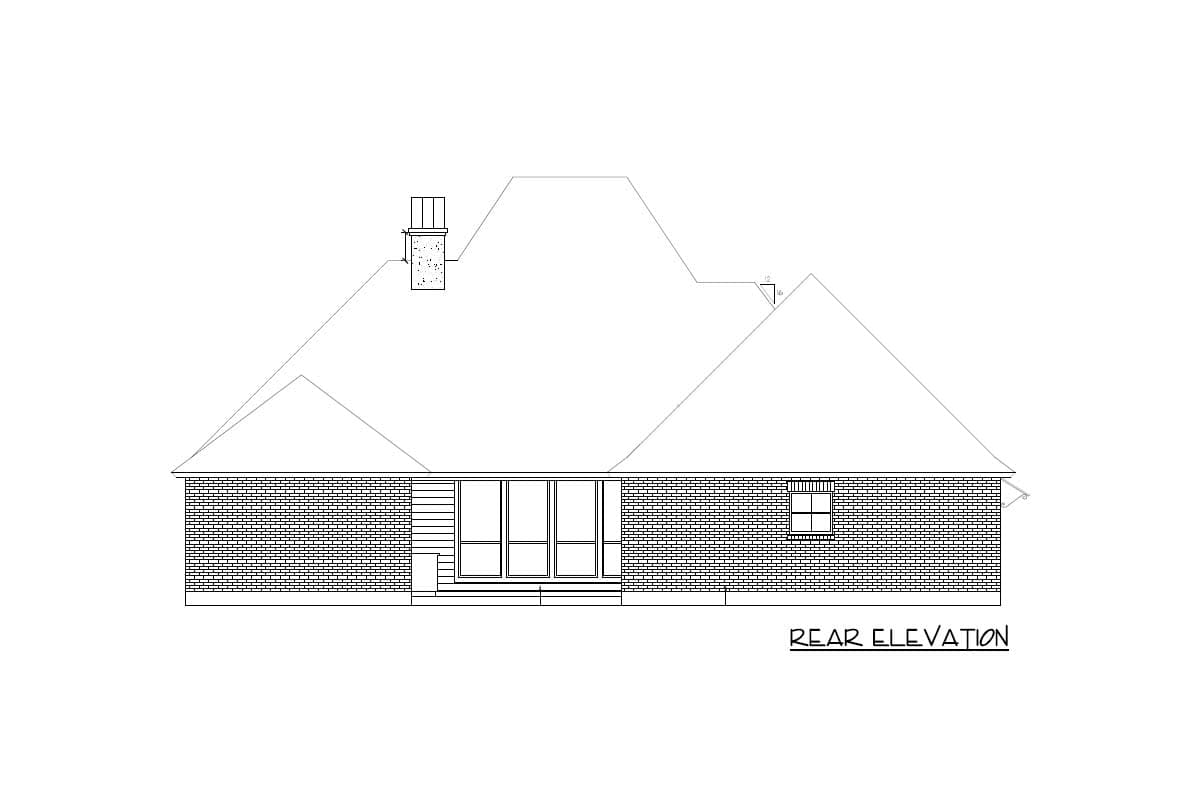

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn.  Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details.  Also included are wall sections, and any other necessary details for your framer or other subcontractors

Floor Plan

Plan details



Front and Rear Porches

  • 2,117

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 6 Sets $750
  • 8 Sets $850
  • PDF - single-use $850
  • CAD $1,850
  • View all purchase option online

About This Plan

  • A steep hip roof and decorative shutters give this French Country home plan its warm style.
  • Four columns support the covered front porch with double doors leading to the large foyer that is open to the formal dining room.
  • Designed with an open layout, the family room fireplace can be seen all the way from the big kitchen with its walk-in pantry.
  • The rear covered porch is large enough for a hammock or outdoor dining table.
  • Guests and family members will appreciate the separate guest suite off by itself.
  • The double car garage also has a handy third bay or storage area.

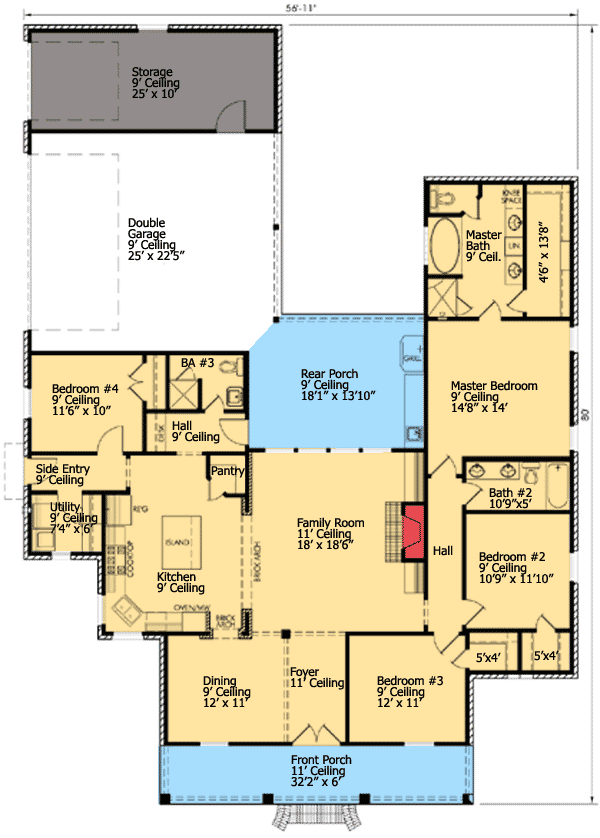

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,117 sq. ft.
  • 1st Floor: 2,117 sq. ft.
  • Storage: 250 sq. ft.
  • Porch, Rear: 235 sq. ft.
  • Porch, Front: 193 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 56' 11"
  • Depth: 80' 0"

Garage

  • Type: Attached
  • Area: 631 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
