Plan 86006BW

Fully Open Floor Plan

Fully Open Floor Plan

Plan 86006BW

  • 4,351

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Gorgeous sightlines start right at the front door of this remarkable Florida house plan.
  • Thanks to the open layout you can see all the way from the large kitchen to the dining room to the huge great room.
  • Walls of glass open this whole area up to the rear outdoor living and dining room, complete with an outdoor kitchen and fireplace.
  • Entertain with ease with the wet bar and wine cellar close by the great room.
  • The master suite gets a sitting area and there's another first floor bedroom suite too.
  • Two additional bedrooms with a bonus room in between occupy the upper floor.
  • The balcony for this plan is Aesthetic
  • NOTE: Contact us if building in Lee & Collier Counties, Florida, as certain restrictions may apply.

Elevations

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Material Labels
*Floor-To-Floor Heights
*Roof Slope Indicators

 Floor Plans

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Door and Window Sizes
*Completely Dimensioned Floor Plan
*Room Labels and Interior Room Size



Electrical Layouts

*Building Section Markers
*Electrical Outlets, Fixtures and Switching



Foundation Plan

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor and Deck Joist Sizes, Spacing and Direction
*Electrical Locations



Roof Plan

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Beam and Header Heights and Locations
*All Hips, Gables, Ridges and Valley
*Building Section Markers



Building Sections

Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:
*Floor Joist Size and Spacing
*Floor-To-Floor Heights
*Non-Typical Plate Heights Indicated



Typical Wall Sections

Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:
*All Labels Indicating Wall Construction
*Foundation Wall Thickness and Reinforcing
*Insulation Type and Thickness



Miscellaneous Notes and Details

*Miscellaneous General Notes
*Stairway Details (if applicable)

Floor Plan

Plan details



Fully Open Floor Plan

  • 4,351

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $3,915
  • CAD $3,915
  • View all purchase option online

About This Plan

  • Gorgeous sightlines start right at the front door of this remarkable Florida house plan.
  • Thanks to the open layout you can see all the way from the large kitchen to the dining room to the huge great room.
  • Walls of glass open this whole area up to the rear outdoor living and dining room, complete with an outdoor kitchen and fireplace.
  • Entertain with ease with the wet bar and wine cellar close by the great room.
  • The master suite gets a sitting area and there's another first floor bedroom suite too.
  • Two additional bedrooms with a bonus room in between occupy the upper floor.
  • The balcony for this plan is Aesthetic
  • NOTE: Contact us if building in Lee & Collier Counties, Florida, as certain restrictions may apply.

Floor Plans

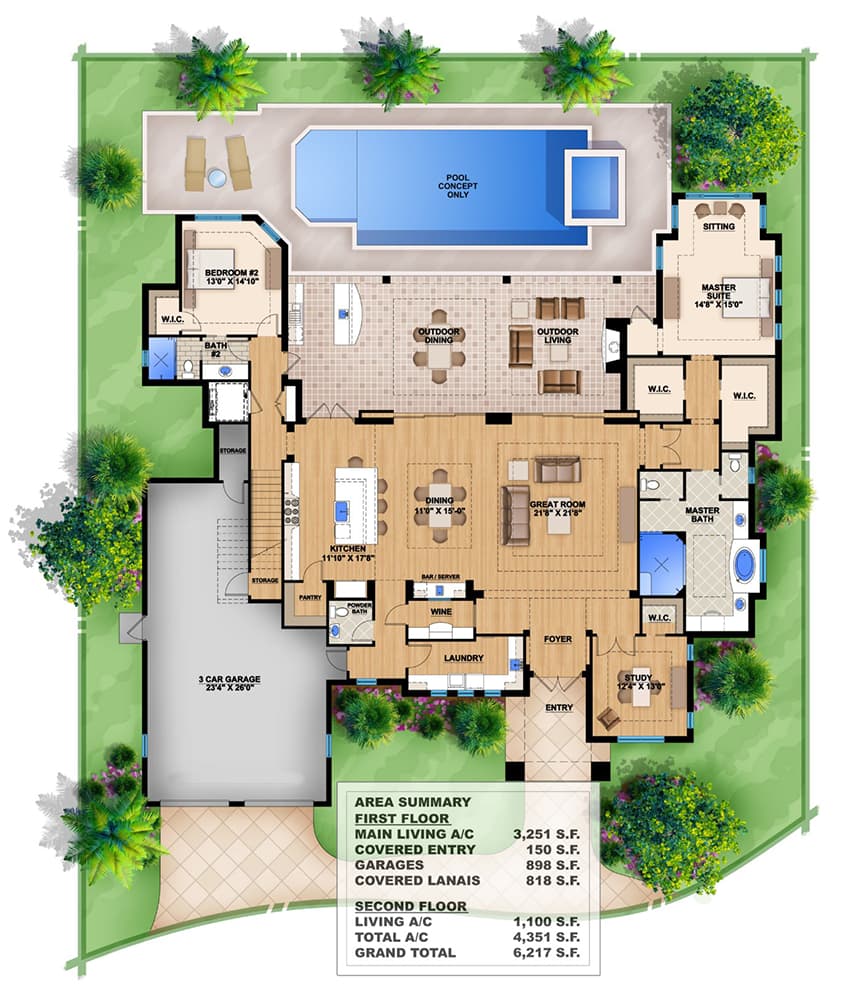

  • Main Level

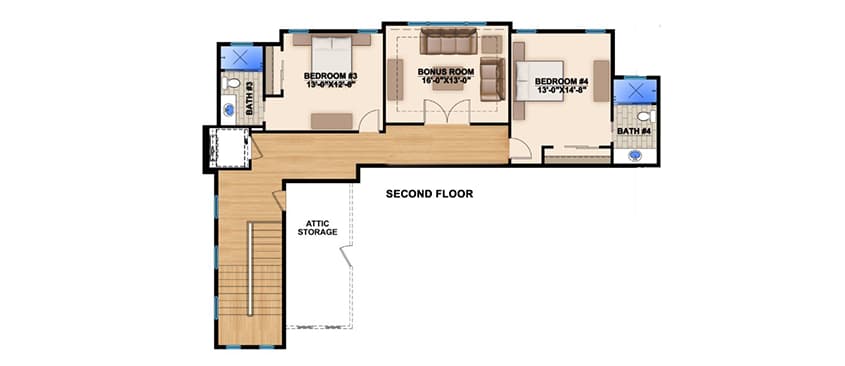

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,351 sq. ft.
  • 1st Floor: 3,251 sq. ft.
  • 2nd Floor: 1,100 sq. ft.
  • Entry: 150 sq. ft.
  • Lanai: 818 sq. ft.
  • Porch, Front: 150 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block
  • Optional Type(s): 2x6

Dimensions

  • Width: 83' 4"
  • Depth: 80' 0"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 898 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 9' 4"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
