Gabled Entry Mountain Modern House Plan

Plan 54224HU

  • 3,275

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This modern house plan, a sister version of modern house plan 54202HU, has a gable over the entry giving it extra volume.

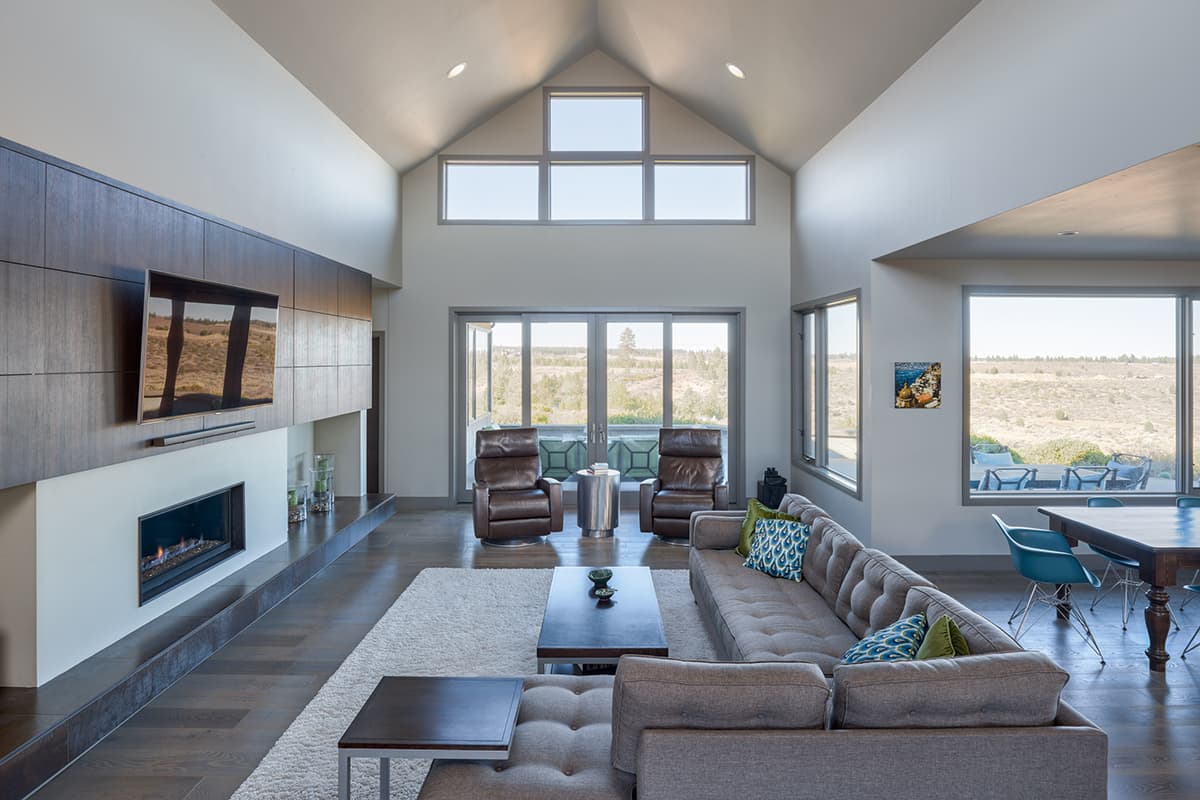

  • The entry foyer opens right into the massive vaulted great room, where sliding glass doors bring in light and lead to the back terrace.
  • With views of the dining room and kitchen off to one side, the open layout keeps the whole family connected.
  • Three bedrooms on the main floor include the beautiful master suite set off by itself.
  • The second floor holds a den or studio plus an extra bedroom and bath.

Each plan set includes the following:

  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index
  • Main level architectural plan
  • Upper level architectural plan
  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

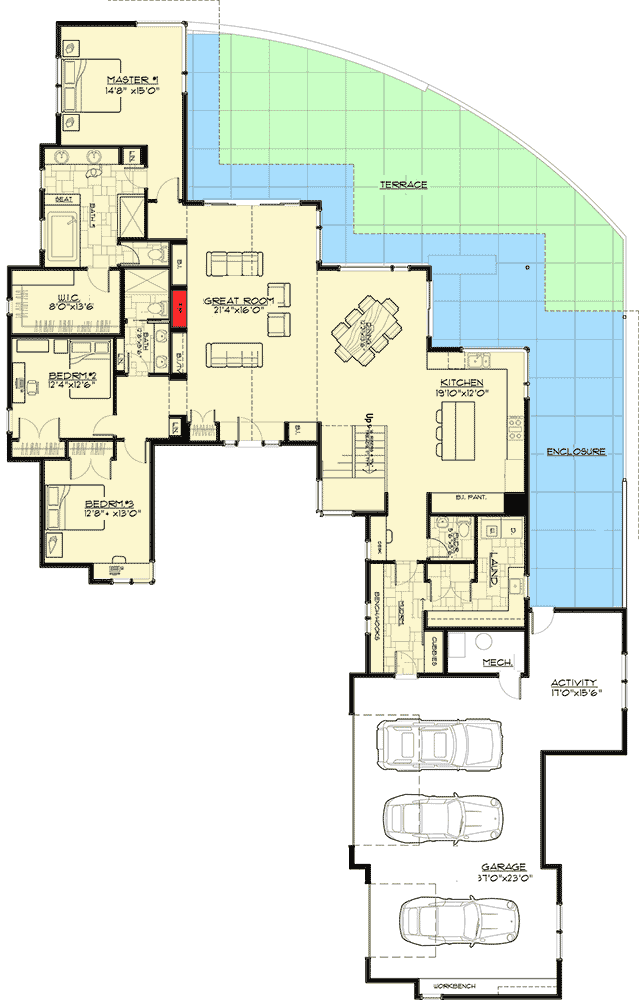

Gabled Entry Mountain Modern House Plan - 54224HU floor plan - Main Level

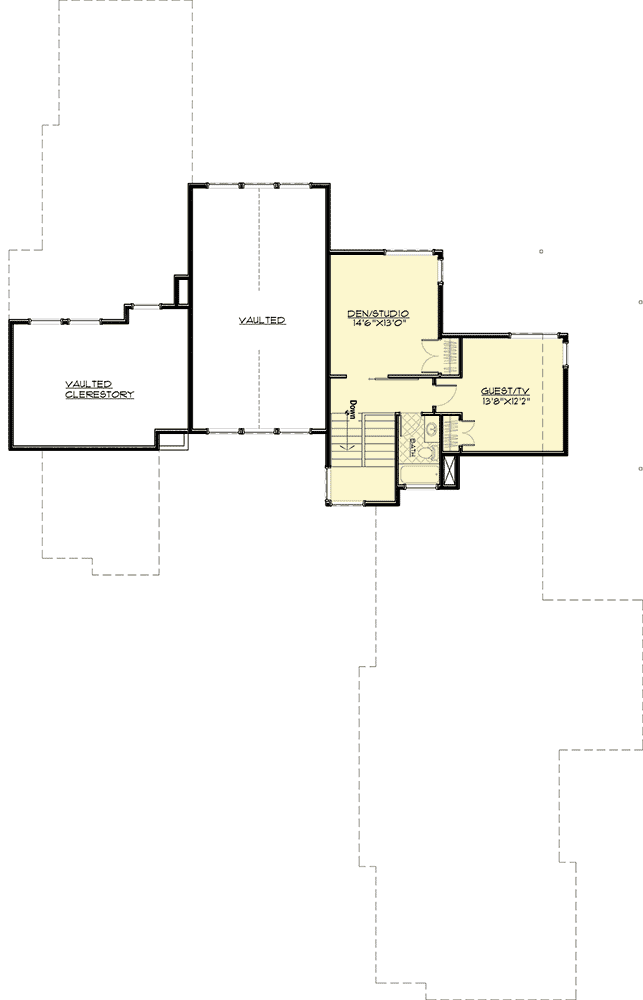

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Gabled Entry Mountain Modern House Plan - 54224HU floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,275 sq. ft.
  • 1st Floor: 2,729 sq. ft.
  • 2nd Floor: 546 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 9"
  • Depth: 120' 0"
  • Max ridge height: 22' 0"

Garage

  • Type: Attached
  • Area: 1159 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Great Room Vaulted 13' 7" to 18' 9"
Bedroom 2 14' 0"
Dining Room Flat 9' 0"
Kitchen Flat 9' 0"
Master Bedroom Flat 9' 0"
Master Bath Flat 9' 0"
Bedroom 3 Flat 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Gabled Entry Mountain Modern House Plan

  • 3,275

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $1,200
  • PDF - Single-Build $1,995
  • 5 Sets $2,095
  • 8 Sets $2,195
  • Reproducible Set $2,195
  • CAD - Single-Build $2,795
  • View all purchase option online

About This Plan

  • This modern house plan, a sister version of modern house plan 54202HU, has a gable over the entry giving it extra volume.
  • The entry foyer opens right into the massive vaulted great room, where sliding glass doors bring in light and lead to the back terrace.
  • With views of the dining room and kitchen off to one side, the open layout keeps the whole family connected.
  • Three bedrooms on the main floor include the beautiful master suite set off by itself.
  • The second floor holds a den or studio plus an extra bedroom and bath.
