Plan: 36193TX

Game Room With Overlook And Balcony

5,041 5 7 2 3
Pageloader

Game Room With Overlook And Balcony

Plan 36193TX

  • 5,041

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Stories

  • 3

    Cars

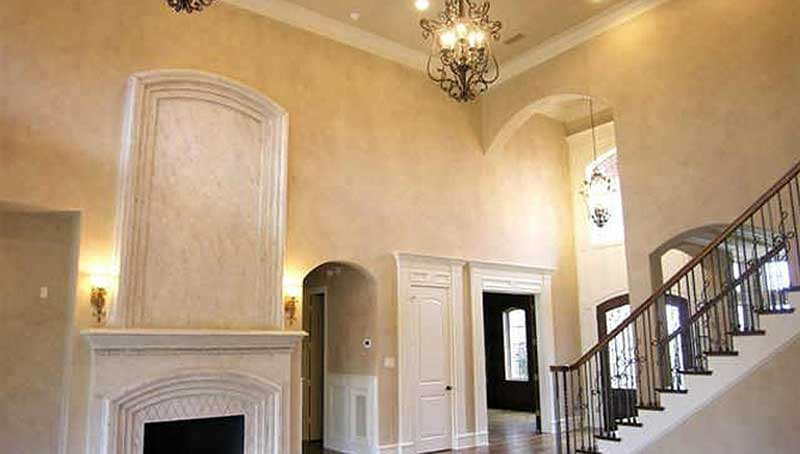

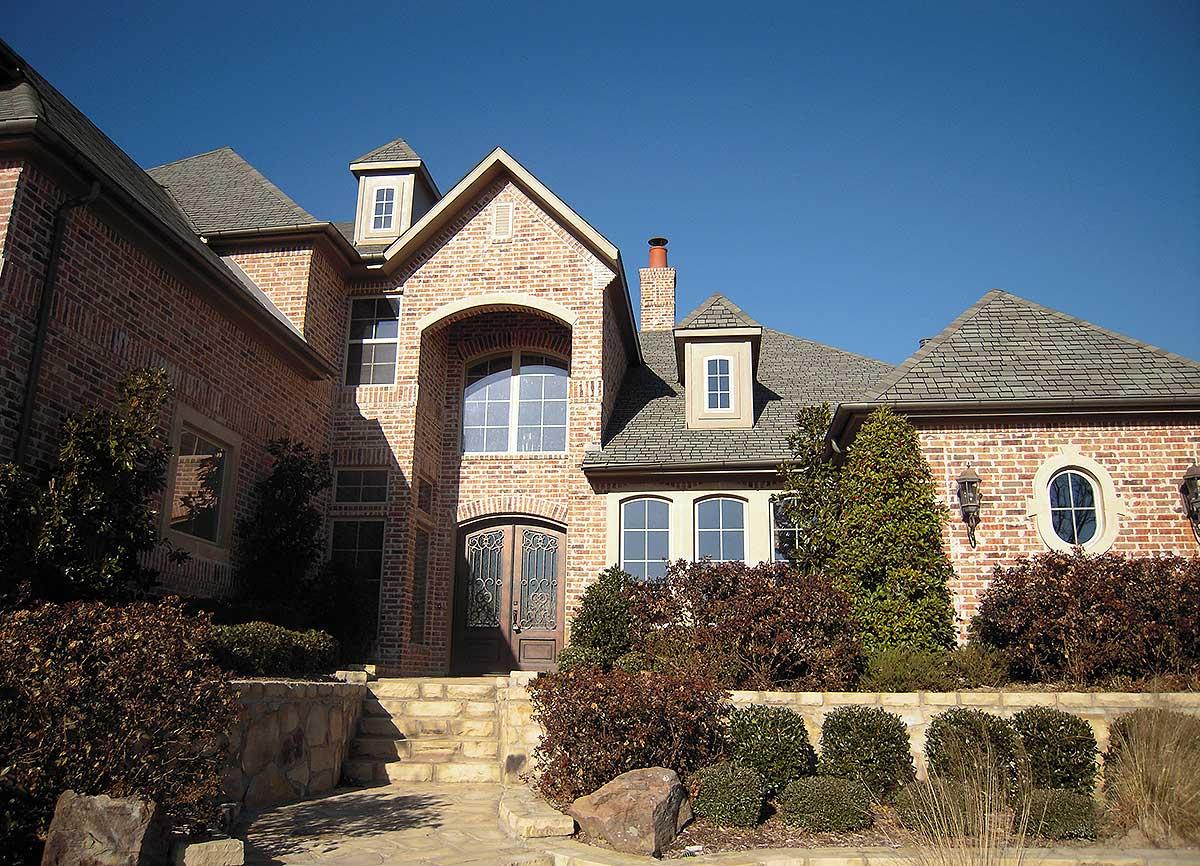

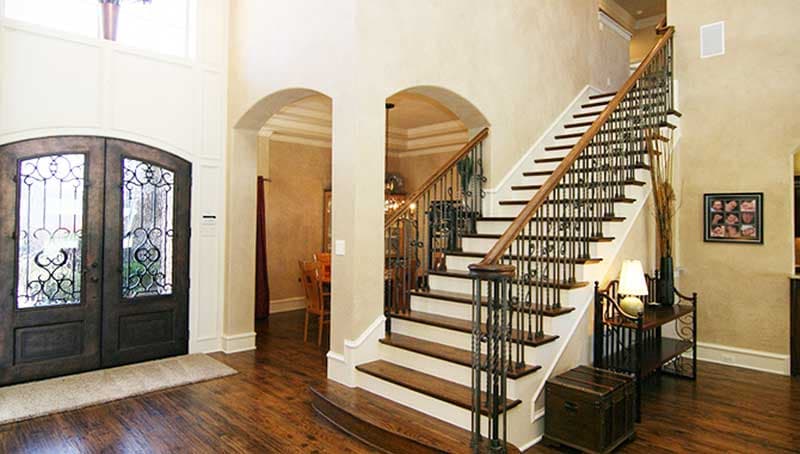

  • This mansion house plan is very traditional. When you enter the foyer from the front porch, you will notice the 21' ceilings from the foyer through the family room in the back.

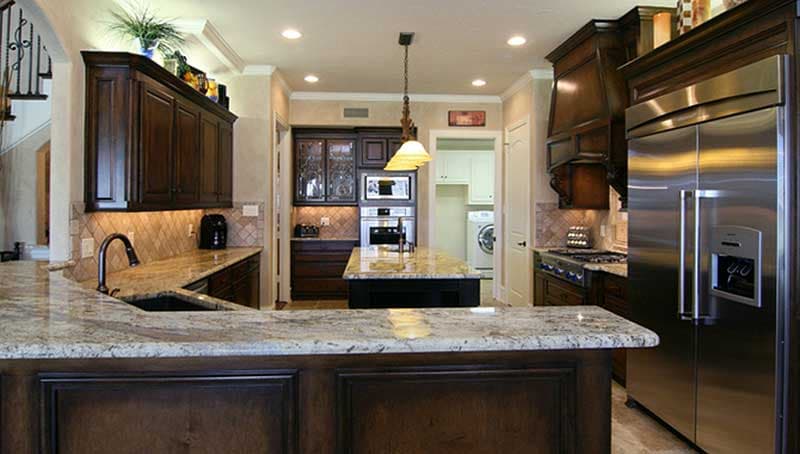

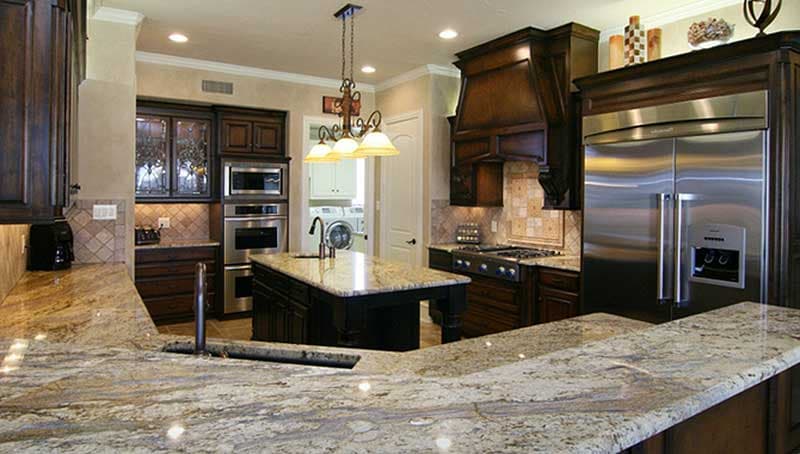

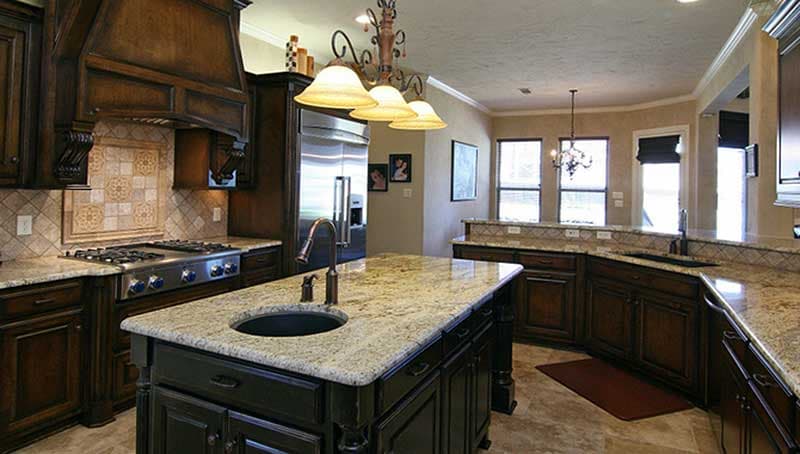

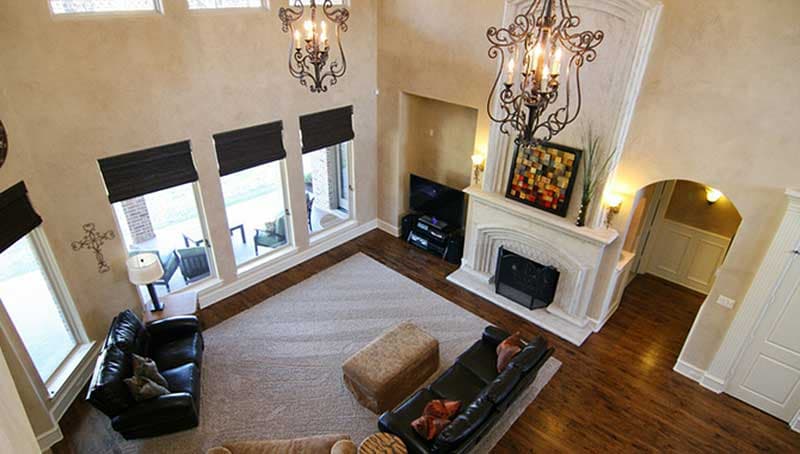

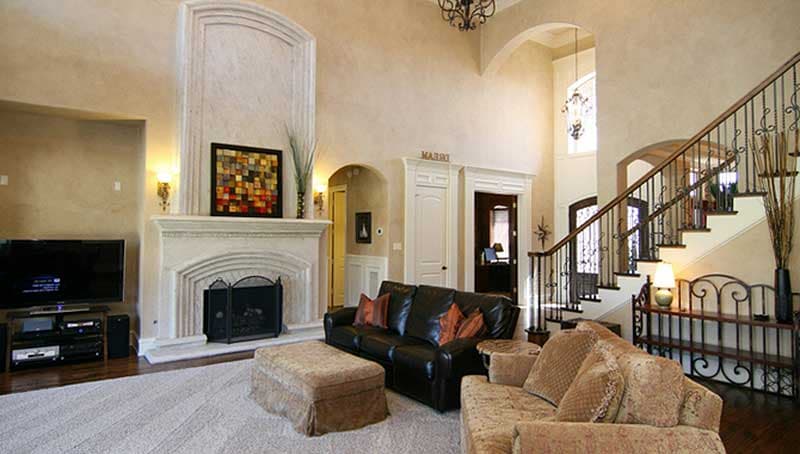

  • The family room offers a warming fireplace and built in shelves with a bank of windows looking onto the patio. Enjoy a drink from the bar in the family room. The family room is open into the breakfast room and kitchen, divided only by the eating bar. A free standing island and pantry with access to the utility room make this kitchen perfect for any chef.
  • Behind the breakfast room is a bedroom with a bathroom and closet. A one car garage next to the bedroom makes it a great area for guests, in-laws or teenagers. A two car garage is separately located out the second utility door.

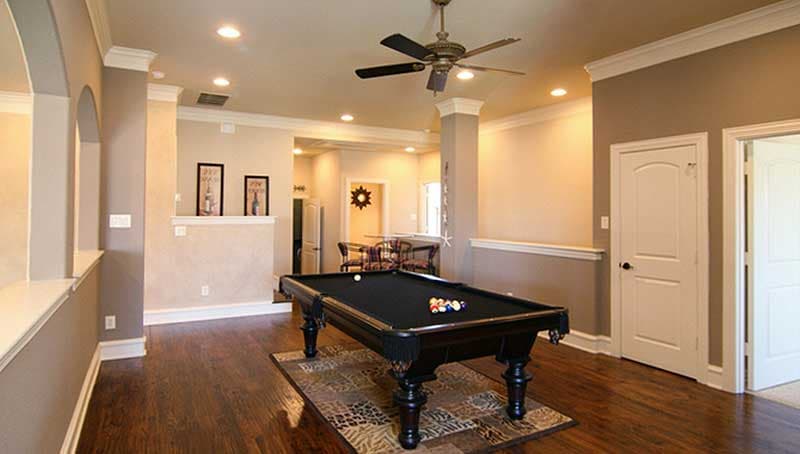

  • The second story offers a game room with storage and a powder room. There is a media room with a bar and balcony, perfect for watching the latest blue rays.

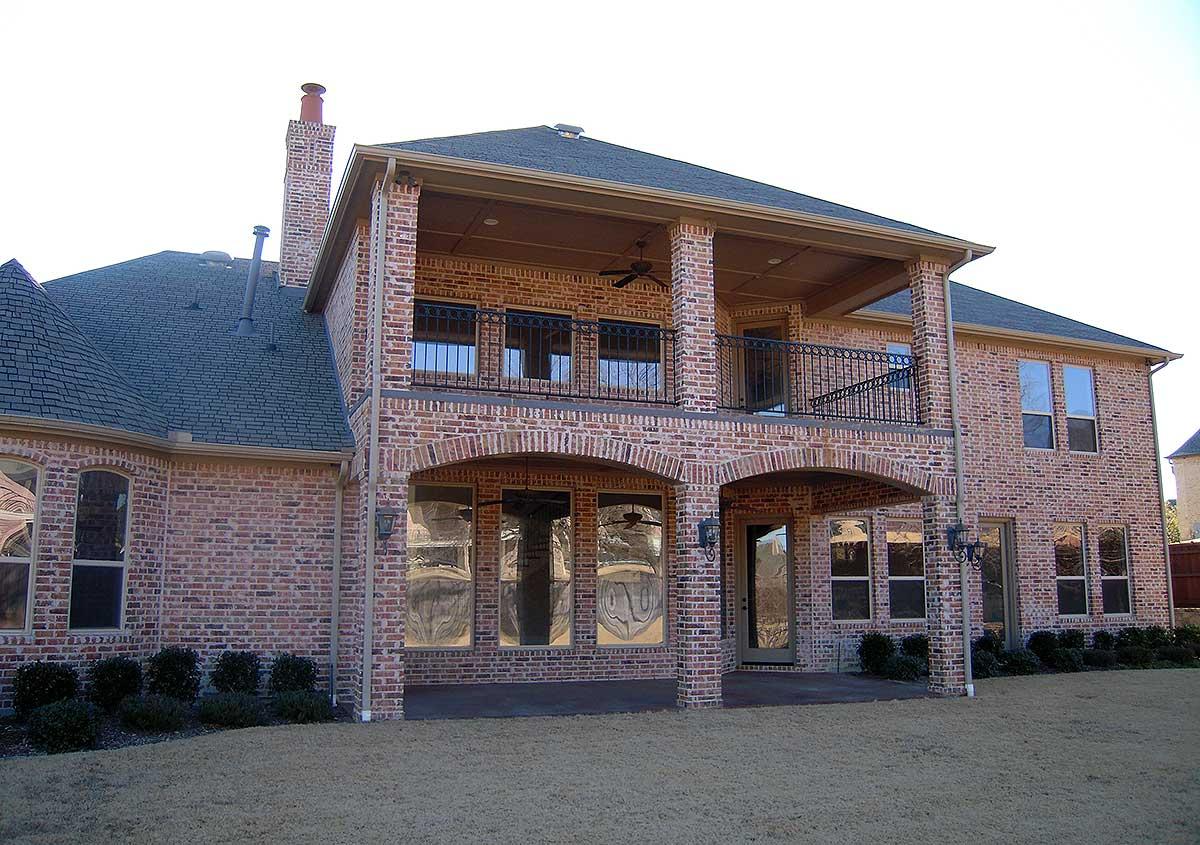

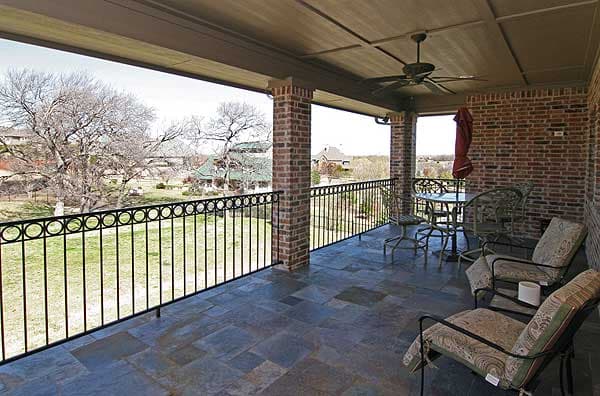

  • A balcony in the rear offers a lovely view of the first level and woods behind the house.
  • Three bedrooms on this floor, each with private baths and closets complete this level of the two story house plan.
  • MORE PHOTOS: See more photos in our Facebook photo album.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

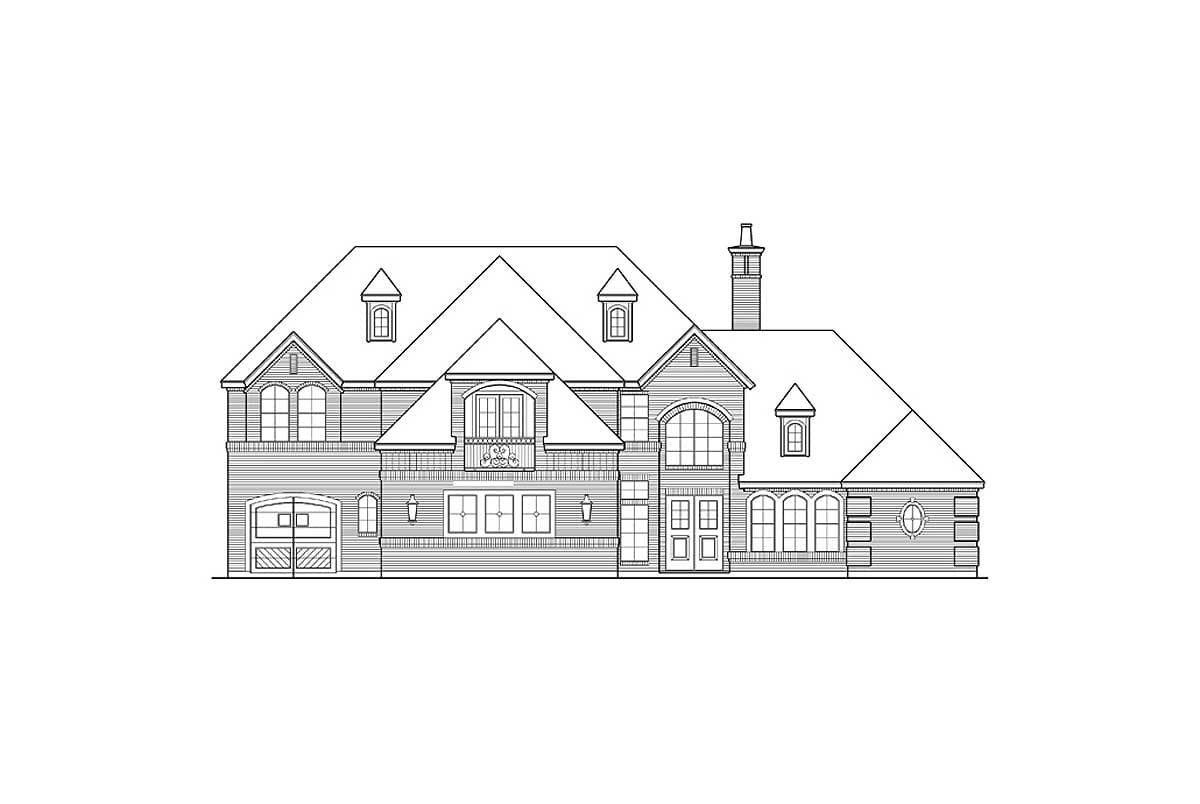

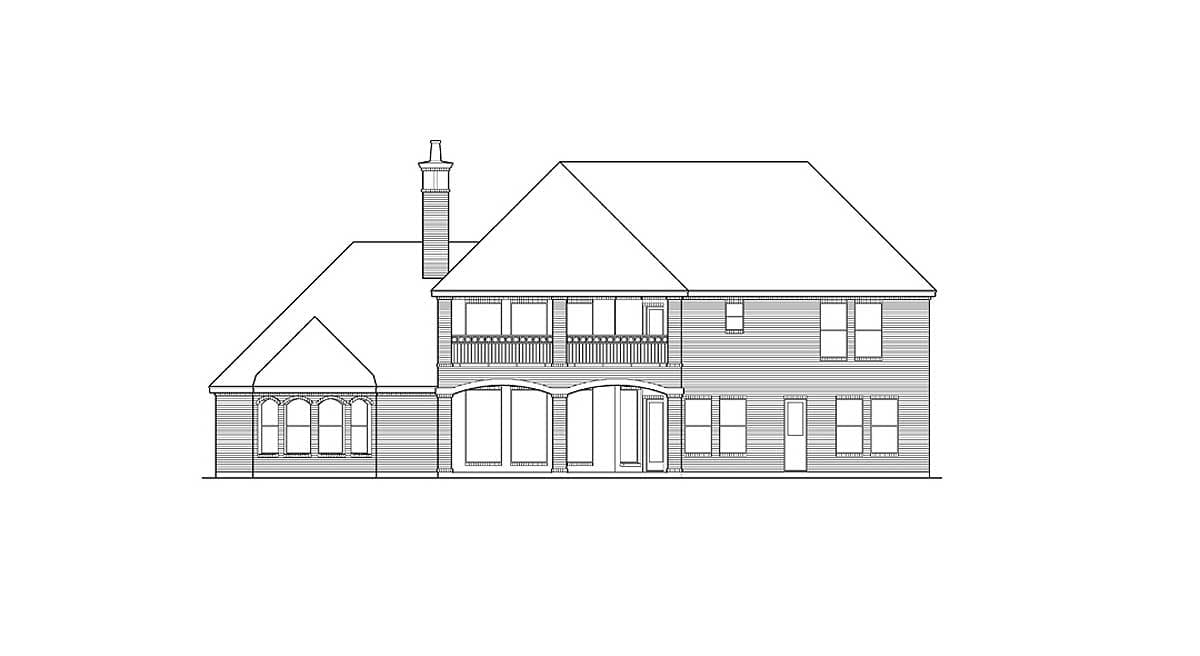

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

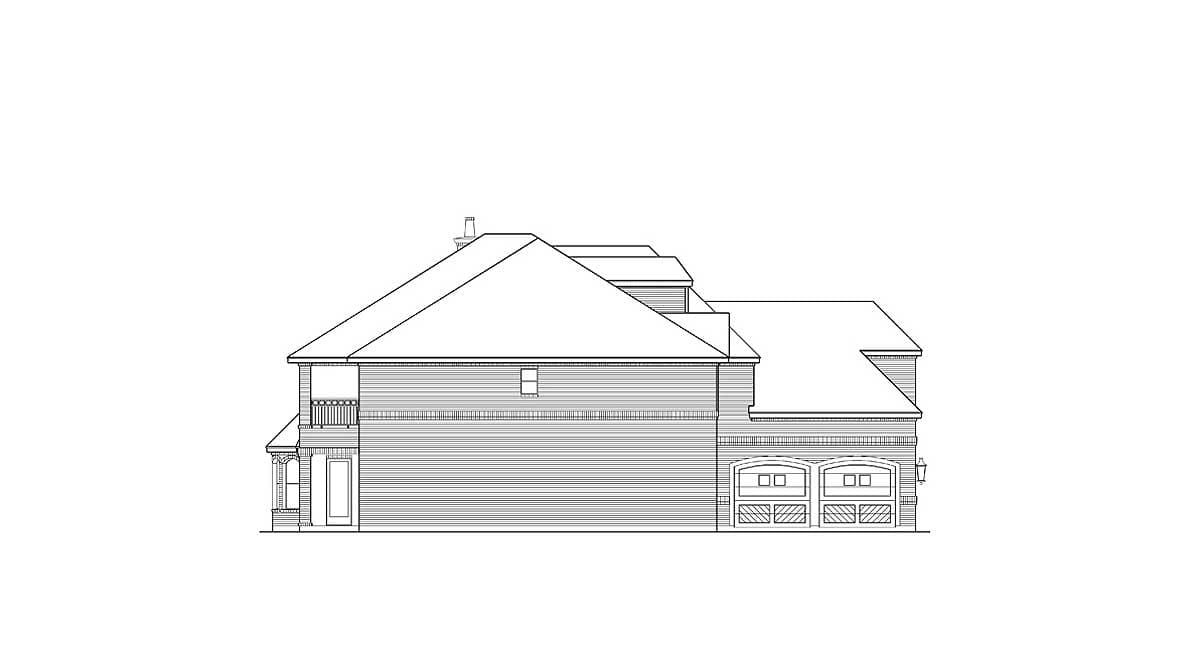

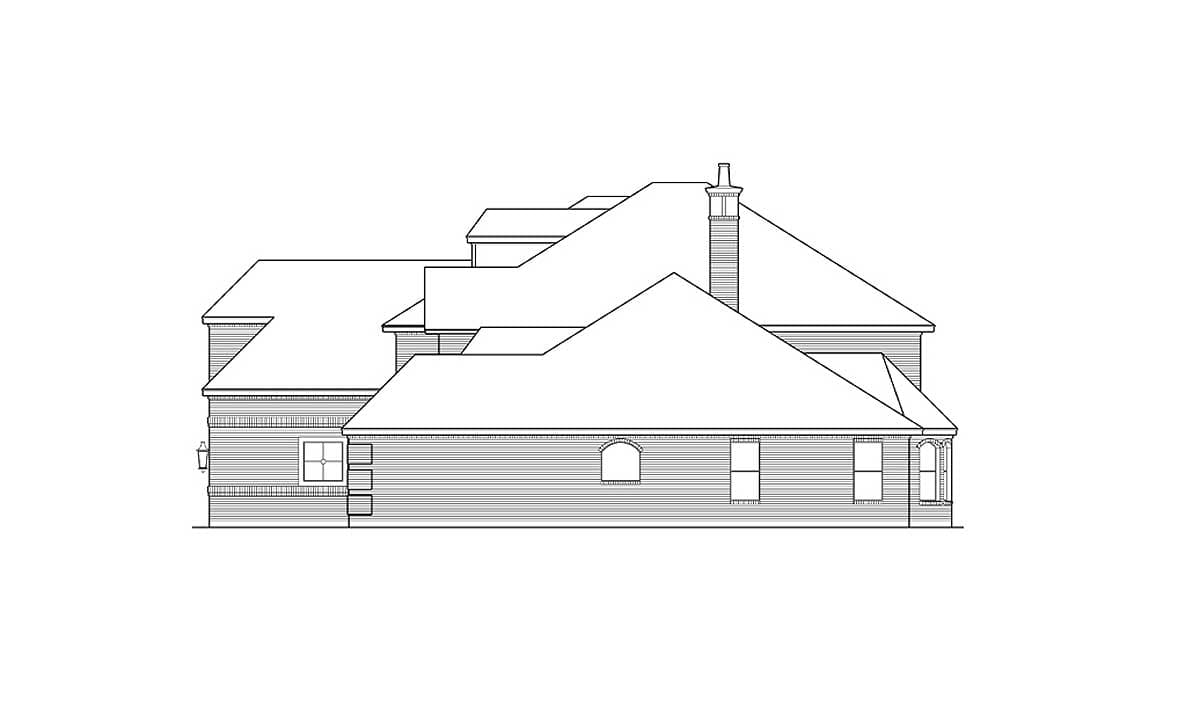

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Game Room With Overlook And Balcony

  • 5,041

    Heated s.f.

  • 5

    Beds

  • 7

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,420
  • 5 Sets $2,620
  • CAD $3,630
  • View all purchase option online

About This Plan

  • This mansion house plan is very traditional. When you enter the foyer from the front porch, you will notice the 21' ceilings from the foyer through the family room in the back.
  • The family room offers a warming fireplace and built in shelves with a bank of windows looking onto the patio. Enjoy a drink from the bar in the family room. The family room is open into the breakfast room and kitchen, divided only by the eating bar. A free standing island and pantry with access to the utility room make this kitchen perfect for any chef.
  • Behind the breakfast room is a bedroom with a bathroom and closet. A one car garage next to the bedroom makes it a great area for guests, in-laws or teenagers. A two car garage is separately located out the second utility door.
  • The second story offers a game room with storage and a powder room. There is a media room with a bar and balcony, perfect for watching the latest blue rays.
  • A balcony in the rear offers a lovely view of the first level and woods behind the house.
  • Three bedrooms on this floor, each with private baths and closets complete this level of the two story house plan.
  • MORE PHOTOS: See more photos in our Facebook photo album.

Floor Plans

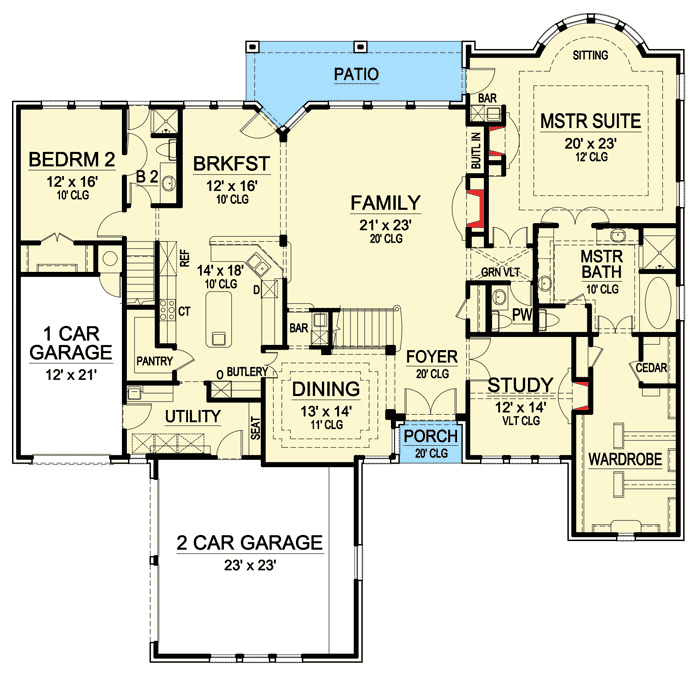

  • Main Level

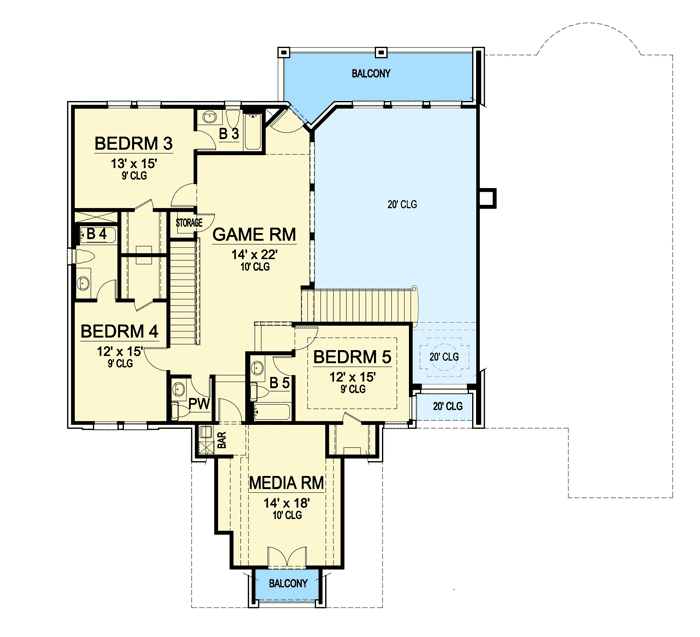

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,041 sq. ft.
  • 1st Floor: 3,277 sq. ft.
  • 2nd Floor: 1,764 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 79' 0"
  • Depth: 76' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 865 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Stick Or Truss

Architectural Style

  • European
  • Traditional

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Loft
  • MBR Sitting Area
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Luxury
  • Photo Gallery
  • Premium Collection
