Plan 67052GL

Games Room and Kids Study

Name: Plan 67052GL: Games Room and Kids Study
Brand: Architectural Designs
SKU: 67052GL
Price: 2990.0 USD
Availability: InStock

Heated S.F.

3,999

Beds

4 - 5

Baths

3.5

Stories

Cars

Floor Plan

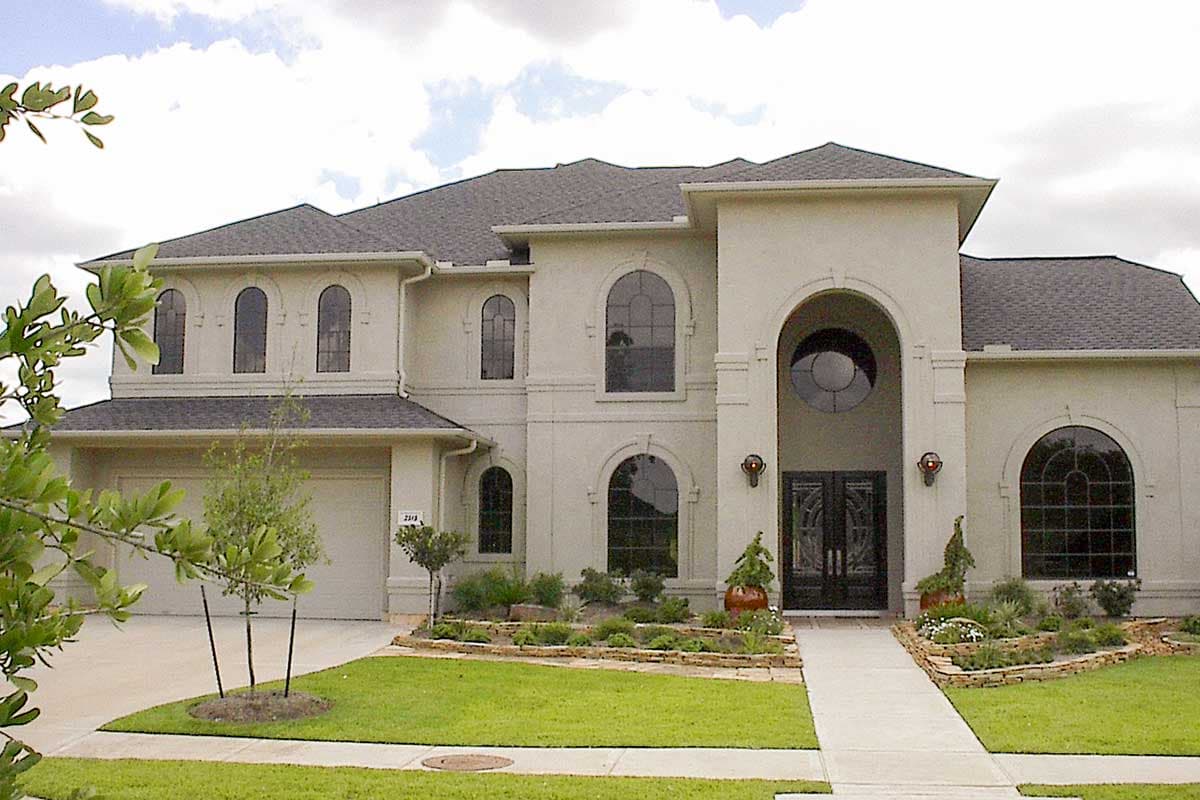

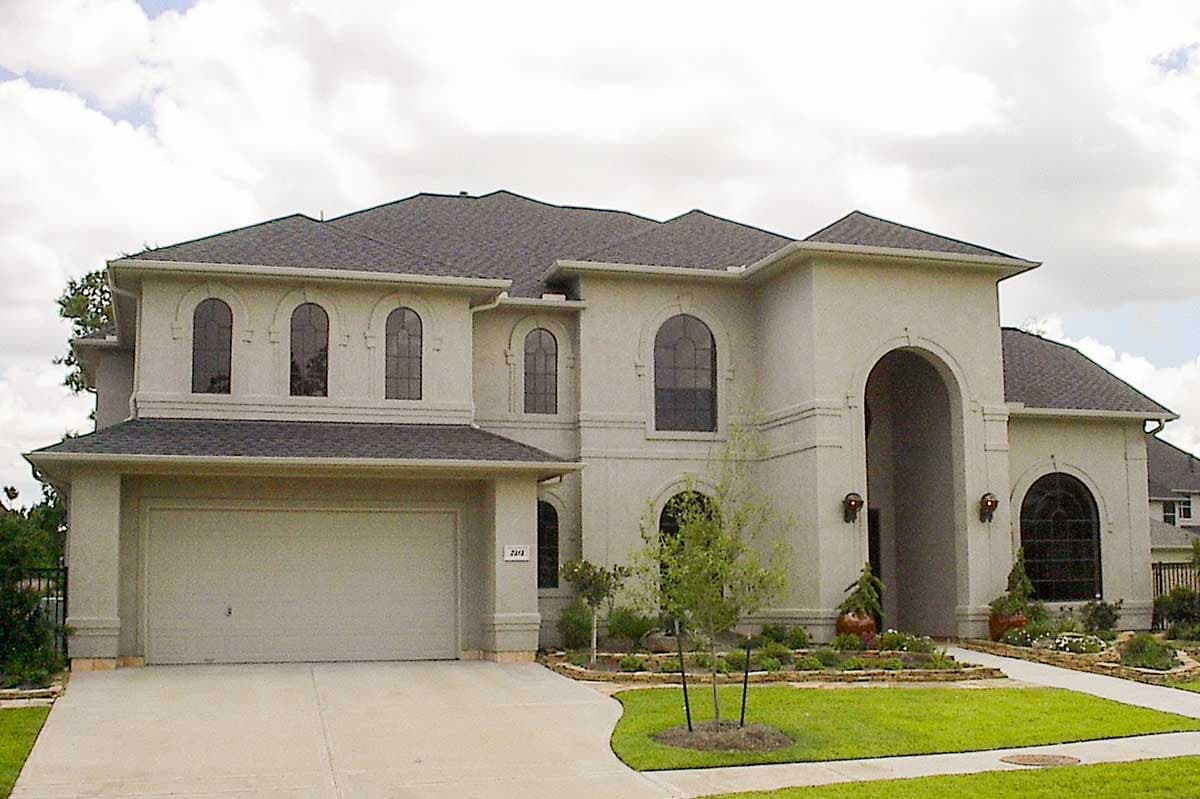

Arched windows give this Mediterranean home an elegant look.
Inside, a magnificent open floor plan gives you sweeping views from room to room.
The two-story foyer showcases an elegant curved staircase.
Even the study has a dramatic two-story ceiling.
A gourmet kitchen features a curved island, walk-in pantry and tons of counter space.

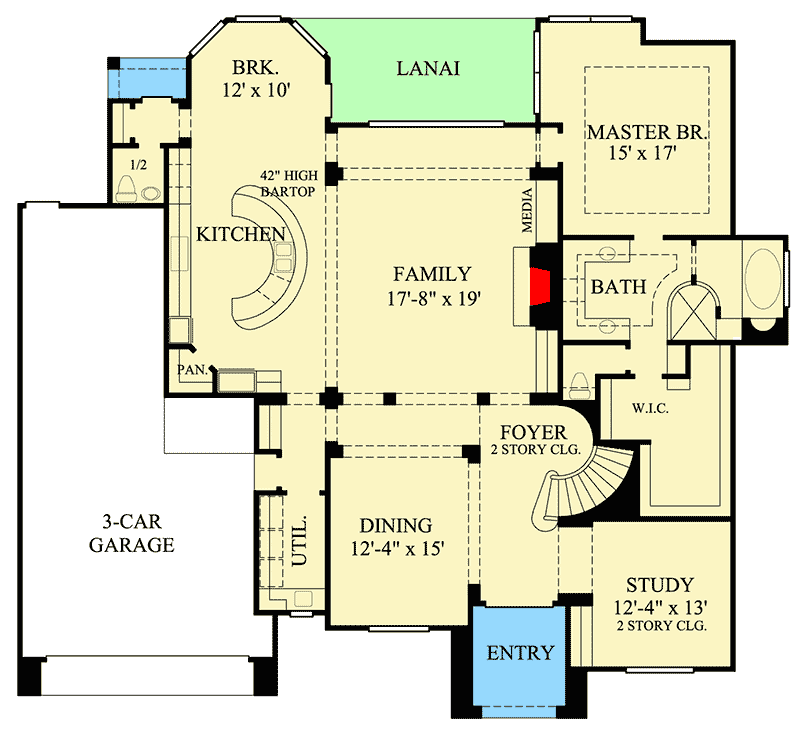

The master suite is located on the main floor and comes with a tray ceiling and huge walk-in closet.

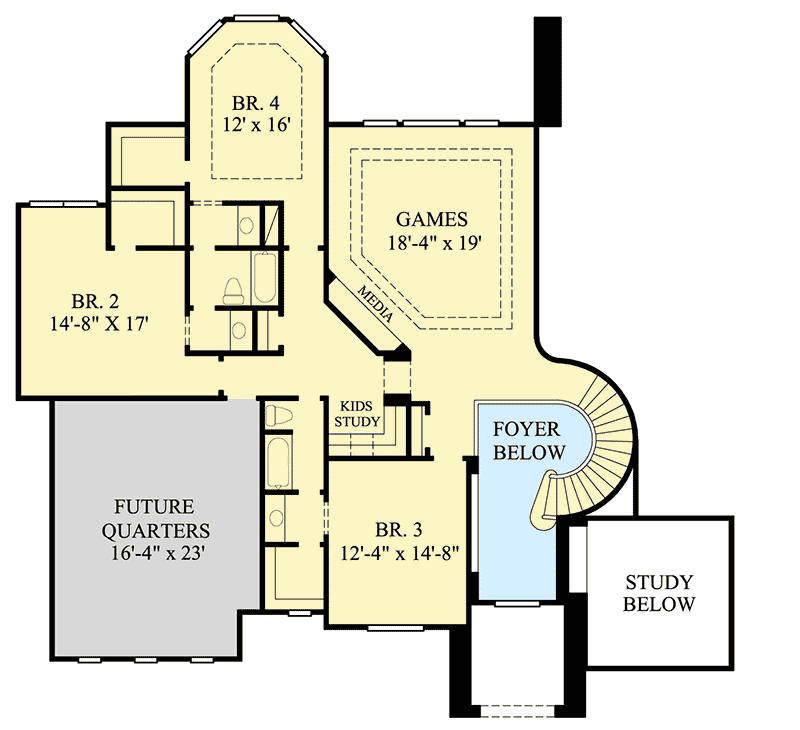

Three family bedrooms are on the upper level along with a grand games room with tray ceiling.
Future space can be finished to suit your needs.
Roof pitch is 7:12

Cover sheet
Table of Contents

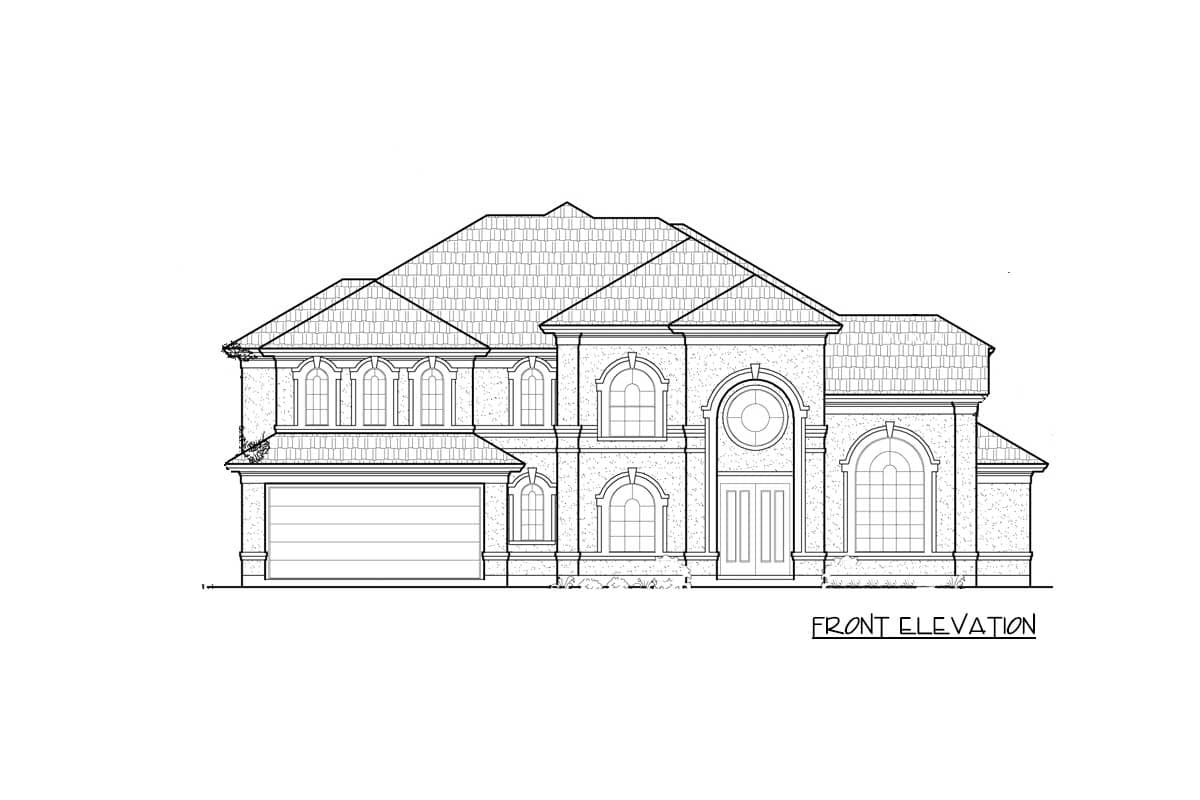

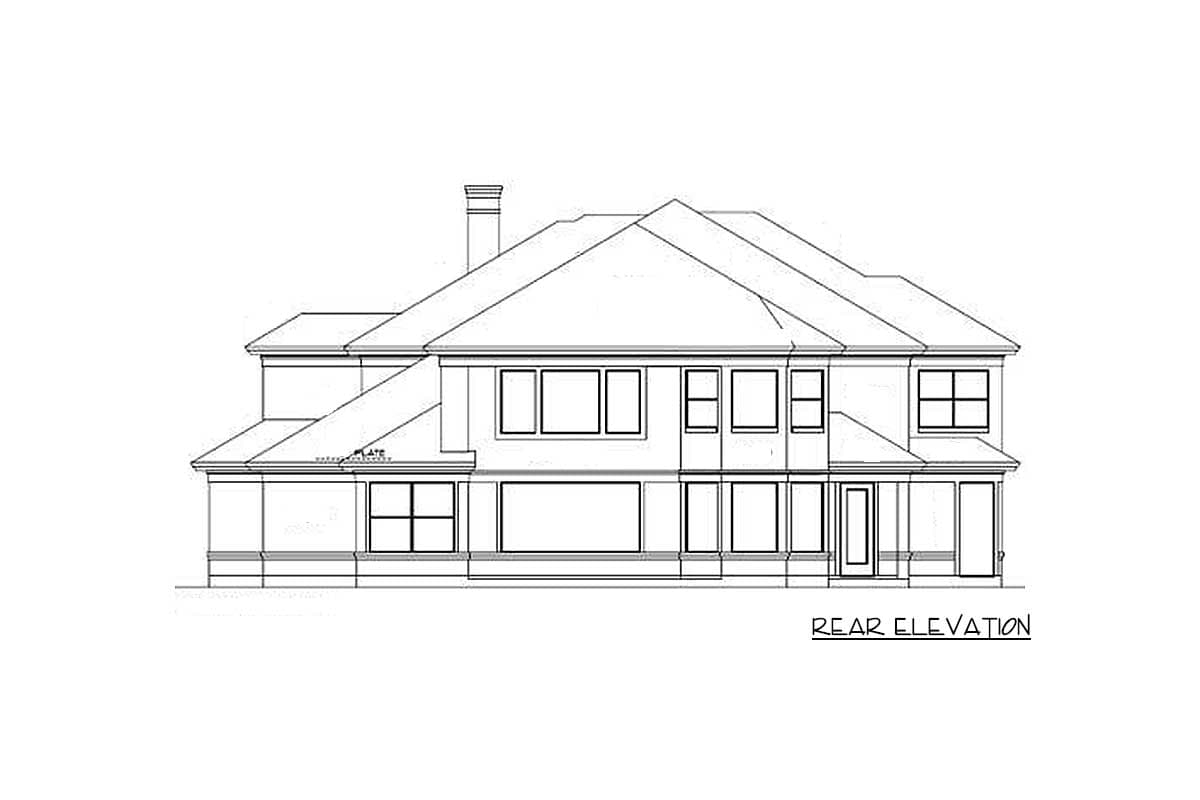

Exterior Elevations (noted and dimensioned)
Floor Plan(s) (noted and dimensioned)
Electrical Plan(s)
Framing Plan(s)
Joist Layout Plan(s),
Foundation Footprint
At least one cross-section, and any other relevant details, including, but not limited to, a typical detail sheet showing common construction methods.

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
