Garage Apartment Plan with Huge Deck

Plan 68737VR

  • 902

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • Get a 2-car drive-under garage in this one bedroom garage apartment plan. It can just as easily be used as an ADU or a rental property as it could as a permanent residence.
  • The ground level has two 8' by 9' garage doors and gives you ample parking and storage.
  • Stairs outside lead to the deck that wraps around the back and is accessible from the great room as well as the combined vaulted living space.
  • The living space in this home feels much larger thanks to the big vaulted and beamed great room.
  • The bedroom is a generous size and there's a large bathroom with a stacked washer/dryer.
  • Related Plan: Get an alternate version with house plan 68515VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

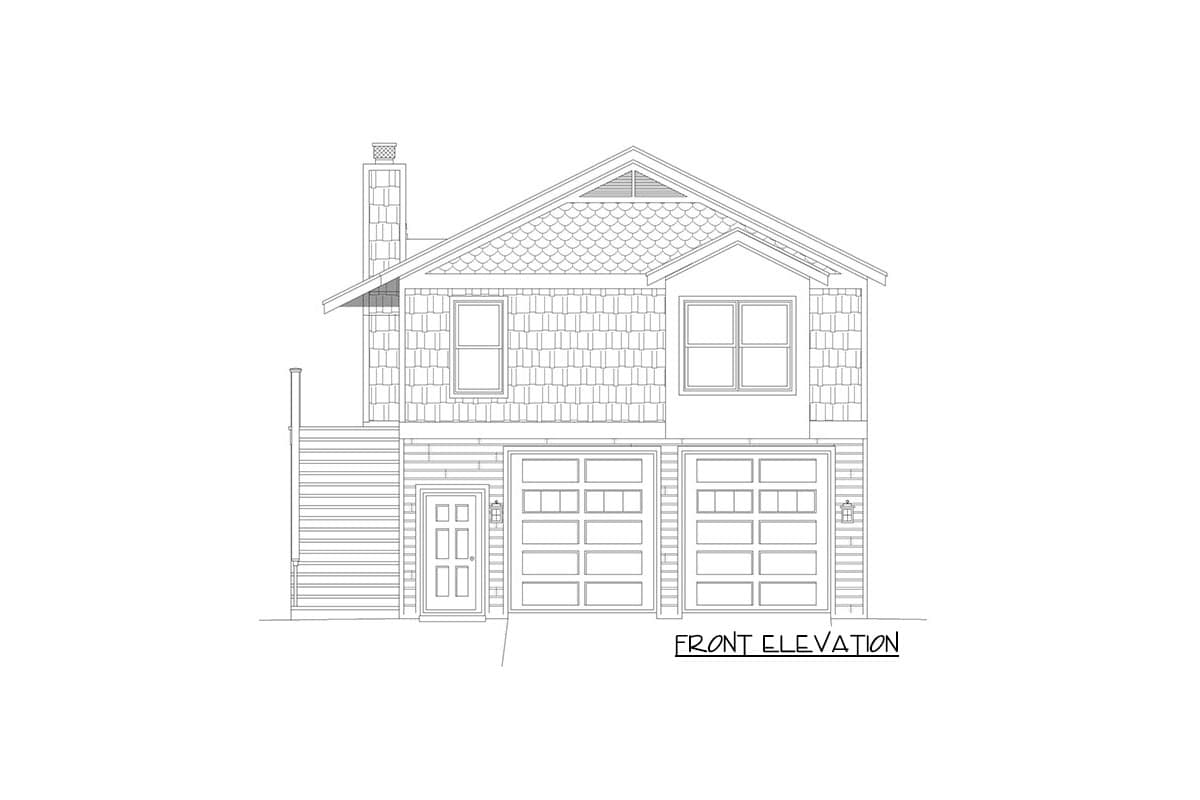

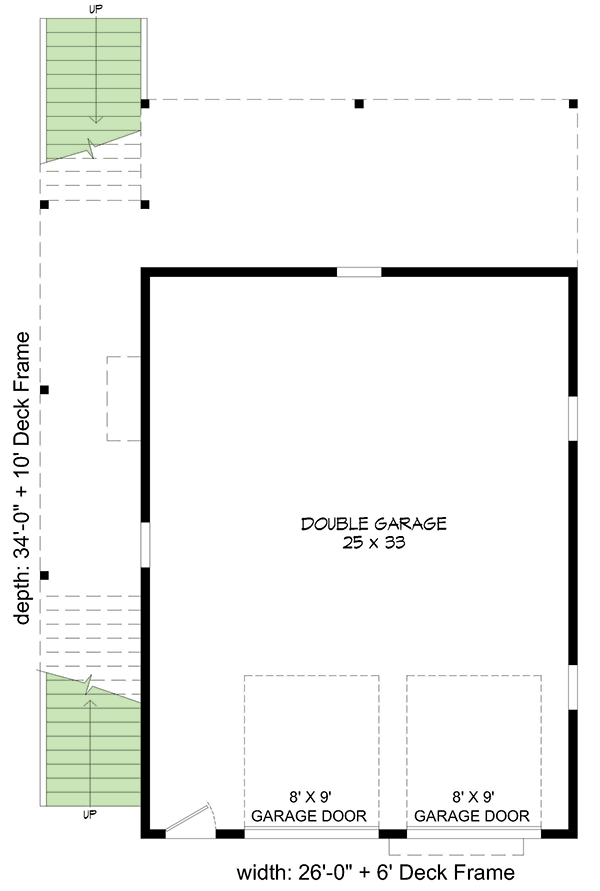

Garage Apartment Plan with Huge Deck - 68737VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

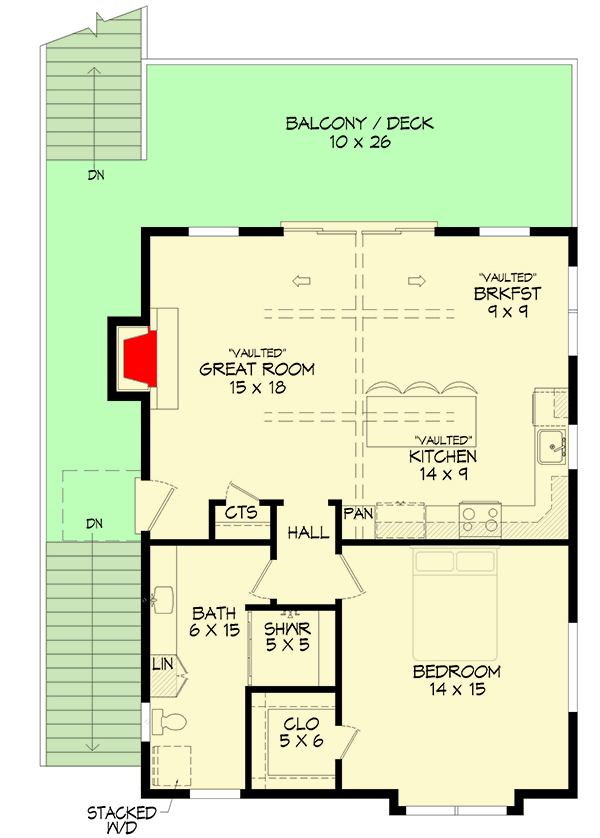

Garage Apartment Plan with Huge Deck - 68737VR floor plan - 2nd Floor

Architectural Style

Plan Collections

Garage Apartment Plan with Huge Deck

  • 902

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 902 sq. ft.
  • 2nd Floor: 902 sq. ft.

Dimensions

  • Width: 32' 0"
  • Depth: 44' 0"
  • Max ridge height: 25' 11"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Drive Under, Attached
  • Area: 884 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 6
  • Framing Type: Stick
