Plan 72996DA

Garage Apartment Plan with RV and Tandem Parking - 872 Sq Ft Apartment and 1663 Sq Ft Garage

Heated S.F.
872
Beds
1
Baths
1.5
Stories
2
Cars
2

Floor Plan

Plan 72996DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72996DA

M-F 9am-5pm EST |

1-203-761-8500

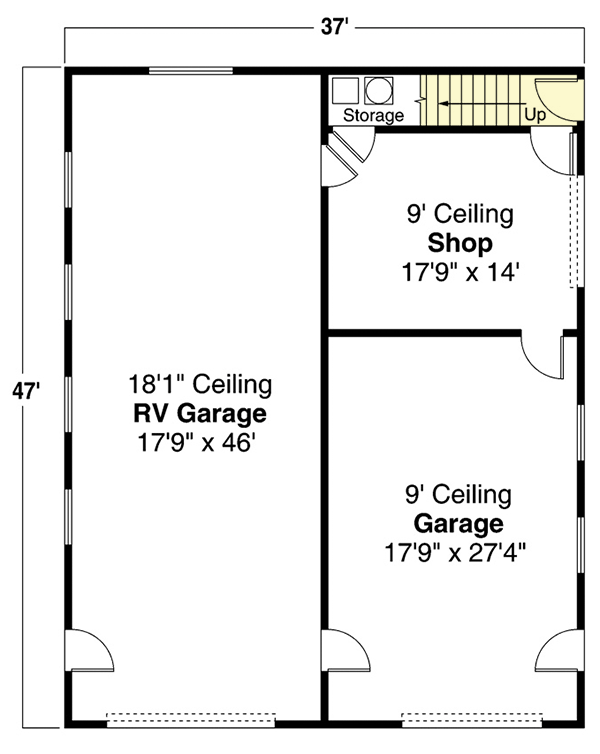

Main Level

Plan 72996DA: Garage Apartment Plan with RV and Tandem Parking - 872 Sq Ft Apartment and 1663 Sq Ft Garage - Floor Plan - Main Level - Carriage, Country, Traditional

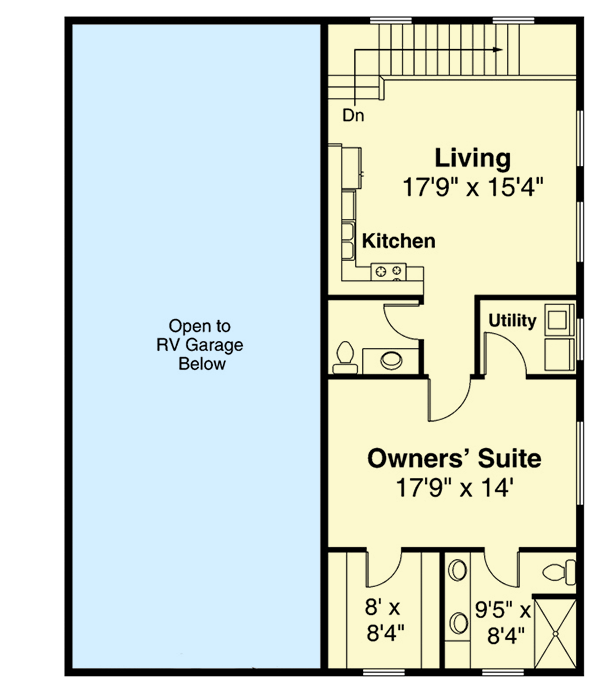

2nd Floor

Plan 72996DA: Garage Apartment Plan with RV and Tandem Parking - 872 Sq Ft Apartment and 1663 Sq Ft Garage - Floor Plan - 2nd Floor - Carriage, Country, Traditional

Plan Details

  • This garage apartment plan gives you plenty of room for your vehicles as well as a modest living area.
  • The upstairs is a complete apartment with a full master suite, walk in closet, two bathrooms and a full size kitchen. Access to the upstairs unit from the stairs in the back of the garage.
  • The garage features vaulted ceilings giving you room for an RV on the left and a sizable shop and 2-car garage on the right. The RV garage has a 12' wide by 14' tall door, and the garage door is 10' wide and 8' tall. The shop has an overhead door that is 8' wide and 8' tall.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

872 sq. ft.

1st Floor

76 sq. ft.

2nd Floor

796 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 0"

Depth

47' 0"

Max Ridge Height

27' 8"

Garage

Type

Detached, RV Garage

Area

1663 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Carriage

Country

Traditional

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Workshop

Square Footage Breakdown

Total Heated Area

872 sq. ft.

1st Floor

76 sq. ft.

2nd Floor

796 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 0"

Depth

47' 0"

Max Ridge Height

27' 8"

Garage

Type

Detached, RV Garage

Area

1663 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Carriage

Country

Traditional

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Workshop
