Plan 23960JD

Garage Plan with Carport and Open Living Space and Loft - 1100 Sq Ft of Parking

Heated S.F.
1,433
Beds
0
Baths
1
Stories
2
Cars
3

Floor Plan

Plan 23960JD

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 23960JD

M-F 9am-5pm EST |

1-203-761-8500

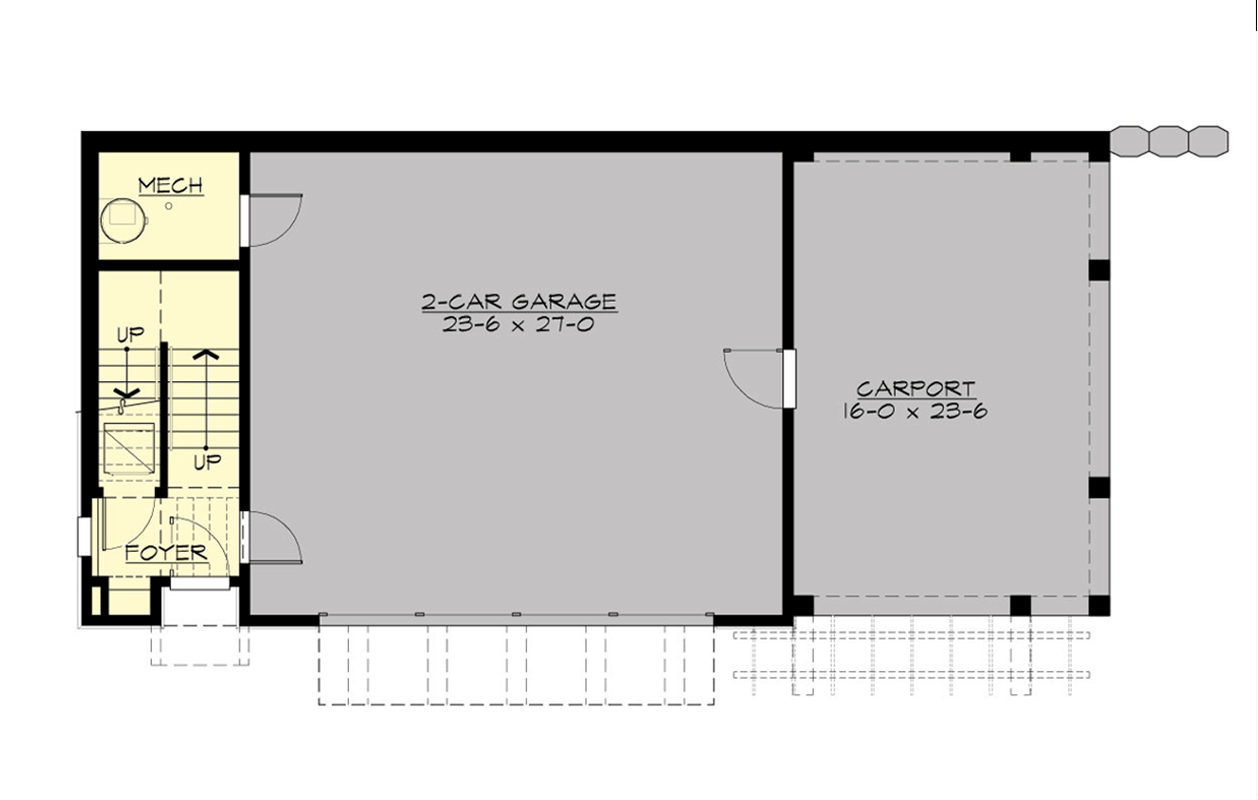

Main Level

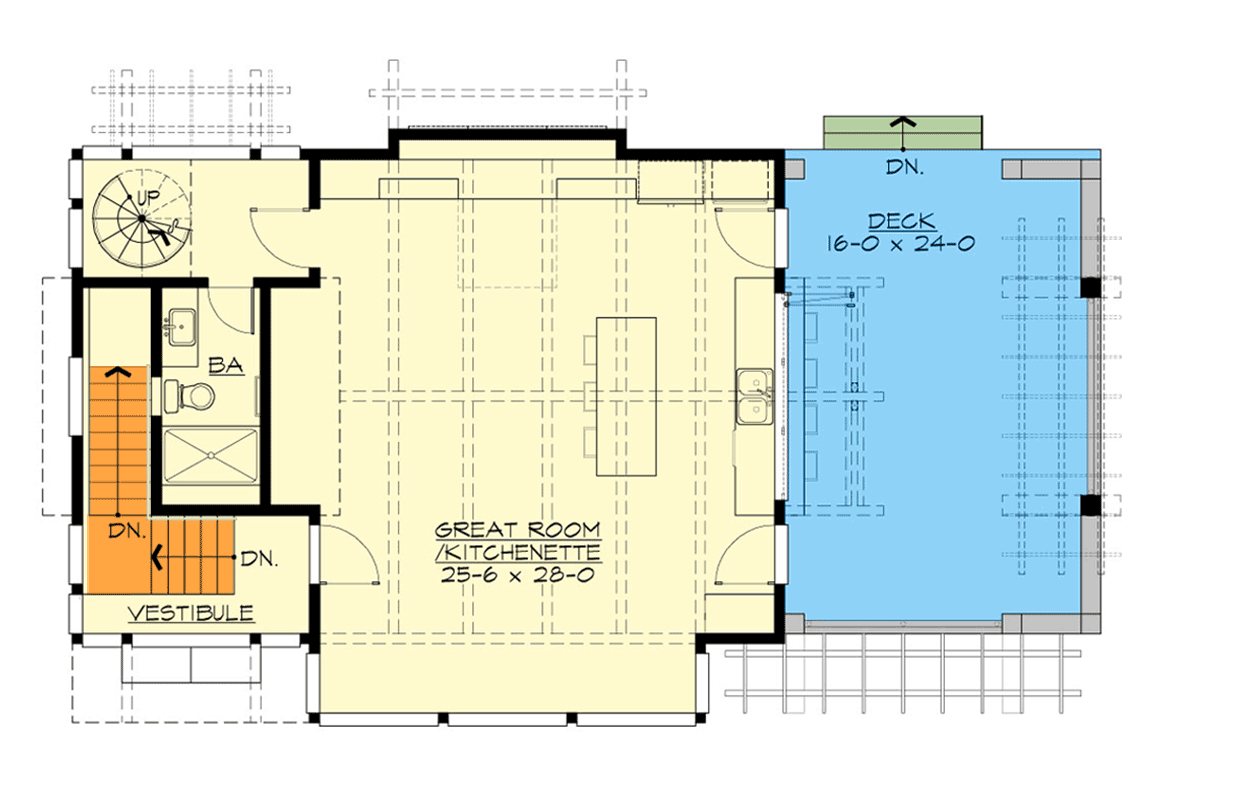

Plan 23960JD: Garage Plan with Carport and Open Living Space and Loft - 1100 Sq Ft of Parking - Floor Plan - Main Level - Craftsman, Shingle

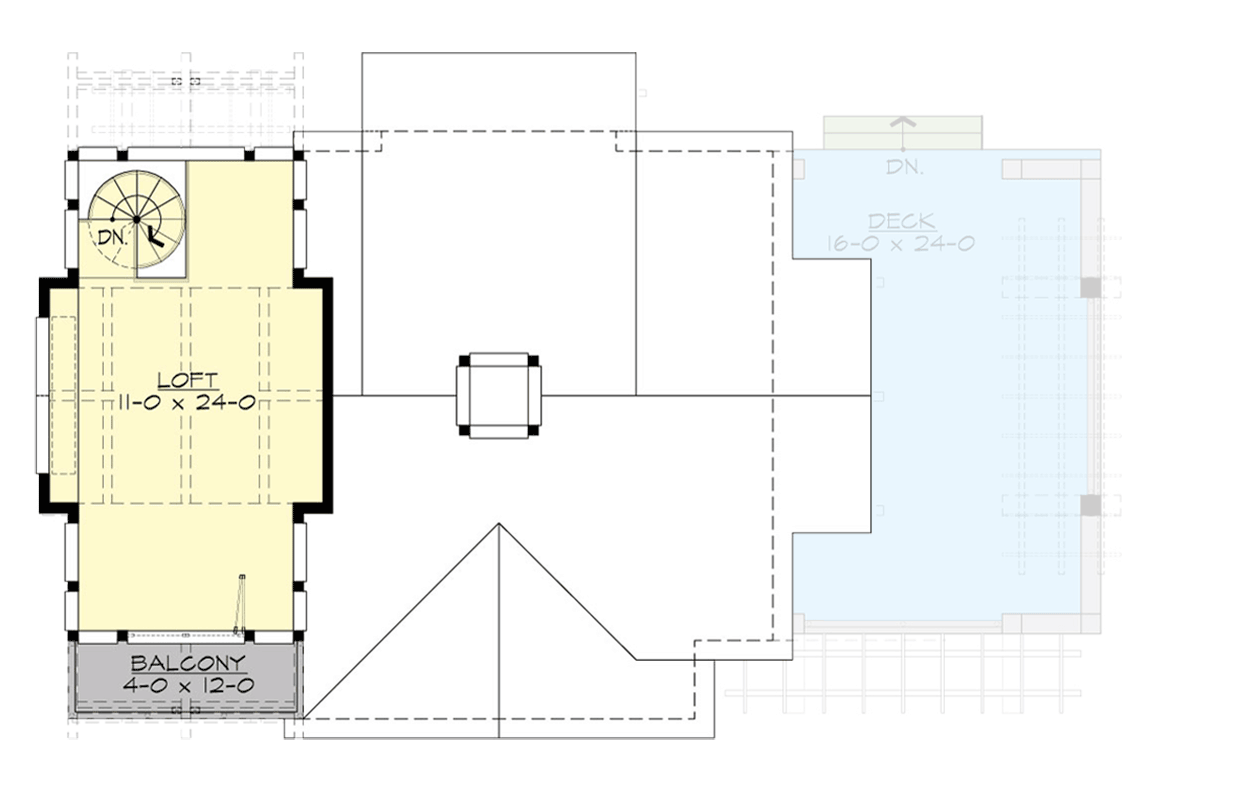

2nd Floor

Plan 23960JD: Garage Plan with Carport and Open Living Space and Loft - 1100 Sq Ft of Parking - Floor Plan - 2nd Floor - Craftsman, Shingle

3rd Floor

Plan 23960JD: Garage Plan with Carport and Open Living Space and Loft - 1100 Sq Ft of Parking - Floor Plan - 3rd Floor - Craftsman, Shingle

Plan Details

  • This garage plan gives you a 2-car garage with a single overhead door and a carport giving you a combined 1,100 square feet of parking space.
  • Above the garage, there is a beamed open space with a kitchenette and great room that connects to an outside covered deck.
  • The top floor has a loft accessible by a spiral stair and with a balcony overlooking the front.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: If building in the state of Washington, your plan purchase cannot be done online.  Please contact us directly.

What's Included

  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

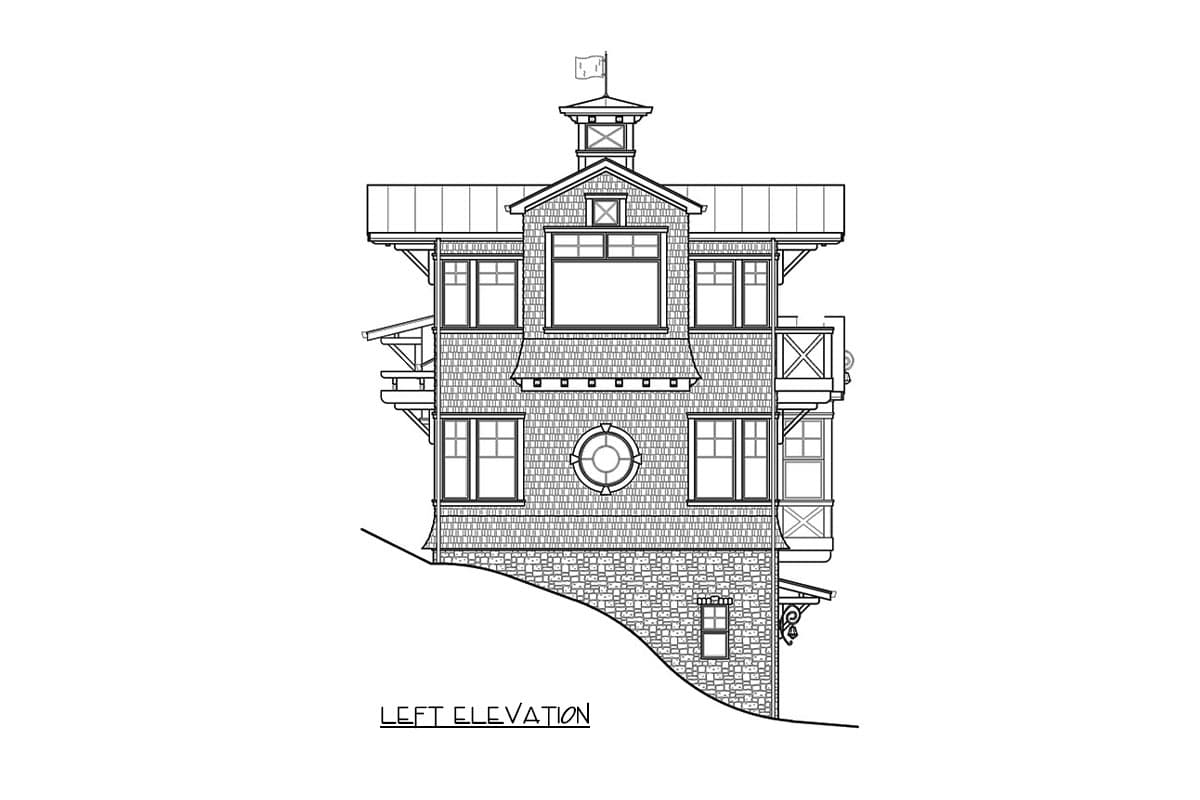

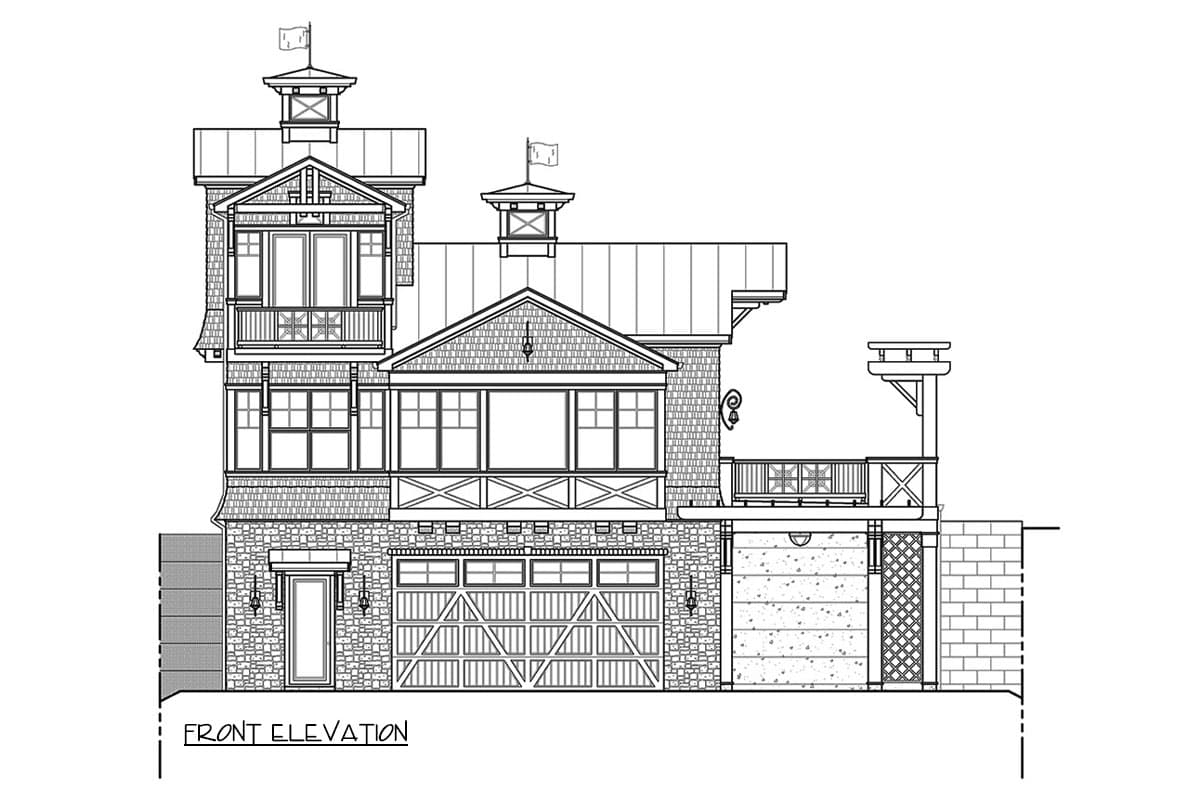

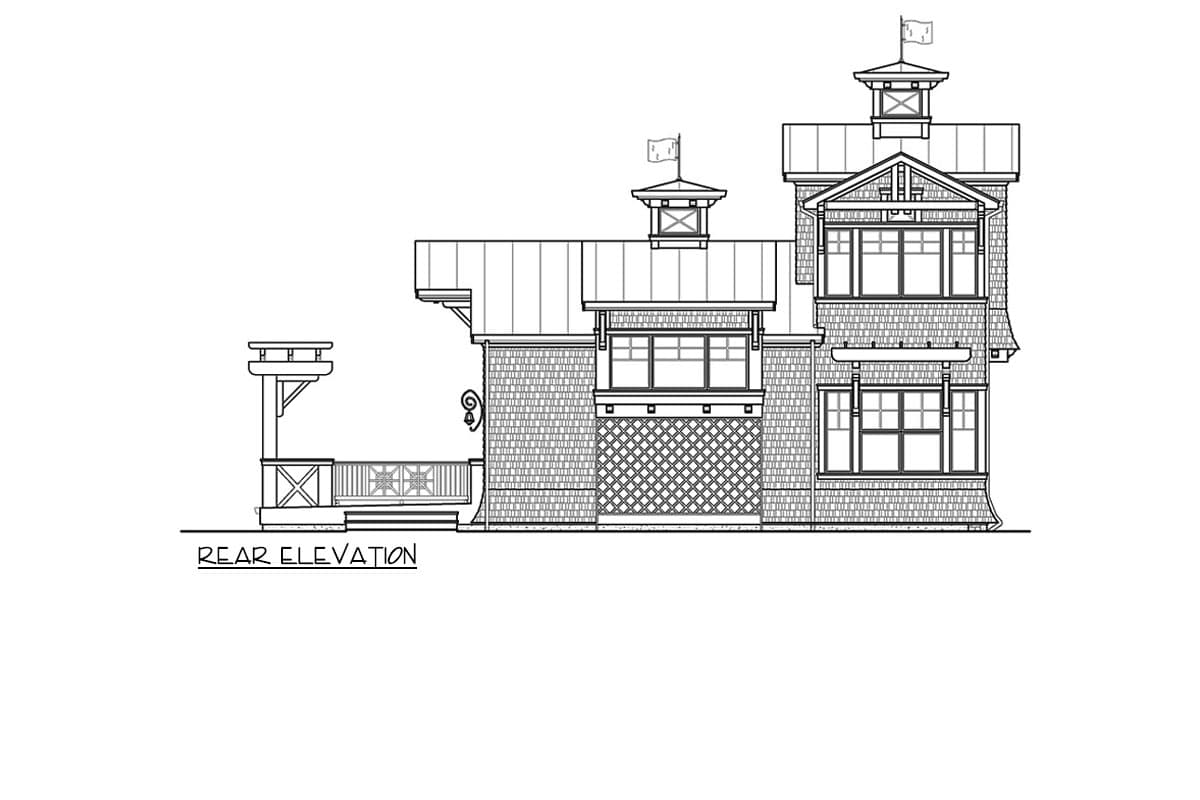

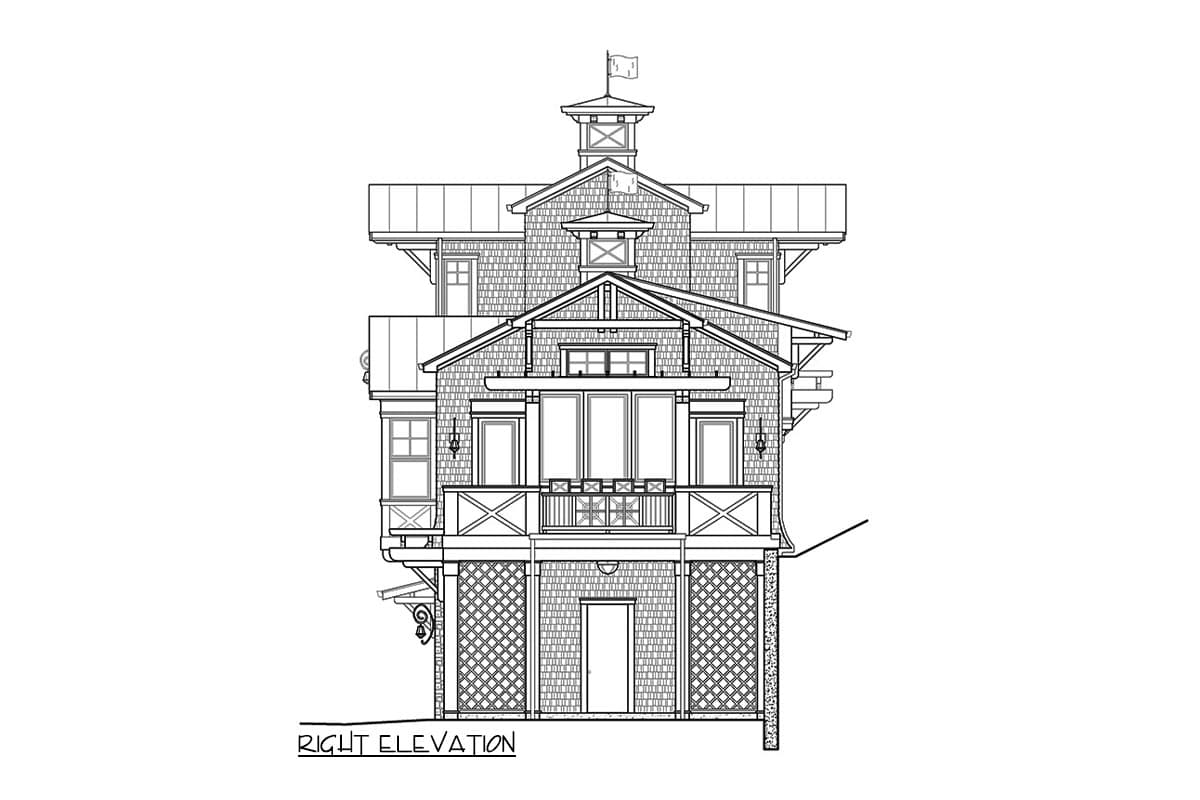

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
View Sample Plan

What's Not Included

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,433 sq. ft.

Lower Level

190 sq. ft.

1st Floor

944 sq. ft.

2nd Floor

299 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 6"

Depth

29' 0"

Max Ridge Height

27' 0"

Garage

Type

Detached, Carport

Area

1100 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

12'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Craftsman

Shingle

Special Features

Loft

Square Footage Breakdown

Total Heated Area

1,433 sq. ft.

Lower Level

190 sq. ft.

1st Floor

944 sq. ft.

2nd Floor

299 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 6"

Depth

29' 0"

Max Ridge Height

27' 0"

Garage

Type

Detached, Carport

Area

1100 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

12'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Craftsman

Shingle

Special Features

Loft
